G type pattern sewing machine is for sewing material with different layers, where climbing-stitch or dropping-stitch will require automatic presser foot lifting function. For thickness differential crossing layers is between 2-5mm, gear type presser foot lifting equipped pattern sewer machine can help; and for 6-15mm will required belt type model. Here we will introduce this G type automatic sewing machine for you to understand how to choose a right machine to get your job done easily and quickly.

Although we are selling different programmable automatic sewing machine industrial , if our model number is adding a “G” in the end, it’ll be different, such as IH-3020 vs IH-3020G, here IH-3020G is not only standing for 300*200mm sewing area as same as IH-3020, but also equipped gear or belt device to support mid-presser-foot lifting function which IH-3020 has none. Here is how the different is:

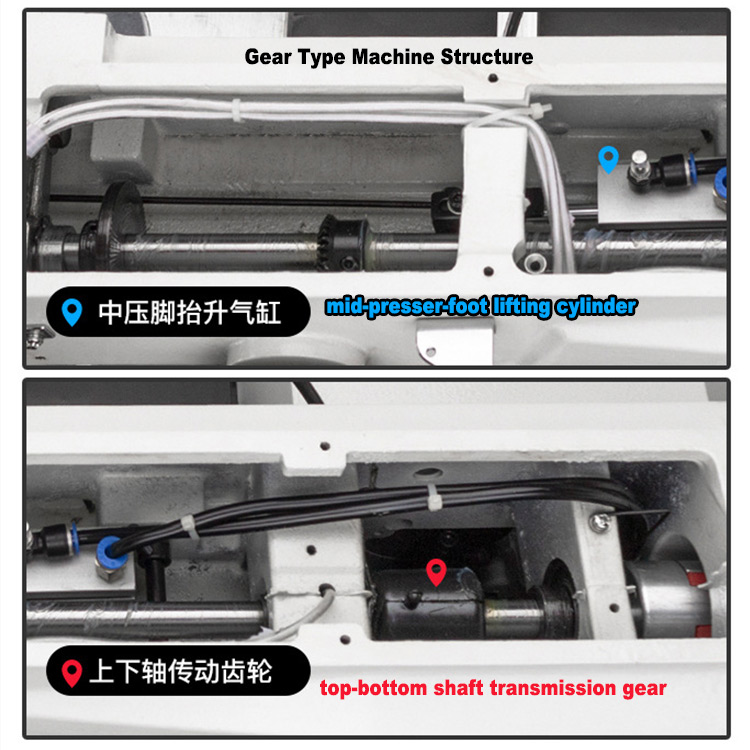

As you can see above pictures showing that gear type and belt type are using different mechanical structure to support top-bottom shaft transmission for mid-presser-foot lifting. Of course using belt and motor can achieve more precise and bigger power in presser foot lifting operation than gear and cylinder solution. Though same machine sewing size same mark as G type, there will be 300-500USD/set price difference for two solutions. It depends on your sewing projects: climbing small layer height use cylinder power and gear transmission, and climbing big layer height use motor power and belt transmission. This is very important for single needle sewing machine as automatic solution.



As many sewing machine factories applying Mitsubishi type machine head solutions, we are joining them to achieve cost-saving and easy-replacement, and more focus on mechanical stability and software user-friendly. We mainly apply Dahao control system for our machine, we trust Dahao because not only it’s China-Germany incorporated technology and listed company (stock market listed code: 603025), but also we enjoy each other’s cooperation and development for years. And it's easy to use extra sewing machine parts such as cap visor automatic spare parts to make specific automation operation.

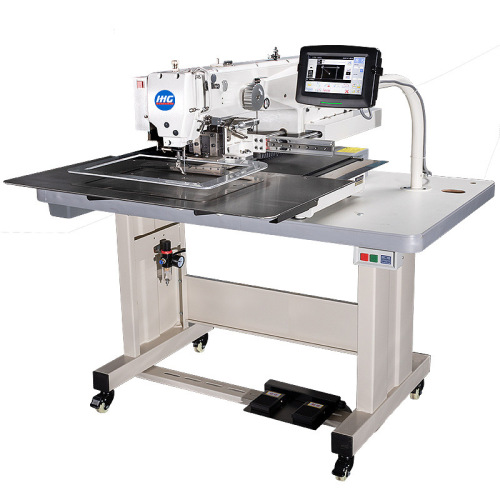

Parameter of IH-3020G industrial sewing machine:

Model	IH-3020G
Sewing Area	X300mm*Y200mm
Speed Range Divided	10 sections range from 200-2000RPM
Power	220V 50~60Hz (110V power supply should use transformer to converting 110V input to 220V for the machine, we are able to provide CE approval transformer with extra cost)
Motor	Direct drive servo motor 750W
Max Speed	2700RPM
Sewing Needle Type	DP*17 18#
Hook Type	Rotary hook(two times)
Max Stitches Per Pattern	20,000 stitches
Needle Length	0.05mm~12.7mm(0.05mm per unit)
Pneumatic air consumption	0.5MPa 1.8L/min
Memory Type:	RAM/USB/SD
Presser Foot Type	Pneumatic control (-G type equipped with extra step motor for lifting function, achieve better sewing performance)
Inside Presser Foot Lifting	20mm
Outer Presser Foot Lifting	32mm
Packing Dimension	125*75*134cm wooden box packing
Weight	160kgs N.W.   230kgs G.W.

We'd love to classify our G-type automatic pattern sewing machine base on pattern sizes, in other words, the sewing range of pattern length vs width when we sew the material:

1. Small size sewing machine:

Model NO.	IH-3020G	IH-2010G
Sewing Range	300*200mm	200*100mm
Popular application example	Sport shoes upper / vamp decorative stitching, jeans pocket, sports glove, etc.	Trademark automatic stitching, Velcro automatic stitching, jeans damaging stitch, etc.

2. Middle size sewing machine:

Model NO.	IH-4030G	IH-4020G
Sewing Range	400*300mm	400*200mm
Popular application example	Safety glove, handbag, schoolbag, etc.	Safety belt, shoes insole, baseball mitt etc.

3. Large size sewing machine:

Model NO.	IH-5030G	IH-6040G
Sewing Range	500*300mm	600*400mm
Popular application example	Large leather bag, Car cushion, upholster material	Large leather bag, Car cushion, upholster material

If you’d love to customized other sizes for your specific application, we are able to help you with it, and also with such machines, we are developing many different models or solutions for automatic applications. We are always glad to help you with your patterns that can be sewn with our automatic programmable machine.
