Gasoline concrete vibrator is worked with concrete vibrator shaft. And it is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.

- Product Specification

Model	ZH50GV-5.5HP	ZH80GV-6.5HP
Engine type	OHV	OHV
Output	5.5HP	6.5HP
Start system	Recoil	Recoil
Fuel tank	3.6L	3.6L
Displacement	163CC	196CC
Fuelconsumption	295G/HP.HR	280G/HP.HR
Oil alarm	With	With
Shaft model	Cv38	Cv45
Steelhead	38x470MM	45x470MM
Frequency(V.P.M)	9800-12000	9800-12000
Speed(RPM)	3000	3000
Swiny(MM)	1.2	1.3
Standard lengths(M)	4.5.6	4.5.6
Weight(KG)	18	19

- Product Details:

Coupling type :

chinese type

Japanese type

Malaysia type

Australian type

Shaft type :

1) China common type

2) Japanese type (with clamp)

3) Japanese type (hexagonal joint)

4) Malaysia type (Dynapac joint)

5) Australian type (3 prong head joint)

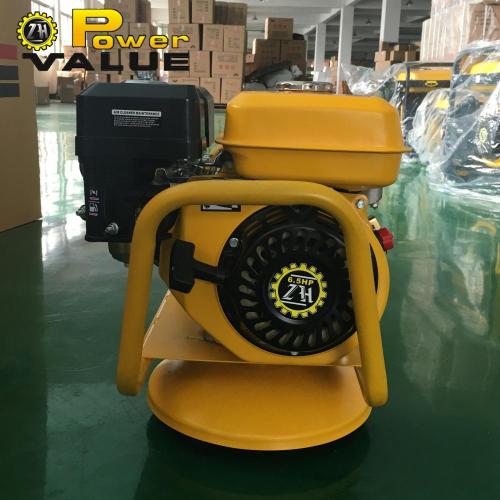

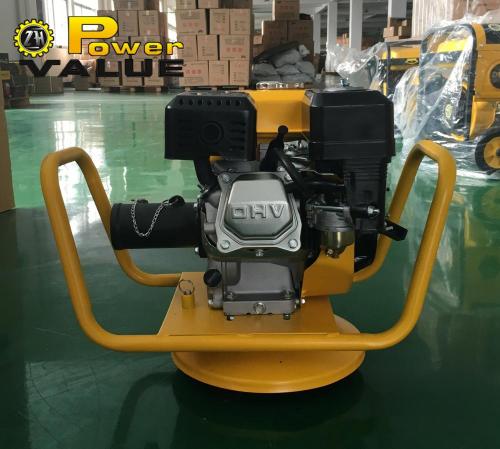

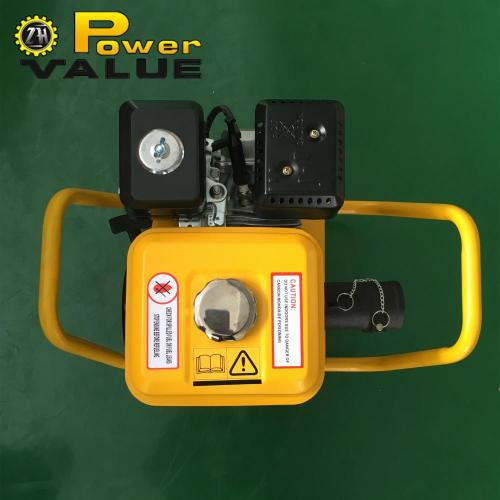

- Product photo:

- Company view:

A: We are a factory.

2.Q:Where is your factory located?

A: Our factory is in Duqiao,Taizhou city, Zhejiang Province, China.

 It's near Ningbo & Shanghai port.

 It's about 1hour from Luqiao air port by car, 45 minutes from Huangyan train station by car.

3.Q:What is the material of your products?

A: Iron,Steel,plastic,etc.

4.Q:How about quality control in your factory?

A:"Quality is first, Customers are friends".

Taizhou PowerValue people are always paying great attentions to quality controlling

from the beginning to the end. Every piece of goods is tested strictly one by one before packing.

We keep goods to meet the standard of CE,CCC, ISO9001:2000.

5.Q:How about guarantee?

A: It's within three months after goods is discharged in the destination.

During that period,if some breakdown easily spare parts need to change,my factory offers free.

For example, fuel cock,spark plug,starting hand,etc.
