SHENXI brand SC200/200 Construction Elevators are for peopel and material upright transport. It is CE certified ( European Standard).

The cage is made of aluminum alloy, light and anti-rust. For the safety, the hoist is equipped with Fall-arrest device, overload device ,electromechanical interlocking device and limit switch and VF device as option.

Designation Series	SC100	SC100/100	SC150	SC150/150	SC200	SC200/200
Rated Load (kg)	1000	2×1000	1500	2×1500	2000	2×2000
Allowed Persons	12	24	18	36	24	48
Max. Lifting Height (m)	150	150	250	250	250	250
Motor Power (kw)	2×11	2×2×11	2×13	2×2×13	2×11	2×2×11
Rated Current (a)	2×24	2×2×24	2×24	2×2×27	3×24	3×2×24
Power Capacity (kva)	34	2×34	42	2×42	49	2×49

The SC Construction Hoist

Mast is designed with sophisticated and modern software which has been used by highly experienced professional designers to develop a product that has optimized weights, resistance and practical utilization to create a customer offering that is best in class.

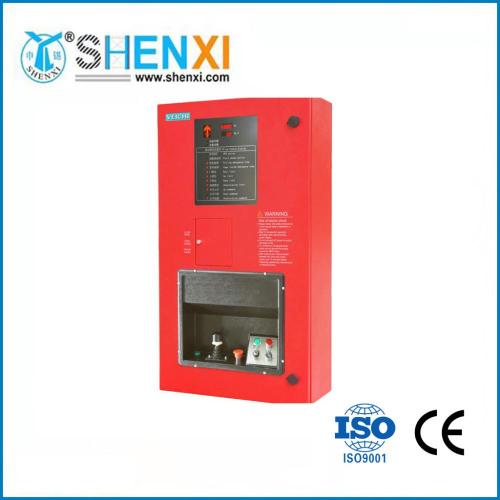

THE ELECTRIC CONTROL PANEL

All command required for use of the platform and control of the safety systems are contained in this unit, placed. The key-switch is also positioned on the panel and permits use as a Transport Platform (speed of 12 m/min) or Material Hoist (speed 24 m/min).

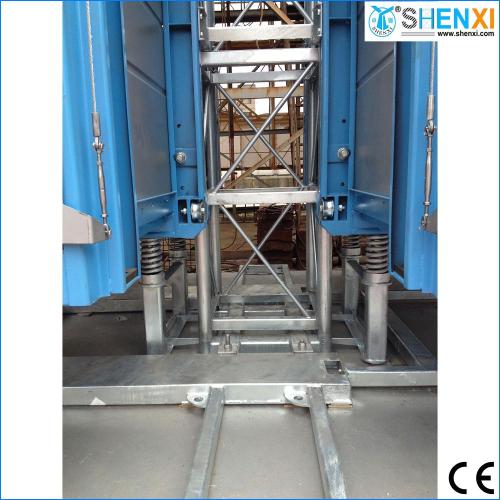

THE STRUCTURE

The structure is made up of bended and perforated plates, which in addition to being a structural element becomes a rigid and anti-slip walking surface. Hot dip galvanizing ensures that the surface remains the same over time, avoiding the need for maintenance and replacement of the surface itself. Erection platform and ramps use the same construction system and surface treatment process.

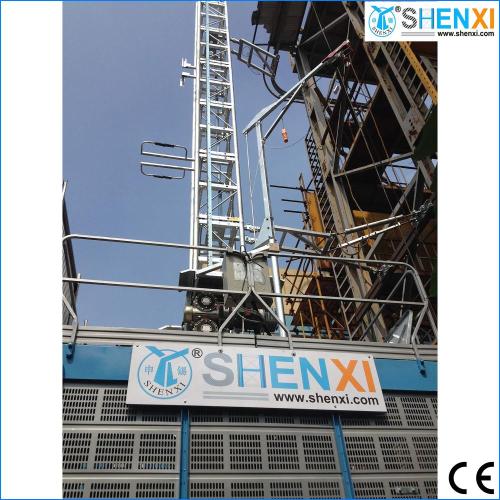

THE ERECTION PLATFORM

The erection platform facilitates smooth operation with regards to fastening the masts during erection and fastening the mast ties to the wall, and can be positioned on both sides of the platform.

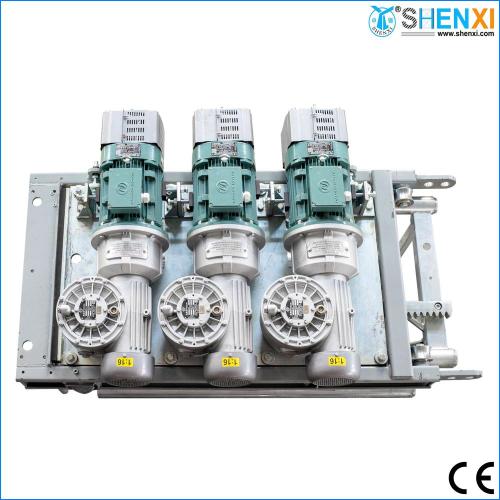

THE DRIVE UNIT

The drive unit runs on a mast sections (hot dip galvanized) by means of a series of guide rollers, mounted on a tandem frame to distribute the pressure in a consistent manner, giving rise to less wearing, a smoother travel and a longer life for the mast sections. The two-speed or single-phase gear-motor overload system and safety device system are all installed in the center.

THE MAST SECTIONS

The mast sections are fixed to each other by means of four high strength bolts, making assembly quick and safe and thereby eliminating tip over. The rack is screwed to the mast.

Leading Material Loading Platform Manufacturer

Shenxi machinery Co., Ltd, established in 1988, is one of the domestic leaders in Material Loading Platform industrial. We are dedicates to designing and manufacturing a wide range of suspended loading equipment, such as Material Loading Platform, model STP and SMH is most popular models.

At Shenxi, we clearly realize that quality is the life of a company. In order to provide better loading access equipments, we employ experienced technicians, import advanced equipment and implement strict quality control. We now have over 30 Shenxi offices and branches which serve over 70 countries and regions around the world.

Factory overview will show a real factory in front of you, which includes:

showroom (projects and qualification)

Welding workshops

Hoist product workshop

Quality checking

Electrical workshop

Warehouse

Shipment
