container panel roll forming making machine
Basic Info
| Model No. | 30-249-748 |
|---|---|
| Brand Name | XF |
| Certification | Other |
| Usage | Other |
| Tile Type | Colored Steel |
| Condition | New |
| Customized | Customized |
Product description

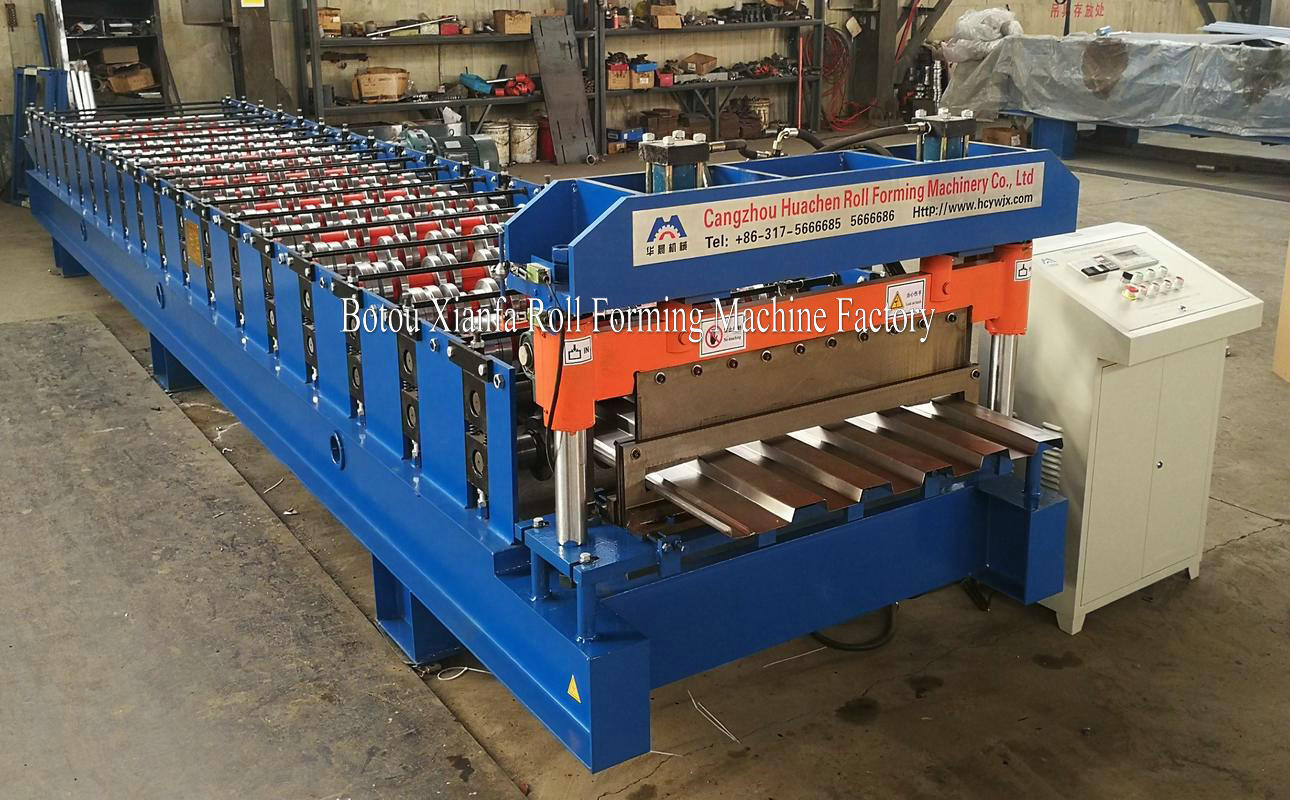

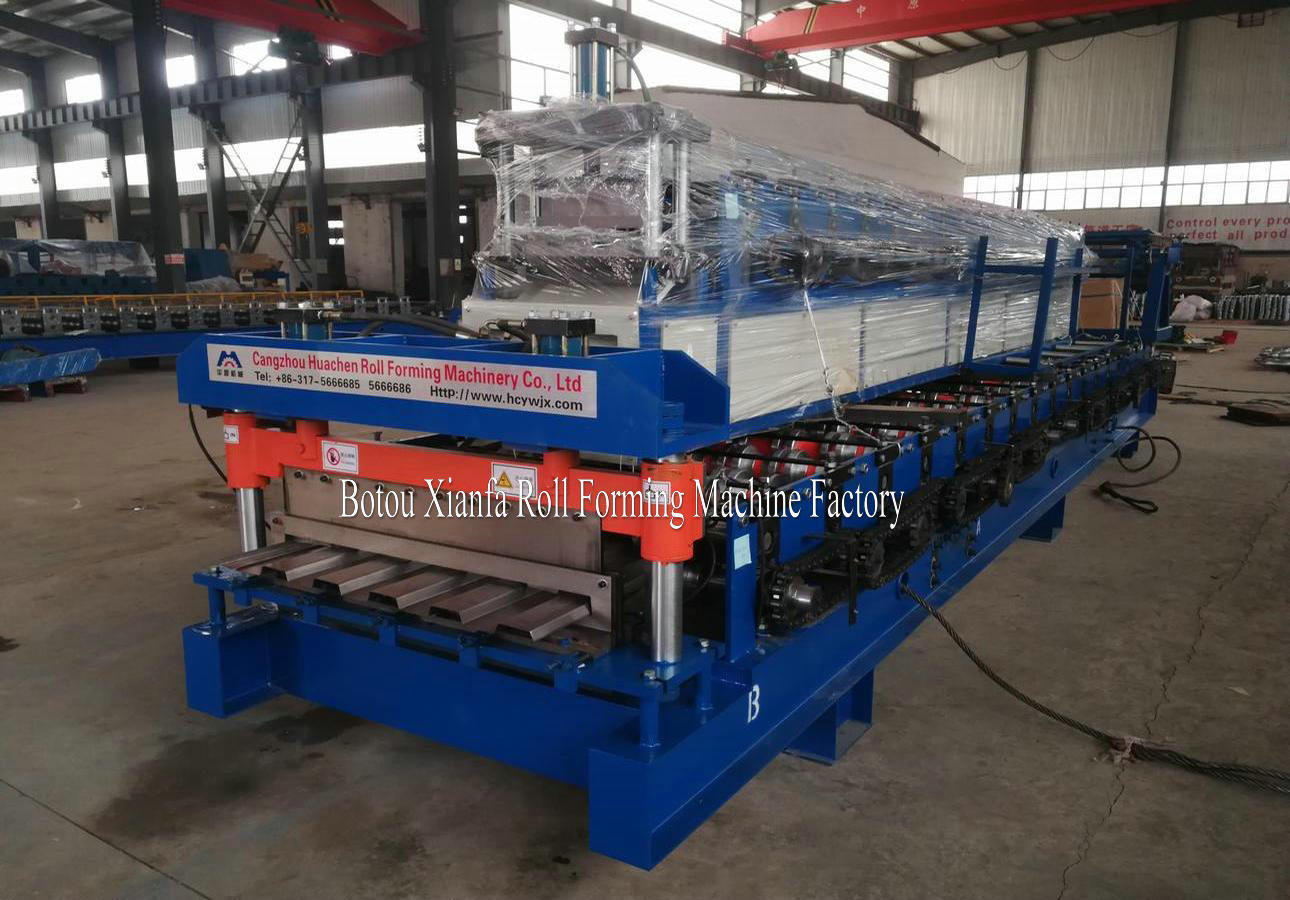

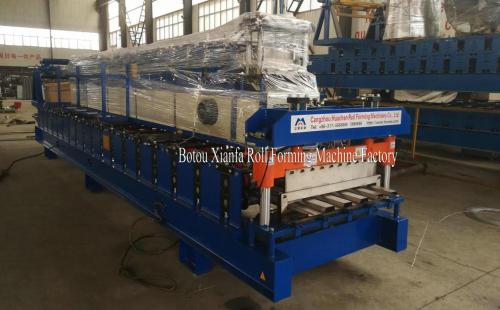

container panel roll forming making machine
This is a container panel roll forming machine and carriage board making machine.
It is used to produce container panel and the carriage board. We can customize roof sheet roll forming machine according to your profile drawing of container panel and carriage board.

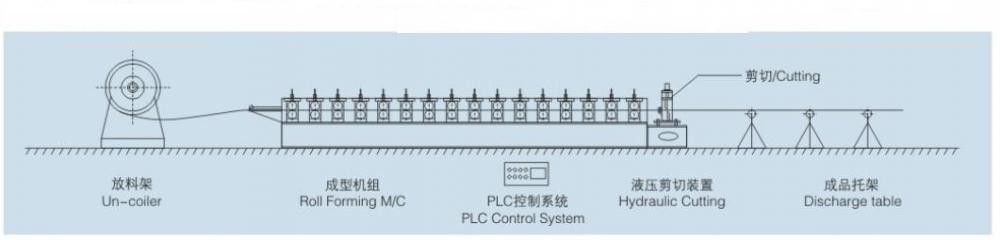

Industrial Process And Component Specification

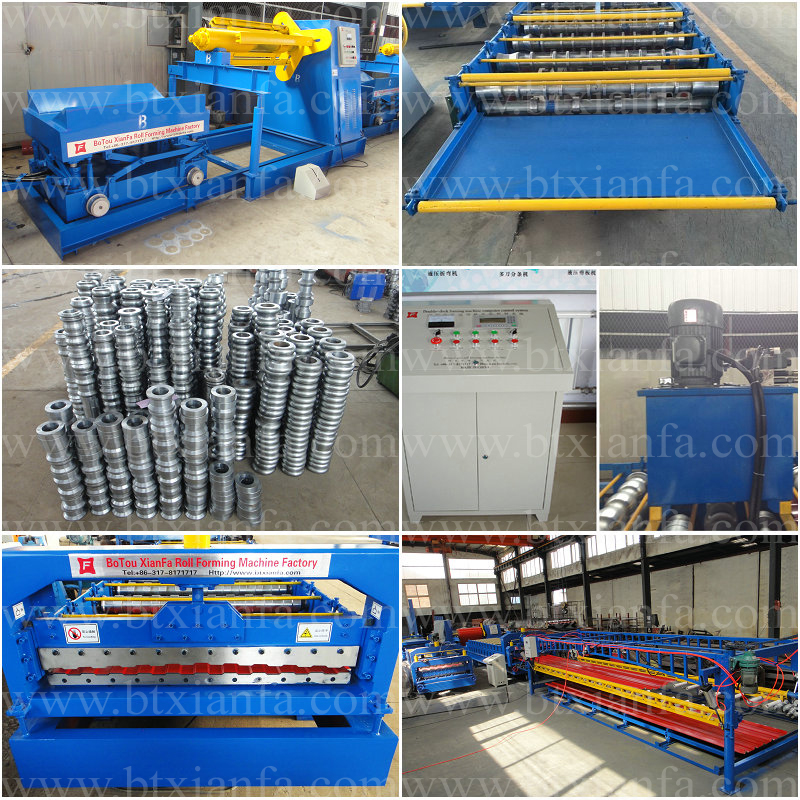

Component Specification
1. Manual Uncoiler:
Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity: 5T
Inner diameter: 500-508mm
2. Feeding Table:
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

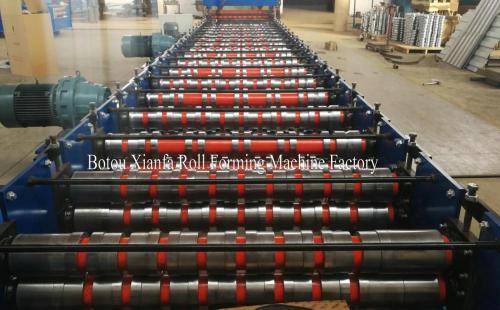

3. Main Roll Forming Machine:
Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped
4. Hydraulic System:
Power: 11KW, Hydraulic oil:40#.
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
5. Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.
6. Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Plc: EURA

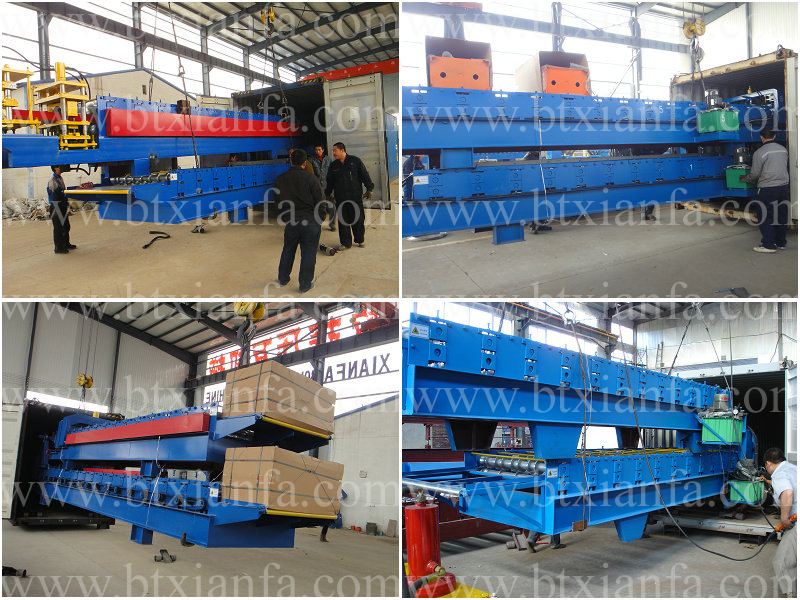

1. We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
Our Services
1. Warranty
One year,and we will provide technical support for wholelife of the equipment.
Botou Xianfa Roll Forming Machine Factory
Recently,our products have been exported to more than 80 countries and regions over the world
and maintained good cooperative relations with customers
We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever
Company Certification
If you need our product, please contact me
Looking forward to cooperate with you
