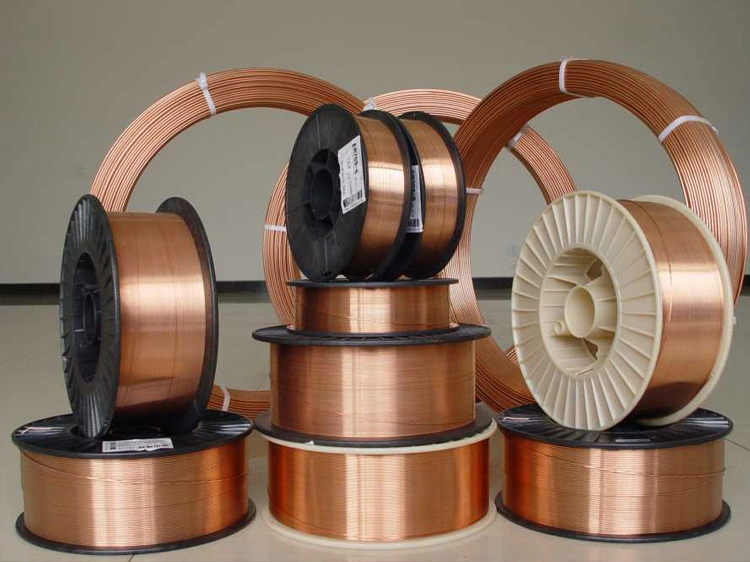

copper coating welding wire
Applicable materials:
- Cast Iron
- Mild Steel
- Steel
Options:
- 250kg or 15/20KG
Basic Info
| Model No. | ER |
|---|---|
| Brand Name | Vankey |
| warranty period | 3 Years |
| Certification | Scoc, Iecee |
| Support customization | Odm |
| place of origin | China |
| Diameter | 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm |
Product description
solid MIG welding wire alloy steel wire
Different kinds of welding wire can be supplied by us, CO2 gas shielded Flux-cored welding wire, Solid welding wire, Hard-surfacing wire, submerged wire, Argon Arc wire, Stainless Wire, Aluminum wire and so on;Also all kind of Electrodes including the Carbon Steel, Low Alloy steel, Heat-resistant steel, Low temperature steel, Stainless steel, Surfacing and Cast iron.
Welding Wire is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.
Main Characteristics:
1. Low welding costs.
2. High productivity and low electricity consumption.
3. Easy to operate. All-position welding.
4. Very low hydrogen content in the weld and lower nitrogen content. Excellent crack-resistance.
5. Little deformation after welding.
6. Wide applicability. Suitable for welding thin, medium and thick plates.
Chemical Compositions of mig welding wire
| C | Mn | Si | P | S | Ni | Cr | Cu | V |
| 0.08 | 1.51 | 0.89 | 0.015 | 0.013 | 0.016 | 0.021 | 0.18 | 0.003 |
| Tensile strength Rm(Mpa) | Yield strength Rel or Rp0.2(Mpa) | Elongation(%) | Ballistic work(J) |
| 545 | 452 | 29 | 91(-30oC) |
2. wire cannot be placed directly on the floor or close to the wall, should be placed on a wooden pallet, and keep a distance about 20cm from the wall.
3. the environmental also should be anti-rust, anti corrosive.
4. the package should be well and can not be damaged. The thermal shrink film can protect the welding wire.
Video
MIG welding wire
MIG welding wire
MIG welding wire
copper coating welding wire
Applicable materials:
- Cast Iron
- Mild Steel
- Steel
Options:
- 250kg or 15/20KG
