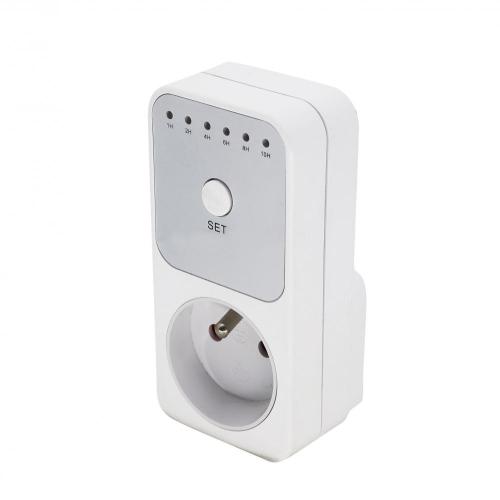

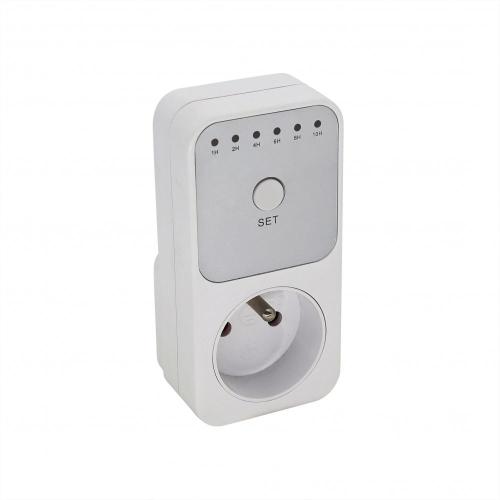

10hr Countdown Timer Socket can be customized to meet the standards of Germany, Britain, Australia, the United States, France, Italy, Israel, Belgium, Denmark, South Africa, Brazil and other countries

SET TIMER



1，Countdown plug in the socket, all indicator lights red flash three times, at this time the socket has no output, for the normal state, into the countdown state. Click the button, the first red light up, the socket output after an hour off, and then short press the button can set the socket timing of 2 H、4H、6H、8H、10H、OFF.



2，Long press button 3s, all indicator lights green flash three times, at this time the socket has output, for the regular open state, into the countdown on state. Click on the button, the first green light on, the socket is closed an hour later, and then press the button to set the socket countdown 2 H、4H、6H、8H、10H、OFF.



3，Press button 3 longer S, all indicator lights red light flash 3 times again into countdown mode.



4，Select the required countdown time mode, the corresponding mode countdown lights up, start countdown until the end of the countdown time. The outlet that controls the output will start or stop the output.



5，After the countdown starts, the time indicator will change automatically from high to low until the countdown is over.

	EU	FR	BR	UK
Voltage	230V~50Hz	230V-50Hz	250V-50Hz	230V-50Hz
Load	16A/3680W	16A/3680W	16A/3680W	13A/2900W

Installation: plug-in
Voltage: 230V/50Hz
Operating Temperatures: -10-40℃

Rating 1:120V~AC/15A/1800W(US plug)



NOTE:



1，Check that the power connection is good.



2，Use only indoors and in dry places.



3，This product does not convert AC voltage.



4，Maximum load not exceeding 16A 3680W.



5，Grounding is required for safety.



6，Any questions, please contact the electrician.
