Energy Saving Countdown Timer Socket can be customized to meet the standards of Germany, Britain, Australia, the United States, France, Italy, Israel, Belgium, Denmark, South Africa, Brazil and other countries

No timer set up when plug to the wall socket, all LED off.

Plug and play, convenient and fast connection.

Seting:6 different count down timer can be set up.

The shortest time set is 1 hour and longest time set is 10 hours, timing is highly accurate.

Applications: rice cookers , water dispensers, heaters, liquid electric mosquito coils and other electrical appliances, electric vehicle batteries , digital camera batteries , cell phone battery, home security etc.

	EU	FR	BR	UK
Voltage	230V~50Hz	230V-50Hz	250V-50Hz	230V-50Hz
Load	16A/3680W	16A/3680W	16A/3680W	13A/2900W

Installation: plug-in
Voltage: 230V/50Hz
Operating Temperatures: -10-40℃

Rating 1:120V~AC/15A/1800W(US plug)

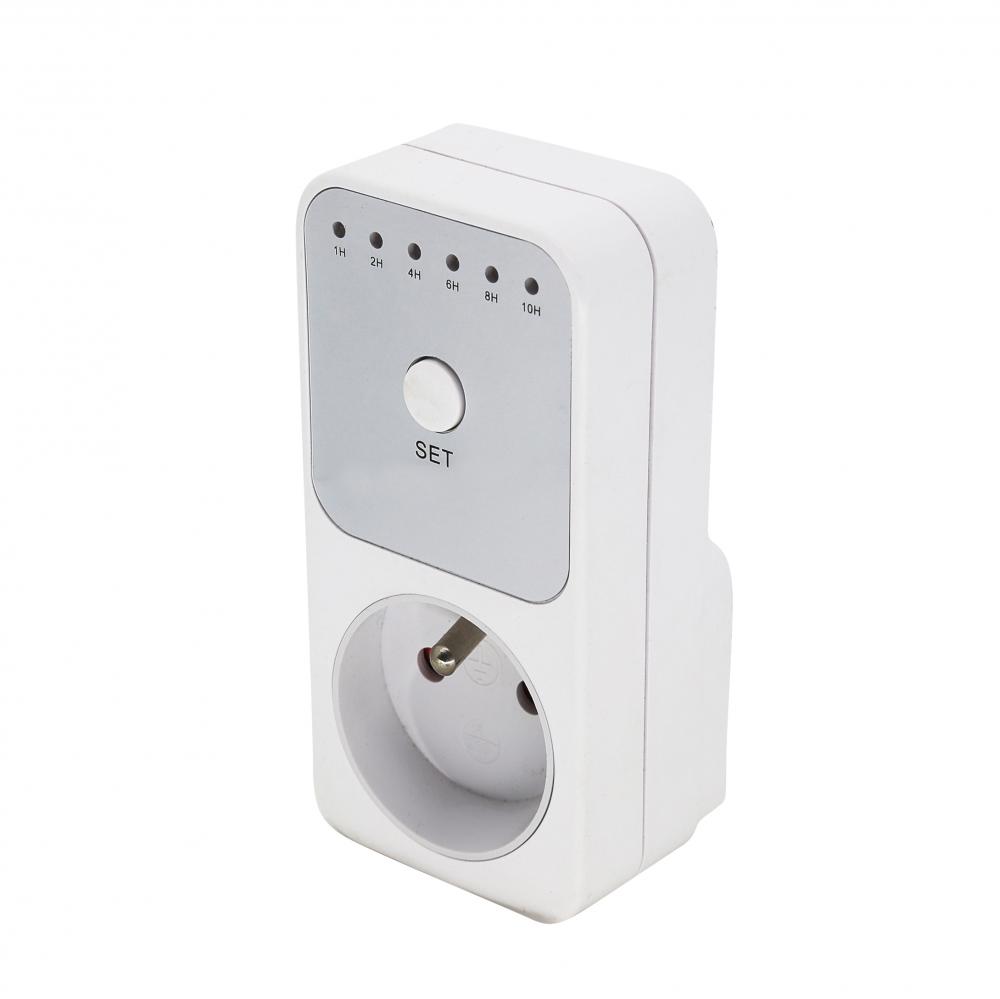

press"set"button once time ,1 hour countdown timer already set up and the 1 hour led light on .

press "set" again , 2 hours set up and the light on .then 4 hours ,6 hours , 8 hours and 10 hours  can be set up by this way .

the timer will comes to 1 hours again agter 10 hours position

1. No timer set up when plug to the wall socket, all LED off.



2. Seting:6 different count down timer can be set up.



3. Press ”Set” button once time, 1hour count down timer already set up with corresponding LED on; press “set”button again,2 hours set up;then 4hours,6hours 8 hours and 10hours can be set up by press “set” button every time. The timer will comes to 1hour again after 10hours position.



4. Special Technical Data

    Installation:                    Plug-in Type

   Voltage:                          230V~/50Hz

   Rating:                           230V~ AC / 16A /3600W

 Operating Temperatures:   -10…+40℃



5. Package Contents

1 x Countdown timer socket

1 x Instruction Manual
