The products can be customized to meet the standards of Germany, Britain, Australia, the United States, France, Italy, Israel, Belgium, Denmark, South Africa, Brazil and other countries

Specifications：

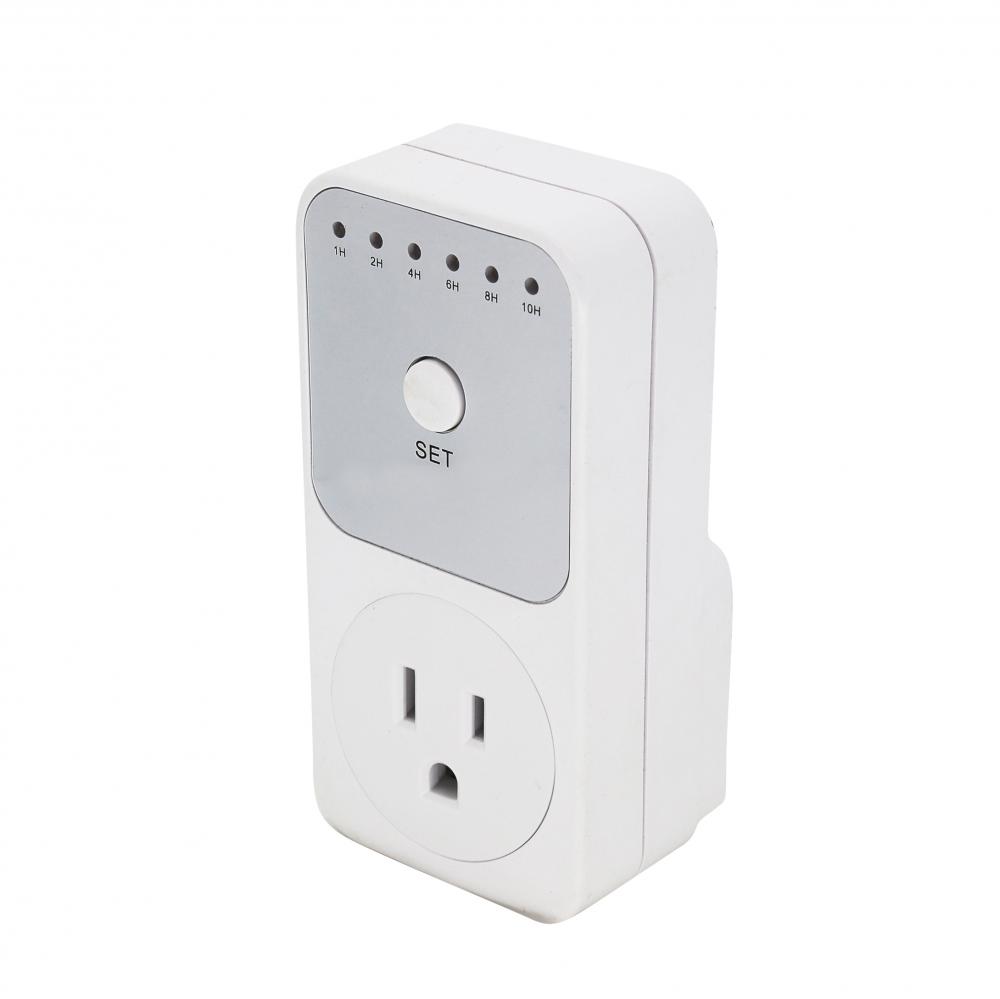

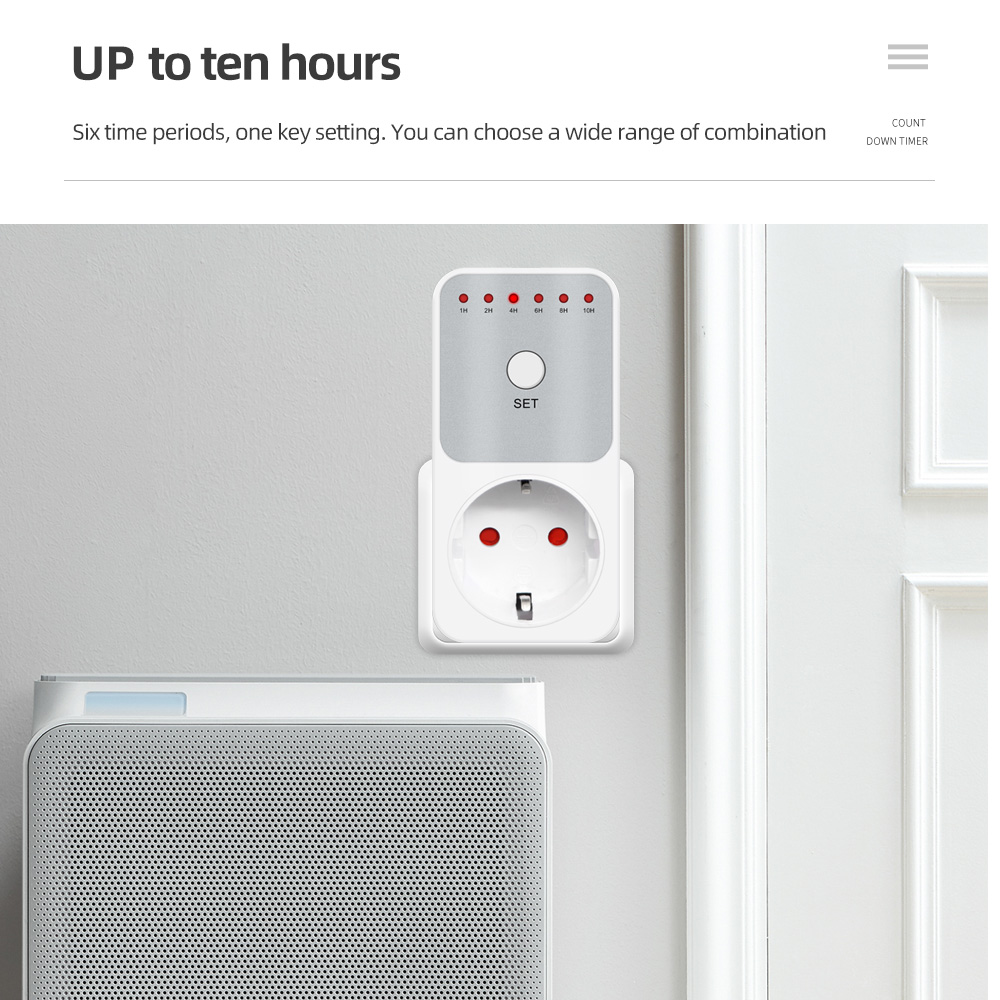

10Hr Timer Socket Countdown Intelligent Time Setting Swtich Timer Control Socket

1.No timer set up when plug to the wall socket, all LED off.

2.Seting:6 different count down timer can be set up.

3.Press ”Set” button once time, 1hour count down timer already set up with corresponding LED on;

press “set”button again,2 hours set up;

then 4hours,6hours 8 hours and 10hours can be set up by press “set” button every time.

The timer will comes to 1hour again after 10hours position.

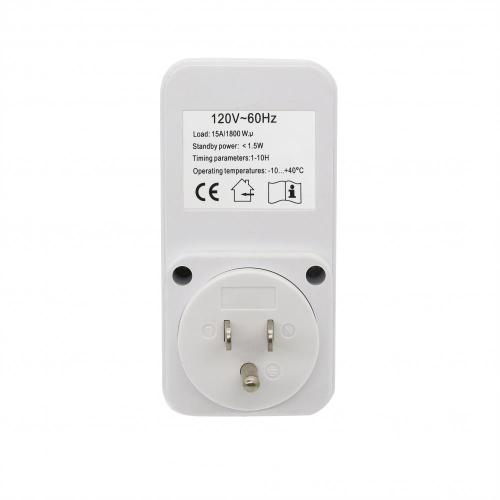

Parameters:

	EU	FR	BR	UK
Voltage	230V~50Hz	230V-50Hz	250V-50Hz	230V-50Hz
Load	16A/3680W	16A/3680W	16A/3680W	13A/2900W

Operating Temperatures:   -10~+40°C

Package Content :

• 1 x Countdown timer socket

• 1 x Instruction Manual

FUNCTION DESCRIPTION



Countdown socket has an AC outlet, the maximum can output 120V 15A of power, there are two control modes, that is, countdown off and countdown on. It is convenient to control the equipment which needs to switch off or turn on AC. improve the safety of the use of some equipment and save more energy.

SET TIMER



1，Countdown plug in the socket, all indicator lights red flash three times, at this time the socket has no output, for the normal state, into the countdown state. Click the button, the first red light up, the socket output after an hour off, and then short press the button can set the socket timing of 2H、4H、6H、8H、10H、OFF.



2，Long press button 3s, all indicator lights green flash three times, at this time the socket has output, for the regular open state, into the countdown on state. Click on the button, the first green light on, the socket is closed an hour later, and then press the button to set the socket countdown 2H、4H、6H、8H、10H、OFF.



3，Press button 3 longer S, all indicator lights red light flash 3 times again into countdown mode.



4，Select the required countdown time mode, the corresponding mode countdown lights up, start countdown until the end of the countdown time. The outlet that controls the output will start or stop the output.



5，After the countdown starts, the time indicator will change automatically from high to low until the countdown is over.



NOTE:



1，Check that the power connection is good.



2，Use only indoors and in dry places.



3，This product does not convert AC voltage.



4，Maximum load not exceeding 15A 1800W.



5，Grounding is required for safety.



6，Any questions, please contact the electrician.
