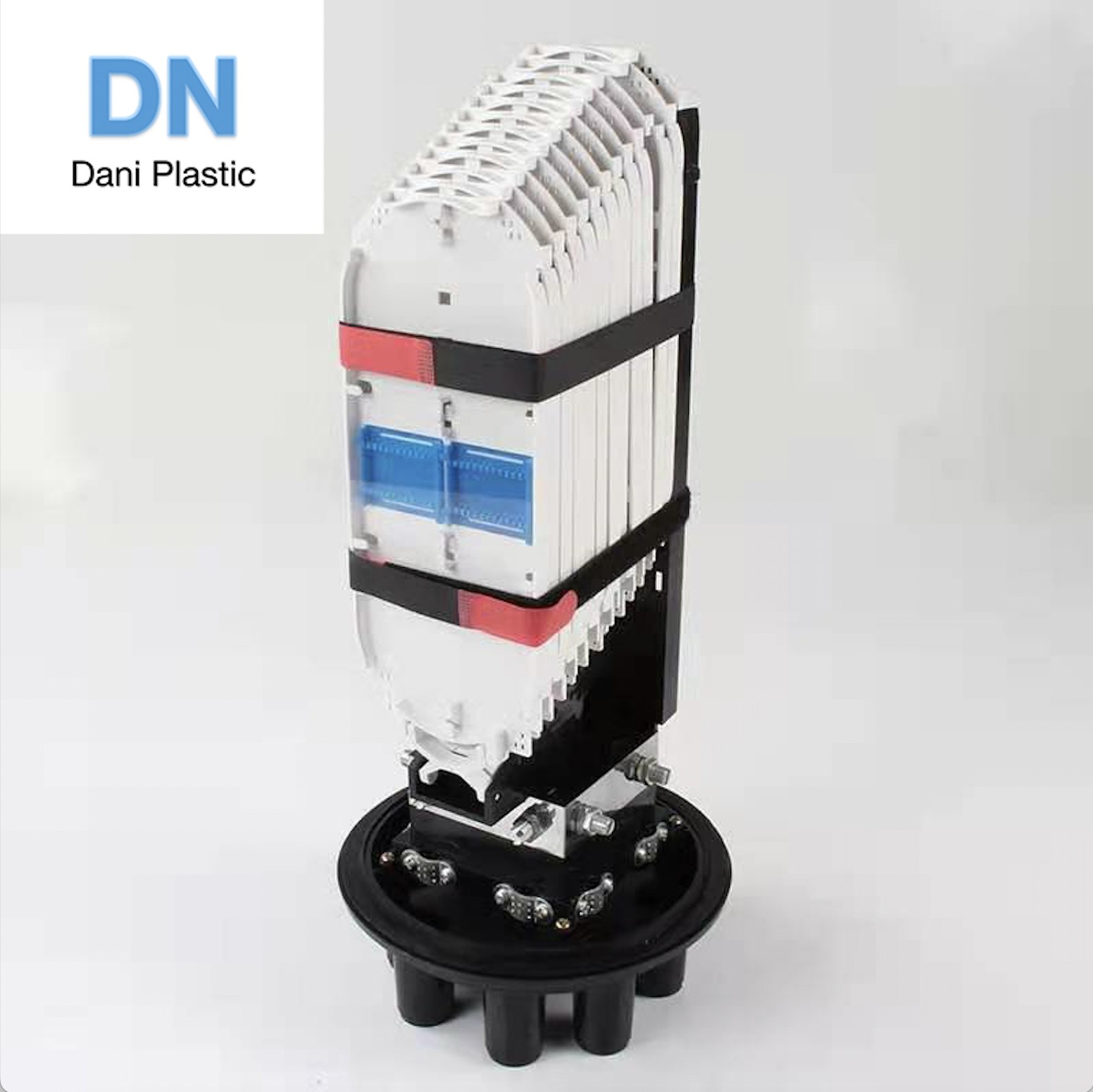

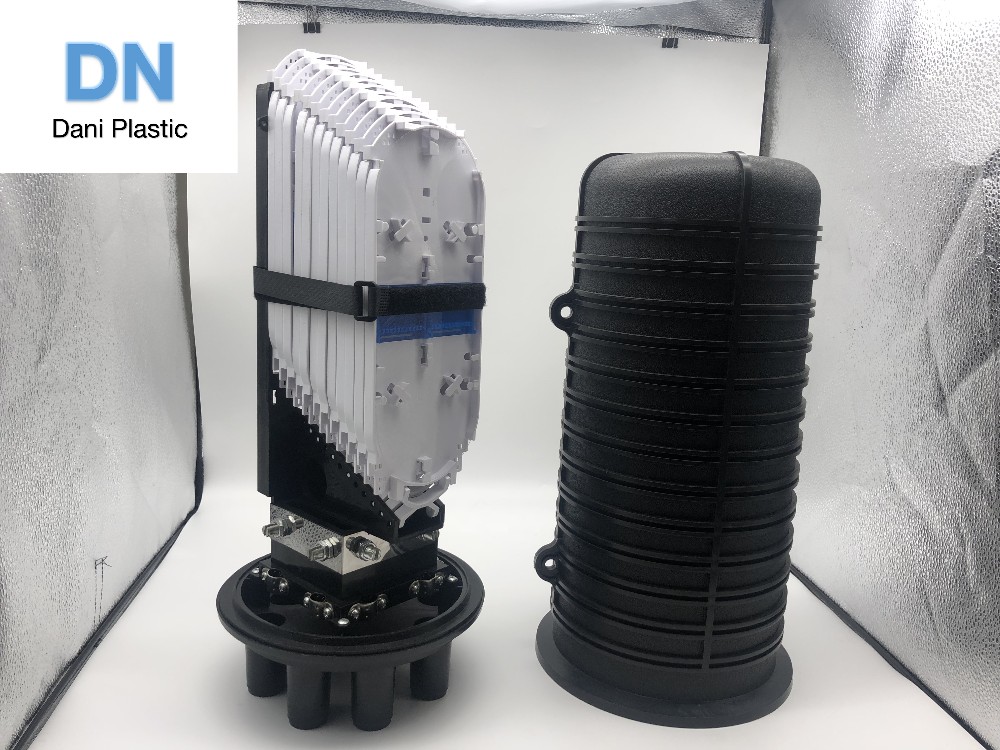

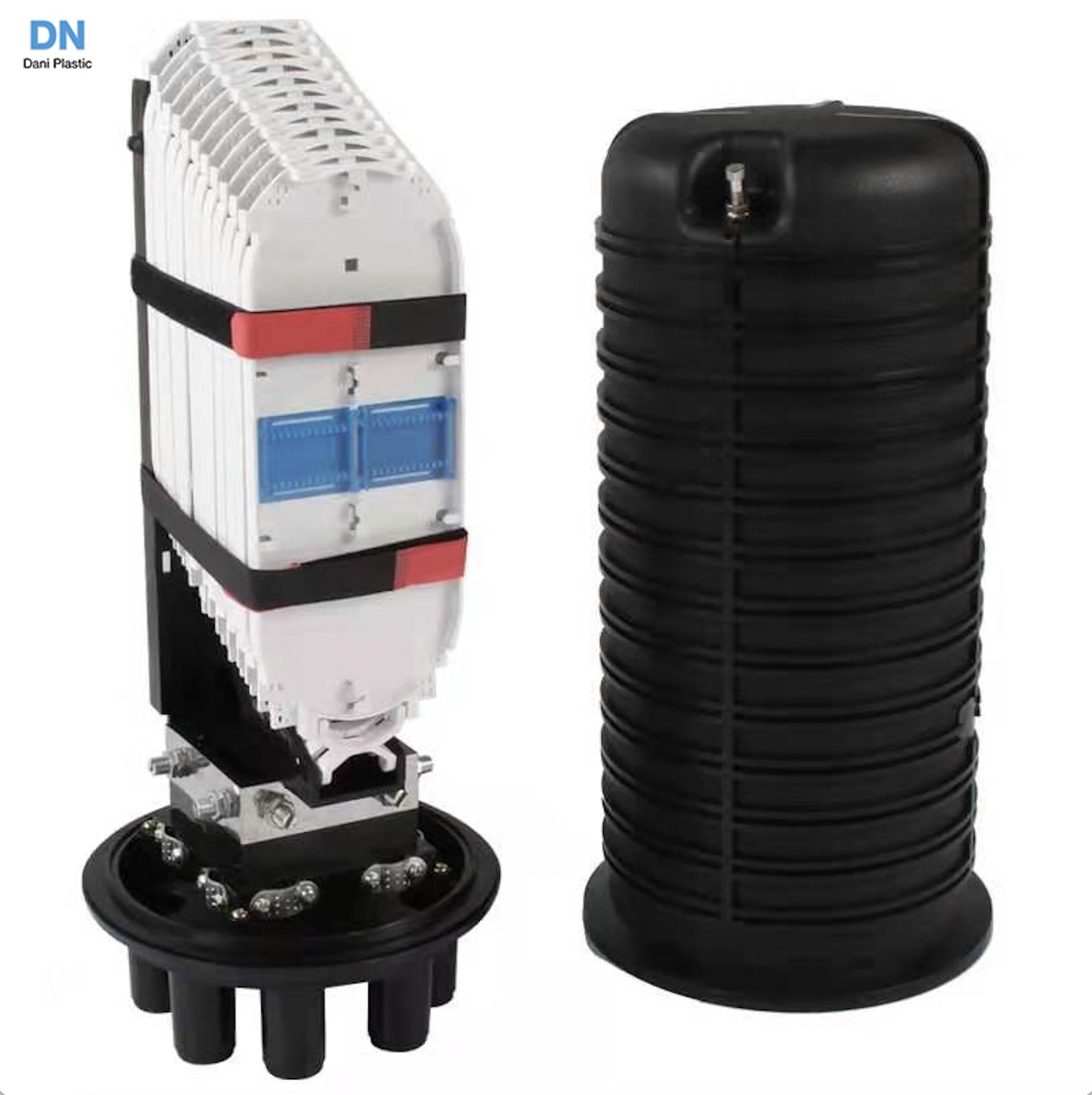

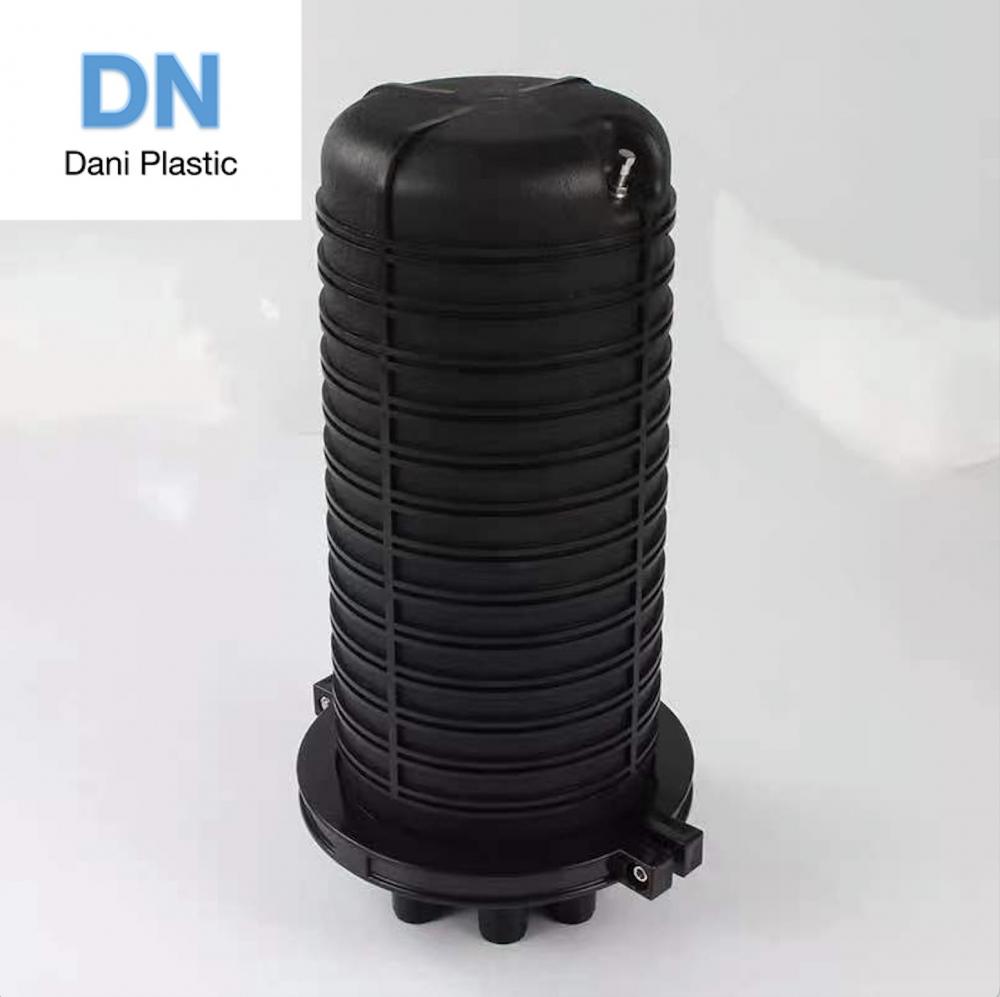

Coyote Fiber Splice Enclosure
Basic Info
| Model No. | DN-F109 |
|---|---|
| Brand Name | Dani |
Product description
Optical splitter closure provides space and protection for the fiber optic cable splicing and joint.
Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Features
1). High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.
2). Solid structure, perfect outline, thunder, erosion and adding resistance.
3). Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
4). Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

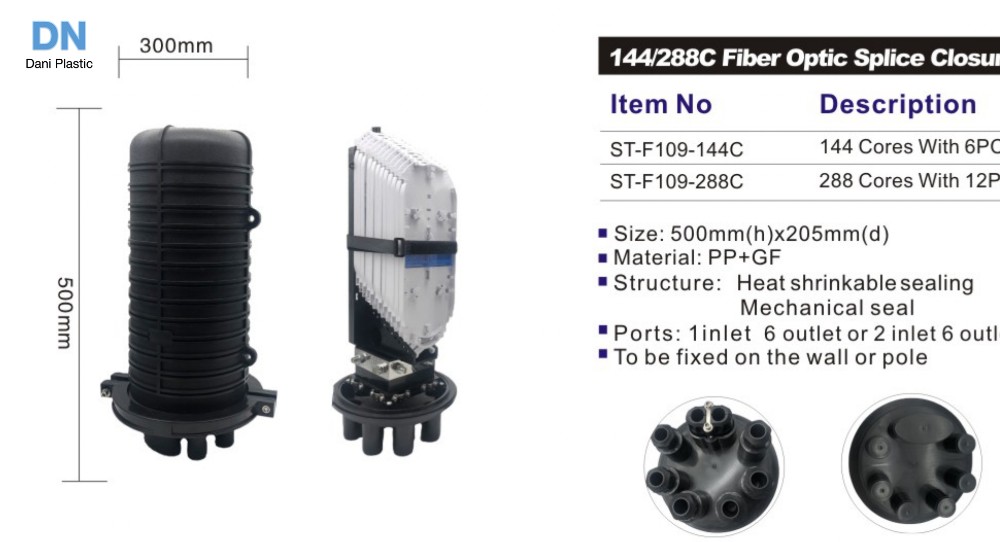

288C Fiber Optic Splice Closure
| 288C Fiber Optic Splice Closure | |||
| Item No | Description | ||
| DN-F109-144C | 144 Cores With 6PCS 24C Splicing Tray | ||
| DN-F109-288C | 288 Cores With 12PCS 24C Splicing Tray | ||
| Environmental Requirement | Main Tchnical Data | ||
| Working Temperature | -40℃~+75℃ | Insertion Loss | ≤0.2dB |
| Relative Humidity | ≤85℃(+30℃) | UPC Return Loss | ≥50dB |
| Atmospheric Pressure | 70KPa~106KPa | APC Return Loss | ≥60dB |
| Product Parameter | |||
| Size（mm） | 500mm(h)*?205mm(d) | ||
| Material | PP+GF | ||

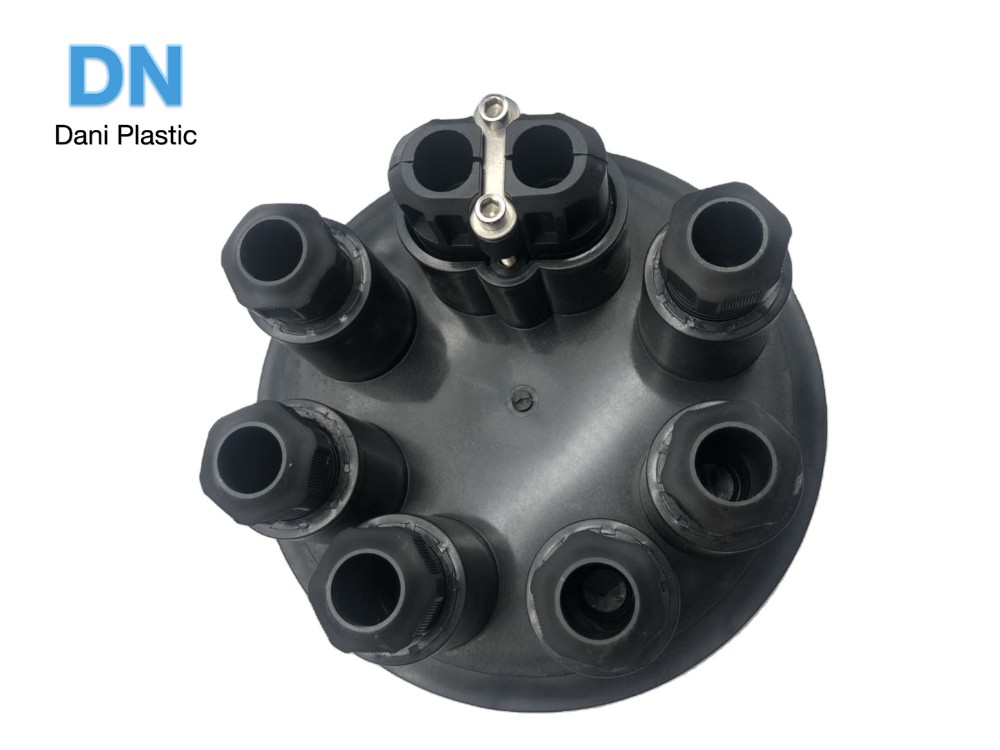

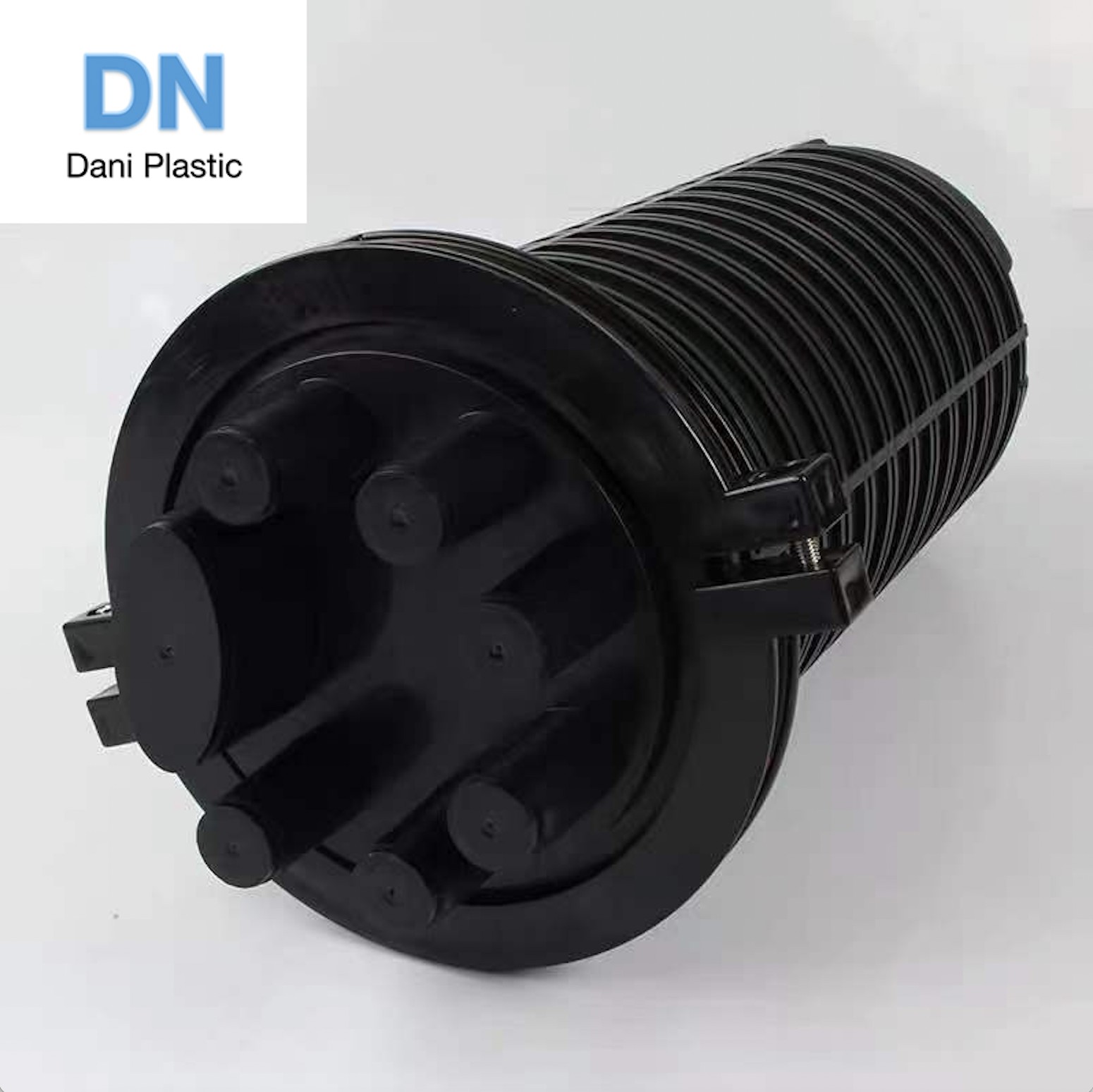

| Ports | 1 inlet 6 outlet or 2 inlet 6 outlet | ||
| Structure | Heat Shrinkable Sealing/Mechanical Seal | ||
| To Be Fixed On The Wall Or Pole | |||
| Capacity | 24--288 | ||
| Waterroof | IP68 | ||
| Unit Weight（KG） | 5.1KG | ||
| Packing Quantity | 4 | ||
| Carton Size（cm） | 67*64*53 | ||
| Rough Weight（KG） | 21KG | ||
| Volume(m3) | 0.228m3 | ||
