Product Description

Product Category:  Battery Holders丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers/Battery Clips

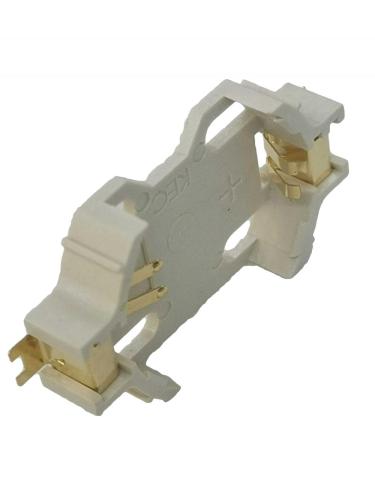

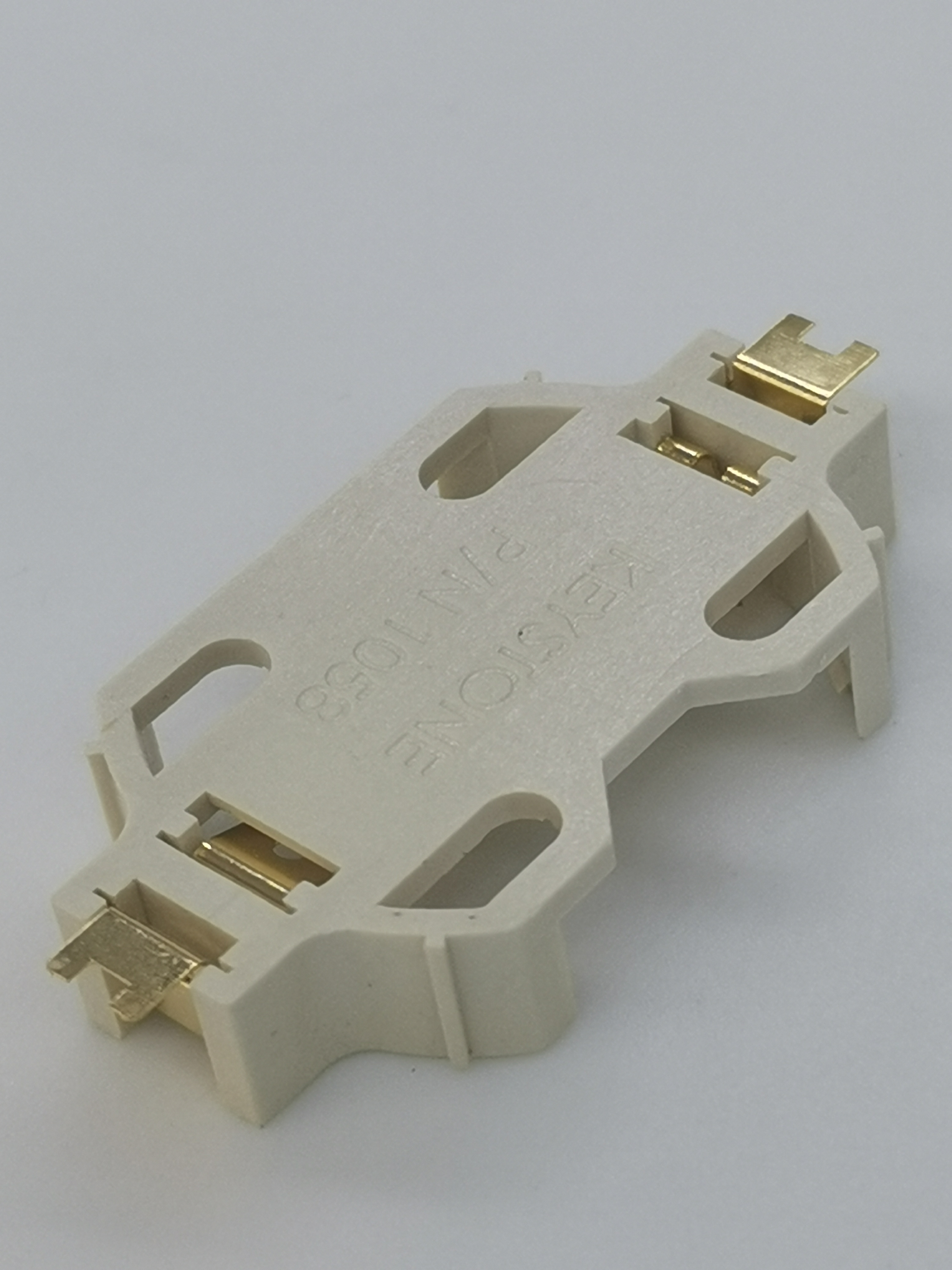

Product Name: CR2032 Coin Cell Holder /CR2032 Battery Holders /CR2032 Holder with Surface Mount leads/White Surface Mount SMD CR2032 Cell Button Battery Holder Socket/Battery Holder for CR2032 Coin Cell

Specification

1.BASE:

MAT'L-LCP 30% GLASS FILLED

UL94V-0

2.CONTACTS:

MAT'L-0.152 TH'K PHOSPHOR BRONZE

FINISH:GOLD FLASH 0.0000762 OVER

0.00127-0.00254 NICKEL

ON CONTACT SURFACE AND SOLDER TALL

BALANCE OF PART 0.0000254 MIN.GOLD,

OVER NICKEL PLATE

Cell Button Battery Holder;Fit for : for CR2032 Battery (Not Included Here)
Material : Plastic, Metal;
Color : White, Gold Tone

Application

1. It is used to load the battery, usually on the PCB board, for the power supply of electrical devices.

2. Easy to disassemble.

3. Fixed structure to cope with impact and vibration and reduce physical damage.

COIN CELL BATTERY HOLDERS?CR2032 BATTERY HOLDERS?BUTTON BATTERY HOLDERS COIN CELL BATTERY HOLDERS?CR2032 BATTERY HOLDERS?BUTTON BATTERY HOLDERS -PDF
CATEGORY： COIN BATTERY HOLDER?COIN CELL HOLDER (SR621? LR44?SR44?CR1220?CR1225?CR1632?CR2016?CR2032?CR2430?CR2450?CR2477)

Coin cell holders for SR621, LR44, SR44, CR1220, CR1225, CR1632, CR2016, CR2032, CR2430, CR2450 and CR2477.
Both SMT (Surface Mount Technology ) and through hole pin models are available.
Individual piece package and bulk tray/reel package are available.

SMT COIN CELL HOLDER
Surface mount type coin cell holders.
Material : Heat resistant glass fiber filled LCP
Available coin cell types : LR44?SR44?CR1220?CR1225
CR1632?CR2016x2?CR2032?CR2430?CR2450?CR2477

Coin cell holder with through-hole pins.
8 different coin cell types are available.
For LR44, CR1220?1632?2016?2032?2430?2450?2477
Operating temperature: -40℃ ~ +100℃
