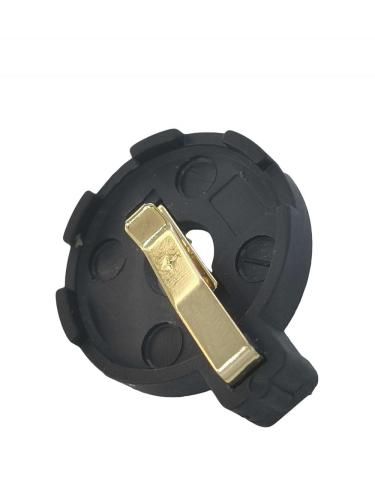

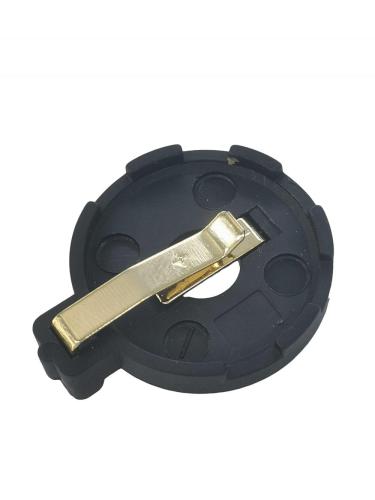

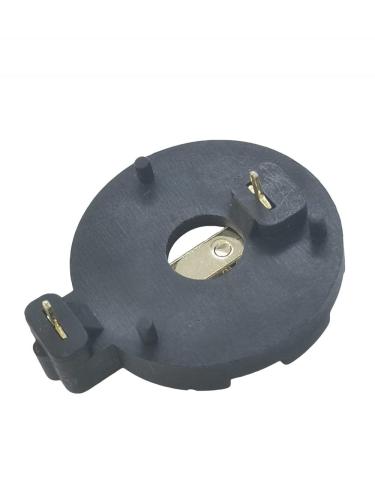

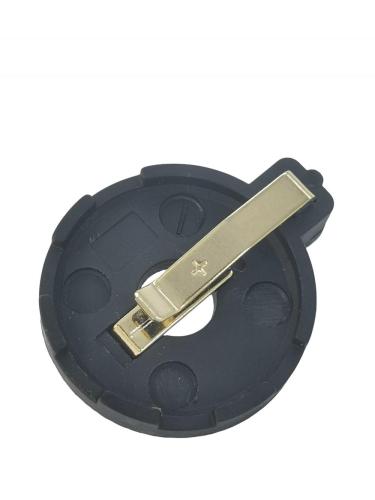

CR2032 Coin Cell Battery Holders Surface Mount
Basic Info
| Model No. | BT-S-G0-A-CR2032F |
|---|---|
| Brand Name | ATKCONN |
| place of origin | China |
Product description
Product Category: Battery Holders丨Battery Mounts丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers丨Battery Clips 丨Battery Snaps丨SMD/SMT Coin Cell Battery Holders 丨Button Battery Holder Case Box Case
CR2032 SMT Coin Cell Batter Holder Specifications
Description
CR2032 Coin Cell Battery
Holder
Battery Holder for CR2032
Coin Cell Battery Holders 2032 COIN CELL HLDER SMT
Single CR2032 / 20mm Coin Cell Battery Holder
2032 Coin Cell Holder (PCB Mount) Battery Holders
Battery Holder for CR2032 Coin Cell
Category
Battery Products/Coin Cell Battery Holders
Battery Holders, Clips, Contacts
Mfr
ATKCONN ELECTRONICS CO.,LTD
P/N
BT-S-G0-A-CR2032F
Package
Bulk or Tape&Reel
Number of Contacts:
2 Contact
Battery Type, Function
Coin Cell, Holder
Style
Holder (Open)
Battery Cell Size
Coin, 20.0mm
Number of Cells
1
Battery Series
2032
Mounting Type
PCB, Surface Mount;SMD/SMT
Termination Style
SMD (SMT) Tab/Solder Tabs
Height Above Board
0.235" (5.97mm)
Operating Temperature
-50°C ~ 145°C
1.Material:
a.Housing:Thermoplpastic, UL94V-0
b.Contact:Phosphor Bronze,Gold Plated
2.Electric:
a.Contact Resistance:30m ohms Max.
b.Insulation Resistance:1000M Ohms Min.
c.Dielectnic Voltage:500 V AC One Sec Level
d.Operating Temperature:-55℃ To +105℃
SMD Battery Holder for CR2032 Cell Features:
Battery "Pop-In" from top of compartment applications
Finger pressure against leaver will release battery
No tools required for battery changes
CR2032 Surface Mount Coin/Button Cell Dimensions:
20mm Dia Lithium Coin Cell Install Diagram
20mm Dia. Cell Holders Coin/Button Cell Holders
is Thru-Hole and Surface Mount available
Battery References Include: BR2016, CR2016, DL2016, BR2020, CL2020, BR2025, CR2025, DL2025, BR2032, CR2032, DL2032, ANSI 5000LC, IEC CR2016
CR2032 Coin Cell Battery Holders Surface Mount Application:
A CR2032 coin cell battery holder is commonly used in a variety of electronic devices, including:
1. Remote controls: Many remote controls use a CR2032 coin cell battery holder to power the device.
2. Calculators: Calculators often use a CR2032 coin cell battery holder to provide power.
3. Watches: Many watches use a CR2032 coin cell battery holder to power the watch.
4. Key fobs: Key fobs for cars and other devices often use a CR2032 coin cell battery holder to provide power.
5. Small electronic toys: Many small electronic toys use a CR2032 coin cell battery holder to power the toy.
6. Medical devices: Some medical devices, such as glucose meters, use a CR2032 coin cell battery holder to provide power.
7. Small LED lights: Some small LED lights, such as those used in bicycle lights or keychain flashlights, use a CR2032 coin cell battery holder to power the light.
Overall, the CR2032 coin cell battery holder is a versatile and widely used component in many electronic devices.
