Coin cell holders for CR2032 wtih contacting plate

2032 Coin Cell Holder (PCB Mount) Battery Holders

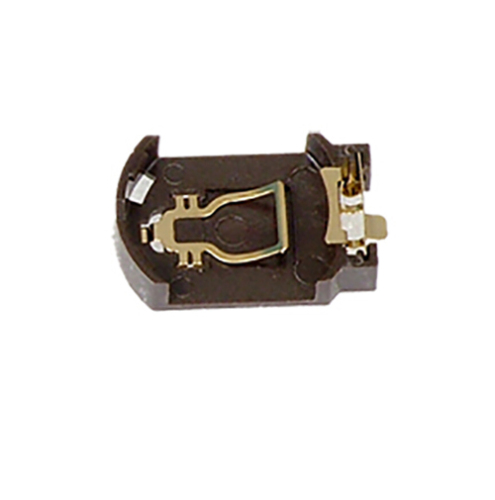

CR2032 Coin Cell Battery Holder

CR2032 Coin Cell Battery Holders SMT

ATKCONN's  CR2032Lithium Coin Cell Battery Holder SMT

Product Category:	Coin Cell Battery Holder
Product:	Battery Holders
Battery Cell Size:	20 mm
Number of Batteries:	1 Battery
Termination Style:	SMD/SMT
Material:	Housing:LCP Contact:C5191
Mounting Style:	PCB
Contact Plating:	Gold
Packaging:	Tape and Reel
Type:	SMT Coin Cell Holder
Product Type:	Coin Cell Battery Holders
Subcategory:	Battery
Unit Weight:	0.067021 oz

CR2032 Coin Cell Battery Holders SMT Features:

1. Material:
a. Housing: LCP
b. Contact: C5191
(Surface Plating:Au )
See Ordering Information
2. Electric:
a. Contact Resistiance: 30 Milliohms Max
b. Insulation Resistance: 1000 MEGA OHMS Min
c. Dielectric Voltage: 500V AC One Sea Level
d. Operating Temperature: -55°To 105°

The coin cell holder is available in two different sizes to fit BR/CR2032 and BR/CR1225 batteries in horizontal or vertical orientation. They are available with solder bumps for Surface Mount Technology (SMT) or pins for through-hole mounting on printed circuit boards. These batteries provide up to approximately 220 milliampere-hours (mAh) of power and are relatively small, making them perfect for less power-demanding circuits in handheld portables.

Length: 23.79mm

Width: 15.6mm

Height: 5.3mm

Pin 1 width: 3.6mm

Pin 2 width: 2.6mm

Number 2 apperance for the product: SMT, we also have 180 and 90 types, when you place order on us, please inform us the exact apperance type you want.

Number 3 contact plating: gold flash, we also have tin plate, when you place order on us, please tell us the exact contact plating way you want.

Number 4 packing method: tape & reel packing, we also have tray packing, when you place order on us, please tell us the packing method you want.

Number 5 product number: CR2032O

20mm Dia. Cell Holders Surface Mount Holders Install Diagram

Antenk's coin cell batteries SMT Holders
Available for 2025 and 2032 coin cell batteries
Battery References Include: BR2025, CR2025, DL2025, BR2032, CR2032, DL2032

Antenk's 20mm Dia. Cell Holders Coin/Button Cell Holders
Thru-Hole and Surface Mount available
Battery References Include: BR2016, CR2016, DL2016, BR2020, CL2020, BR2025, CR2025, DL2025, BR2032, CR2032, DL2032, ANSI 5000LC, IEC CR2016
