Product description
Product Overview

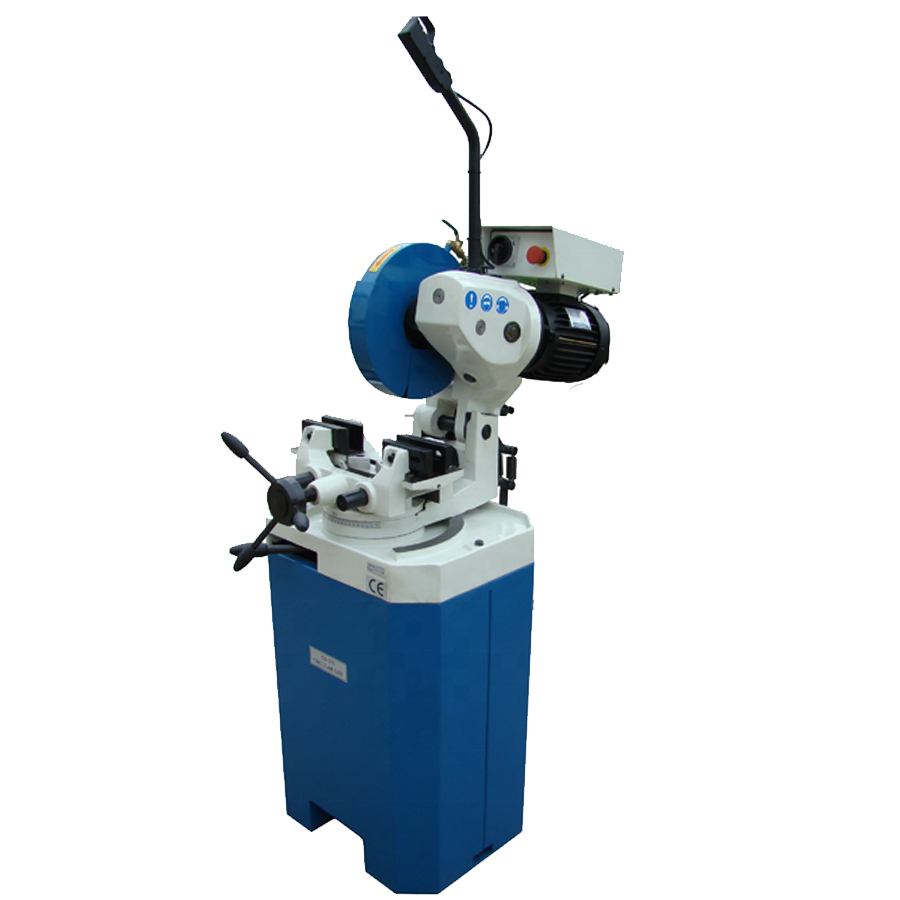

TTMC Cold Cutting Saw CS-315
Recommended for: Marine rails, Playground equipment, Hand railings, Various chassis applications, Other fabrication cutting jobs
FEATURES AT A GLANCE
Accepts a 12” blade.
4.0” round tube capacity at 90°.
2 blade speeds: 18 and 36 rpm. Switch between them to cut a variety of materials.
All-metal gears in direct-drive head are ground and hardened for reliability.
Dual material clamp system
Spring assisted head return
Head swivel between -45° or +45°
PRODUCT SPECIFICATIONS
TTMC Circular Saw, Cold Saw CS315/350
Item No. | 388019 | 388020 | |
Model | CS-315 | CS-350 | |
Max. blade size | 315mm (12.4") | 350mm (13.8") | |
Cut circular @90° | 100mm (4") | 120mm (4.7") | |
Cut rectangular @90° | 140x90mm (5.5"x3.5") | 140x100 mm (5.5"x4") | |
Cut circular @45° | 90mm (3.5") | 105mm (4.1") | |
Cut rectangular @45° | 100x90mm (4"x3.5") | 100x100mm (4"x4") | |
Blade Speed @50HZ | 18, 36 rpm | 18, 36 rpm | |
Vice opening | 145mm (5.7") | 145mm (5.7") | |
Motor Power | 750W 1HP/1.3kW 1.7HP (3PH), 1.1kW 1.5HP (1PH) | ||
Drive | Gear | Gear | |
Packing size | 98x62x93 cm (body) 78x60x50cm (stand) | 98x62x95 cm (body) 78x60x50 cm (stand) | |
N.W./G.W. | 227/261 kg | 236/270 kg | |
