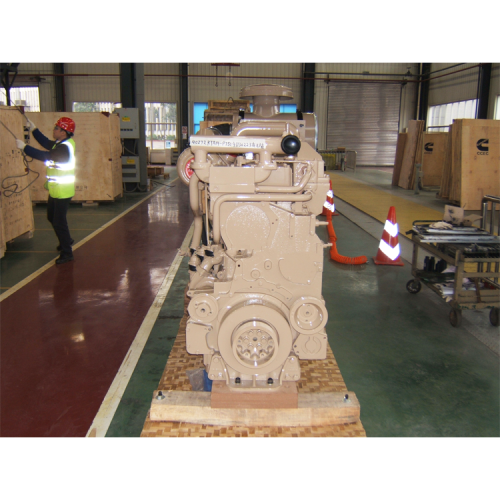

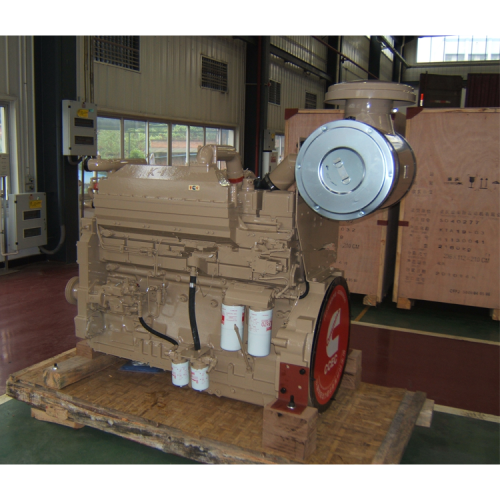

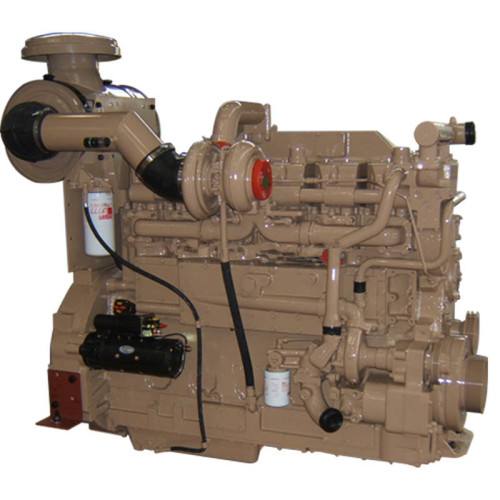

Cummins Engine KTA19-P500 for Oil Drilling Equipment
Basic Info
| Model No. | KTA19-P500 |
|---|---|
| Old and new | New |
| cooling method | Air-Cooled |
| Core component warranty period | 1 Year |
Product description
Product Name: Cummins Pump Engine
Engine Model: KTA19-P500
Technical Specification
Engine Model
KTA19-P500
Fuel Consumption
24gal/hr
Rating Type
Continuous
Fuel Flow
71gal/hr
Rated Power
500hp / 373kW
Manifold Pressure
122kPa
Rated Speed
1500/1800/2100rpm
Intake Air Flow
1101 cfm
Peak Torque
2052 NHm
Heat Rejection
2618 BTU/min/46kW
Cylinders
6
Size-Engine Only
2000*1500*1900mm
Aspiration
Turbocharged
Weight (Dry)
1725kg
Compression Ratio
15.5:1
Idle Speed Setting
650-700rpm
Piston Speed
1870 ft/min
Idle Speed Variation
±25rpm
Displacement
19L
High Idle Speed Min
1962rpm
Bore*Stroke
159*159mm
High Idle Range Max
2106rpm
Fuel System
PT pump
Thermostat Operating
82°C-94°C
Optional Configuration
According to the type of cooling( Water-cooled, Air-cooled.)
Configuration: Radiator,Fan / Heat Exchanger(Keel cooling), Expansion tank, Sea water pump, Control system, Remote control system.
Cummins Features and Benefits
■ Cylinder Block
High quality alloy cast iron for the rigidity performance and lower vibration and noise. Wet and replaceable cylinder liners for better heat rejection performance and easier replacement.
■ Head and Valve
4 valves per cylinder, Optimize the mixed level which lead to an excellent fuel consumption rate and emission performance. High quality alloy cast iron, one cylinder on head, single camshaft and special designed outline for better reliability and durability.
■ Fuel System
Cummins unique PT with fixture and Step Timing control for precise fuel injection make the fuel injection pressure above 120Mpa, which leads to an excellent fuel consumption rate and emission performance. Check valve in fuel tube improve reliability.
■ Cooling System
Great water pump and great flux channel design provide effective cooling. Spin-in water filter makes the coolant clean and keeps it in normal acidity.
■ Exhaust System(After-cooled)
Advanced Holset turbocharger and water-air after cooler technology, pulse exhaust manifold reduce exhaust temperature, provide excellence fuel consumption and emission performance.
