Basic Info

Model No.
Brand Name
Mould Size	According to the plastic product/3D drawing
Mould Base Steel	S50C
Quality Certification	ISO9001:2015, SGS, TüV
Mould Packing Method	Wooden Box
Place Of Origin	Injection Mold Suppliers China
Product Color	According to customer requirements/3D drawing
Mould Shipping Method	By sea, by air or according to customer requirements
Inspection Certification	FAI, CPK, IQC, IPQC, OQC.

Product description

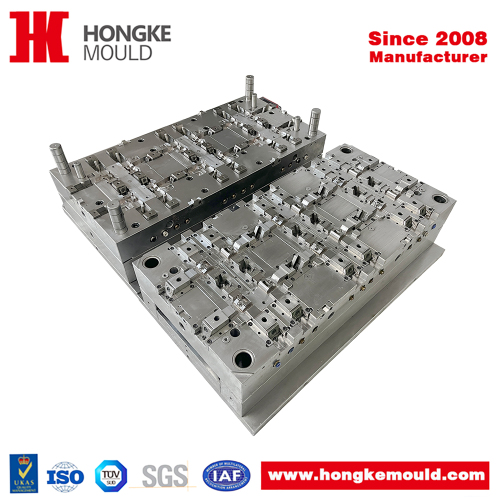

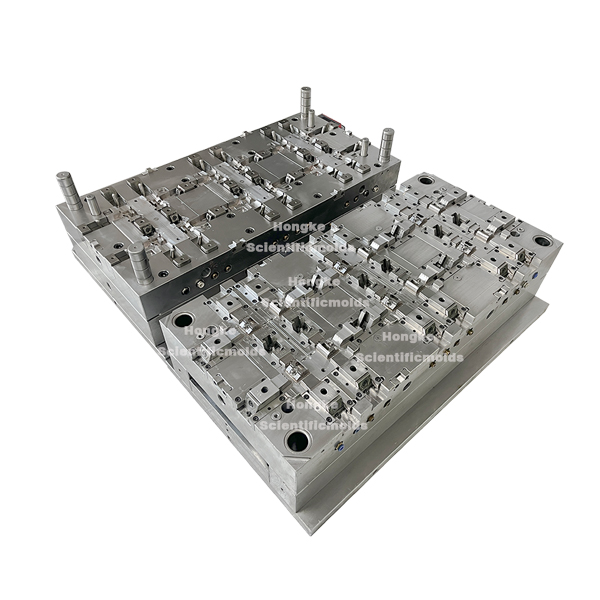

This is a multi-cavity injection mold designed for plastic electronics components. This mold is a multi-cavity mold, designed to produce multiple parts in a single cycle. The primary challenge in designing such molds is ensuring that each cavity is balanced so that the material fills each cavity uniformly. Improper flow balance could result in variations in the quality of the molded parts, including differences in weight, strength, or appearance. Since the mold is intended for a product requiring precision, the tolerances need to be extremely tight. The design must account for material shrinkage, pressure distribution, and temperature gradients to ensure that each molded part maintains the required specifications. Ensuring that all moving components, like sliders or lifters, fit and operate without interference also adds a level of complexity.

The mold base steel is S50C and mold insert steel uses S136 steel with a hardness of HRC48 - 52, and the mold life of the steel can reach 500,000shots or more. Our precision in designing and manufacturing the cooling channels, along with the implementation of advanced injection techniques, guarantees that the parts cool uniformly, preventing any defects. Furthermore, we utilize high-quality materials for the mold to ensure durability and longevity, which is critical for high-volume production. By combining cutting-edge technology with expert craftsmanship, we can produce multi-cavity molds that meet the highest standards of quality, ensuring both performance and reliability for our customers. Our company is very experienced in Connecter Plastic Mould, Elbow injection mold, PVC Injection Mould.

Mould Name: Custom Plastic Electronics Components Tooling

Part Material: PA6

Mould Life: 500000~1000000 Cycles

Lead Time: mold making 4-5 weeks, injection molding production 7-15 days depends on quantities

Runner: Cold Runner
