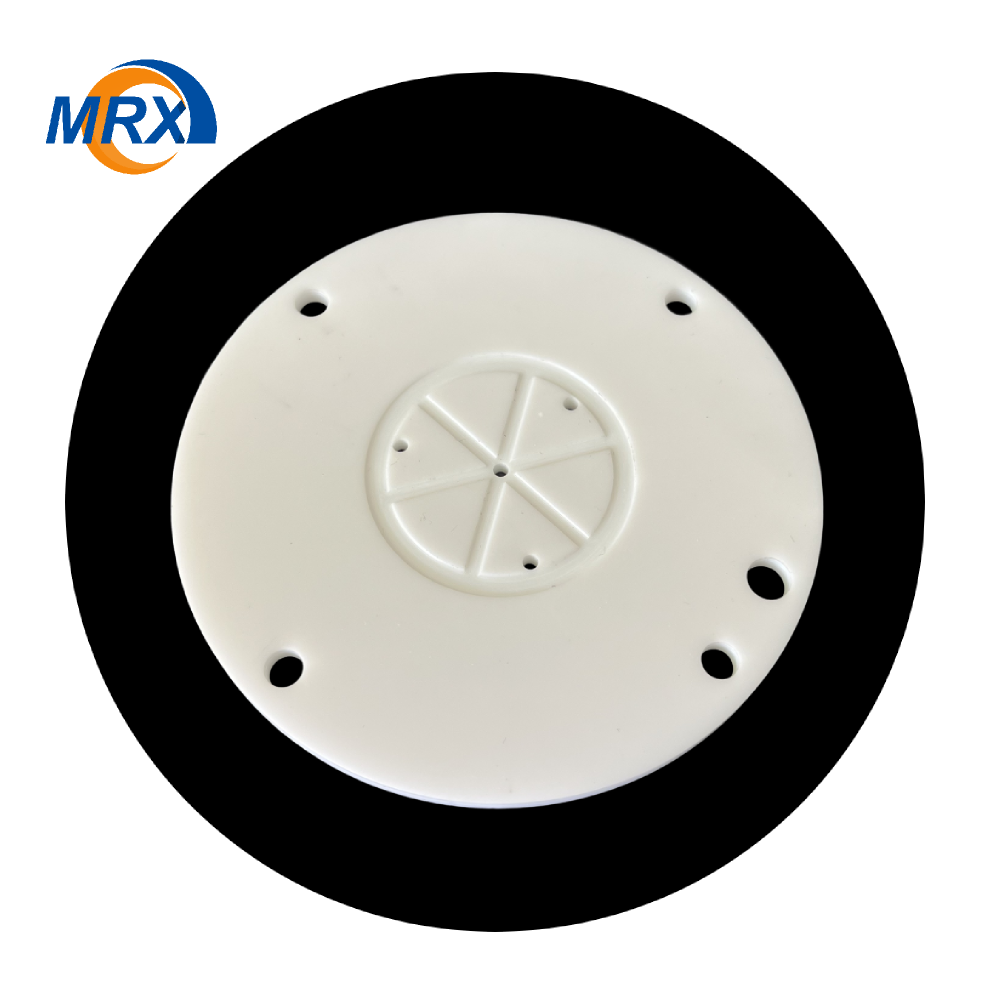

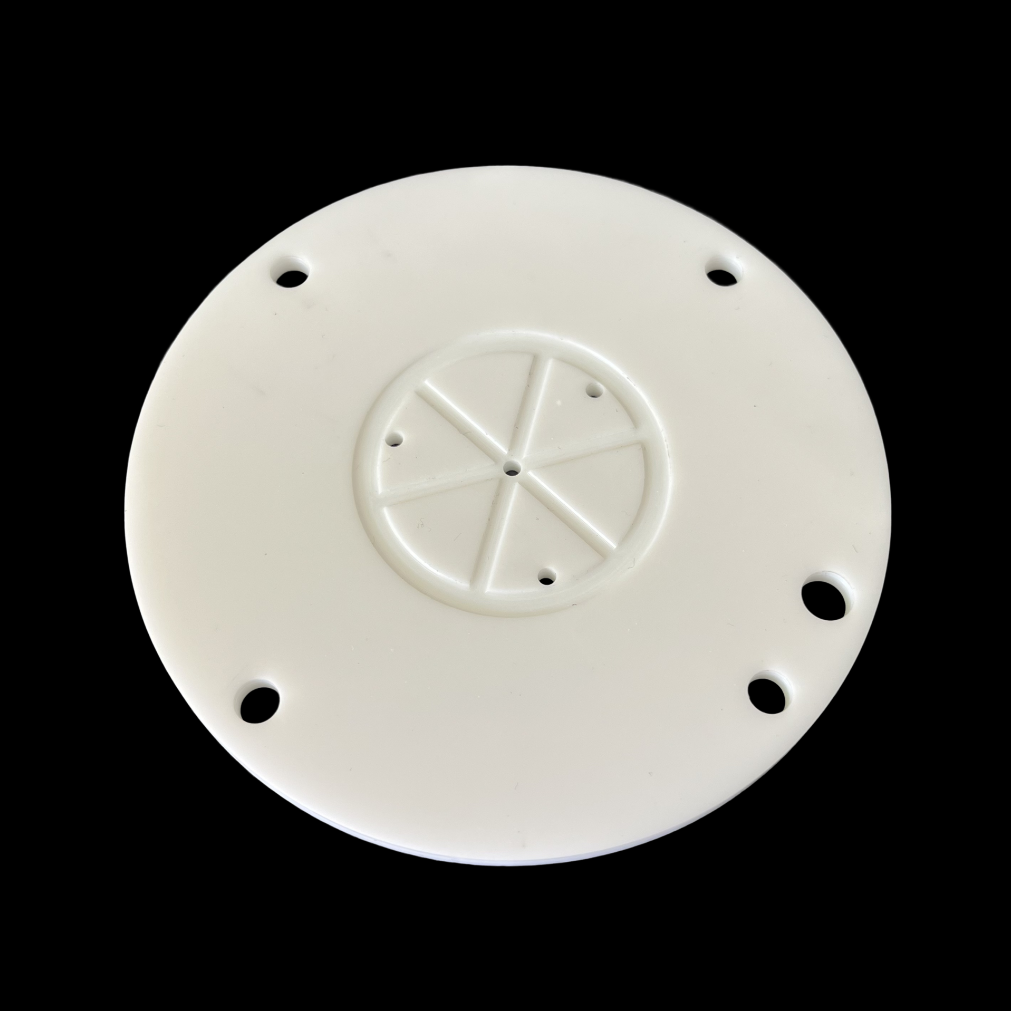

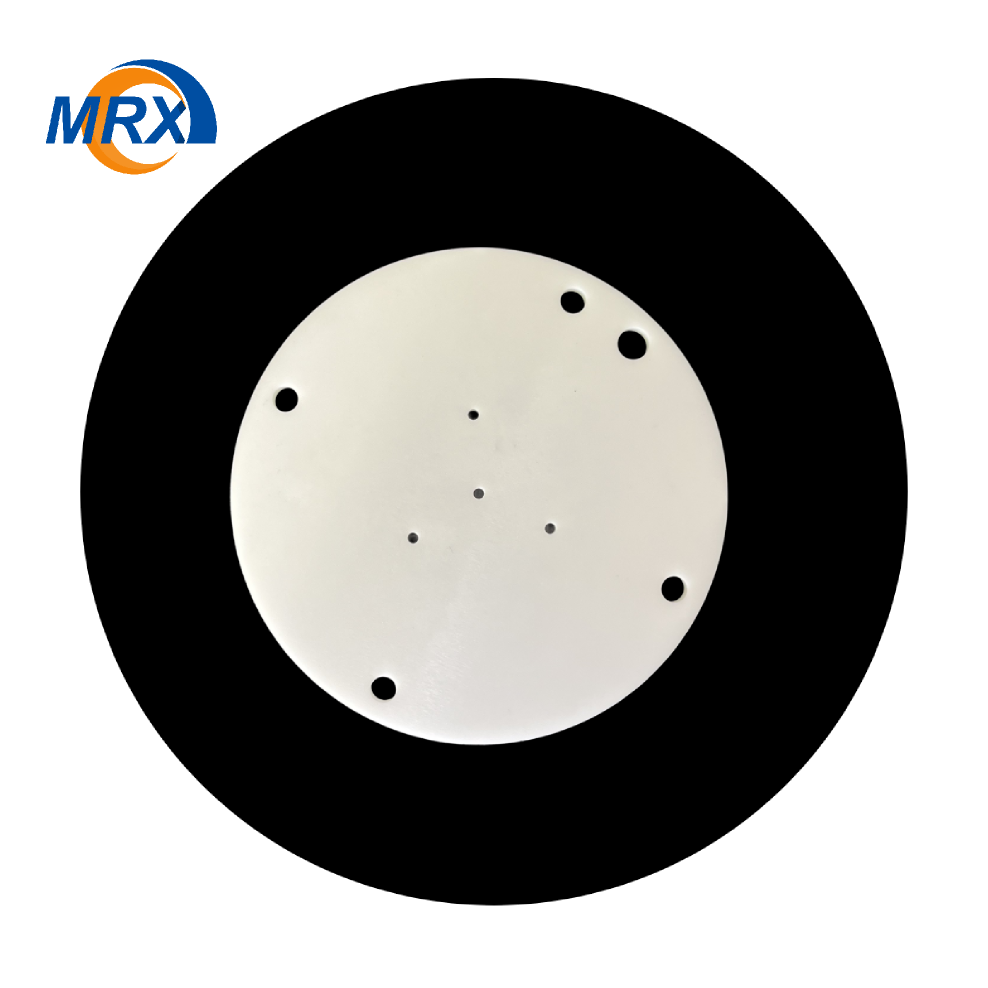

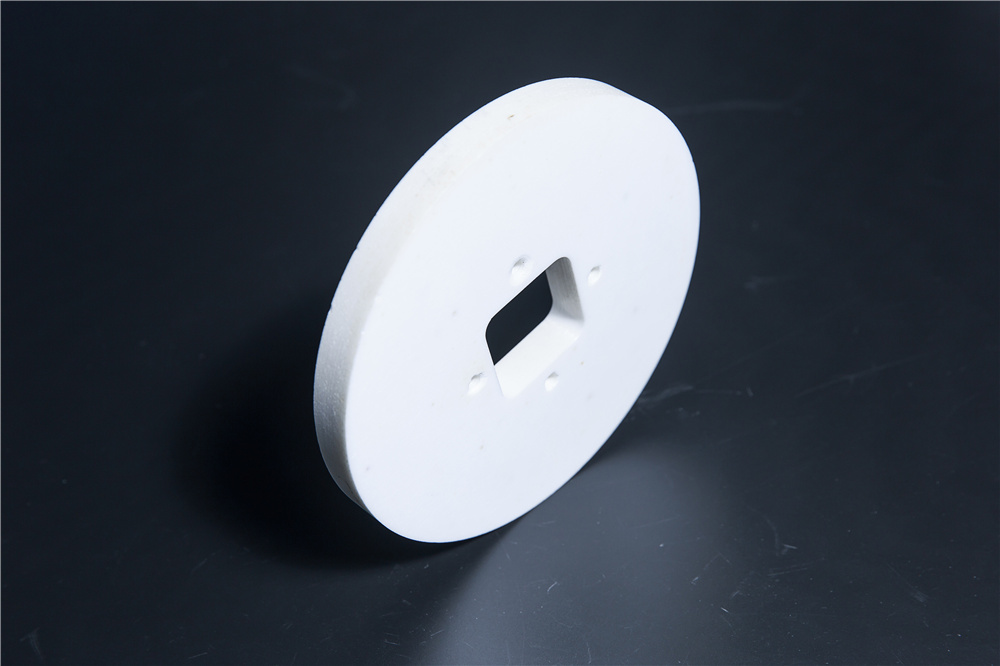

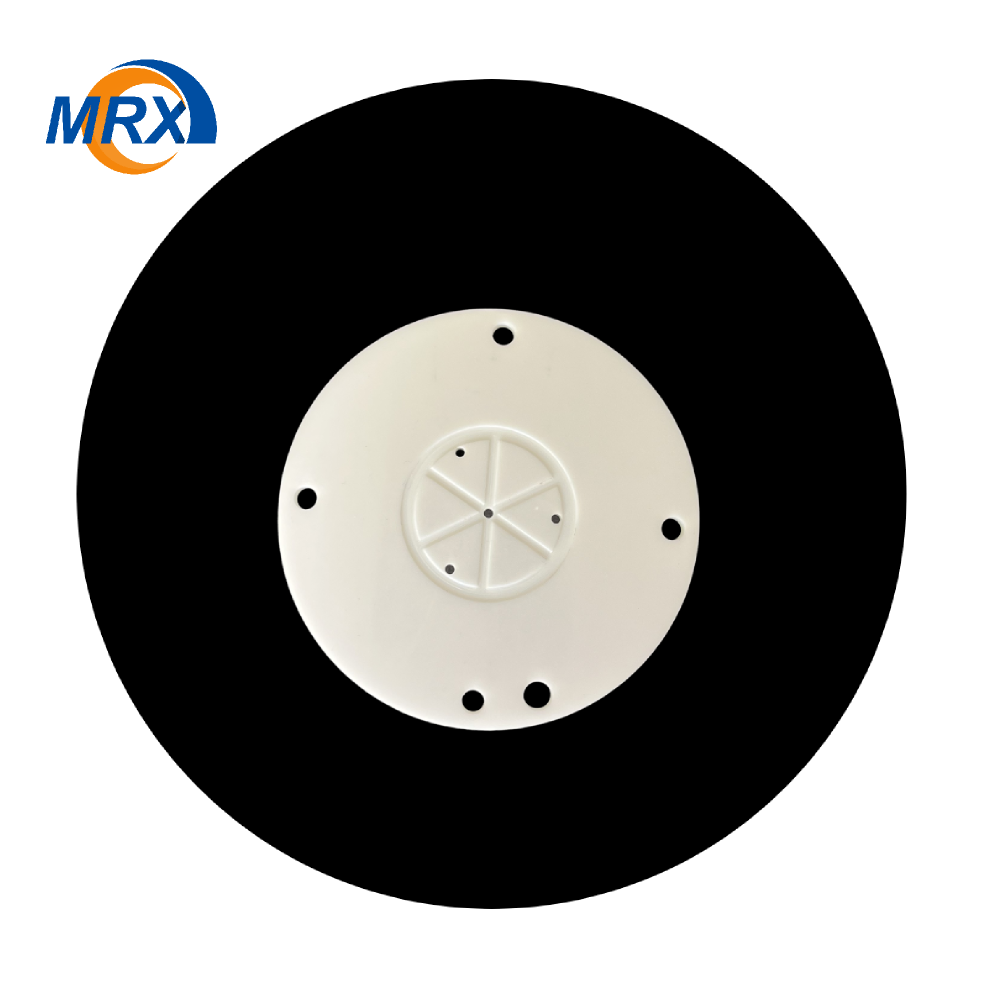

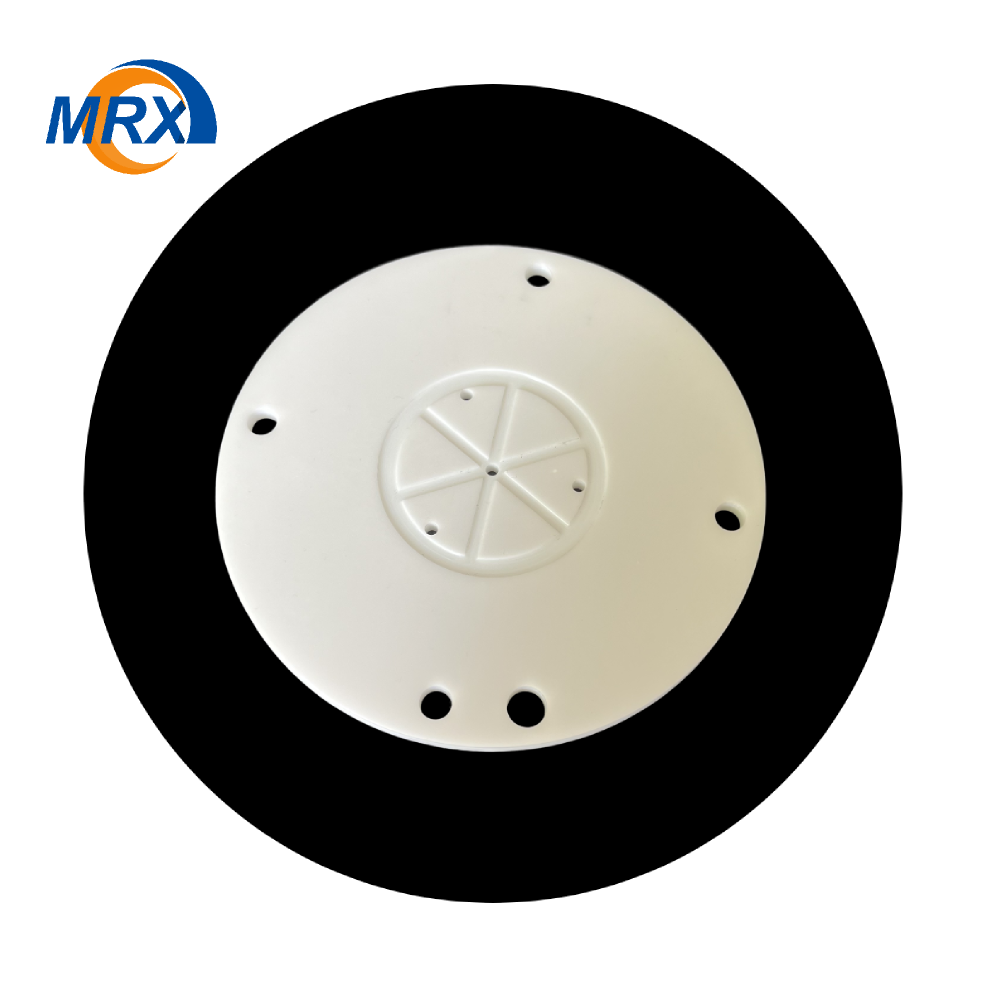

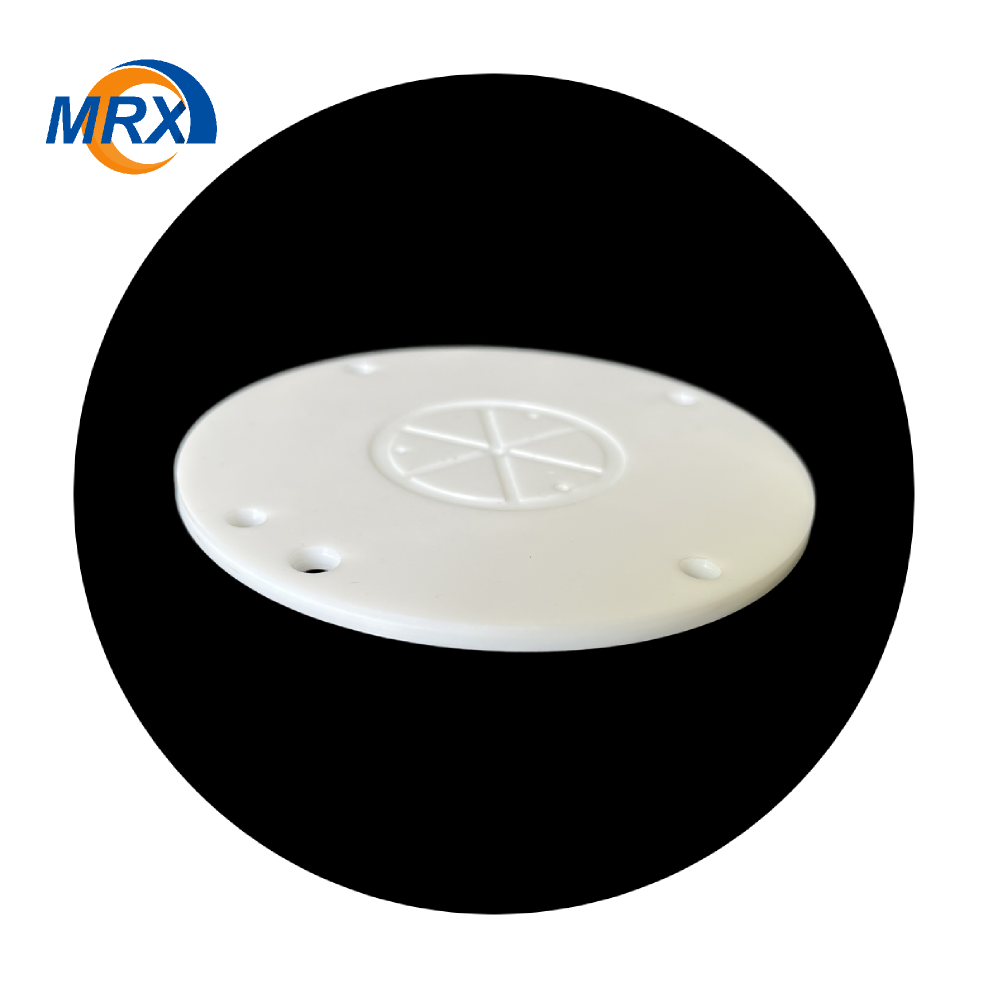

Custom Semiconductor Ceramic Disc Precision Processing Zirconia Ceramic Plate

1 / 6

Custom Semiconductor Ceramic Disc Precision Processing Zirconia Ceramic Plate

$5.00

≥10 piece
$4.00

≥100 piece
$3.00

≥500 piece
$1.00

≥1000 piece

Get Latest Price

You might also like

1 piece (MOQ)

Polished Zirconia Ceramic Plunger Shaft Piston

1 piece (MOQ)

High Pressure Zirconia Ceramic Plungers and Tubes for Pumps

1 piece (MOQ)

Smooth Stabilized ZrO2 Zirconia Ceramic Tube

1 piece (MOQ)

High-Strength Zirconia Ceramic Pins, Plungers, Pistons, and Cylinders with High Finish Degree

1 piece (MOQ)

High Hardness ZrO2 Zirconium Oxide Parts & Zirconia Ceramic Components

1 piece (MOQ)

10mm Industrial Zirconia Shaft Ceramic Bearing

1 piece (MOQ)

Custom Polished ZrO2 Zirconia Ceramic Sheets and Boards

1 piece (MOQ)

Custom Polished ZrO2 Zirconia Ceramic Plate Sheet Board

1 piece (MOQ)

ZrO2 Custom Polished Zirconia Ceramic Pins and Rods

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Place Of Origin	Jiangsu, China
Type	Ceramic Plates
application	Industrial Ceramic
material	Zirconia Ceramic
Model Number	meirixin/6
Brand Name	MRX
Processing Service	Bending
Color	White
Product Name	ZrO2 Ceramic plates
Shape	Round
Usage	Industry Usage
Size	Size Customized
Feature	High Hardness
Keywords	ZrO2 zirconia ceramic parts
Advantage	wear-resisting/High temperature resistance
Item	ZrO2 parts
MOQ	1-10Pcs

Product description

Products Description

Features:

1)Use temperatures up to 2400 ℃ 2)High density
3)High hardness
4)Low thermal conductivity
5) Chemical inertness
6)Resistance to molten metals
7)Good wear resistance
8)High fracture toughness

9. A variety of specifications available
10.Satisfy various technical request

Dimensional accuracy	Up to 0.01mm
Smoothness	Highest possible mirror
Concentricity	Up to 0.01mm
Parallelism	Up to 0.01mm
The inner hole tolerance	The minimum 0.01mm
Straight flute	The narrowest 0.1x100mm
The thickness of the size	Minimum to 0.2mm
The screw thread	Minimum internal thread M2
Cylindricity	Up to 0.01mm
The linear tolerance	Up to 0.01mm
The smallest aperture	The minimum 0.07mm
Precision process	CNC maching,grinding,lapping
Surface finish	Glazed,polishing or metallized
Visual quality: 1. No cracks, no dark dots, no contamination and sharp edges; 2. Evenly distributed glaze with very smooth surface

Technical Parameters

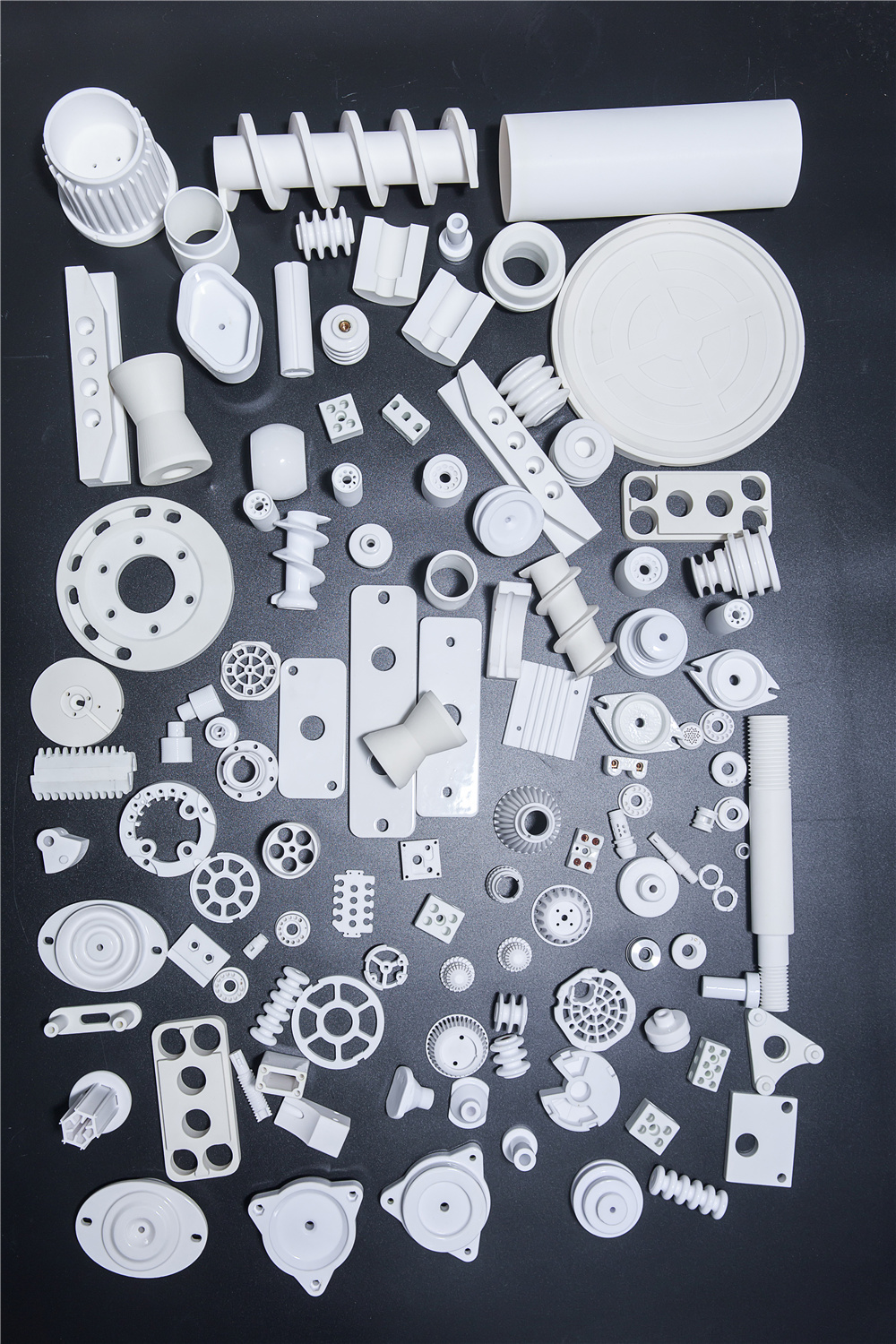

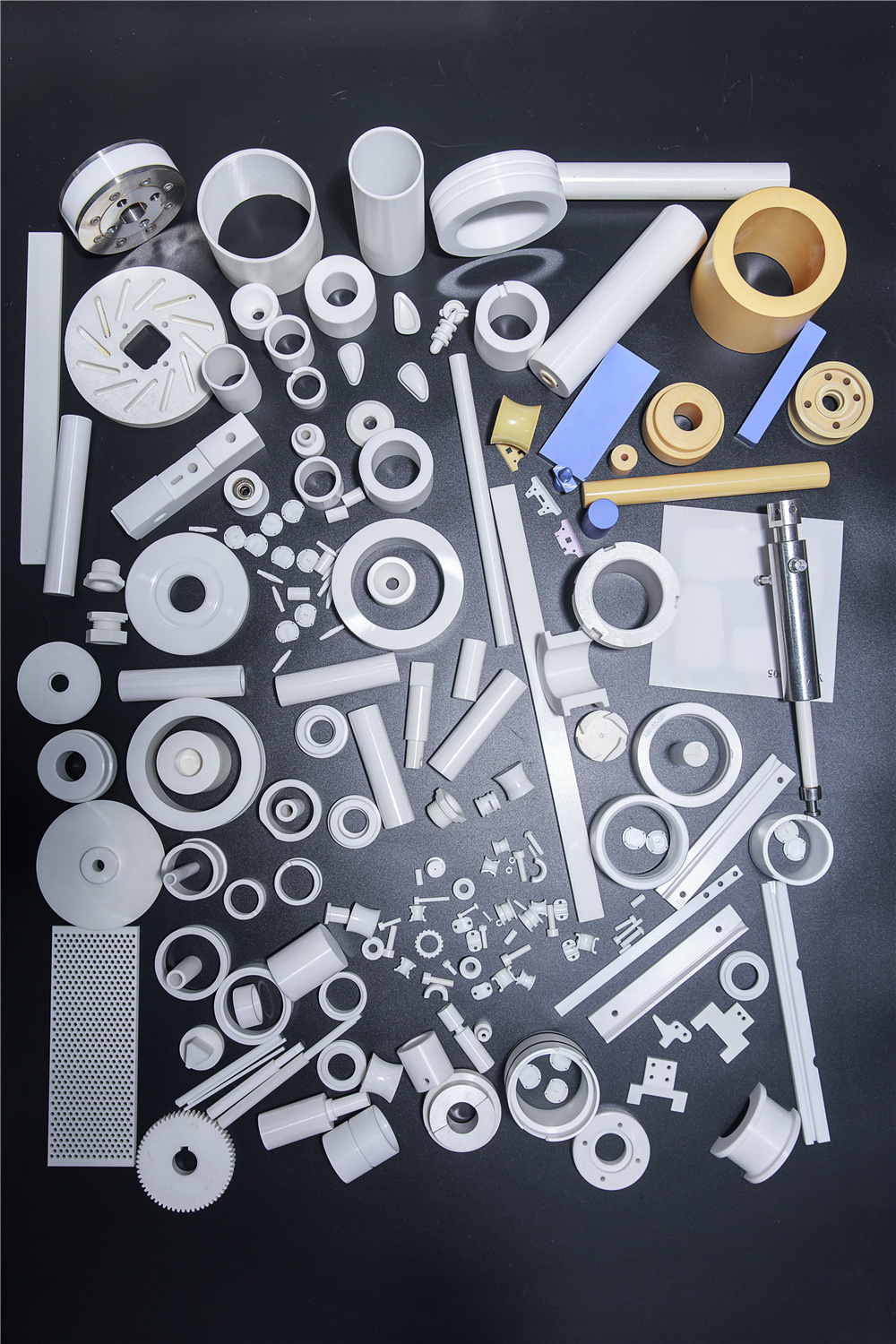

Zirconia ceramic parts

Zirconia ceramic parts have excellent mechanical properties, including high strength, fracture toughness, wear resistance, good thermal shock and low thermal conductivity. Due to these characteristics it finds use in high wear and corrosion applications including valves, pumps and liners. It is the material of choice for the chemical processing and petrochemical industries.

Characteristics	Item	Zirconia-toughened Alumina	MgO partially Stabilized Zirconia	3% mol Y2O3 Stabilized Zirconia	Unit
Mechanical Characteristics	Colour	White	Yellow	White/Ivory
	Density	4.1	5.72	6.02	g/cm3
	Bending Strength	550	500	1200	MPa
	Compressive Strength	2900	2500	3000	MPa
	Elastic Modulus	360	250	210	GPa
	Fracture Toughness	5~6	8	13	MPam1/2
	Vickers Hardness	1600	1100	1300	HV0.5
Thermal Characteristics	Coefficient of Line Thermal Expansion	8.3	10.2	10.3	10-6K-1
	Thermal Conductivity	27	3	2.2	W/mK
	Thermal Shock Resistance (Put in Water)	300	450	300	?T℃
	Max Working Temperature	1500	2100	1000	℃
Electrical Characteristics	Volume Resistance at 20℃	>1014	>1013	>1013	Ωcm
	Dielectric Strength	9×106	13×105	11×106	V/m
	Dielectric Constant	10.6	28	33	εr
	One MHZ Dielectric Loss Angle at 20℃	0.0005	0.0017	0.0016	tan?
