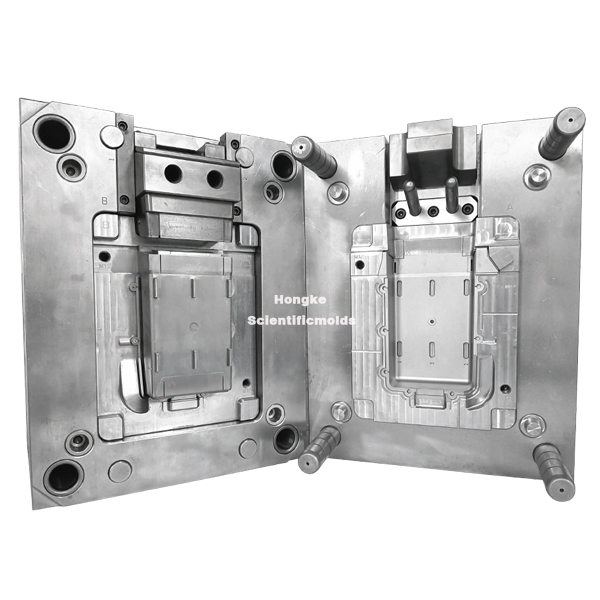

Custom Toolbox Shell Injection Mold

Get Latest Price

You might also like

High-cavity Automotive Electronic Accessories Injection Mold

1 Set/Sets (MOQ)

Multiple Lifter Systems Auto Parts Tooling

1 Set/Sets (MOQ)

Automotive Shifter plastic Mold

1 Set/Sets (MOQ)

Auto Interior Parts Mold for Car Shift Lever

1 Set/Sets (MOQ)

Durable Gear Stick Plastic Molding Tool

1 Set/Sets (MOQ)

High Precision Car Shift Lever Injection Mold

1 Set/Sets (MOQ)

Dashboard Support Frame Automotive Tooling

1 Set/Sets (MOQ)

Functional Component Integrated Clips Injection Tooling

1 Set/Sets (MOQ)

Complex Automotive Interior Plastic Shell Tooling

1 Set/Sets (MOQ)

Wear resistant button mold

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name
Mould Size	According to the plastic product/3D drawing
Mould Base Steel	S50C
Quality Certification	ISO9001:2015, SGS, TüV
Mould Packing Method	Wooden Box
Place Of Origin	Injection Mold Suppliers China
Product color	According to customer requirements/3D drawing
Mould Shipping Method	By sea, by air or according to customer requirements
Inspection Certification	FAI, CPK, IQC, IPQC, OQC.

Product description

This is a Custom Toolbox Shell Injection Mold. As a large flat part, the toolbox shell poses a significant risk of warping. This requires special attention to the cooling channels and even pressure distribution throughout the mold. Additionally, parting line accuracy is critical to ensure no gaps or misalignments in the final assembly.

The external surface of a toolbox usually requires specific texturing (e.g., grain or matte finish). Achieving a uniform texture without imperfections requires high-quality mold surface treatment. The mold base steel is S50C and mold insert steel uses S136 steel with a hardness of HRC48 - 52, and the mold life of the steel can reach 500,000shots or more. Our company is very experienced in Connecter Plastic Mould, Elbow injection mold, PVC Injection Mould.

Mould Name: Custom Toolbox Shell Injection Mold

Part Material: ABS

Mould Cavity: 1*1

Mould Life: 500000~1000000 Cycles

Lead Time: Mold making 4-5 weeks, injection molding production 7-15 days depends on quantities

Mould Base Steel: S50C

Mould Insert Steel: S136
