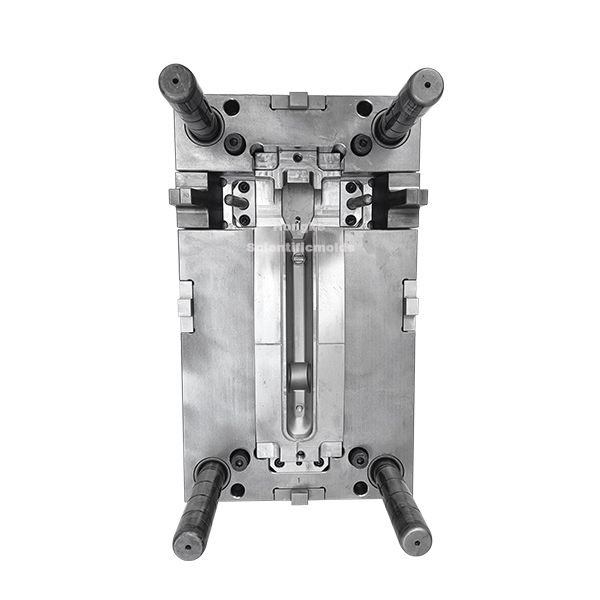

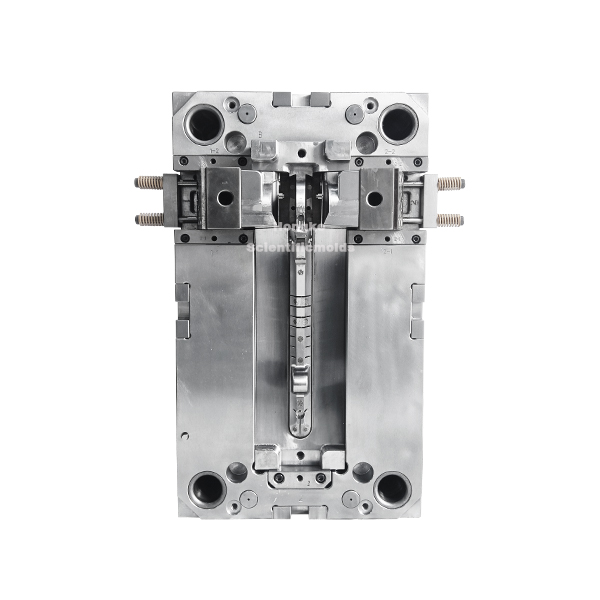

This mold is designed for the production of Dashboard Support Frame Automotive Tooling. The mold's internal design and configuration suggest that the final product must maintain high dimensional accuracy and rigidity, which are common requirements for such applications. The mold is made of high-quality mold insert steel H13 and the hardness of the steel reaches HRC48-52, the life of the mold can exceed 500,000 shots or more when the mold is well maintained. The manufacturing of this mold involved a considerable level of complexity. Because the part is long and thin, the mold structure must ensure even filling during injection while preventing warpage during cooling. Achieving this requires a well-engineered cooling system and precise core-cavity alignment. Additionally, due to the depth and shape of the part, the ejection system needed to be carefully planned. Standard ejector pins are not sufficient in such cases, so features like lifters or angled ejectors are likely included to release the part without damaging critical surfaces. Our company is very experienced in? Aircraft Plastic Mold, car part mold, unscrewing injection mould. A flawless finish is often essential, requiring mirror-polished inserts, and stringent control of weld lines.?

Overall, this mold represents a typical challenge we often face in the automotive toolmaking sector—combining engineering know-how with craftsmanship to deliver a high-performance tool. It reflects our team’s strength in managing complex part structures and ensuring that every step, from design to final delivery, meets the demands of our global customers.

Mould Name: Complex Dashboard Support Frame Automotive Tooling

Gate Way: Sub Gate

Mould Insert Steel: H13

Runner: Cold Runner

Cavity: 1*1
