Priting?Unit: it uses advanced?US?ink supplying?system?to ensure the shinning of the print. China's first low-speed differential water supply system, effectively ensuring the high, low speed of the ink-water balance and color stability; water bridge ink roller by a version in the first ink roller to achieve the unity of the classic structure of the ink to reach the pre-equilibrium, significantly reduce paper waste; pioneered use of floating roller, effectively prevents?the?ink bars and ghost. The ink line is made up of 18?ink rollers and?5dampening rollers (Alcohol?System). Both film and paper can be printed in this machine
Search
Sign In Join Free
Video
1 / 7

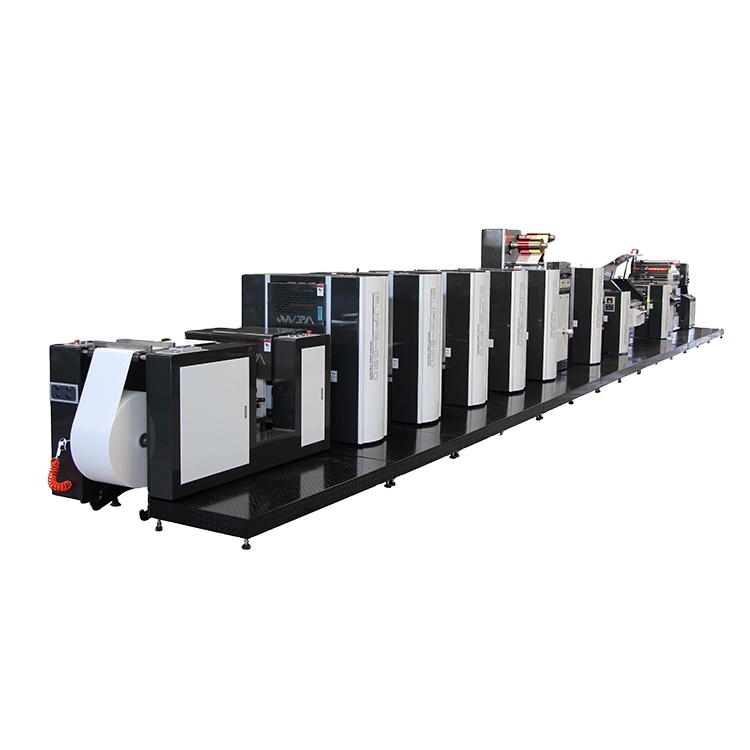

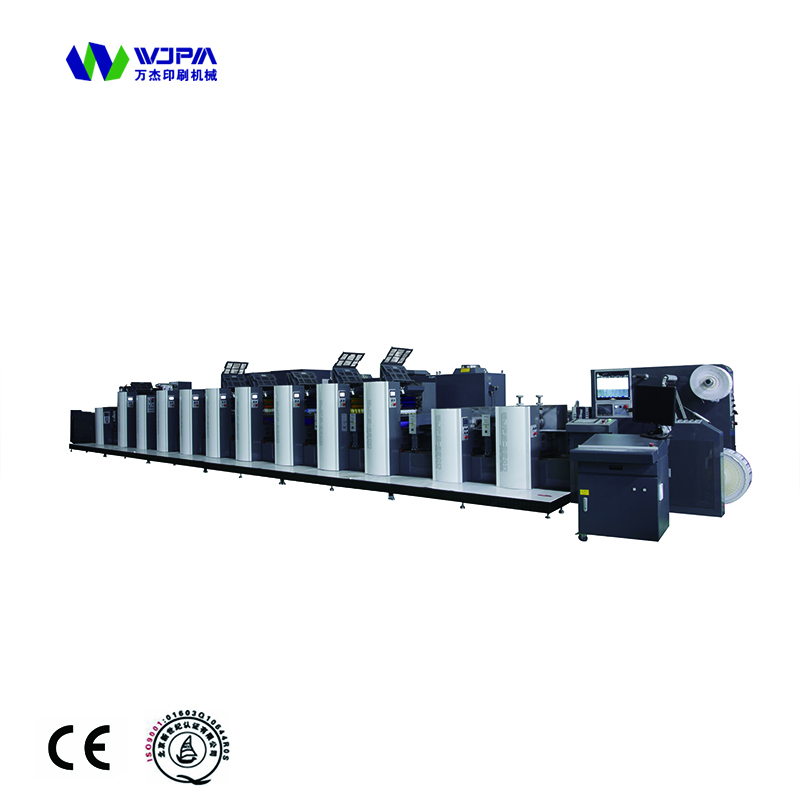

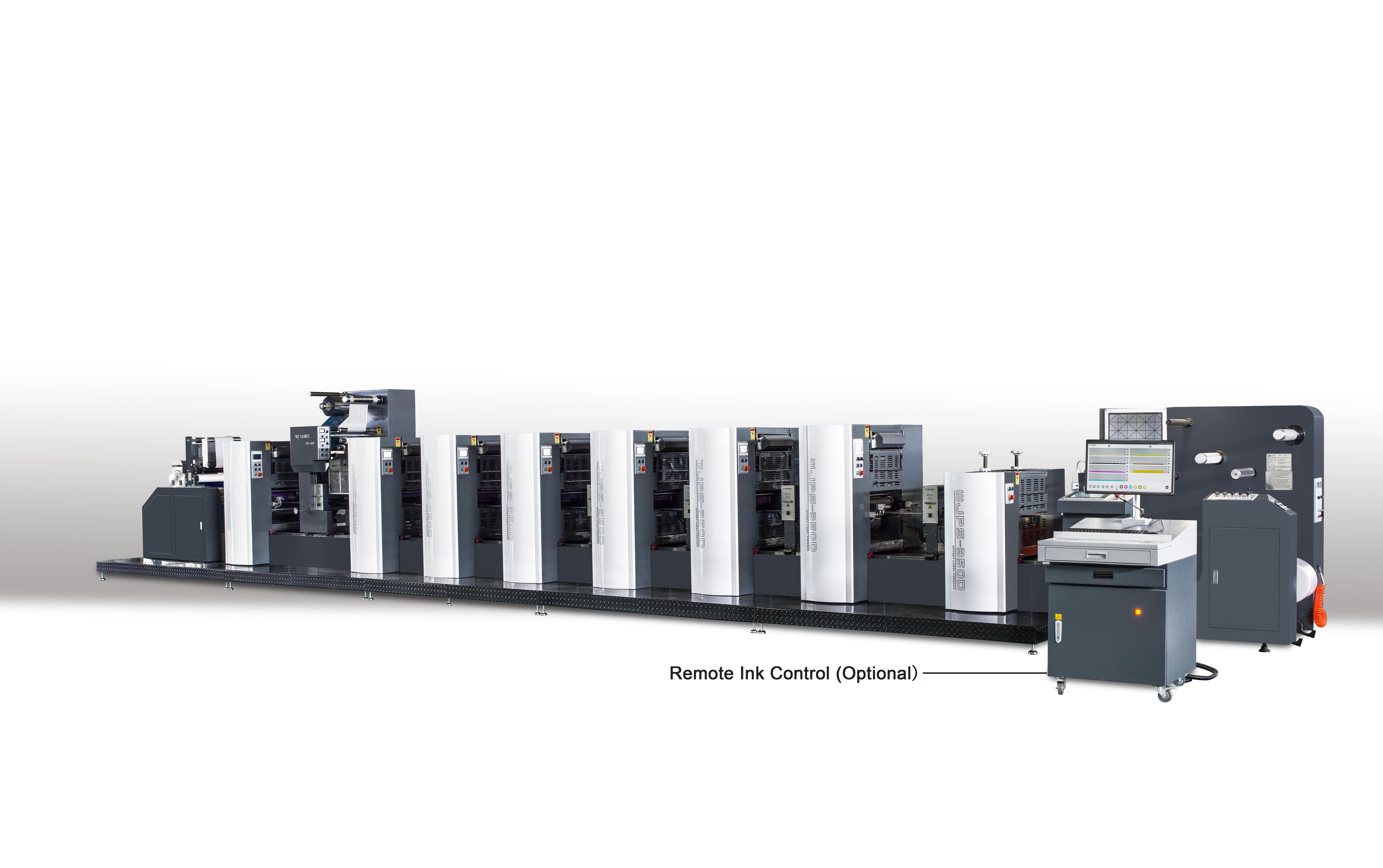

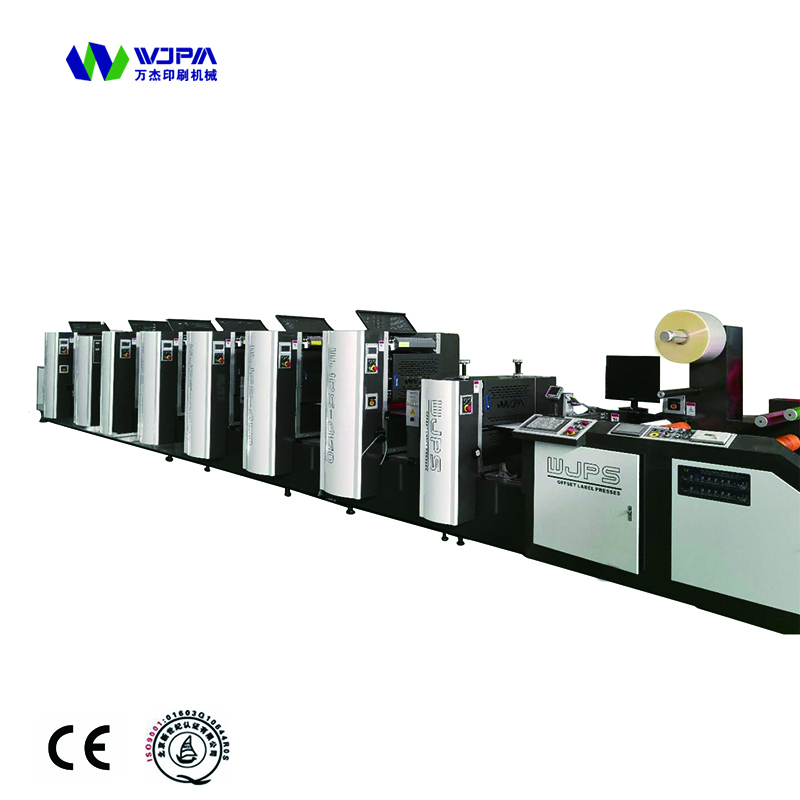

Customized Multi-function 450mm IML Intermittent Semi Rotary Label Printing Machine
$200000.00
≥1 piece
power:
- 39.5KW
Options:
- WJPS-450
Get Latest Price
You might also like
Basic Info
| application | Food |
|---|---|
| Packaging Type | Cartons |
| Packaging Material | Plastic |
| Automatic Grade | Automatic |
| Driven Type | Electric |
Show More
Product description
Benefits:
--Design from short run to long run (each job cost less than 5 USD
Features:
---Low material waste
---Quick job change and fast job set up.
---Fully servo motor system from YASKAWA
---Pre-register system
---Plate cocking(skewing)adjustment)
---Heavy offset printing unit
---Independent lubircation system for each unit
---Automatic and Manual plate mounting system
---Partition ink fountain
---Unwinder and rewinder adopts penumatic paper loading
Main Specification:
Items | Specifications | |
Max. printing Area | 440*415mm | |
Diameter of unwinding web | 800mm | |
Diameter of rewinding web | 800mm | |
Thickness of printing material | Paper： 60-350gsm Film: 50-600micro | |
Printing Length | 170-415mm | |
Printing speed | 30-180rpm/min | |
Power | 29.8?KWfor 6 color? | |
UV | 4.8KW/color | |
Overall dimensions | 10000*3600*1900mm（L*W*H） | |
Machine weight | 13000 kgs |
Offset Printing Unit
Video
Customized Multi-function 450mm IML Intermittent Semi Rotary Label Printing Machine1
Customized Multi-function 450mm IML Intermittent Semi Rotary Label Printing Machine1
Customized Multi-function 450mm IML Intermittent Semi Rotary Label Printing Machine1
Customized Multi-function 450mm IML Intermittent Semi Rotary Label Printing Machine
$200000.00
≥1 piece
power:
- 39.5KW
Options:
- WJPS-450
Get Latest Price
