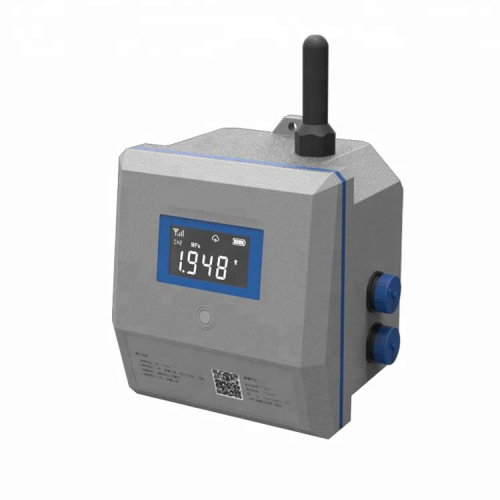

Remote Monitoring Terminal, also called wireless remote terminal, is a compact device with battery supply, ultra-low power consumption, IP68 protection, wireless communication and various sensor data collection function. In specific circumstance, multiple power supply options are available. It is suitable for the monitoring fields without power supply condition and the harsh environment like working as a piping monitoring terminal. It could realize the multifunction including data collection, storage, alarming and transmission for underground water, firefighting water, dam water, water supply and drainage pipeline.

? It is suitable for the monitoring fields without power  supply condition and the harsh environment. It could realize the multi-function including data collection, storage, alarming and transmission for underground water, firefighting water, dam water, water supply and drainage pipeline.

With a wide coverage of wireless network, the product could detect the real-time data of many monitoring sites in a wide range of areas like tap-water pipeline pressure, flow, underground water, agricultural irrigation, dam level, water monitoring, wind, rain, ambient temperature and humidity, air quality monitoring, water flow monitoring, image and firefighting pipeline monitoring, especially suitable for Underground Well detection application in a harsh environment.

Specifications

Outline dimension	147×262.5×105.5mm
sensor parameters access	max. 8-way
Power Supply	Battery / 12V~28V DC / 110V~240V AC/ Solar Power
Interface	AI /  DI  / PI / RS485 / Camera
Data Transmission	NB-IoT / LoRa / 2G / Multi-Bands
Wake-up mode	magnetic activation/ timing/ alarm wake-up
Display	segment  LCD with backlight
protection	IP68
Housing	PA6+30% GF
Installation	hoop and wall mounting

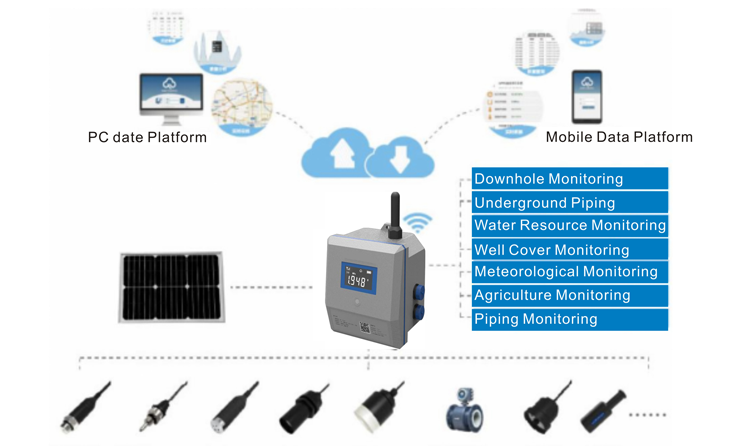

Features

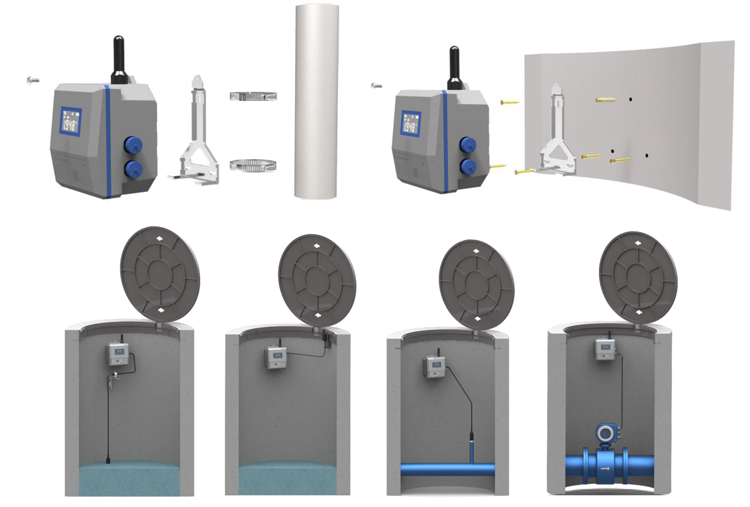

Install

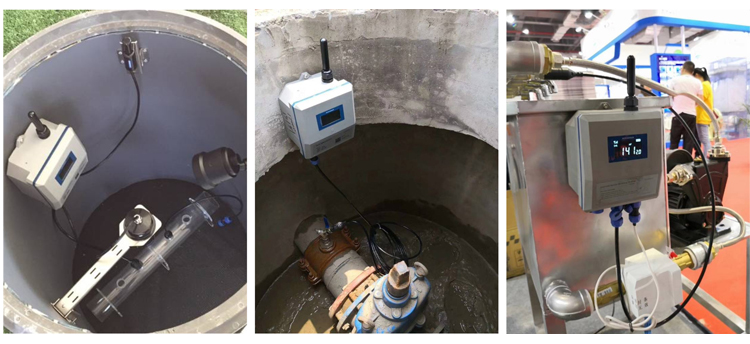

Successful Case

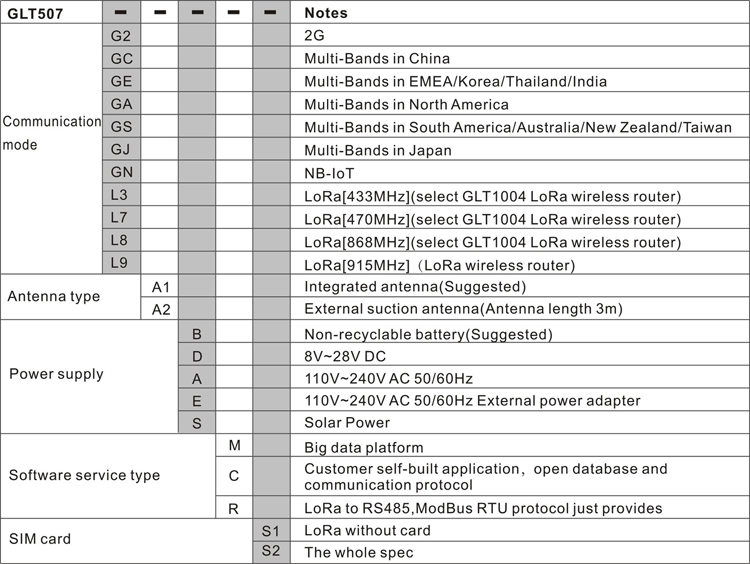

Ordering Code



Notes

1.Matching sensors are not included in this datasheet. Please purchase them separately.

2.The communication protocol is needed if users choose RS485 interface product.

3.If the user has special requirement, please feel free to contact our company.
