DC to DC Converter
Basic Info
| place of origin | China |
|---|
Product description

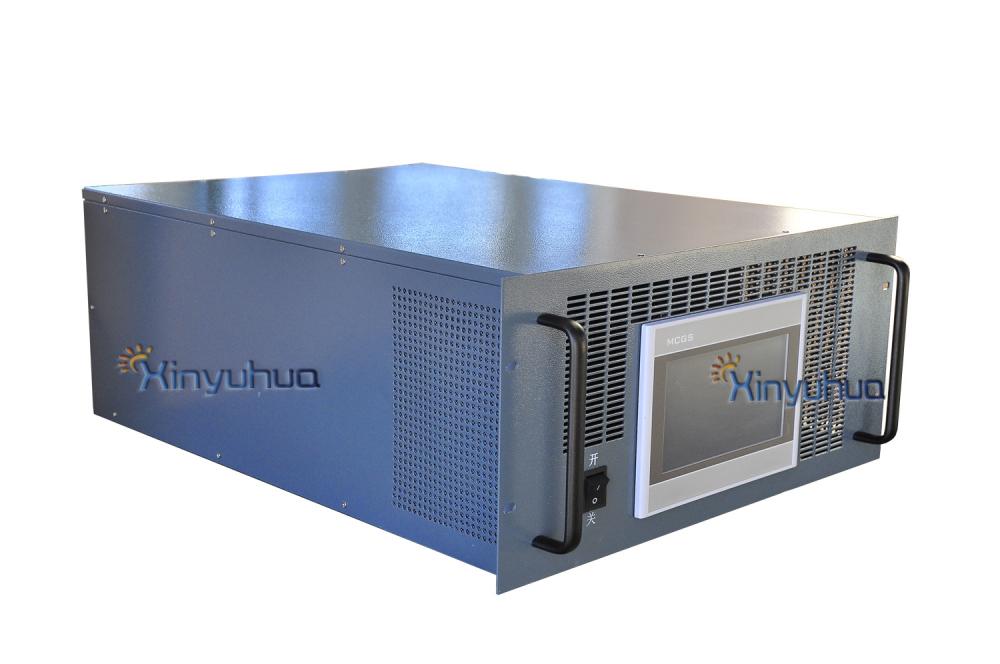

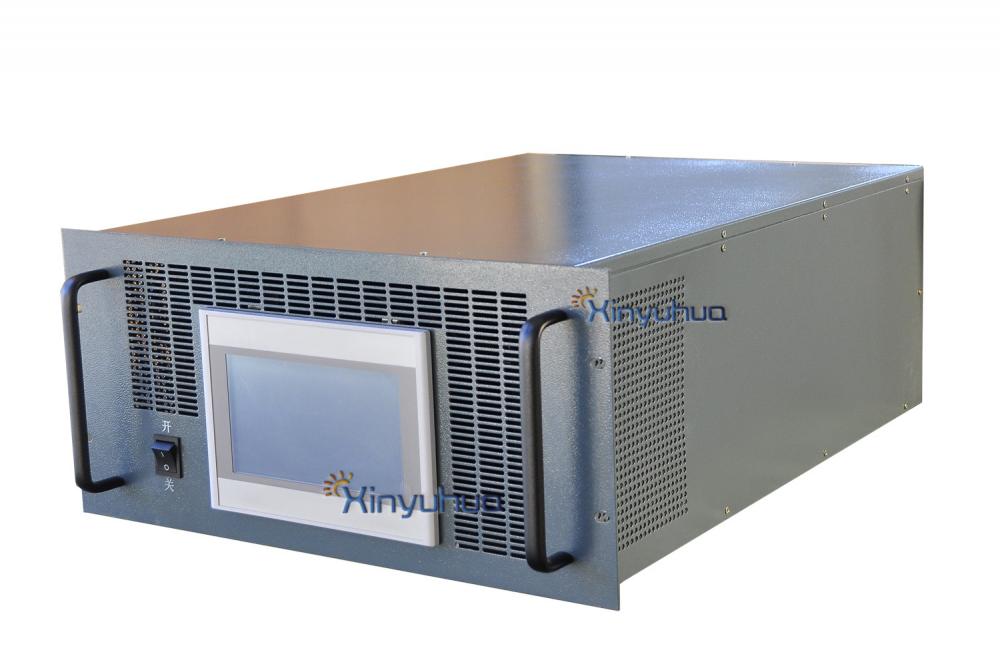

DC/DC converter
1. Working principle
Bidirectional DCDC converter is applied to new energy, which operates in cooperation with battery, battery, DC bus, motor controller and motor to realize various operation conditions of new energy, energy recovery and prolong the service life of battery.系統(tǒng)工
2. Function introduction
◆ Realize the two-way flow of energy, that is, it can charge from the battery side to the bus and charge the battery from the bus side
◆ It has full-automatic protection functions such as overheating, overvoltage, overload and overcurrent
◆ Original imported power devices shall be selected
◆ The main control chip adopts microchip industrial MCU and full digital circuit design
◆ All industrial chips are used, which can operate normally in cold, high temperature and humid environment.
◆ Standard RS-232 communication, RS-485, GPRS, Ethernet and other communication modes can be selected to meet the needs of different occasions to the greatest extent
3、Technic Parameter
|
Model |
50K DC-DC（BIDCDC-50KW） |
|
Operation mode |
Continuous work |
|
Rated output power （KW） |
50 |
|
High voltage side parameters |
|
|
Max.power（ KW） |
50 |
|
DC voltage range |
DC 50V-850V |
|
Current range |
0--±160A |
|
Voltage stabilizing accuracy |
<0.1%F.S. |
|
Current stabilizing accuracy |
<0.1%F.S. |
|
DC voltage ripple |
<0.3%F.S. |
|

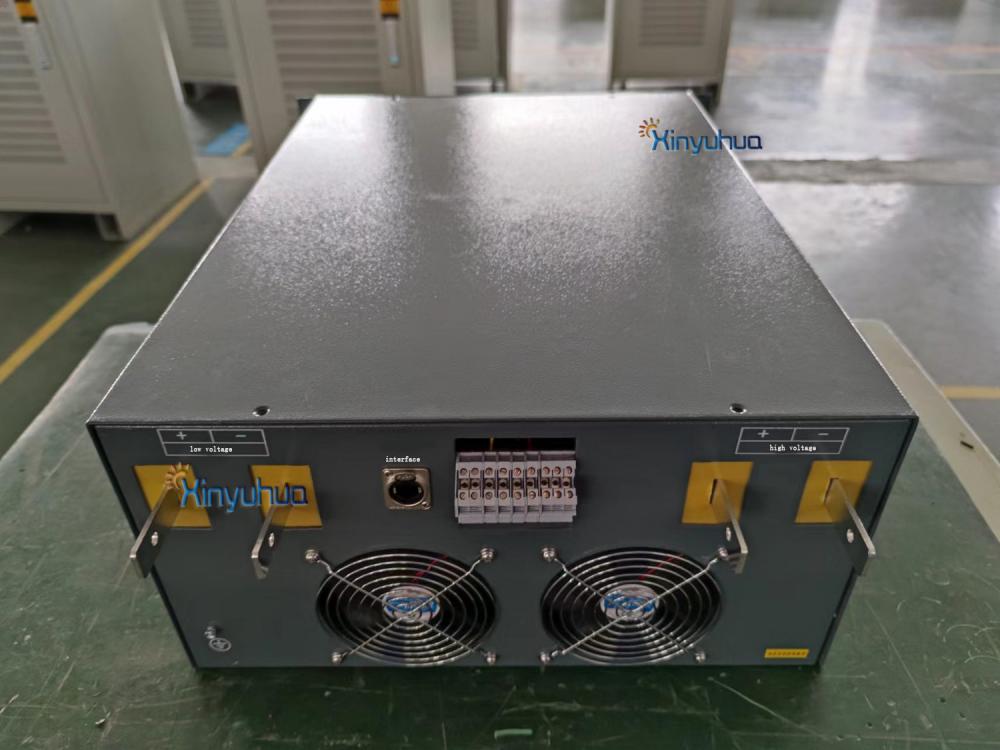

Low voltage side parameters |
|
|
Max.power（ KW） |
50 |
|
DC voltage range |
DC 0-800V |
|
Current range |
0--±200A |
|
Voltage stabilizing accuracy |
<0.1%F.S. |
|
Current stabilizing accuracy |
<0.1%F.S. |
|
DC voltage ripple |
<0.3%F.S.
|
|

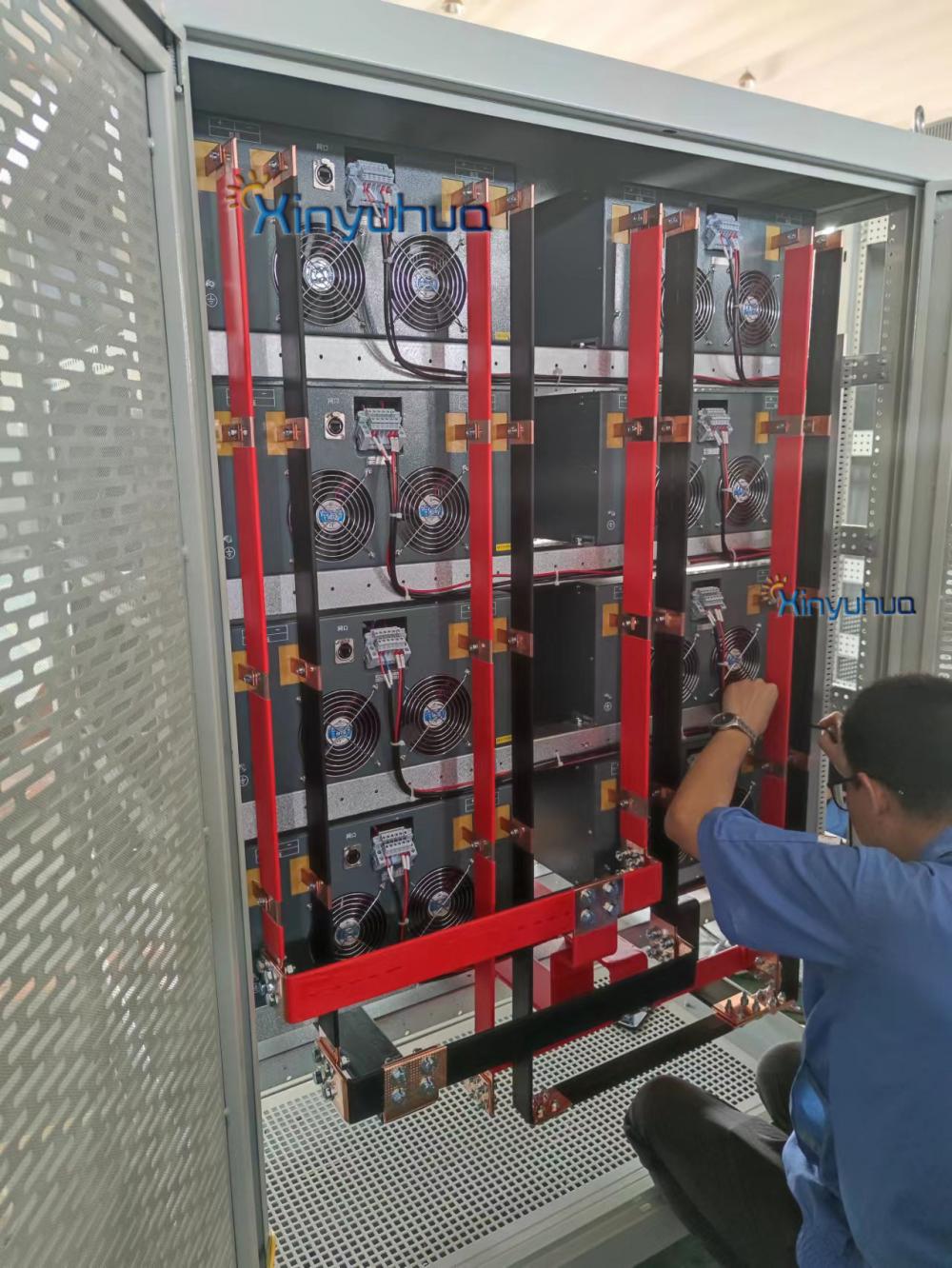

Parallel No. |
20units |
|
System |
|
|
System power supply |
1. AC 220 V (required when the low voltage side voltage is lower than 180V) 2. The low voltage side voltage is between 180v-750v |
|
Noise |
65dB |
|
Protect Class |
IP21 |
|
Allowable ambient temperature |
－20℃～+45℃ |
|
Cooling mode |
Forced air cooling |
|
Allowable relative humidity |
0～95% （ non-condensing ） |
|
Max. allowable altitude |
≤2000m（derating over 2000m ） |
|
Emergency stop |
Yes (via emergency stop button) |
|
Display and communication |
|
|

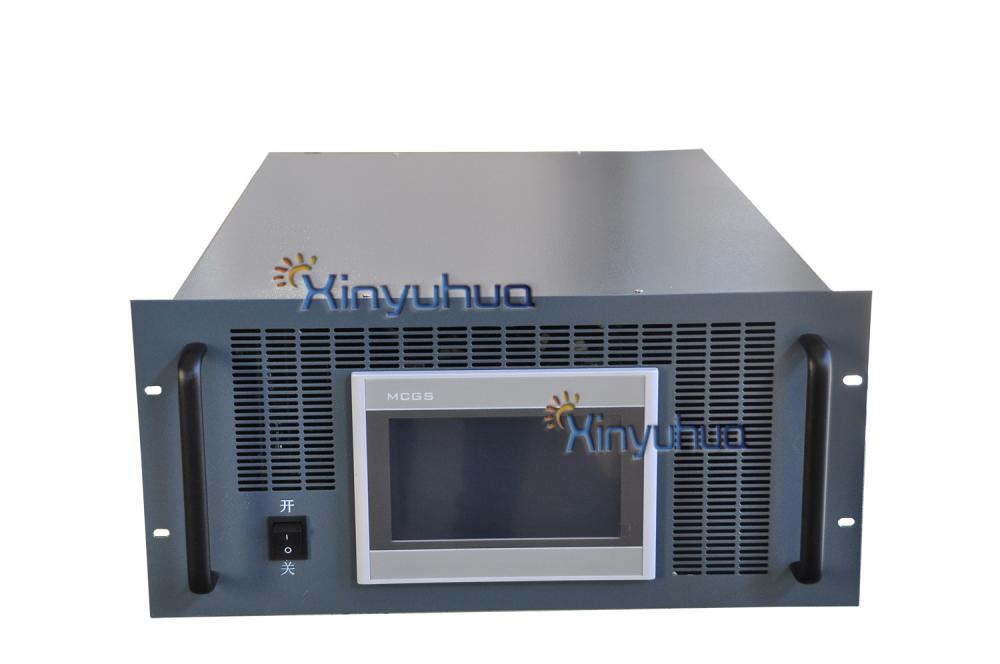

Display |
External touch screen |
|
Standard communication mode |
Ethernet / RS232 (Modbus Protocol) |
|
Size / weight |
|
|
Host size |
W*L*H 482.6mm*600mm*222.2mm |
|
Weight |
42KG |
Jinan Xinyuhua Energy Technology Co., Ltd. firmly grasps the direction of "low-carbon economy and green development", takes "building a first-class new energy enterprise in China and even in the world" as its strategic goal, carries forward the enterprise spirit of "harmony, innovation and pur
