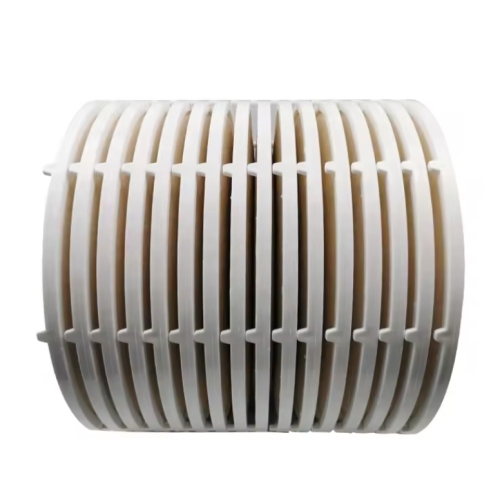

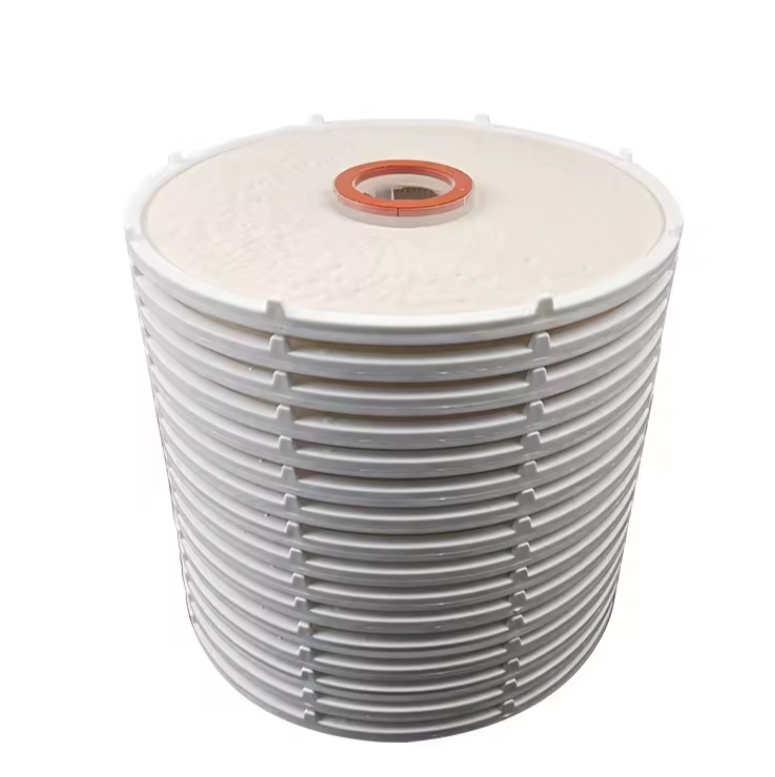

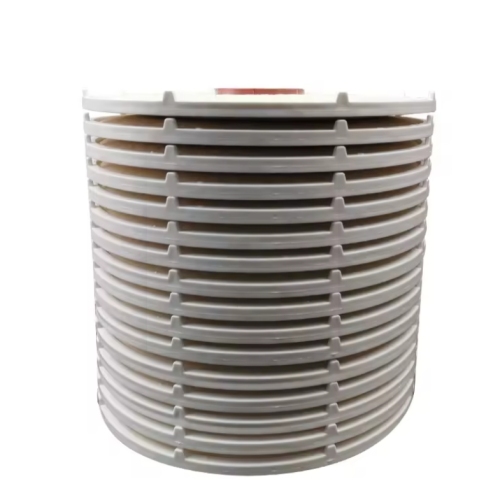

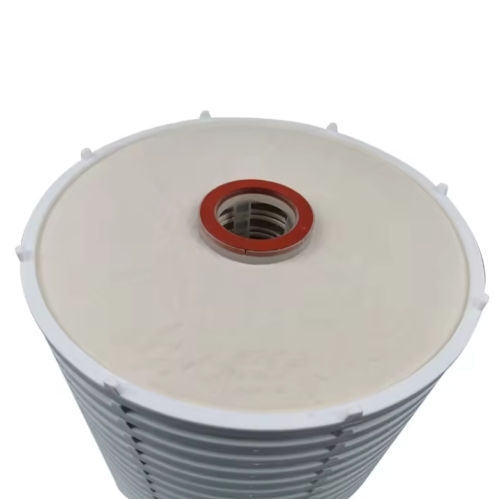

Lenticular Depth filter module is also called stack filter. It is used for lenticular filter housing which is widely used in winery and brewery. Depth filtration modules allow to handle large filter areas easily in a disposable assembly. Filtration is performed in a closed system. Depth filter sheets inside have a high dirt holding capacity.

Material of Constructions: Depth filter sheet. Cellulose fibers. Natural diatomaceous earth, Perlite, Resins. And Etc  Core/Separator: Polypropylene (PP). Double o ring or Flat gasket type, 1-3um 2-5um 5-7um available.

All the filter housings are Sanitary hygienic grade

 1. Cartridge filter housing: from single cartridge to 50 cartridges

 2. Bag filter housing: NO1 NO2 bag housing, from single bag up to 12 bags

 3. Lenticular filter housing: 12”and 16”; 1 high to 4 high

 4. Magnetic filter housing: For food and chocolate

 5. Steam and gas filter: From 5”to 30”.

 6. All kinds of stainless strainer: Inline strainer, Y strainer, Angel strainer, basket strainer

 7. PP PTFE stainless steel filter cartridges

 8. Activated filter vessel, self cleaning filter, customized filter housing

Please contact our sales team to know more.

We offer different kinds of filter cartridge for industrial, chemical, food, beverage, beer, wine applications. including pp, ptfe, pes, stainless steel, titanium. Activated carbon filters etc. We also make different types of stainless steel filter housings.

Name	Parameters
Max Operate temp	PP = 100℃  PTFE = 150℃ PES = 150℃ METAL = 200℃
Filter pore size	0.22-200um
Operate pressure	0.1-30Mpa
Filter length	5-40inch or custom made according to user's request
Filter Adaptor	222/226/215/M36/M28/M24/M22/M20/DOE
