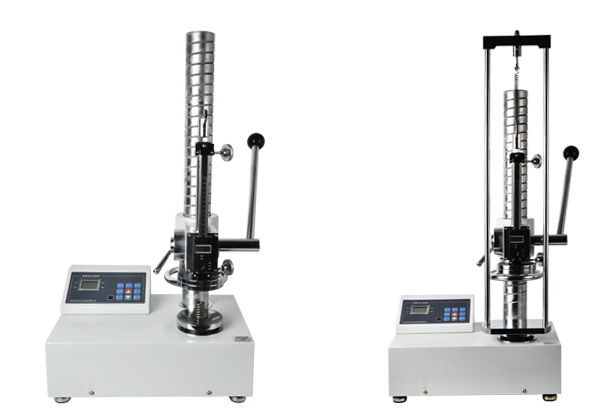

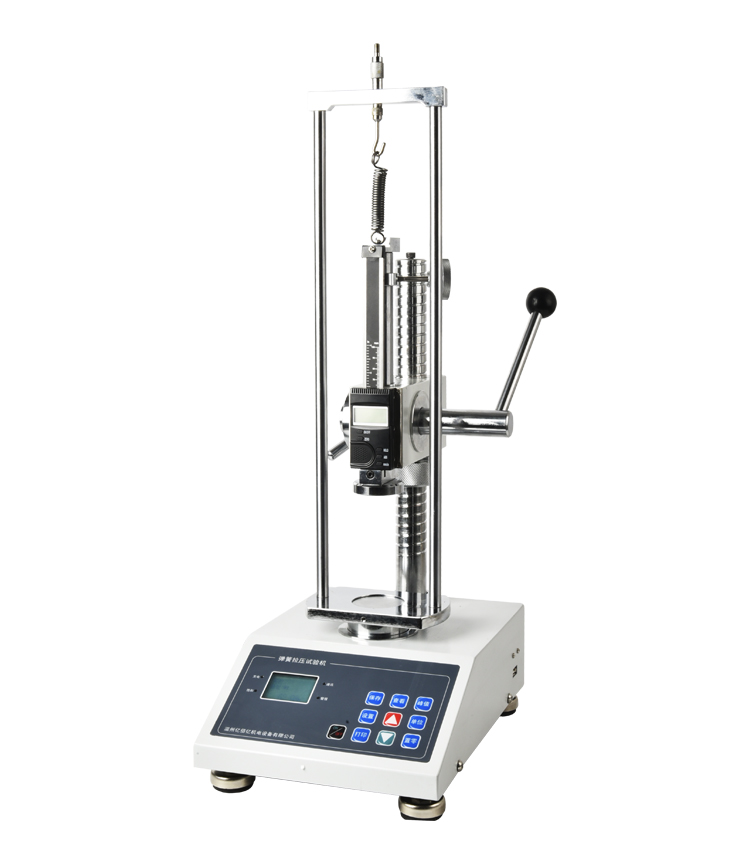

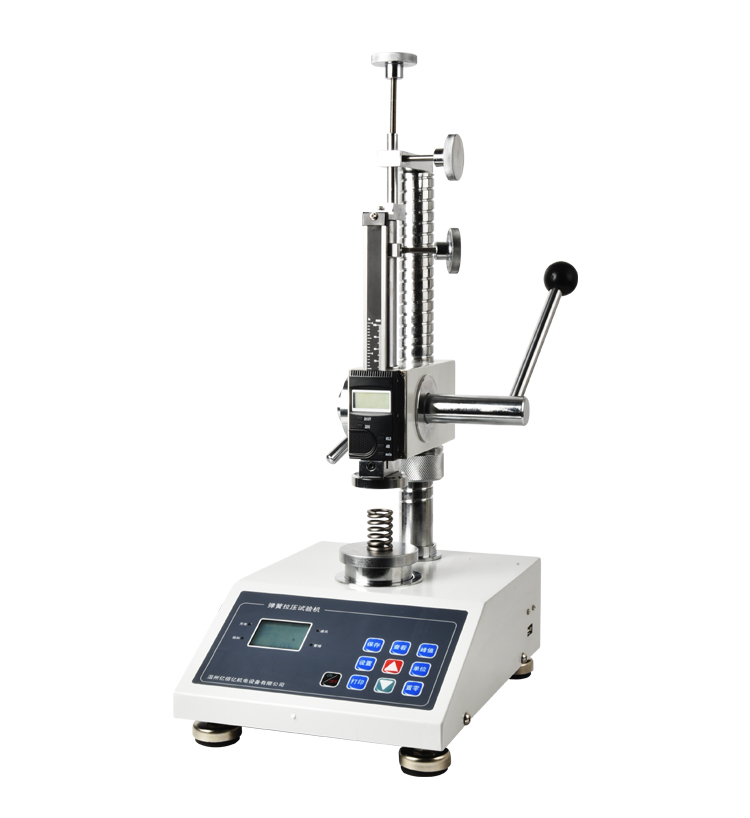

Digital Automatic Spring Tensile Compression Strength Test Machine (1000N-5000N) - Spring Deformation Tester
use:
- Spring deformation tester
- Digital Spring Tensile Compression Test Machine
$750.00
1 set (MOQ)
$9600.00
1 set (MOQ)
$680.00
1 set (MOQ)
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm, Obm, Software Reengineering |
| place of origin | China |
| Brand Name | yisite |
| Model Number | ETH-1000 |
Product description
?
Overview

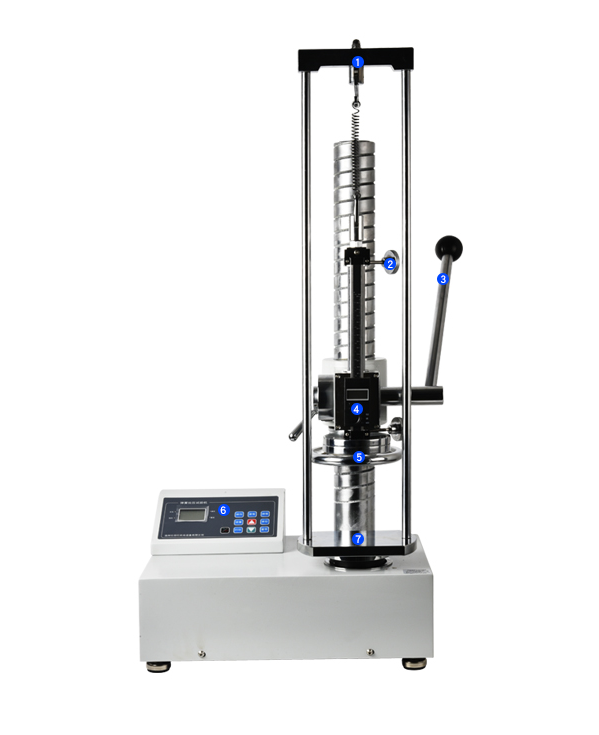

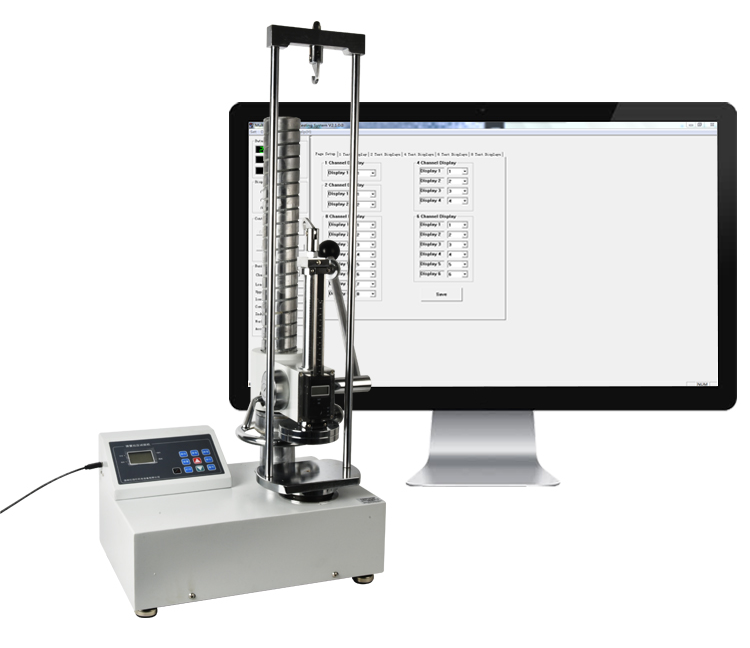

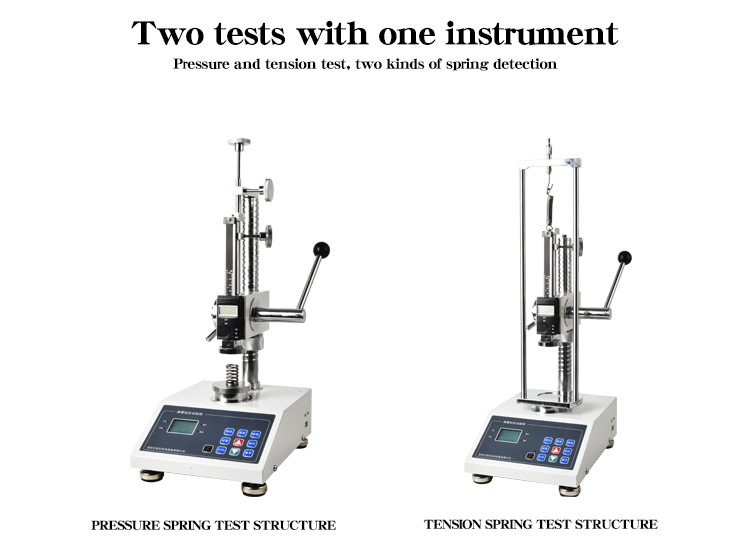

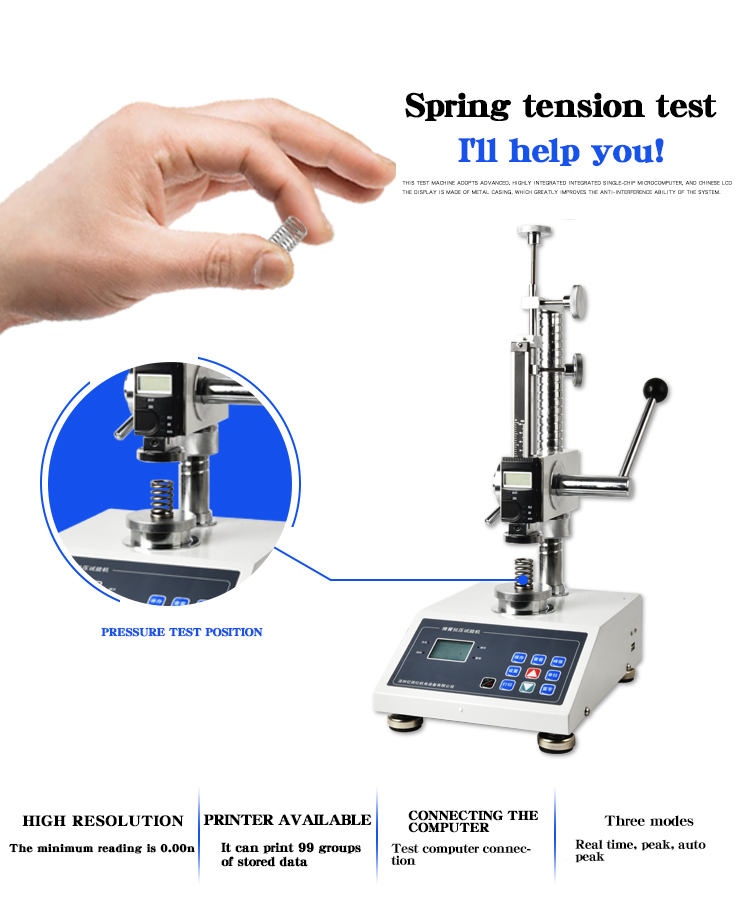

this testing machine is used to test amount of deformation and characteristic of load relation of extension and compression springs. It can be applied to the testing of working load of extension and compression springs under certain working length. Advanced and highly integrated chip microprocessor is adopted by this machine, Liquid crystal display (English) and metal case.The interference-killing feature of the system is thus greatly improved.
?
?Specification and Parameter
|
Model Number |
ETH-?10 |
ETH-?20 |
ETH-?30 |
ETH-?50 |
ETH-?100 |
ETH-?150 |
ETH-?200 |
ETH-?300 |
ETH-?500 |
ETH-?1000 |
ETH-?2000 |
ETH-?3000 |
ETH-?5000 |
|
Maximum testing load |
10N |
20N |
30N |
50N |
100N |
150N |
200N |
300N |
500N |
1000N |
2000N |
3000N |
5000N |
|
1kg |
2kg |
3kg |
5kg |
10kg |
15kg |
20kg |
30kg |
50kg |
100kg |
200kg |
300kg |
500kg |
|
|
Minimum resolution |
0.001N |
0.01N |
0.1N |
||||||||||
|
Diameter of the platen |
34mm |
48mm |
108mm |
||||||||||
|
Maximum free length of measurable spring |
80mm |
150mm |
200mm |
||||||||||
|
Length of travel of ?displacement scale |
60mm |
90mm |
150mm |
||||||||||
|
Division value of ?displacement scale |
0.01mm |
||||||||||||
|
Indication error |
±1% |
||||||||||||
|
Power Supply |
AC 220V, 50HZ |
||||||||||||
|
Power capability (without printer) |
13W |
||||||||||||
|
Power capability (with printer) |
20W |
||||||||||||
|
Working temperature |
20±10℃ |
||||||||||||
|
Temperature of storage and transportation |
-27℃~+70℃ |
||||||||||||
|
Relative temperature |
15%~80%RH |
||||||||||||
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
