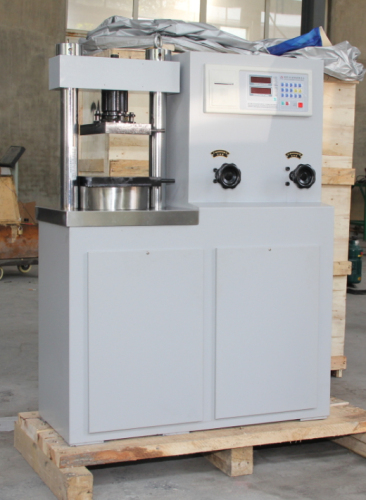

Digital display compression strength testing machine

Get Latest Price

Model No.	YES
Brand Name	HST/OEM

Application of digital display compression strength testing machine:

In compression tests, the test machine exerts a pushing or compressive load or force to squish the test sample until it breaks or squishes. Compression tests of a polymer structural foam material is covered by ASTM D1621 which specifies the type of compression plates and deflectometer used. The test sample is placed between compression test platens until the cellular structure fails or ruptures. YES-100 / 200 / 300 Hydraulic Power Digital Display Compression Testing Machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

Compression strength testing machine parameter:

Structure

Mainly composed by main unit, oil source and measuring control system.

Measuring Control

System

The machine adopts hydraulic loading, the electronic testing load.

With digital display load, loading rate, keeping maximum load, overload

protection and outage data keeping and other.

Safety Protection

Device

When the test force exceed the 3% of the maximum test force, overload

protection, the oil pump motor stop.

Model	YES-100	YES-200	YES-300
Basic Parameter
Max. Load	100 KN (10 TONS)	200 KN (20 TONS)	300 KN (30 TONS)
Load Accuracy	≤±1%
Piston Stroke	80mm
Upper Pressure Plates Size	Φ170mm
Lower Pressure Plates Size	Φ170mm
Max. Compression Space	210mm
Host Dimension	8504001350mm
Weight	400 KG
Power	1.0 KW
Power Supply	220V, 50Hz (Can Be Customized)
Printer	Thermal Micro Printer
Printing Paper Size	Wide 57mm
Oil Pump Motor Band	SIEMENS Oil Pump Motor Brand
Test Control System Parameters
Range Of Test Force	10%~100% FS (10KN~100KN)	10%~100% FS (20KN~200KN)	10%~100% FS (30KN~300KN)
Force Load Way	Manual Control Load Way
Test Date Display	Dual Row Nixie Tubes For Force and Loading Rate Display

FAQ

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer`s company when you need.
products are widely recognized and trusted by users.

Our services:
Pre-sale, we provide comprehensive advisory services, tailored for different industries to meet customers` special needs.
After-sale, we could supply door to door installation and training services according to customer requirements .
During the use process, if there is any problem, your could reach our technical engineers in time by e-mail, remote video, telephone and other possible ways.
The machine parts is free of charge during the warranty period ,and machines lifetime maintenance.

Packaging and shipping:
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine'Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
