Digital Push Pull Force Meter & Push Off Force Tester
$800.00
≥1 set
$500.00
≥10 set
Options:
- 0.001N~2N/0.5KN~1000KN
- ±0.5%
$1800.00
1 set (MOQ)
Basic Info
| Warranty | 1 Year |
|---|---|
| Type | Digital |
| Customized support | Oem |
| Place of Origin | Guangdong, China |
| Brand Name | Zotai |
Product description
Digital Push Pull Force Meter, Push Pull Force Tester
Key Specification:
|
Model |
ZT -2 |
ZT -5 |
ZT -10 |
ZT -20 |
ZT -50 |
ZT -100 |
ZT -200 |
ZT -500 |
ZT -1000 |
|
Max. testing value |
2N |
5N |
10N |
20N |
50N |
100N |
200N |
500N |
1000N |
|
Load scale value? |
0.001N |
0.001N |
0.005N |
0.01N |
0.01N |
0.05N |
0.1N |
0.1N |
0.5N |
|
Relative indication error |
±0.5% |
||||||||
|
Sensor installation method |
Built-in or external sensor optional |
||||||||
|
Model |
ZT -2000 |
ZT -5000 |
ZT -10k |
ZT -20k |
ZT -50k |
ZT -100k |
ZT -200k |
ZT -500k |
ZT -1000k |
|
Max. testing value |
2000N |
5000N |
10KN |
20KN |
50KN |
100KN |
200KN |
500KN |
1000KN |
|
Load scale value? |
1N |
1N |
0.005kN |
0.01kN |
0.01kN |
0.05kN |
0.1kN |
0.1kN |
0.5kN |
|
Relative indication error |
±0.5% |
||||||||
|
Sensor installation method |
?external sensor |
||||||||
?
Introduction :
This series of digital display push-pull force gauges are general-purpose portable push-pull load test instruments, which are suitable for push-pull load test, plug-in force test, destruction test, etc. of various products, and can be combined with various machines and fixtures to form different purposes Small experimental machine.
?

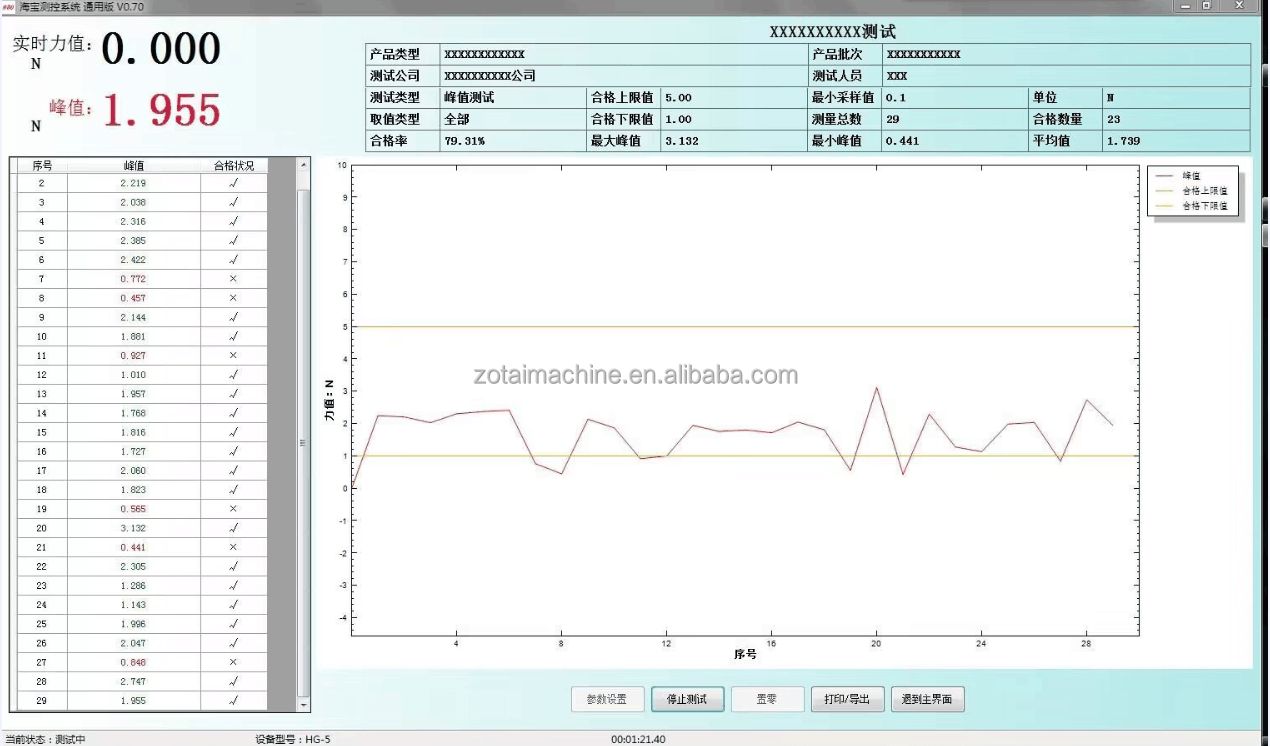

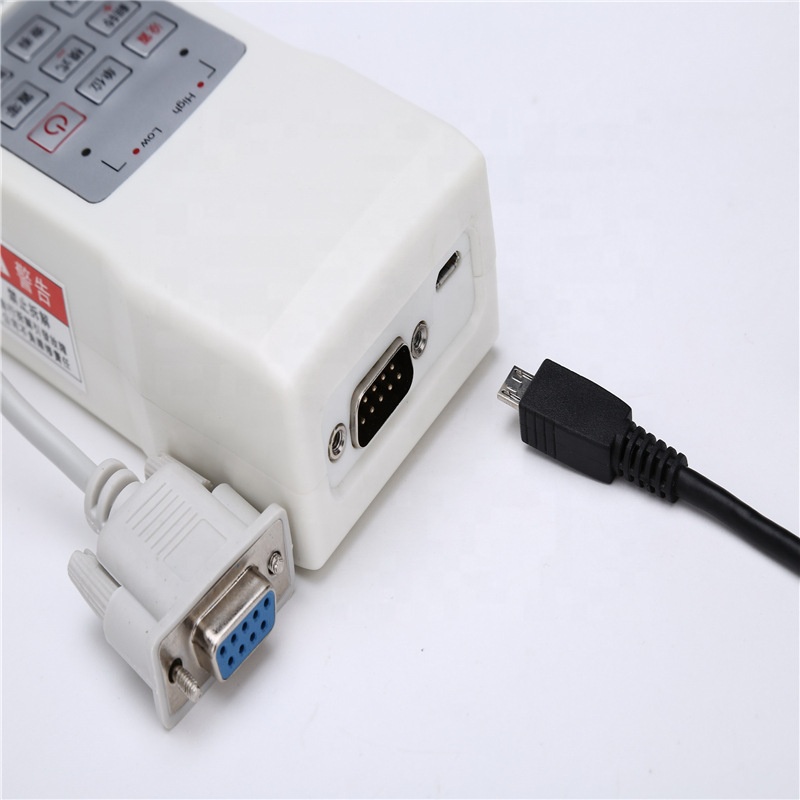

Test interface:
?
1. Zotai?Service:
If you face any problems in future during testing process we promise we will give you a reply within?48?hours and solution provide within?3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
2. Onsite Service:
A.?Device installation;
B.?Equipment Operation Test Technology training;
C.?Equipment Calibration;
D.?Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A.?Social media 24 hours online communication;
B.?Mail Seamless Docking;
C.?Video Conferencing;
D. Artificial free door-to-door service
Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 12 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.
