DIP Vertical type Ejector Header

Name: DIP Vertical type Ejector Header
Brand: Shenzhen CGE Electronics Co.,Ltd
Rating: 4.3 (32 reviews)

Get Latest Price

You might also like

Double-row SMT Vertical type Ejector Header

1 Piece/Pieces (MOQ)

Double-row curved plug Ejector Header

1 Piece/Pieces (MOQ)

DIP Vertical type Ejector Header

1 Piece/Pieces (MOQ)

Basic Info

Model No.	2.54mm
Brand Name	Sigeyi
place of origin	China
gender	Male

Company Overview

Product description

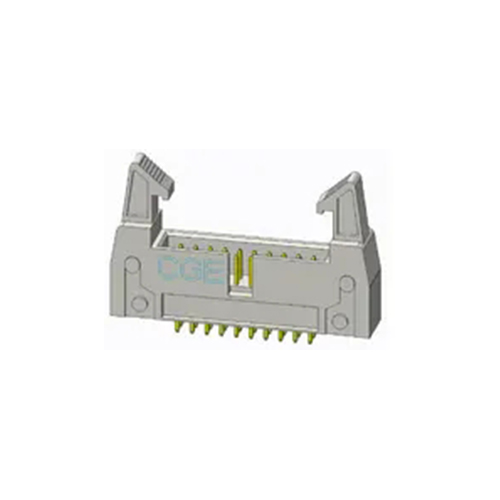

Product Name:DIP Vertical type Ejector Header

Ejector Header The shape of a quadrilateral plastic socket, contact parts are a number of neatly arranged frequency pins.Ejector Header It is a simple cow's shell without the fixed parts shaped like horns, like a box without a lid. It is a very simple to use internal wiring devices, no special tools and wires to handle, just snap can be simply installed.
Ejector Header Is the European connector, is the connector according to the actual use of the classification of the species, because of its shape and shape similar to the bull's horn and named.

SPECIFICATION

Rated Current:3.0A
Contact Resistance:20mQMax
Insulation Resistance:1000MQ Min
Withstand Voltage:1000VAC/DC
Operation Temperature:-40°cto +105°c
Mterial:
Housing:High-temperature material
Terminal:Copper alloy

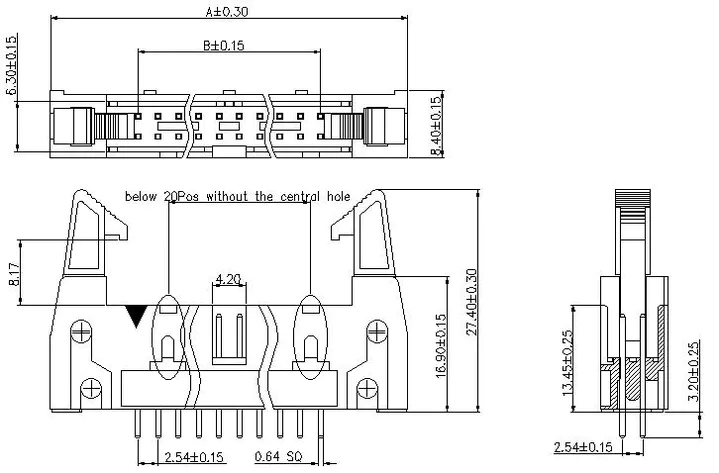

DIP Vertical type Ejector Header

6.0

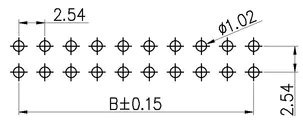

PCB LAYOUT:

6.1

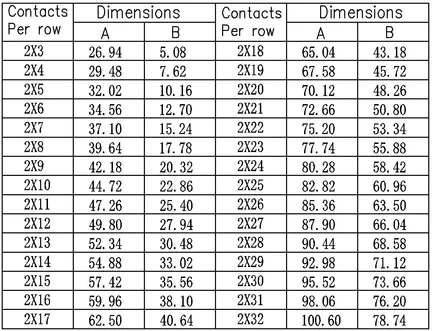

Dimensions list:

6.2
