Specification: TPS180913-21

Details

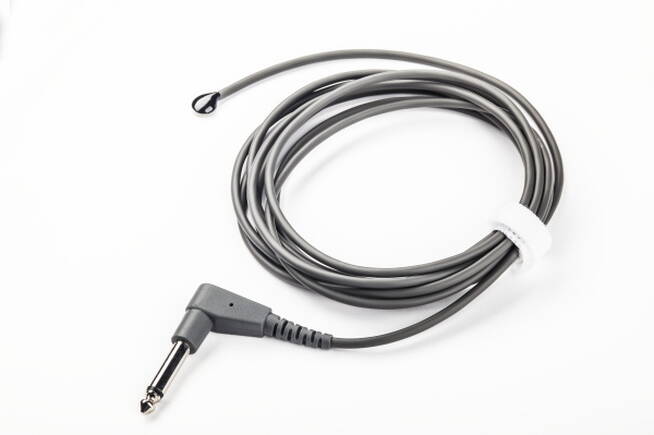

Material: the medical temperature probe is made of a high-precision medical chip/silicone cable/mono audio plug

Applicable temperature range：-30~45℃

Output signal: analog signal output

Advantages
1. High-precision medical chip

2. Good stability and high reliability

3. Wide resistance range: 2~10KΩ

4. The resistance and B value accuracy can reach 0.1%

5. Small size, sturdy structure, easy for automatic installation

6. Operating temperature range: 0~45℃

7. Fast heat induction and high sensitivity

Application
Our temperature sensor medical device can be used for ICU monitor human body temperature measurement.

General parameters

ResistanceR25℃： 5K 10K 15K 20K 50K 100K 200K
B value(R25/R50) 3380 3950 3470 4200 3977 4100 4200
Tolerance 1% 2% 3% 5%

Note: What is the B value:

A material constant that describes the resistance-temperature relationship. The value of B can reflect the scale of resistance to temperature change between two specific temperatures. As the temperature changes, the resistance value of a product with a large B value under the same conditions changes more, that is to say, it is more sensitive.
