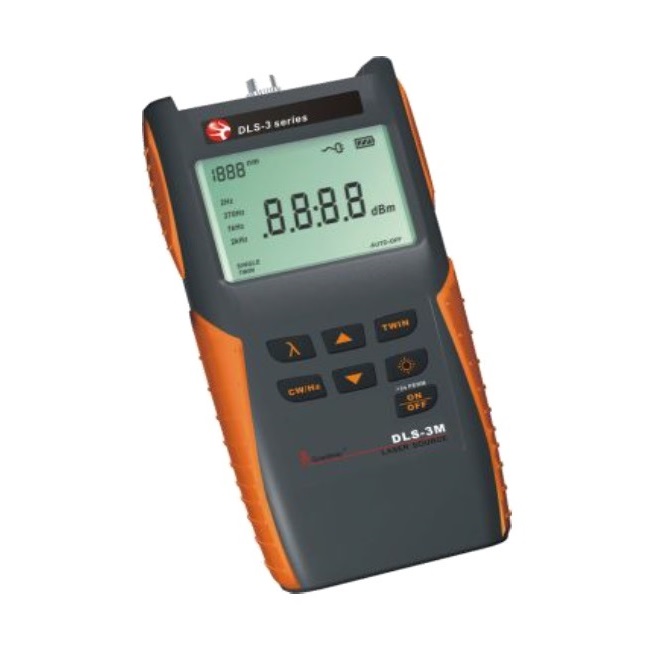

DLS series Optical Laser Source

Get Latest Price

You might also like

Mini Fiber Optic Cleaner

1 (MOQ)

Live Fiber Identifier Build in VFL

1 (MOQ)

Optical power meter with Optical laser Source

1 (MOQ)

High Precision Handheld Optical Power Meter

1 (MOQ)

PON Power Meter for FTTX PON network

1 (MOQ)

DLS series Optical Laser Source

1 (MOQ)

1310/1550nm OTDR with VFL

1 (MOQ)

Fully Automatic Operation Fiber Optic Fusion Splicer

1 (MOQ)

Basic Info

Model No.	BD-POW-D02
Brand Name	Baudcom
Certification	CE
Condition	New
Weight	0.3
Product	Optical Laser Source
Output Wavelength	1310&1550nm
Output Optical Power	-5dBm
Emitter Type	LD

Product description

General Description:

The series Laser source are advanced version of DLS series Laser Source, with better features and more functions.

Auto-Wavelength Recognition

The optical laser source can transmit with a wavelength-identification digital encrypted protocol,enabling the BAUDCOM Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

Features:

Easy-to-use, straight forward operation

Eye-catching handheld package

LCD backlight for easy operation in darker environments

±3dB Adjustable by the user.

Rechargeable battery inside

850 & 1300 availale for multimode testing

Three-year warranty and recommended calibration interval.

Specifications:

	BD-POW-D02	BD-POW-D03
Output wavelength(nm)	1310&1550	850&1300
Emitter Type	LD
Output Stability	Short Term (15min.): ±0.05dB @ 1300 / 1310 / 1550 nm ±0.1dB @ 850 nm Long Term ( 8 hrs.) : ±0.1dB @ 1300 / 1310 / 1550 nm; ±0.2dB @ 850 nm
Central Wavelength	1310&1550±20nm	850&1300±20nm
Spectral Width	3 nm
Output Frequency(Hz)	270,1k,2k
Output power	-5dBm
Adjustable Range	±3dB, 0.1dB/step
Auto Power-off	Yes
Back-light	Yes
Operating Temperature	-10 to +50
Storage Temperature	-20 to +70
Power Supply	2pcs * Ni-MH AA(2500mAh)
Dimension(mm)	160L*76W45H
Net Weight	270g
