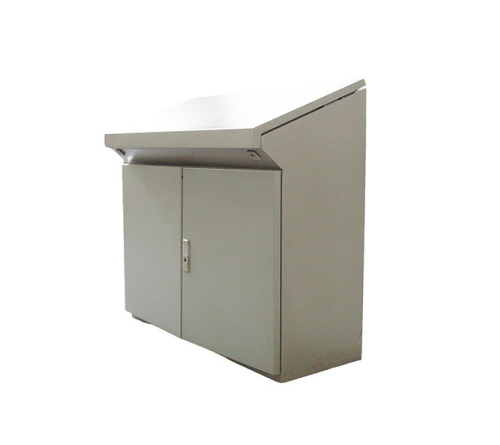

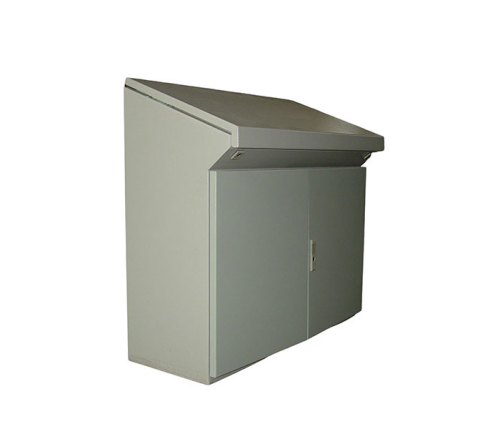

Engineered for control-intensive environments, the Double AP Industrial Console fuses two fully independent 19-inch bays into a single, rigid 2.5 mm galvanized-steel chassis. Each compartment carries its own IP66-sealed front door, AX-lock swing frame and 150 kg telescopic slides, letting teams service PLC racks on the left while HMI screens stay live on the right—no downtime, no cross-contamination.??

?

Overall dimensions are a footprint-friendly 1 600 × 900 × 1 950 mm (W × D × H), yet internal volume reaches 0.9 m3 thanks to zero-protrusion hidden hinges and a shared rear cable vault. Dual 230 V fan trays with washable G4 filters move 300 m3 h?1 of air in parallel, holding electronics 15 °C below ambient in 45 °C steel mills. Sound-absorbing foam cuts noise to 58 dB(A), meeting ISO 11064 for 24-hour operator comfort.??

?

Modularity is built-in: bays can be specified 600, 800 or 1 000 mm wide, mixed in any combination, and retrofitted in the field with a single wrench. Color-coded gland plates, 36 DIN rail positions and removable earth bars slash commissioning time by 40 %. A marine-grade powder coat, 1 000-hour salt-spray certified, withstands offshore salt, food-grade acids and petrochemical solvents alike.??

?

Security and connectivity are equally scalable. Each door accepts electronic or mechanical AX locks, while integrated 48-port CAT-6A patch panels and 24-fiber optic trays keep data and power segregated. The console is CE, UL 508A and ATEX Zone 22 certified; optional Ex e junction boxes allow direct wiring of intrinsically safe barriers without external panels.??

?

Shipped fully assembled on shock-mounted skids, the Double AP drops onto any plant floor, docks with overhead bus-bar systems or raised-floor trenches, and is ready for terminal strips, drives or edge servers the same day. A 20-year warranty on the steelwork and five years on all hardware demonstrate our confidence: this is the last double-bay console your project will ever need.

?
