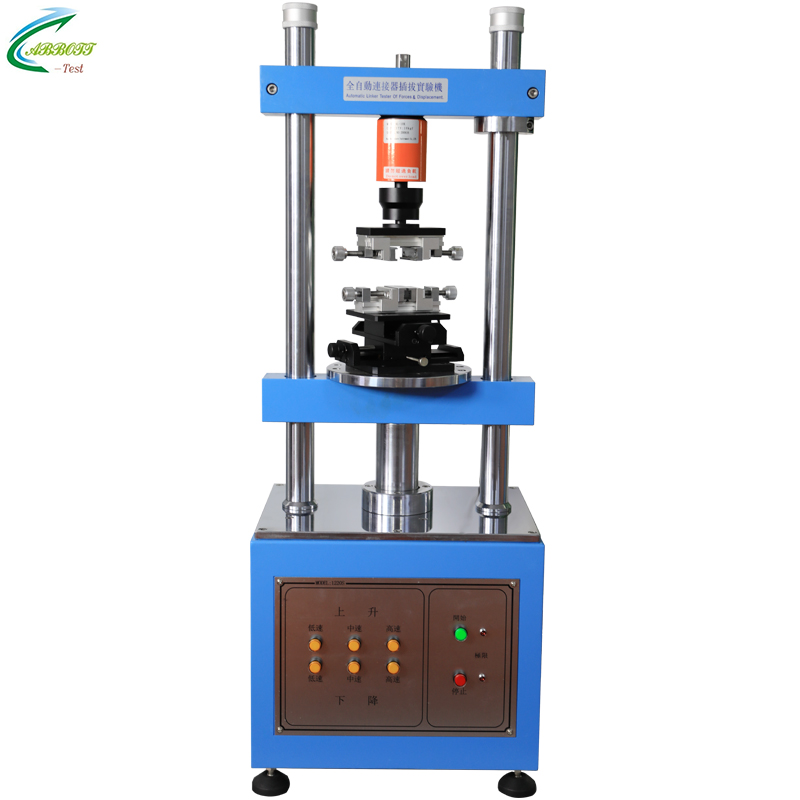

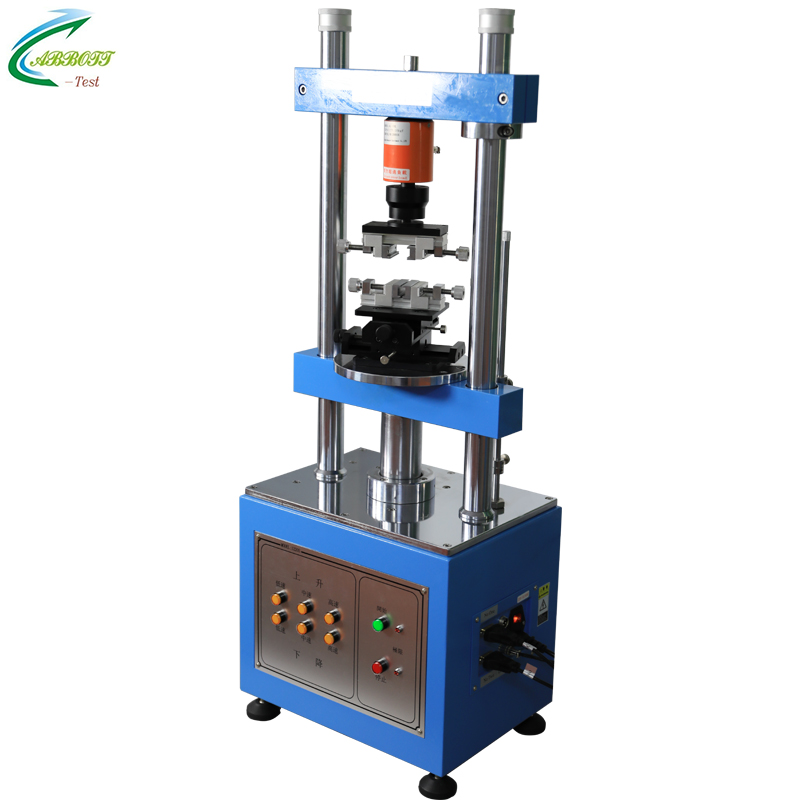

Insertion and Extraction Force Tester

Insertion Force Testing Machine is suitable for connectors insertion and withdrawal force tests, the use of unique device automatically matched to find the heart of a variety of special fixture connector, the plug can be completely accurate force results. All the testing informations are setting by the computer and it can automatically store testing condition,test result,(load-displacement),curve,life decay curve and automatically generate reports.

Features -- Insertion and Extraction Force Tester

High precise Load resolution 0.01gf

Adopting high precision explosion Load Cell,Repeated errors 0.01%

High stability, adopt Japan Panasonic servo motor drive and ball screw drive, can eliminate noise and resonance.

Test Items --Insertion and Extraction Force Tester

Test hole plug connector.

Test row of the connector plug

Life test plug connector.

Single-pin connector and plastic Retention Test

Connector test

Impedance measurements can be performed simultaneously (optional)

Various compression, tensile breaking strength test

Specifications --Insertion and Extraction Force Tester

Load capacity：2kg, 5kg, 20kg, 50kg

Unit switch over：gf,kgf,ibf,N

Resolution：0.001kg

Load precision：±0.2%

Maximum travel：150mm

Test speed：0~200mm/mim(0~600mm/mim)

Speed precision：0.5%

Displacement resolution：0.01mm

Motor：Panasonic servo motor

Size：360×260×940mm

Weight：70kg

Power：220V,50HZ / Customized
