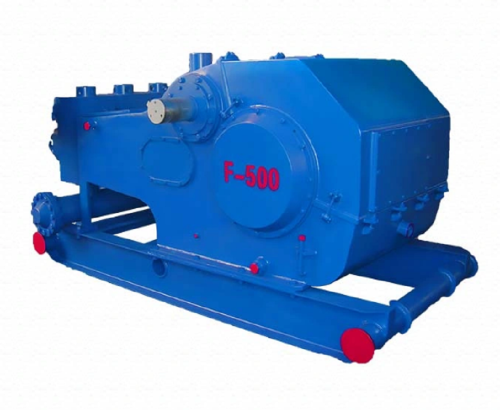

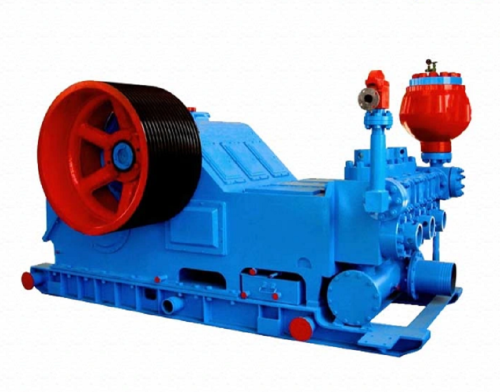

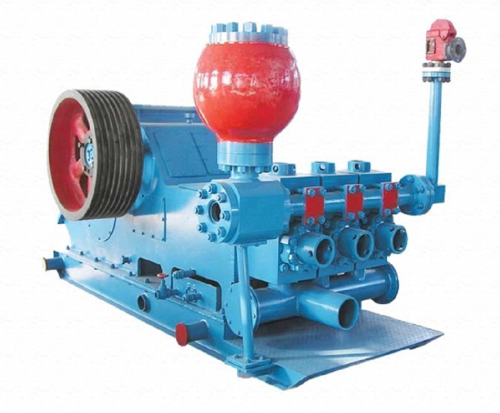

Drilling Mud Pump for Oil Drilling Rig 500
Options:
- Performance: Pump
- Application: Oil Drilling Rig
- Power Source: Pneumatic
- Material: Alloy
- Advantage: Durable
Basic Info
| Model No. | F-500 |
|---|---|
| Brand Name | Simeno/ Jichai |
| status | New |
| warranty period | 1 Year |
| Video factory inspection | Provided |
| Mechanical test report | Provided |
| Marketing type | Ordinary Product |
Product description
Our drilling mud pump supplies:
1) Mud pump such as EMSCO F, GD, China 3NB, BW series;2) Pump for cementing and hydraulic fracturing in oil fields;
3) High pressure positive displacement pump for water, CO2, boilers, cement, sea water, etc.
4) Spare parts for the above mentioned pumps.
Perfect service system, installation, commissioning and after-sales service.
Our Generator Features:
1. Cooling System - Standard cooling package provides reliable operation at ambient temperatures up to 50 °C.
2. Housing - The attractive housing is specially designed to offer one of the quietest generators in its class. Durable powder-coated aluminum provides optimum corrosion protection. Smart design features a removable panel and service door, providing easy access for service and maintenance.3. Fuel tank: offers an economical and flexible solution to meet the extensive specification requirements of diesel fuel tanks.
4. Warranty and service - backed by a comprehensive warranty.
5. Alternators - Various sizes of alternators offer selectable engine starting capability, 2/3 step windings with low reactance, low waveform distortion under non-linear loads and fault compensating short circuit capability. Industrial diesel engines provide reliable power, low emissions and fast response to load changes.
6. Control system - Provides full genset system integration, including remote automatic start/stop, precise frequency and voltage regulation, alarm and status message display, output metering.
Product Introduction
Machine parameters
Model
G500
G800
G1000
G1300
G1600
Power rating HP(kw)
500(373)
800(597)
1000(746)
1300(969)
1600(1193)
Stroke rating SPM
165
150
140
120
120
Stroke length (in/mm)
7.5"/190.5
9"/228.6
10"/254
12"/305
12"/305
Gear ratio
4.286
4.185
4.207
4.206
4.206
Inlet dia. (in/mm)
8"/203
10"/254
12"/305
12"/305
12"/305
Outlet dia. (in)
4" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
5-1/8" flange 5000psi
Valve
API 5#
API 6#
API 6#
API 7#
API 7#
Max. liner (in/mm)
6-3/4"/170
6-3/4"/170
6-3/4"/170
7"/180
7"/180
Overall dimensionL*W*H (mm)
3658*2709*2231
3963*3025*2410
4267*3167*2580
4617*3260*2600
4615*3276*2688
Approx.weight (kg)
9770
14500
18790
24572
24791
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Why Choose US
Drilling Mud Pump for Oil Drilling Rig 500
Options:
- Performance: Pump
- Application: Oil Drilling Rig
- Power Source: Pneumatic
- Material: Alloy
- Advantage: Durable
