Drilling rig equipment SB series centrifugal pump

Video

1 / 7

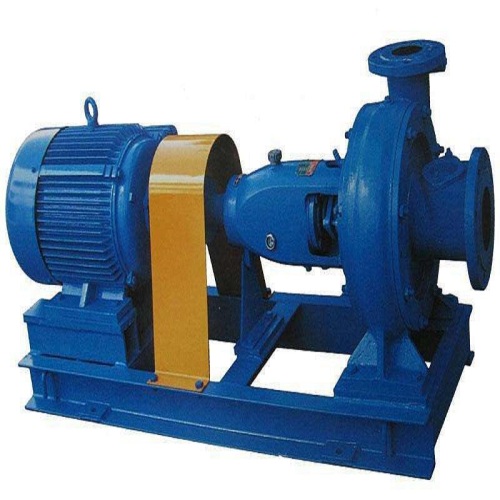

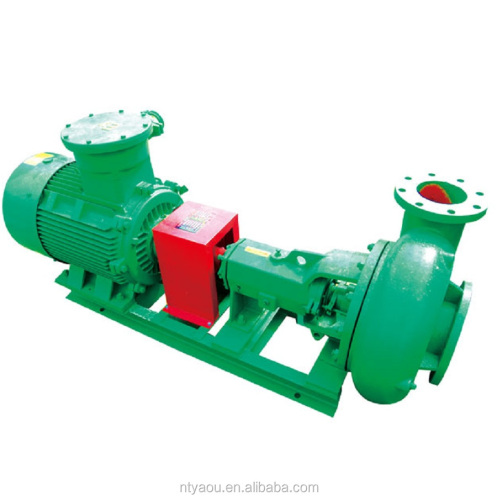

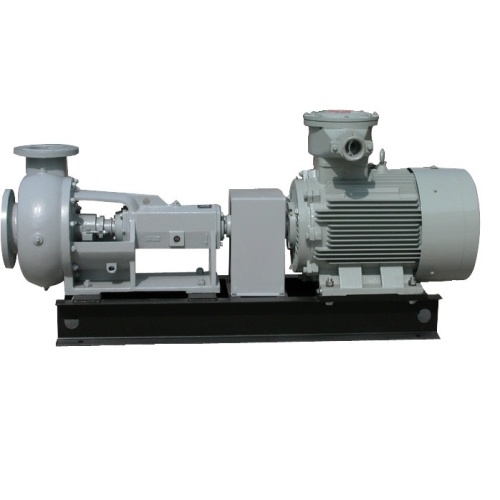

Drilling rig equipment SB series centrifugal pump

$1800.00

≥1 Piece/Pieces

Options:

Get Latest Price

You might also like

Drilling rig equipment SB series centrifugal pump

1 Piece/Pieces (MOQ)

Oilfield equipment MCM178 centrifugal pump

$1200.00

1 Piece/Pieces (MOQ)

Drilling rig equipment 2500SB series sand pump

$2200.00

1 Set/Sets (MOQ)

Oil Centrifual Pump MCM 250 Pump

$1900.00

1 Set/Sets (MOQ)

SB2500 Centrifugal Sand Pump And Replacement Parts

$2000.00

1 Set/Sets (MOQ)

MCM 118 Centrifugal sand PumP Oil rig equipment

$800.00

1 Set/Sets (MOQ)

2500SB Centrifugal Pump for drilling solid control equipment

$2000.00

1 Set/Sets (MOQ)

Corrosion Resistant Pump Horizontal Explosion Stainles Steel

1 Piece/Pieces (MOQ)

Basic Info

Model No.	SB
Brand Name
status	New
warranty period	1.5 Years
Applicable industry	Energy &Amp; Mining
Where to provide local services (in which countries are there overseas service outlets)	Uae, Russia, Uzbekistan, Kazakhstan, Tajikistan, Turkey, United Kingdom, Kenya, India, Pakistan
Showroom location (in which countries are there sample rooms overseas)	Uae, Uzbekistan
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	1 Year
Core components	Pump
After-sales Service Provided	Engineers Available To Service Machinery Overseas
Condition	New
Place Of Origin	Jiangsu, China
Brand Name	Yaou
Model Number	Gnsb8x6-14j

Product description

Centrifugul pump for mud treatment in solid control systems.

1.Over 10000 sets of centrifugal pump are widely used in overseas market including United States (Nabors), Russia South America, Middle Asia and Middle East.

2. With 4 patents given to the SB series centrifugal pumps including special mechanical seal technology ensures long service life, no leaking within more than 1 year. Special designed impeller improves the centrifugal pumps' efficiency and energy-saving by 10%.

The centrifugal pumps are made of high-wearable cast irons to improve the service life by 50%. Front opening structure for easy installation and maintenance of the centrifugal pumps.

3. There are six models of the SB serial centrifugal pumps, namely SB8×10, SB6×8, SB5×6, SB4×5, SB3×4 and SB2×3, with engine power ranging from 4Kw to 110Kw, totaling more than 80 of specifications.

4. The centrifugal pump is either in the unit construction structure or in belt transmission structure, suitable for power grids of 50Hz and 60Hz. It also has both Metric and British systems as measuring standards and clockwise and anticlockwise rotary directions.

Table 1: 50Hz

Type	Capacity (m3/h)	Head (m)	Speed (rpm)	Efficiency (%)	NPSH (m)	Power (kW)
Type	Capacity (m3/h)	Head (m)	Speed (rpm)	Efficiency (%)	NPSH (m)	Shaft power	Motor power
SB6×8J-13	240	37	1480	67	2.5	36	75
SB6×8J-12?	200	36	1480	66	2.5	31	55
SB6×8J-12	200	33	1480	64	3	28	45
SB5×6J-12?	200	33	1480	64	2.5	28	45
SB5×6J-12	180	31	1480	63	2.5	25	37
SB5×6J-11?	160	28	1470	62	2.5	18	30
SB5×6J-11	140	22	1470	62	2.5	16	22
SB4×5J-10	150	25	1470	61	2.8	13	22
SB4×5J-9	93	20	1460	58	2.8	8.8	15
SB3×4J-10	85	26	1460	61	2.8	10	15
SB3×4J-9?	80	23	1460	61	2.8	8.6	11
SB3×4J-9	54	18	1460	60	2.8	5.1	7.5
SB2×3J-10	60	22	1460	55	2.5	8.6	11
SB2×3J-9	50	18	1440	54	2.5	5.5	5.5
SB2×3J-8	40	16	1440	54	2.5	3.2	5.5

pump Sand Pump Sand Pump 02 Sand Pump 04 Sand Pump 06 Sand Pump 07 Sand Pump 08 Sand Pump 10 Sand Pump 09 Sand Pump 11 Sand Pump 12 Sand Pump 13 Sand Pump 14 Sand Pump 15 Sand Pump 16 Sand Pump 17
