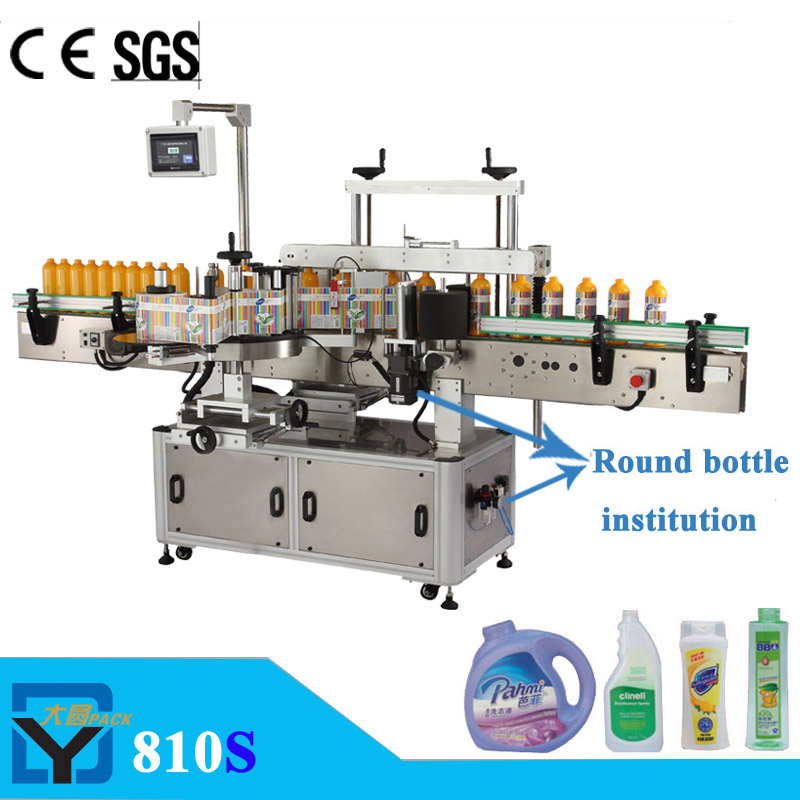

DY810S Automatic Flat Sticker Labeling Machine

automatic wrap around labeling machine features:

1.Be applicable to square bottles or flat bottles in automatic single side labeling machine.

2.Can increase round bottle institution; realize round bottles of automatic labeling at the same time.

3.The independently shape structure is designed specially and independently to label irregular bottles in cosmetic industry. The optional air driving and roller labeling set can label round bottles precisely.

4.The shape belt can be inclined, and the labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottle.

5.The machine apply the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of the ordinary stepper motor, high-precision refinement, built-in absolute encoder. All this is designed to improve the accuracy.

6.The shape structure is designed specially, so labeled thing is able to be located and labeled precisely.

7.The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers. So when the label is stuck it hasn't any air bladder. It is especially applicable to the crystal bottles labeled with transparent labels.

automatic wrap around labeling machine work process:

Core Working principle: The sensor detects the product passes the signal returned to the labeling control system, control system in place and attached to the product label sent upon labeling position, the product flows through the overlying standard device label attached covered on the product, a label attached action is completed.

Completed.Operation: put the product (the pipeline) - > product delivery (equipment automatically) - > products from product testing - > - > labeling - > collection has been labeled products.

automatic wrap around labeling machine trade terms:

1.T/T,L/C,Western union

2. 30% deposit, 70% balance before shipment

3. Delivery Detail:15~20days

4. Delivery way: Sea transportation.

automatic wrap around labeling machine technical parameters:

Model	DY810S automatic wrap around labeling machine
Production speed	60m/min(5000~12000bottles/hours)
Labeling accuracy	±1mm
Label max width	200mm(can be raised according to the require)
Label inner diameter	76.2mm
Label outer diameter	330mm
Was posted content size	thickness:≥30mm; height ≤500mm
Conveyor chains plate width	82.6mm
Air source	4~6kg
Round bottle institution	built-in
The height of the conveyor line chain plate to the ground	900mm±50mm(can be produced according to customer requirements)
Power	380/220V ,50Hz 2300W
Outline Size(L*W*H)	3048*1300*1650mm
Weight	300kg

FAQ

automatic wrap around labeling machine

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service .

Q2:What kind of labeling machine do you have?

A2: Dear Customer, we have high speed rotary labeling machine,flat labeling machine,round bottle labeling machine,double labeling machine,three header labeling machine. And we also customize products as per the specifications of you. Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

Q3:What`s your guarantee or the warranty of the quality if we buy your machines?

A3:We offer you high quality machines with 1 years guarantee,life long service.

Q4: What information should we supply to check the suitable model?

A4:Pls send us picture of your container and label(include container and label size),and also tell us what kind of label you use(we are main produce adhesive sticker labeling machine ).Then ,we'll let you check the suitable model.

Q5:When can I get my machine after I paid?

A5:We will deliver the machines on time as the date we agreed both side.

Q6:How can I install my machine when it arrives?

A6:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
