GENERAL DESCRIPTION

Lingchuang Laundry Folding Machine ZD-130 is the most competitive version equipped fully all it needs in folding packing requirements.
Lingchuang Laundry Folding Machine ZD-130  has the features of small size and universal and suitable for many application.

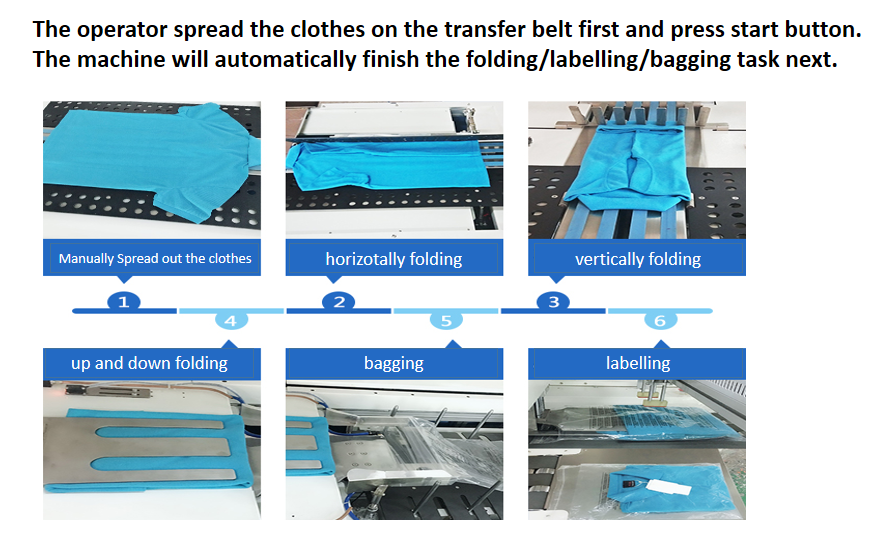

Lingchuang Laundry Folding Machine ZD-130 requires only one operator who unfolds the clothes on the roller belt
and then the machine will quickly,quietly and accurately folds the clothes next.

This machine is designed to be adjusted to fold for various type and size clothes.
There are many optional programs for the operator to set for folding clothes under perssible limits.

Lingchuang Garment Folder Machine ZD-130 has a folding capacity of 10-15pcs/min, or 500-600pcs/hour according to our test.
The output of 8 hour can achieve 5000-5500 pcs capacity.(The output depends on the operator's swiftness)
Applicable to fold T-shirts, Polo shirts, casual shirts,thin jacket and thin sweater.
Applicable for PP/PE/OPP with adhensive tape bag.

THCHNICAL SPECIFICATIONS

•  Dimensions L*W*H: 184*105*115cm(the front section)   88*55*108cm(the back section)
•  Single Phase Voltage source: 220V
• Maximum Power: 0.8 KW

•  Air pressure: 0.6 MPa
• Maximum output: 600 foldings per hour.
• Operator: 1 person
•  Maximum garment dimensions (L & W): 80*90 cm

• Minimum garment dimensions (L & W): 40*35 cm

• Width of final folding: 20cm min & 38cm max

• Length of final folding: 20cm min & 40cm max

• Bag dementions (L & W): 28*23 cm min     50*42 cm max

• CE


ADVANTAGES

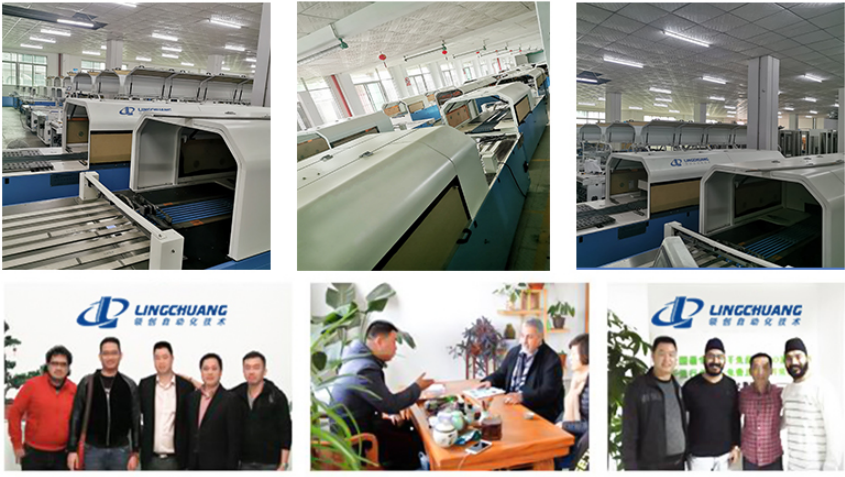

WORK SHOP

PRE-SALE SERVICE:

1.If you don't find a most suitable version of Lingchuang Laundry Folding Machine ZD-130, we will provide you with the solution of professional customized folding packing machine depending on unique status in the industry.
2.We are always ready for any enquiry.

AFTER-SALE SERVICE:

1.Manual， wiring diagrams and list of the spare parts of the machine are accompanied with the automatic folding machine ZD-130.
2.Videos of installation and video connection are available for your side if the machine arrive at your seat.
3.The machine will have a 12-month warranty, which is in effect from the date of purchase of the machine.
During the warranty year if any of parts broken not by man-made. We will free charge to replace the new one to you.
4.The transportation cost from and to our company's seat, the insurance premiums and any other expense， which may arise during the transportation of the product burden the buyer.
5.Our engineers & technician are available for any services assistance to your seat if you agree pay the transportation expenditure.

6. LingChuang has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.

    If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
