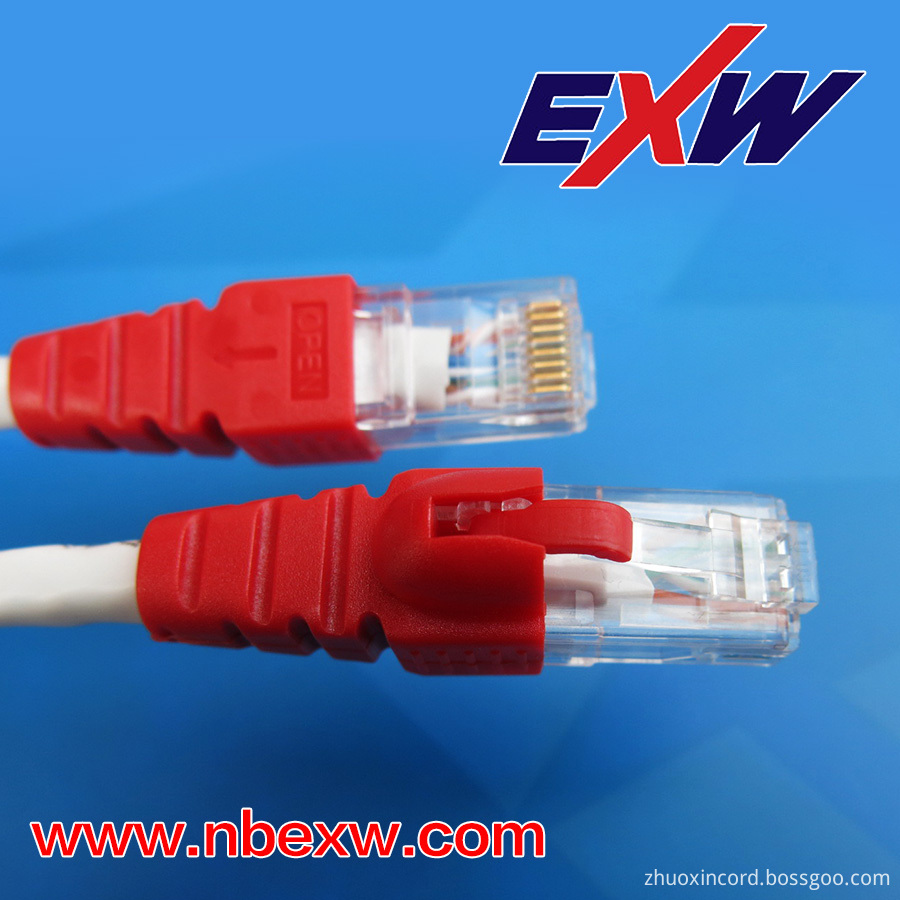

Easy Solution Patch Cord, EXW NEW star product!

Suit for High Density Patchpanel, easily pull out by hand, blue hand tool is also available!

? Material:

Conductor: Cat6 UTP stranded, 24AWG, 7x0.20, bare copper

Insulation: polyethylene with color marking on white cores

Unshielded: individual foil for each pair, with general ground wire

Outer jacket and boots: PVC, CMX, CM, CMR, leaded and lead-free as well as LSZH versions are available

Nominal outer diameter: 6.0 ±0.2mm

Color code: BL/WH-BL, WH, GN/GN-WH or BR/BR-WH

Cable colors: grey, others colors from RAL and Pantone are available

Mechanical characteristics:

Cable to plug tensile strength: 9kgsf (90n) minimum

Minimum bending radius: 22mm

Storage temperature: -20 to +80°C

Durability: 1200 mating cycles

Plug housing: UL 94-V0, UL 94-V2 and polycarbonate

Plug contact material: 50μ-inch gold plating over 100μ-inch nickel-plated copper alloy

Fire performance: IEC 332.1, VW1, IEC 332.3 versions available depends on the jacket type Product length: 0.5 to 100m (optional)

? Electrical performance:

Contact resistance: 20mΩ (maximum)

Voltage: 75V (maximum)

Dielectric strength: 1,000V/ 1 minute minimum RMS

Current: 1.0A (maximum)

Insulation resistance: 500MΩ minimum at 500V DC

Performance test: 100% patch cord test for Cat6A, Cat6 and optional for Cat5e patch cord

? Certificates: ISO 9001:2001, ISO 14001, OHSAS 18001, UL and REACH

? RoHS Directive-compliant

? Packaging: 1 piece/bag

? Production capacity: 20,000 pieces/day

? Pictures:
