Eco Friendly MgO Sandwich Panel Core Board For Construction

$3.851 ~ $10.463 / Piece/Pieces

Options:

  • 1220*2440mm
Get Latest Price

Basic Info

Model No. MgO Sandwich Board Substrate
Brand Name OUSHIBAO
Warranty Service 5 Years
After-sales service Online Technical Support
Engineering solution capability None
Application scenario Apartment, Mall, Supermarket, Courtyard, Bedroom, Kitchen, Workshop, Leisure Facilities, Park, Hospital, Farmhouse
design style Industrial
place of origin China
Application Construction sandwich panels
Advantage ENF eco friendly, A1 fireproof, long fire resistance time
Thickness 3MM 4MM 5MM 6MM 8MM 9MM 12MM 15MM 18MM
Show More

Product description

MgO Board for Wall Core

A1 Fireproof · High Strength · Moisture Resistant · Environmentally Friendly

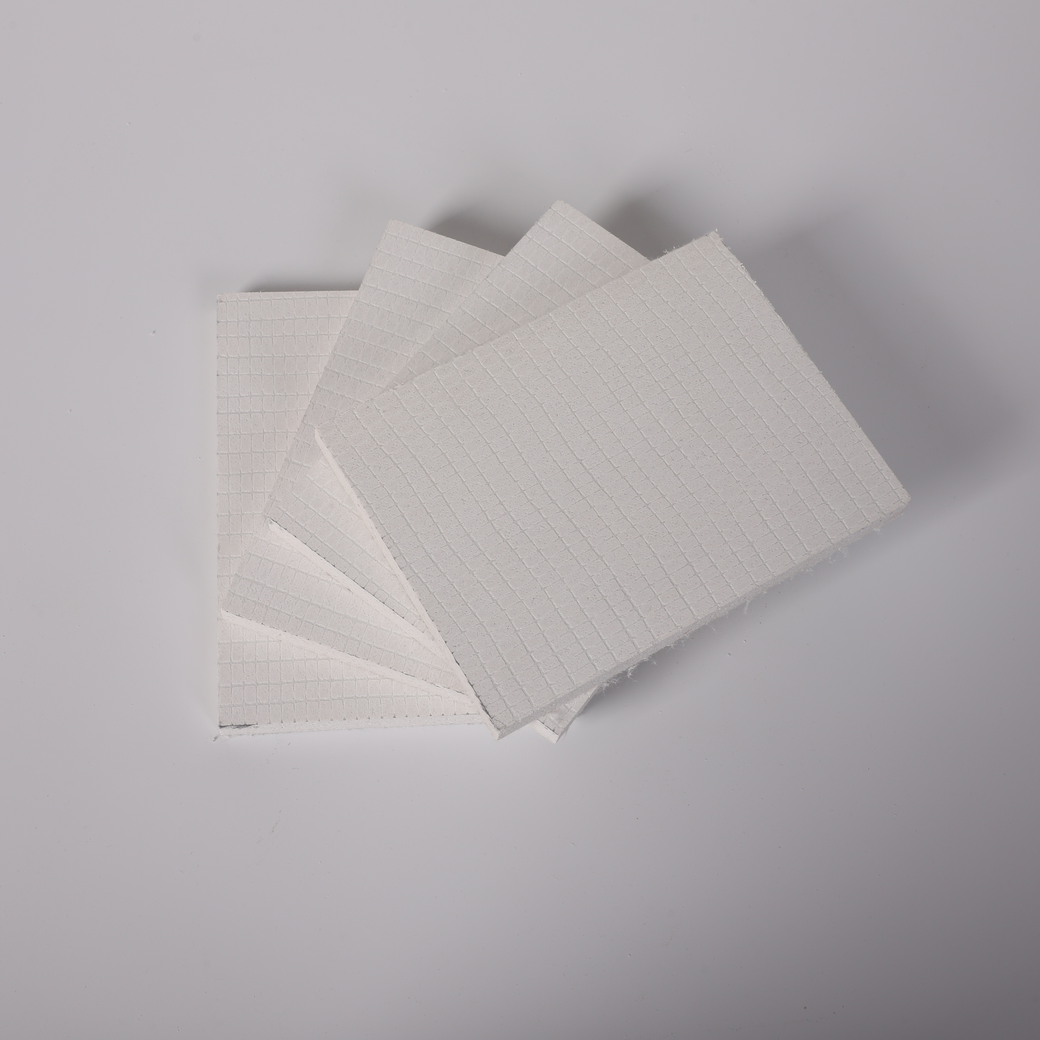

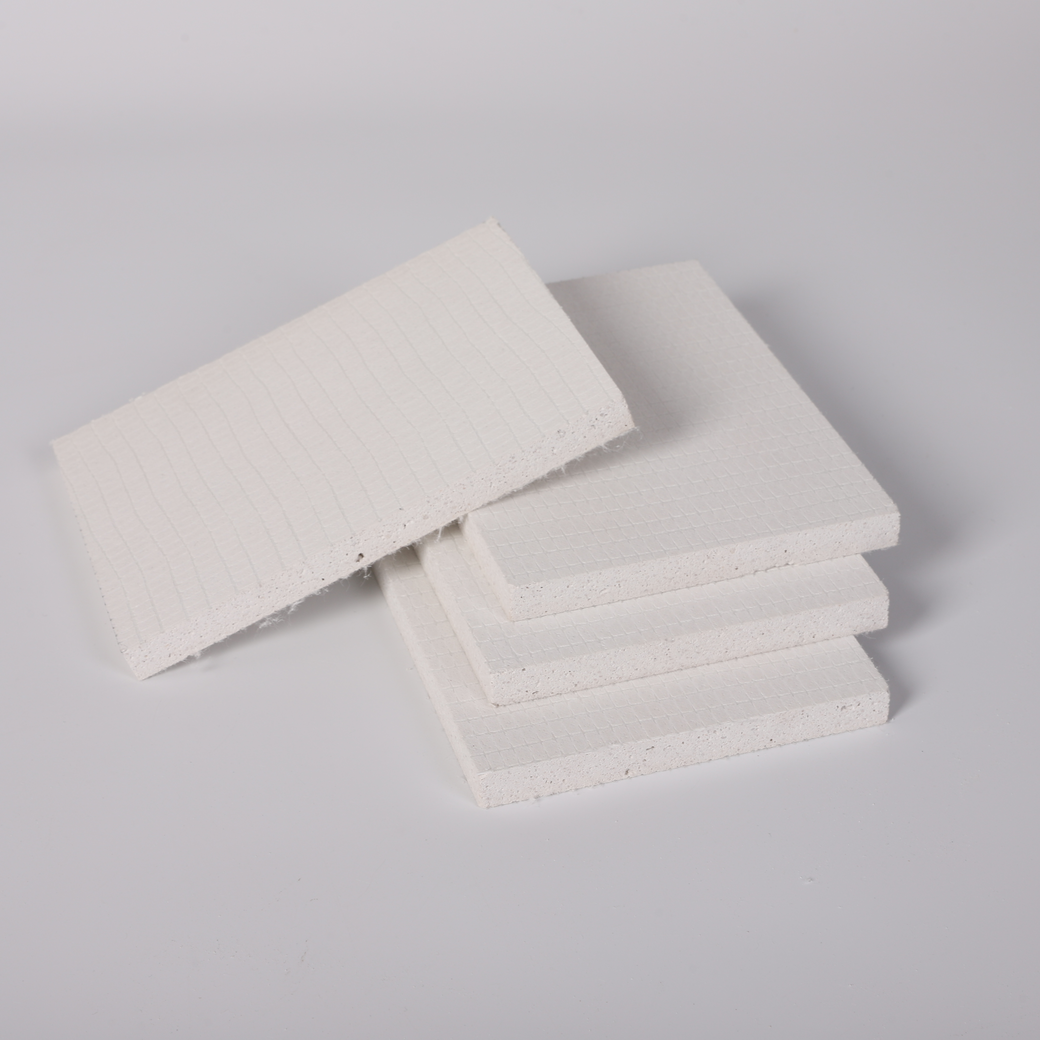

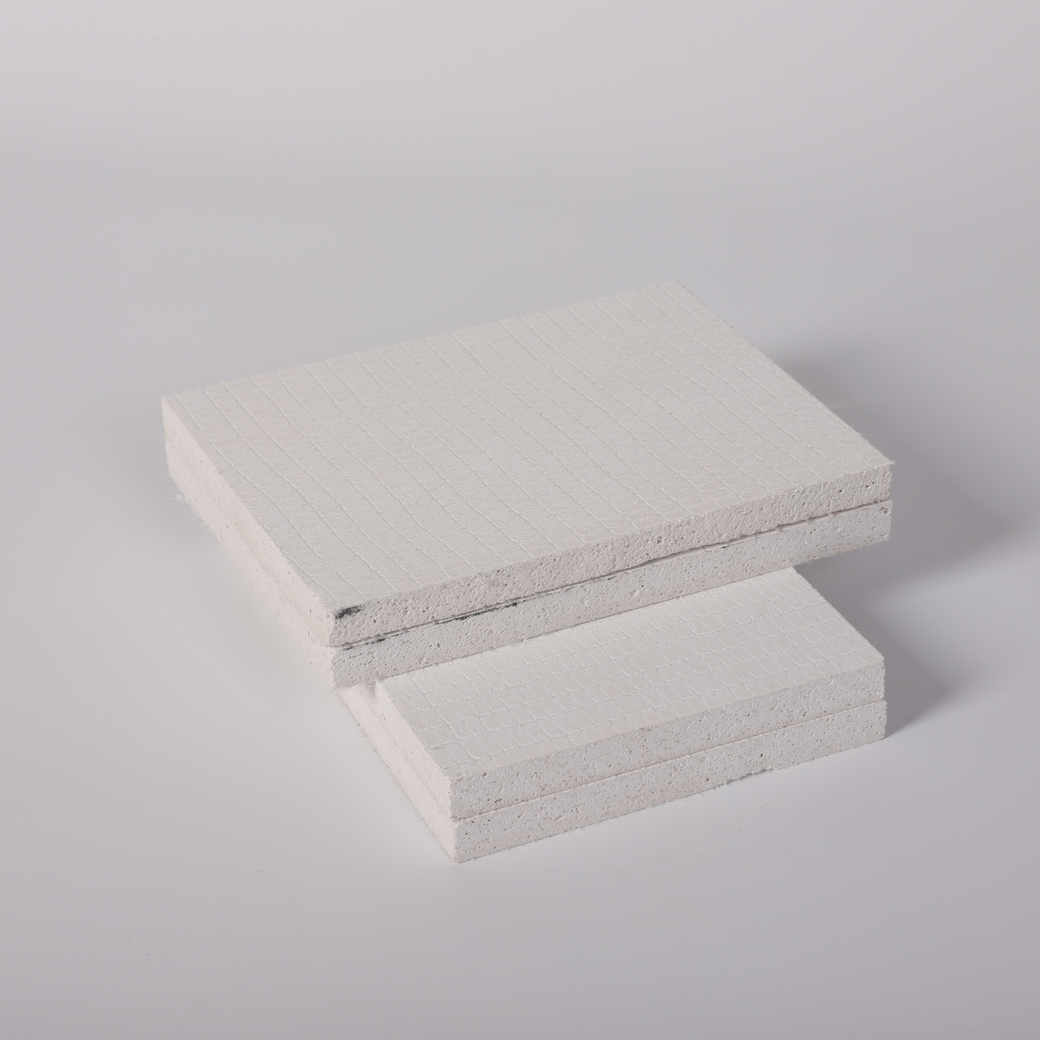

Wall Core Board 1 Wall Core Board 2 Wall Core Board 3

Product Overview

Magnesium Oxide Board for Wall Core is a non-combustible, high-performance board specially designed for interior and exterior wall core systems. It provides excellent fire resistance, structural strength, and moisture stability, making it an ideal core material for partition walls, shaft walls and composite wall panels.

With stable performance and lightweight structure, MgO wall core boards are widely used in residential, commercial and industrial construction projects requiring fire-rated and moisture-resistant wall systems.

Key Features

  • A1 fire rating, non-combustible and smoke-free
  • High flexural strength and impact resistance
  • Formaldehyde-free, asbestos-free, environmentally friendly
  • Ideal for partition walls, shaft walls and composite wall systems

Technical Specifications

Product Name Magnesium Oxide Wall Core Board
Length 8 ft (2440mm) or customized
Width 4 ft (1220mm) or customized
Thickness 3 – 18000000000000000000000000000000000 mm or customized
Density 1.0 – 1.1 t/m3
Edge Square / T&G (optional)
Fire Rating Non-combustible / A1
Flexural Strength ≥ 6 MPa
Dry Shrinkage Rate ≤ 0.3%
Wet Expansion Rate ≤ 0.3%
Formaldehyde Emission N.D. (<0.1)
Asbestos Analysis Absent – not measurable
Chloride Content < 0.03%
Payment Terms T/T 30% deposit, balance before shipment
100% L/C at sight

Company Introduction

Linyi Oushibao International Trade Co., Ltd

Founded in 1993, our company is located in Linyi City, Shandong Province, China, one of the largest wood-based panel production bases in the country. Benefiting from a convenient transportation network, we are approximately 9 km from the G2 Beijing–Shanghai Expressway and 30 km from Linyi International Airport, ensuring efficient logistics and timely delivery.

With over 30 years of manufacturing experience, we specialize in the production of magnesium oxide board (MgO board) and plywood. Our main products include MgO acoustic substrates, fireproof boards, film faced plywood, melamine boards and other related panel products, which are widely used in construction, decoration and industrial applications. We are recognized as one of the leading enterprises in this field in China.

FAQ

Q1: What is OUSHIBAO MgO board made of? What are the advantages?
A: All MgO board consists of three elements: magnesium oxide, salt, and filler. The main component of OUSHIBAO MgO board is MgO which is completely non-flammable and can be used for fire protection. There are two main types of salt: Magnesium oxychloride hydrated / Mgcl2 (has a risk of magnesium corrosion) and Magnesium oxysulfate hydrate / Mgso4 (OUSHIBAO MgO board). OUSHIBAO MgO Board is a chloride-free Mgso4 board. This product uses magnesium sulfate instead of magnesium chloride as the raw material, and prevents the reabsorption of moisture into the halogen components in the board, making the Mgso4 board have excellent waterproof performance.

Q2: Is OUSHIBAO MgO Board a very safe material?
A: Yes. OUSHIBAO MgO board is made of mineral raw materials, completely recyclable and has the characteristics of anti-mold, antibacterial and anti-allergic. At the same time, it does not contain carcinogens, formaldehyde, asbestos and silica dioxide.

Q3: Why should you buy from us not from other suppliers?
A: Our company is a professional building materials manufacturer. Our materials are versatile and can be used from ceiling to floor, covering every corner of the building. With over 30 years of experience, we provide complete acoustic and fireproof solutions.

Q4: Is OEM or ODM service available?
A: Yes, OEM and ODM services are available.

Q5: What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, CPT, DDP, DDU, Express Delivery, DAP.
Accepted Payment Currency: USD, EUR, AUD, HKD, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash, Escrow.
Language Spoken: English, Chinese, Japanese, Russian, Korean.
