Eddy Current Separator for Solid Waste Recycling: Non-Ferrous Metal Separation

Video

1 / 7

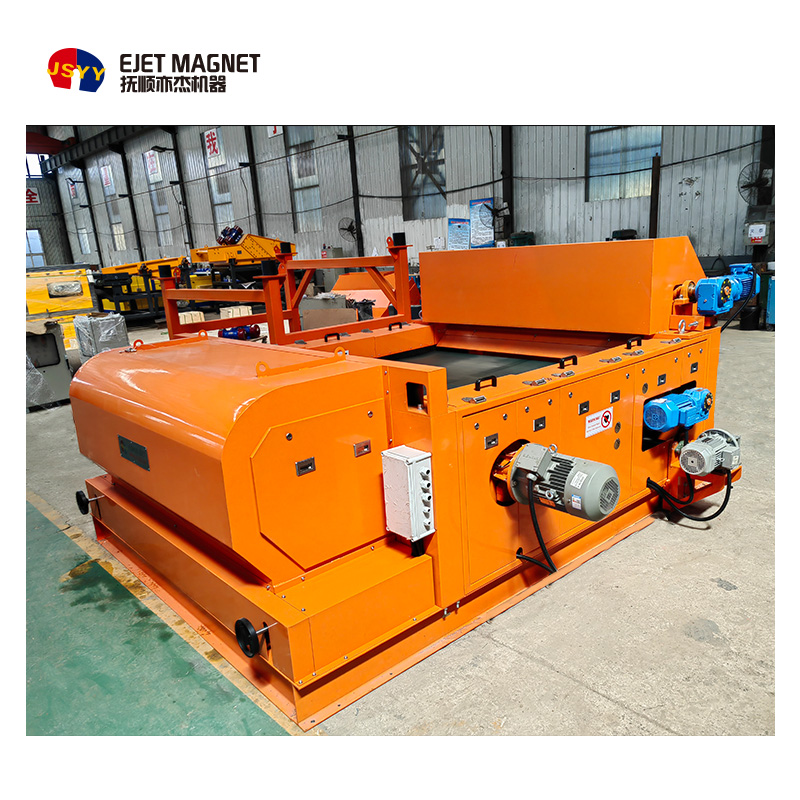

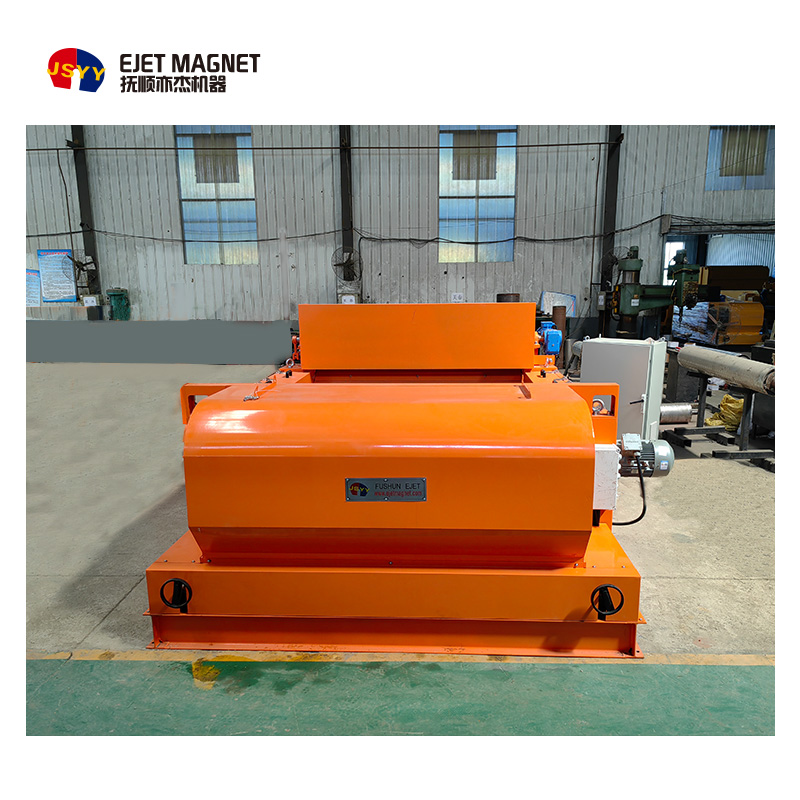

Eddy Current Separator for Solid Waste Recycling: Non-Ferrous Metal Separation

$17000.00

≥1 set
$15000.00

≥5 set
$13000.00

≥10 set

Options:

99%
99.9%

Get Latest Price

Model No.
Brand Name
Condition	New
Applicable Industries	Other, Metal Sorting, Scrap Processing, metal recycling industry, recycling plants, metal processing industry, Food Processing, Scrap Metal, Automotive Industry, Mineral Processing, Metal Scrap, Metal Sorting System, Scrap Recycling, Metal Separation
Showroom Location	None
Place Of Origin	Liaoning, China
Brand Name	JSYY,EJETMAGNET
Model Number	WL-P
Type	metal separator machine
Warranty	1 Year
Power	2.2kw-5.5kw
Production Capacity	3t/hours-30t/hour
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Marketing Type	New Product 2024
Warranty Of Core Components	1 Year
Core components	Motor
Weight (KG)	3600 kg
Application	Solid Waste
function	solid waste sorting equipment
product name	Scrap and Metal Separator
Keywords	Eccentric eddy current Non-Ferrous Metal Separator
Application field	Effectively Separate Metal
Advantages of eccentric eddy current	Lessened Rotor Wear,High efficiency sorting
final product	Non-ferrous Metals
Machinery Type	Separate Waste Processing Machine
feature	High Recovery Rate
Other name	Metal Sorting System

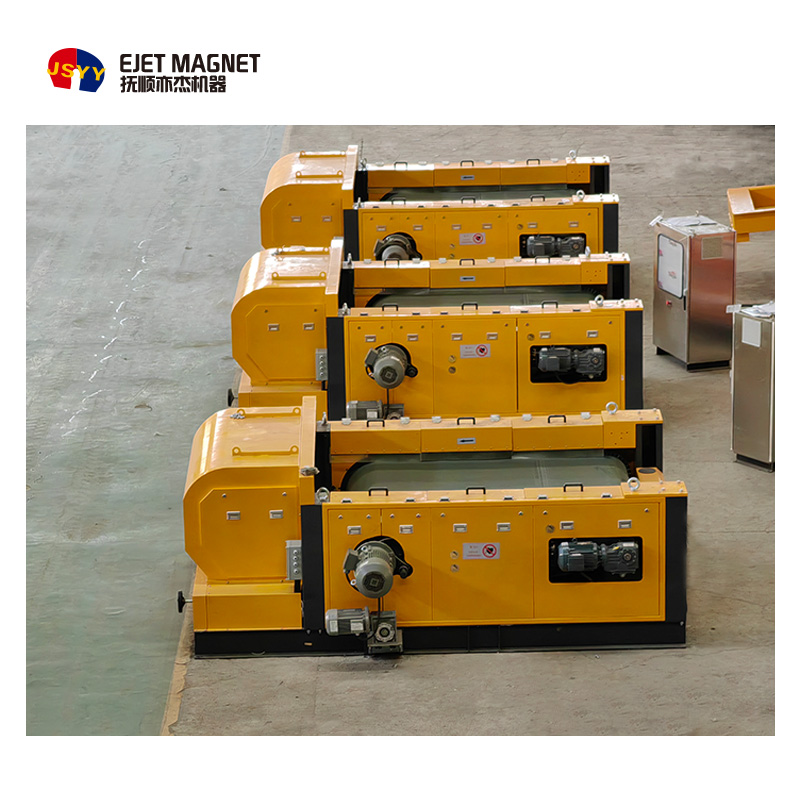

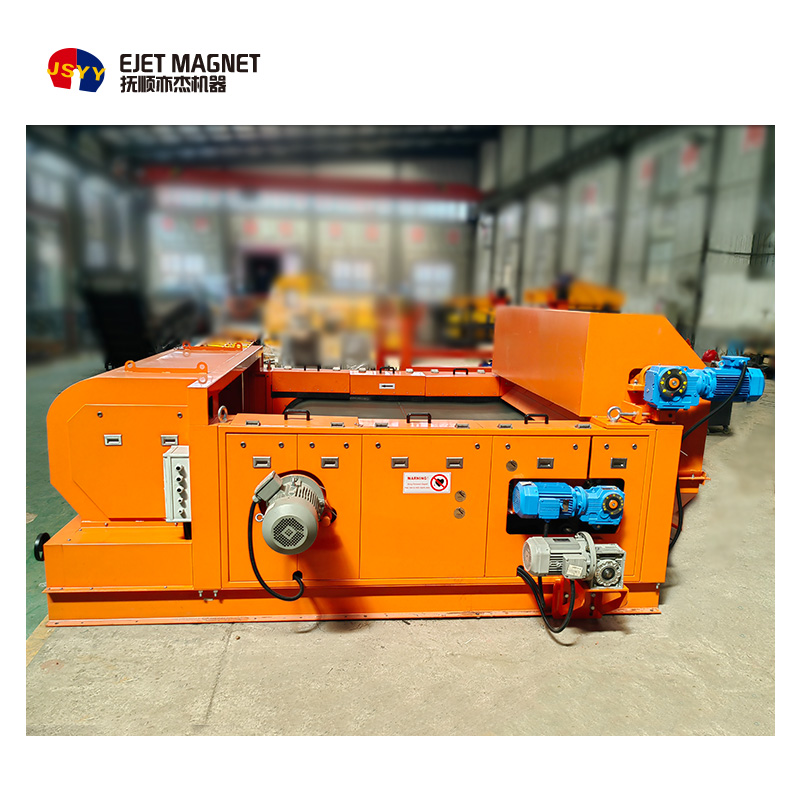

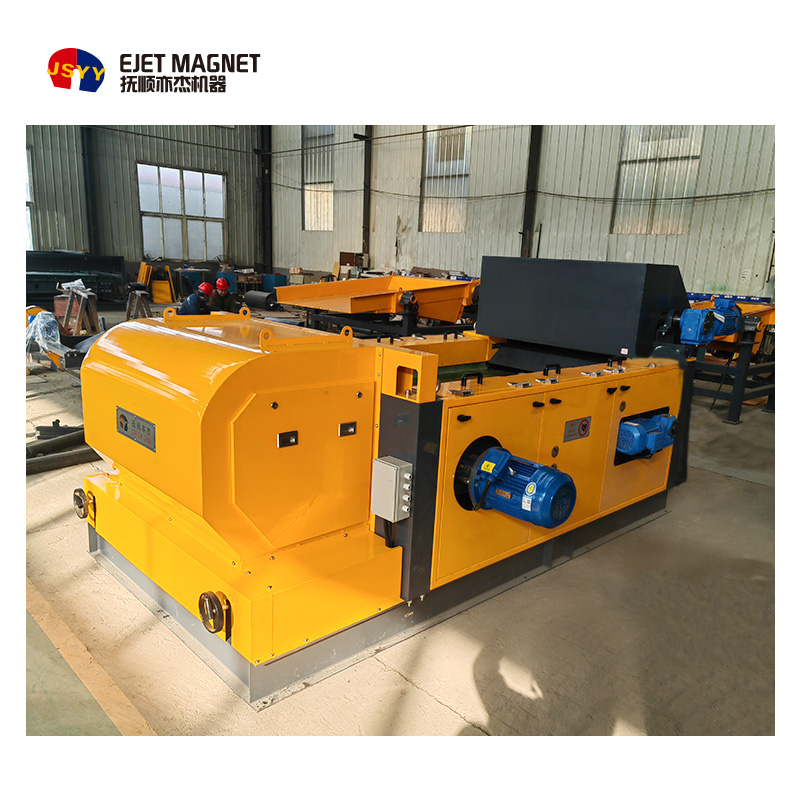

Eccentric Model WL-P

Introducing the latest generation of WL-P separator with an eccentric rotor.
The WL-P eccentric eddy current separator is crucial for the development and sustainability of the metal recycling industry,
enabling the recovery of purer value products and metal streams from industrial waste.
Experience cutting-edge technology with EJET's WL-P eccentric eddy current separator. With over 18 years of expertise in eddy
current technology, we have designed a high-performance solution for separating non-ferrous metals with unparalleled precision.

Iron impurities will not damage the WL-P eddy current separator

The use of WL-P eddy current separator does not require strict control of scrap iron. In other words, there is no need to strictly
control the complete removal of iron impurities before feeding. This will be more conducive to a production scale eddy-current
separation system maintenance and stable production of recycling plants.
The first thing to mention is that the principle of eddy current separation utilizes materials with different conductivity and
eccentric magnetic pole technology to achieve maximum performance and reliability in non-ferrous metal separation.
Combining traditional eccentric magnetic pole design with our patented multiple eddy current design features, the mature
technology of the WL-P eccentric model eddy current separating systems easily handles any ferrous-containing mixed waste feed.
In other words, the WL-P eccentric eddy current separator does not require strict removal of iron particles like concentric eddy
current separators. This reduces the difficulty of feeding before eddy current separation and significantly extends the lifespan
of the separator while reducing maintenance during operation

Powerful high-speed magnetic rotor system achieves optimal sorting efficiency

Our advanced design integrates top-grade rare earth magnetic materials and high-frequency magnetic rotor components, utilizing
eccentric magnetic rotor technology to ensure maximum separation efficiency and processing capacity. These high-performance
neodymium-iron-boron magnets are mounted on the shaft, surrounded by the non-metallic shell of the conveyor belt. This allows the
rotor to rotate independently and at a much higher speed than the non-metallic shell and belt. Adjusting the rotor position can
change the "jumping point" of non-ferrous metals for optimal sorting efficiency.

Widely used in almost every metal recycling industry

Whether you are in the automotive shredding industry, plastic waste recycling, or electronic waste recycling industry, our WL-P
separator delivers excellent results.
EJET Magnet WL-P eccentric eddy current sorting is designed to separate non-ferrous metal fragments ranging from 5mm to 300mm in
size from product streams. Standard models are available in belt widths ranging from 650 to 2400 millimeters。

Custom-Made to your needs

Our custom-made eddy current separators tailored to your exact specifications, offering a range of optional modular unit equipment
to suit your needs. Whether it's incorporating a vibrating feeder, magnetic drum, brush roller, or other modules, we provide
OPTIONS to seamlessly integrate into your existing system. Additionally, our custom laboratory eddy current separators are
available, ensuring precision and efficiency for your specific requirements.

EJET eddy current separators are globally distributed, showcasing our strength

More than 3000 satisfied customers worldwide trust our eddy current separators to meet their metal separation and recovery needs.
EJET Magnet has been producing eddy current separators for 18 years, offering hundreds of models of eccentric eddy current
separators suitable for different recycling fields, processing capacities, and operating conditions, distributed across metal
recycling plants throughout China!
Our wealth of experience, exquisite craftsmanship, and perfect attentive after-sales service bring us a steady stream of loyal
customers and new friends who come by word of mouth.

Working Principle

Processing of WL-P Eddy Current Sorting

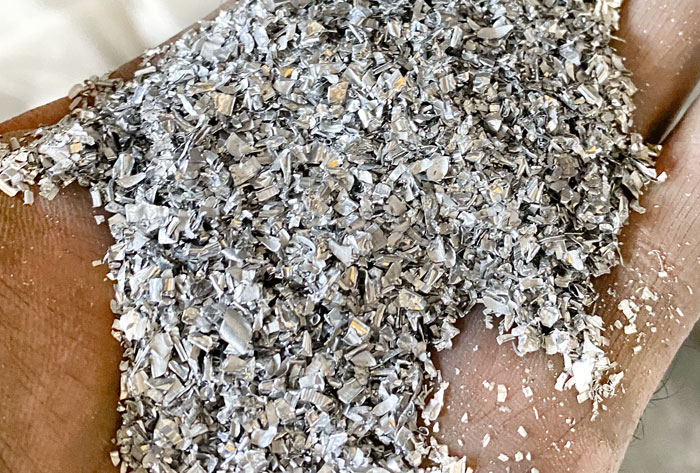

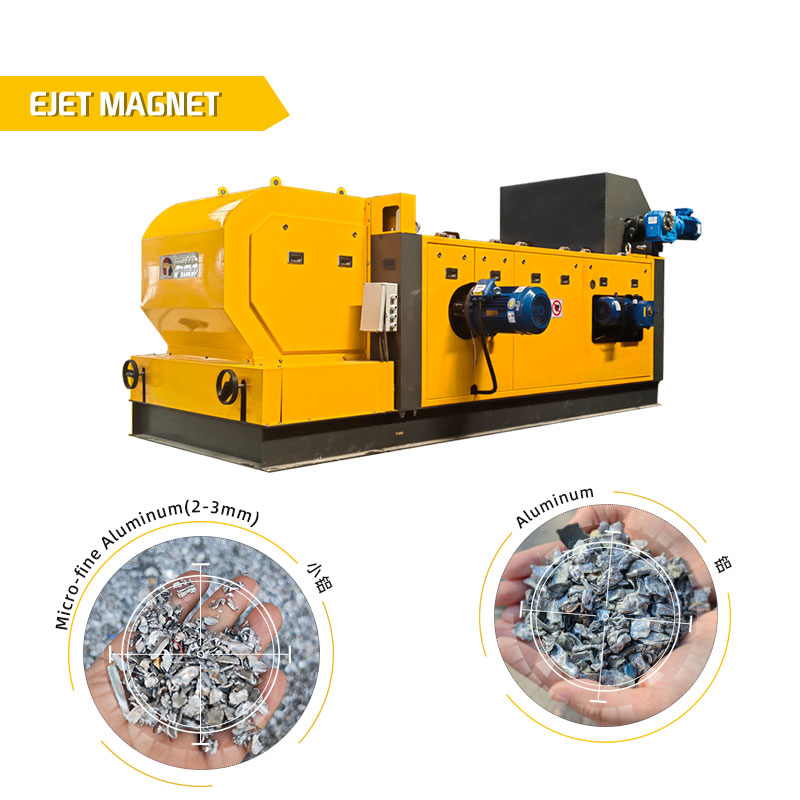

5-30mm aluminum sorting from WEEE white goods

recycling Alu beverage cans from waste MSW with WL-P220

fine stamping waste 1-5mm sorted with WL-P120

Typical Applications

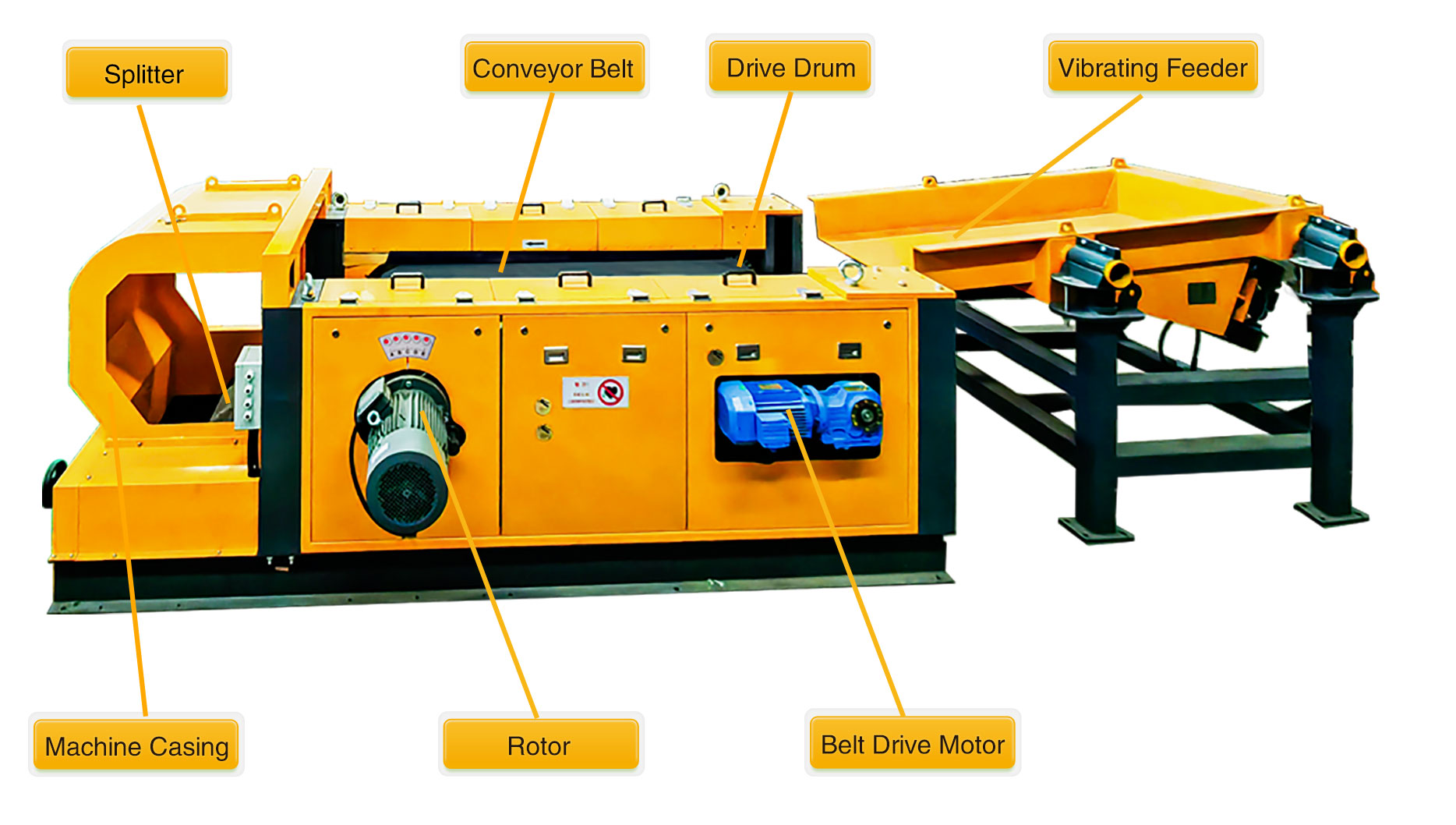

Eccentric WL-P Features

Vibrating Feeder

Maximize separation efficiency with uniform single-layer feeding facilitated by an optional vibratory feeder, coupled with
custom-built feeding and splitter systems for high extraction and optimized recovery of non-ferrous materials.

Belt Drive Motor

Equipped with ABB? driving motors as standard, with optional SEW? motors, UL, and CSA certified electronic components, and
featuring a variable speed control panel for flexible operations using VFDs.

Rotor

Compact and maintenance-free, the integrated drum motor powers the conveyor belt with an IP66 protection rating, ensuring
durability and ease of use for operators.

Drive Drum

High-frequency rotor using high-performance rare earth magnet NdFeB, strong and durable double-layer tubular structure, rotor
speed 3000-4000pr/min, belt surface 4500Gs

Conveyor Belt

Diverse short conveyor belts, including thin, corrugated, PU, PVC, and rubber varieties. Come in various widths and models. With a
cantilever frame design, belt replacement takes just 10 minutes.

Machine Casing

Our compact integrated design, coupled with specialized surface treatments tailored to various industries, significantly extends
equipment lifespan. Additionally, we offer customized colors based on customer preferences.

Splitter

The separation plate, manually adjustable in angle, height, and distance, works in tandem with rotor speed and position to achieve
flawless 100% non-ferrous metal separation. Typically crafted from manganese steel or Trespa, these components ensure optimal
performance.

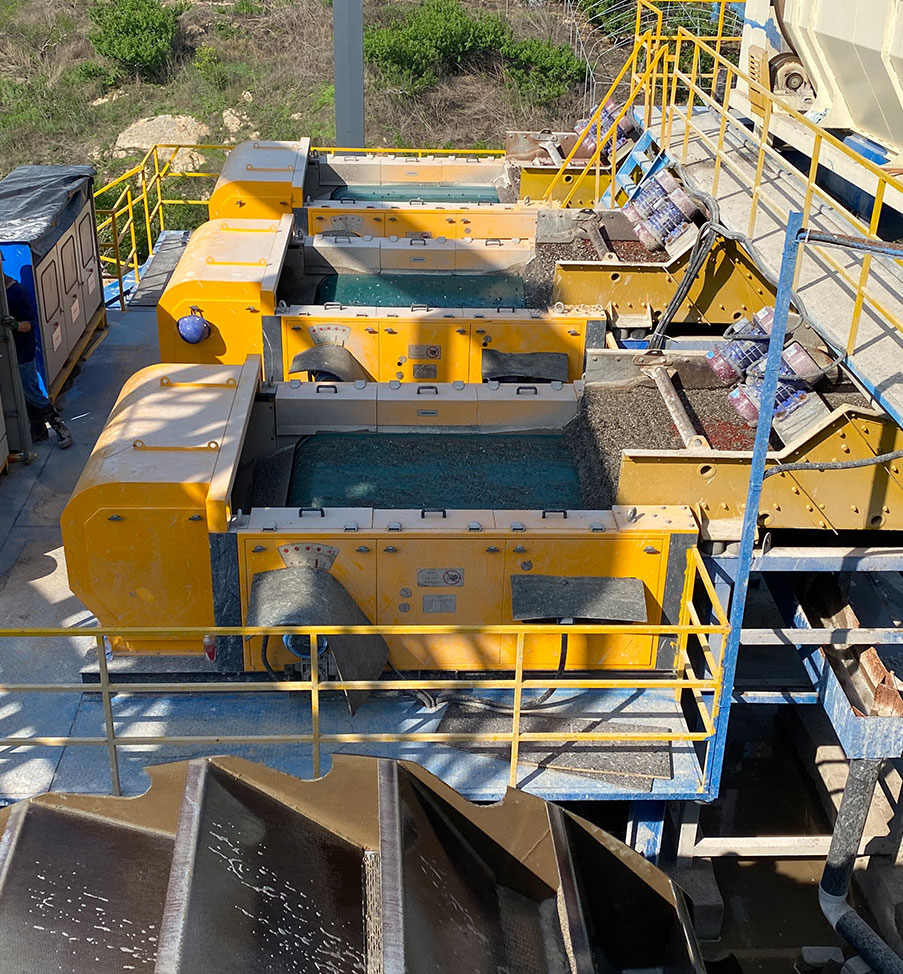

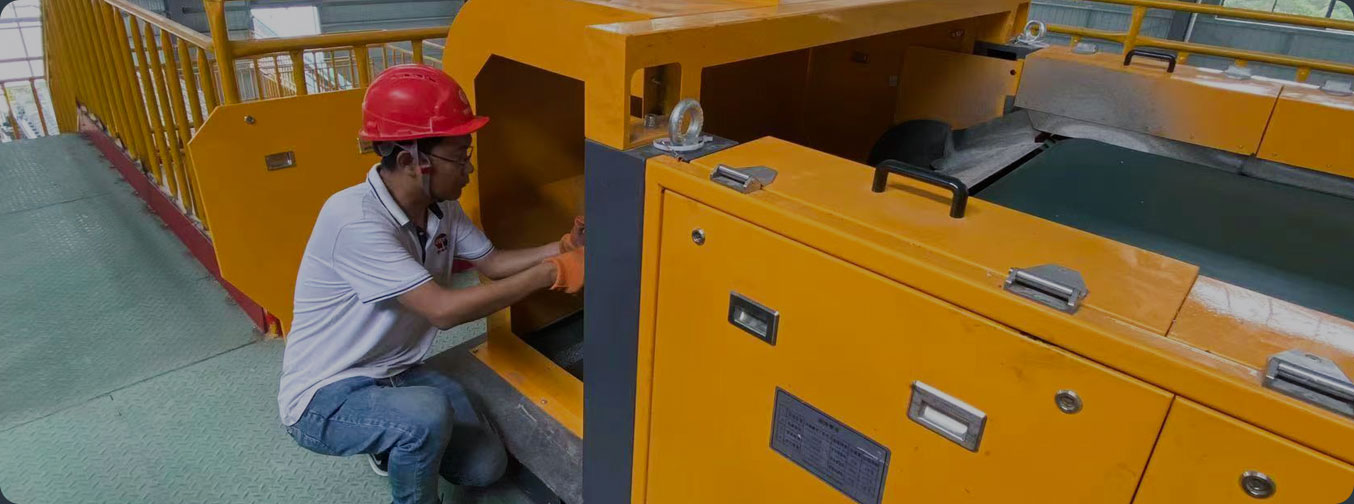

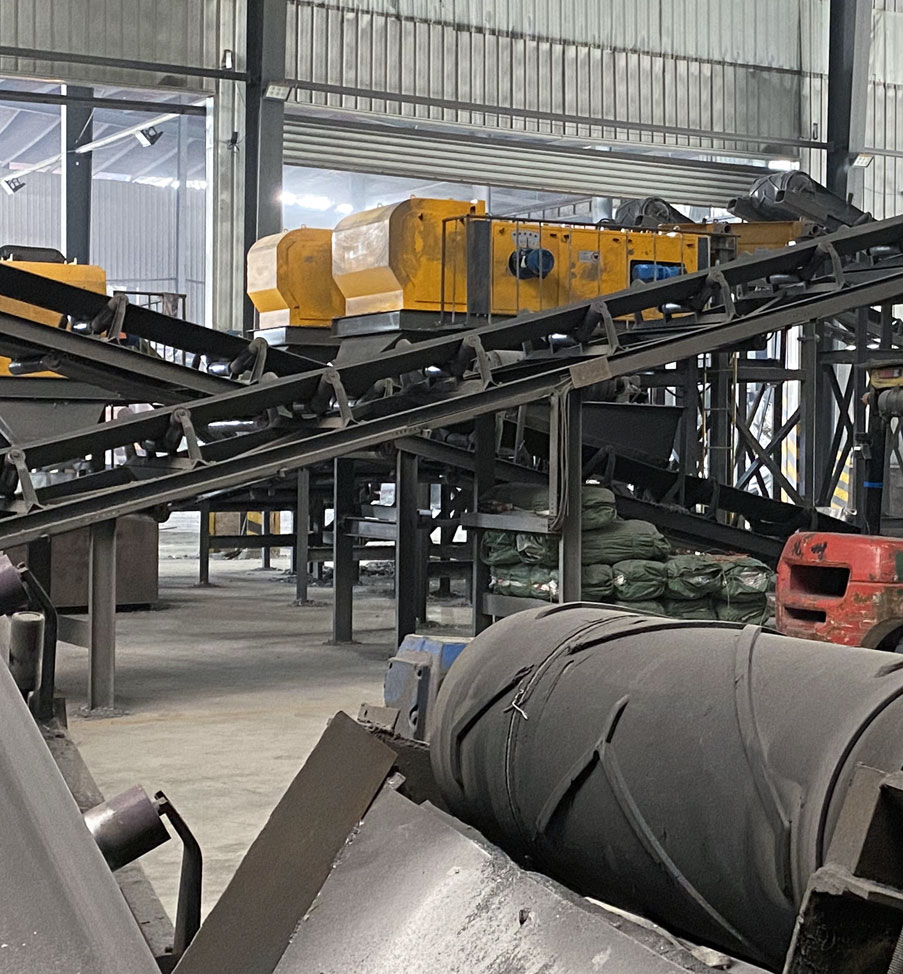

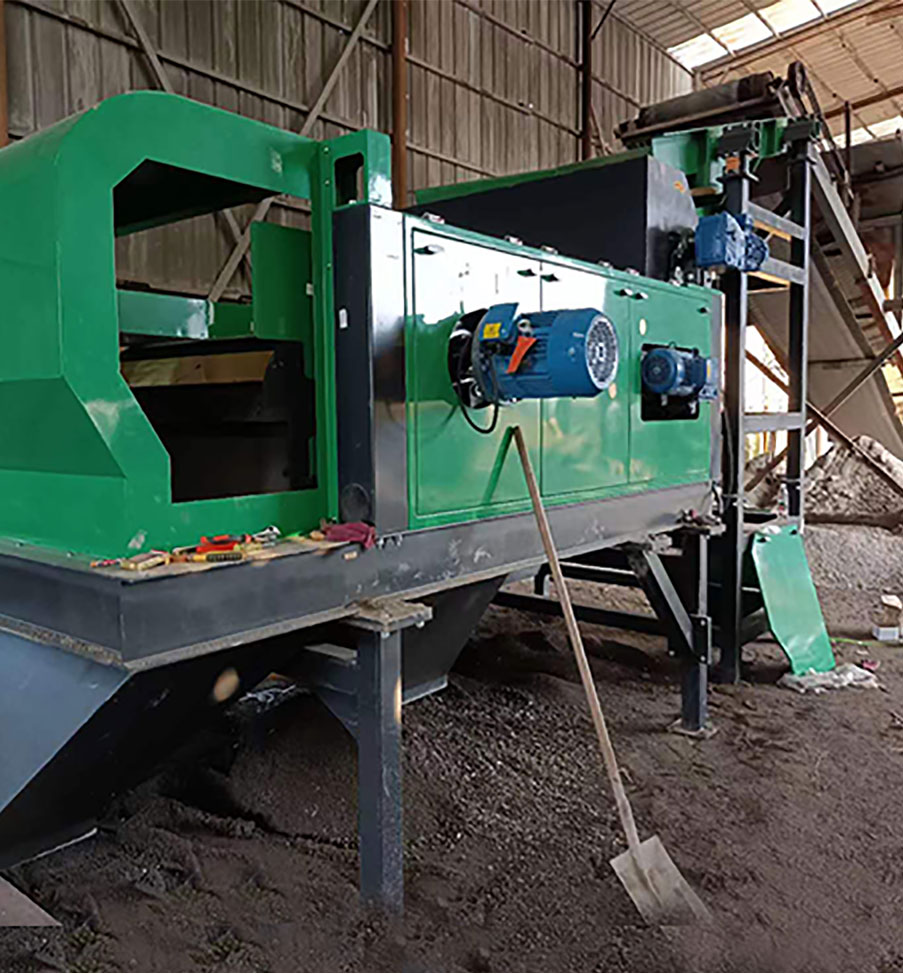

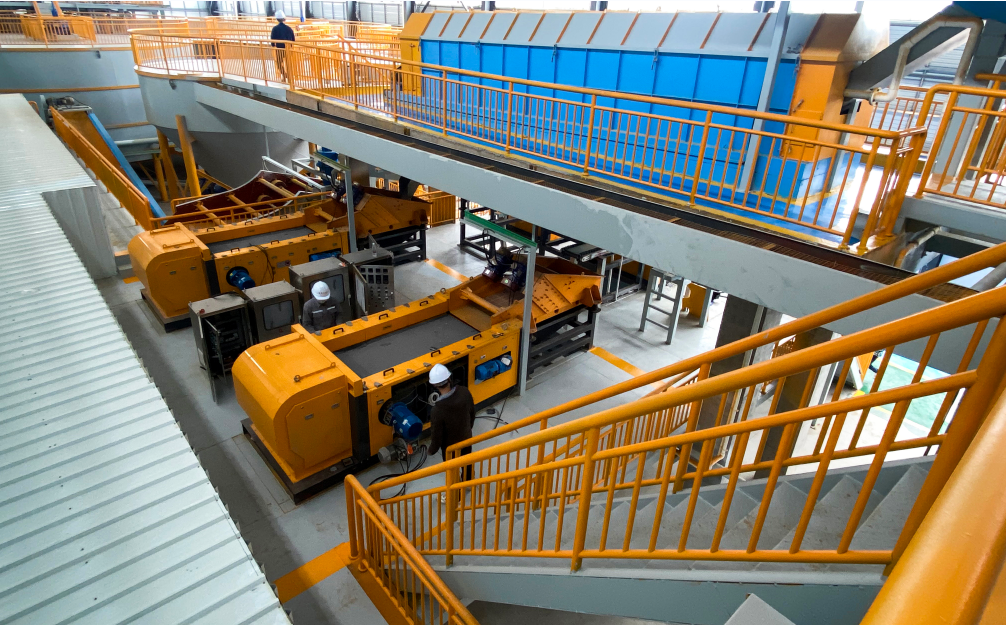

Customer site showcase

_{PET Recycling Plant}

_{WL-P Eddy Current Separators}

_{1 set}

UPVC Window Frames (Screened)
WL-P Eddy Current System
4 sets

IBA incinerated waste
WL-P Eddy Current Separator
3 sets

Technical Parameters

Model	Dimensions (LengthWidthHeight)mm	Rotor Speed r/min	Effective Belt Width mm	Belt Speed m/s	Drive Power? kw
WL-240P	344028001380	0~3000	2000	0~2	5.5+2.2
WL-220P	344026101380	0~3000	2000	0~2	5.5+2.2
WL-200P	344023801380	0~3000	1820	0~2	5.5+2.2
WL-180P	344020601380	0~4000	1500	0~2	5.5+2.2
WL-160P	344020001380	0~4000	1440	0~2	5.5+2.2
WL-140P	344017601380	0~4000	1200	0~2	5.5+2.2
WL-120P	344016001380	0~4000	1040	0~2	5.5+2.2
WL-100P	344014001380	0~4000	840	0~2	5.5+2.2
WL-80P	344012301380	0~4000	670	0~2	4.0+1.5
WL-65P	344010801380	0~4000	520	0~2	4.0+1.5
WL-40P	34408901380	0~4000	330	0~2	3.0+0.75

Commitment & Services

1 year warranty for the whole machine

3 years warranty for electromagnetic coils

8 years warranty on magnetic performance for permanent magnet equipment

Ejet's after-sales service promises to respond within 15 min

If issues cannot be resolved via phone or video calls, engineers are available for overseas service

Guaranteed demagnetization rate of magnet material not exceeding 5% over 10 years

Our patent certificate

Service &FAQ

Are you the original manufacturer?

Yes, we, EJET, are an official leading manufacturer in Magnetic Equipment in China, and we have the whole series of products you need.

What is the MOQ of your machine?

Our MOQ is 1 set.

Which type should I use for my recycling plant?

In order to recommend the most suitable model, please let us know the material’s situation, including the composition,
size,handling capacity, and expected separation result.

Which payment terms are available to us?

We accept T/T terms or L/C terms. A 30% down payment is required in advance, and the 70% balance shall be settled before shipment.Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.
