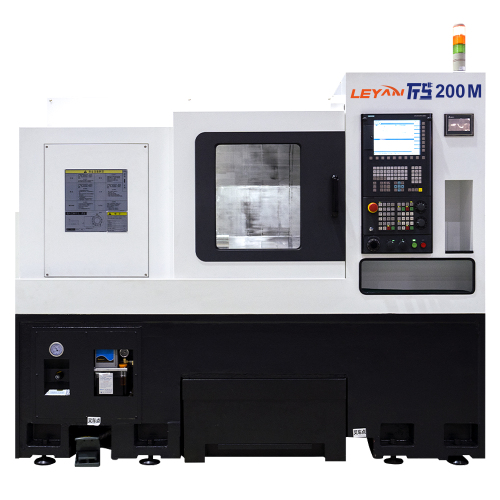

EET200M High-speed Horizontal CNC Lathe Machine
Spindle bore:
- 56mm
Maximum turning diameter (mm):
- 580
Basic Info
| Model No. | Cnc Lathe EET200M |
|---|---|
| Brand Name | LeyanTTS |
| status | New |
| Types of | Turning Center |
| Maximum turning diameter (mm) | 350 |
| Maximum workpiece length (mm) | 550 |
| Spindle bore (mm) | Other |
Product description
EET200M High-speed CNC Lathe Machine
High power, high speed, and powerful surface milling, high-speed drilling, and simultaneous tapping are all available with this CNC Auto Lathe machine. The standard milling shaft speed is 4000rpm but can be upgraded to 6000rpm if needed to meet specific requirements. Additionally, the combined Lathe Machining capabilities of the milling tool spindles allow for even more powerful milling operations. With a direct connection design for the milling motor, processing efficiency is improved significantly.
Specification：
| Project | SPECIFICATIONS | UNIT | EET200M-500 |
| Capacity | Max. swing | mm | 580 |
| Max. turning diameter | mm | 340 | |
| The distance between the end face of the spindle turret end faces | mm | 90-590 | |
| Max. turning length | mm | 450 | |
| Spindle | Spindle motor power | kw | 26 |
| Spindle structure | - | Built-in electric spindle | |
| Type of spindle nose | - | A2-6 | |
| Spindle speed range | rpm | 4000 | |
| Chuck | in | 8(optional 10) | |
| Through spindle hole diameter | mm | φ76 | |
| Bar capacity | mm | φ51mm(optionalφ65mm) | |
| C axis(interpolation linkage axis)indexing | ° | 0.001 | |
| Feedrate | X axis | mm | 205 |
| Z axis | mm | 500 | |
| X axis rapid traverse | m/min | 30 | |
| Z axis rapid traverse | m/min | 36 | |
| Turret | Dota form | - | Servo Dota |
| Number of tool stations | ea | 12 | |
| Turret indexing time(180 deg)sec | sec/step | 0.2 | |
| Shank height for square tool | mm | 25 | |
| Shank diameter for boring bar | mm | φ40 | |
| Milling shaft power | kw | 4.3 | |
| Milling shaft speed | rpm | 4000 | |

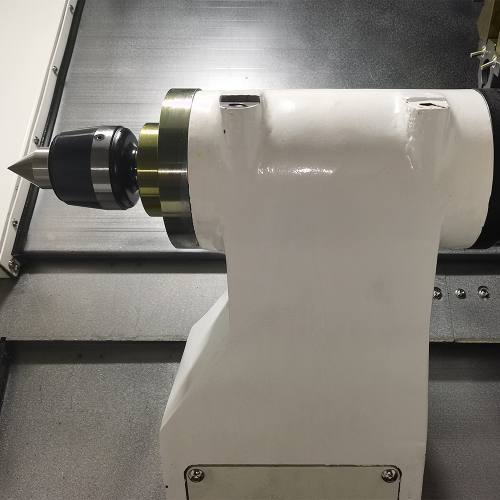

| Tailstock | Form | - | Servo programmable tailstock |
| Taper hole form | - | MT5(Live tip)/MT4(Dead top) | |
| Quill stroke | mm | 500 | |
| Tailstock movement | m/min | 10 | |
| Coolant system | Tank capacity | L | 210 |
| Pump motor | W | 750 | |
| Pump capacity | m3/h | 1.5~7 | |
| Pump pressure | m | 19~38 | |
| Power supply | Power supply | KVA | 43 |
| Power requirements | v | 3φ380V±10% | |
| Size and weight | Floor area(without chip conveyor) | mm | 2438(L)×2560(W)×1825(H) |
| Footprint（back-out chip conveyor） | mm | 2438(L)×4238(W)×1825(H) | |
| Floor area(side out chip conveyor) | mm | 5061(L)×2554(W)×1825(H) | |
| Mass of machine | kg | 4800 | |
| Miscellaneous | Ambient temperature | ℃ | 0～40 |
| Relative humidity | - | ≤85% |
Main parts brand:
| Product | Specification | Brand | place of origin |
| System | SIEMENS 808D | Siemens | Germany |
| Spindle motor | (7/11kw) | Fisch | Italy |
| X-axis motor | 1.5kw | Siemens | Germany |
| Z-axis motor | 1.5kw | Siemens | Germany |
| Turret motor | 1.1kw | Siemens | Germany |
| Spindle Bearing | NN3018 (P4 ) | NSK | Japan |
| Spindle Bearing | N1014 (P4 ) | NSK | Japan |
| Spindle Bearing | 90BAR (P4 ) | NSK | Japan |
| X-Guide way | HGH30HC (P ) | HIWIN | TAI WAN |
| Z-Guide way | HGH30HA (P ) | HIWIN | TAI WAN |
| X-Ball screw | R28-10 (C3 ) | HIWIN | TAI WAN |
| Z-Ball screw | R32-12 (C3 ) | HIWIN | TAI WAN |
| X-Bearing | 20TAC (PN7B ) | NSK | Japan |
| Z-Bearing | 25TAC (PN7B ) | NSK | Japan |
| Hydraulic chuck | HC-06A5 | SAMCHULLY | South Korea |
| Hydraulic cylinder | Y1020R | SAMCHULLY | South Korea |
| Cooling water pump | CDLK4-40/4 | CNP | China |
| Hydraulic system | NSP-20-15 | NACHI | Japan |
| Chip remover | / | XIANG MAO | TAI WAN |
| Electrical component | / | Schneider | FRANCE |
| Nut | KMT | SKF | Sweden |
| Lube oil system | AMO- Ⅱ-150S/03LBⅢPM | LIUBIAN | China |
| Optional configuration: |
| FANUC CNC Controller； |
| SYNTEC 220TB CNC controller |
