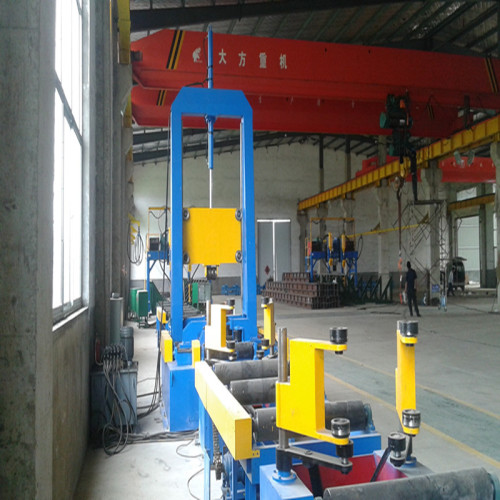

1.Introduction for?H beam assembly machine:

1.1.The automatic centering of flange and web adopts hydraulic motor and gear, with ??high centering precision and good reactivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.H beam assembly machine

1.2.The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5—6 M/min.H beam making machine

1.3.The main components of this machine are welded structure parts with large strength and light weight. and the key components have been stress relieved, which don’t deform easily.H beam production line

1.4.Can be used as eccentric H-beam,Vertical H beam assembly machine

?

2.Drawing?for?H beam assembly machine:

?

?

?

3.Technical parameters for H beam assembly machine:

1	H beam height	mm	200-2000
2	H beam width	mm	200-800
3	H beam length	mm	4000-15000
4	Web thickness	mm	5-32
5	Flange thickness	mm	6-40
6	Welder	2 sets,gas shield welder,China brand or Panasonic
7	Welding speed	mm/min	500-5500
8	Hydraulic system	China brand or at customer’s choice
9	Railway length	mm	18000

?

4.Main configurations for H beam assembly machine:

?

5.H beam assembly machine?Applications:

?

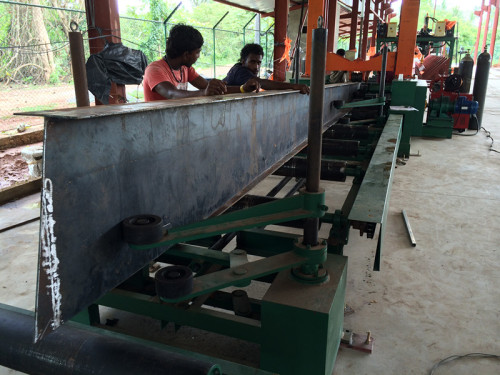

6.H beam assembly machine?Projects:

?

7.Packing and shipping?for H beam assembly machine:

?

8.Our Clients:

?

9.Our Exhibition:

?

10.Why choosing us:

1. We are MANUFACTURER, so we canoffer better price and after-sale service and shorter delivery date.
2.We have strong design & technical capacity,we can design and manufacture as per the customer's requirement.
3. Our factory has been approved CE certificate and ISO certificates etc
4. We have successfully exported to Europe,USA,Middle East, Southeast Asia and so on foreign countries. We all get good feedback.
5.Our product includes Welding manipulator,welding rotator,welding positioner,H beam welding lines,space frame welding machine,laser welding machine,laser cutting machinelaser cleaning machine,cnc flame plasma cutting machine,edge milling machine,face milling machine,magneticpolishing machine,Sheet metal deburring machine,thread rolling machine,bending machine,punching machine etc?
6.We provide a FREE TWO YEAR WARRANTY for all our items.?
7.OEM brand.
