Efficient Olive Leaf Drying: Exploring Advanced Dryer Machines
$20000.00
≥1 set
Options:
- DW-1.2-8
Get Latest Price
You might also like
Basic Info
| Type | Drying Oven |
|---|---|
| application | Chemicals Processing |
| Condition | New |
| Place Of Origin | Henan |
| Brand Name | Wks |
Show More
Product description
Products Description

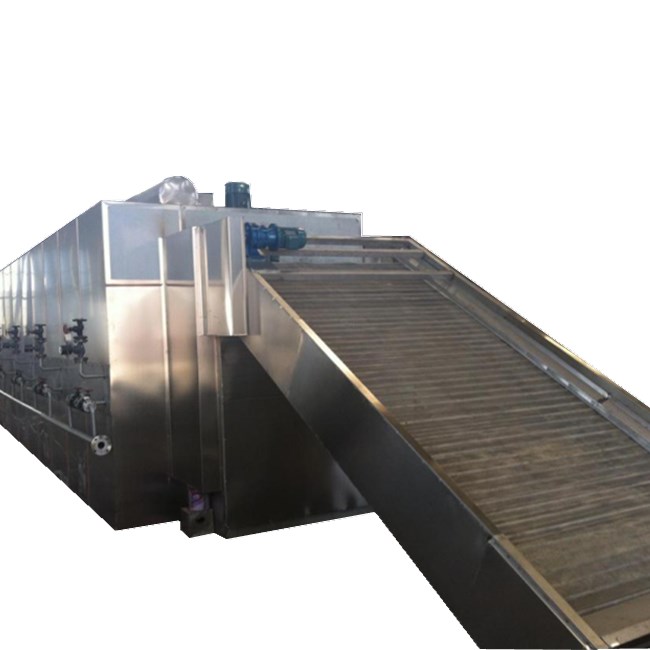

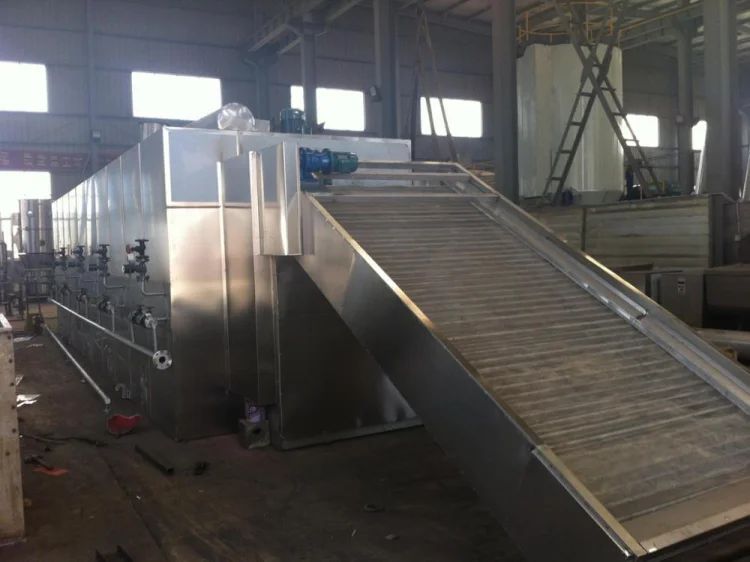

DW mesh belt dryer is a continuous drying equipment used in mass production. It is used for drying sheet, strip, granular and partially pasty materials with good air permeability. It is especially suitable for materials with high moisture content and heat-sensitive materials such as dehydrated vegetables. It has the advantages of high drying rate, high evaporation intensity and good product quality.

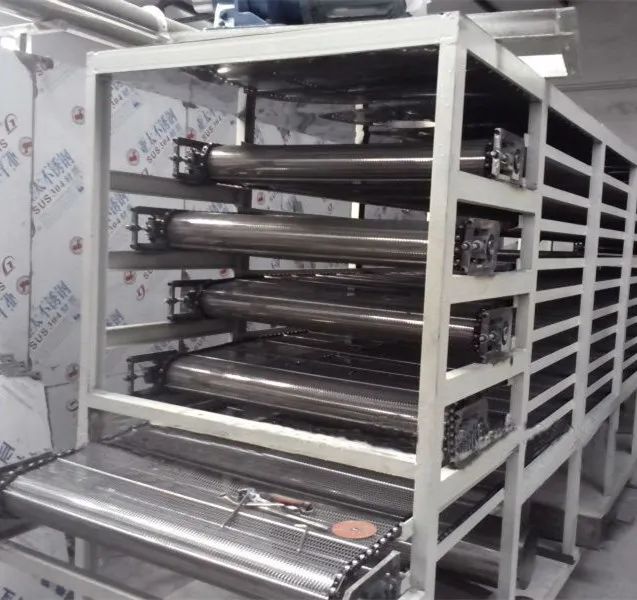

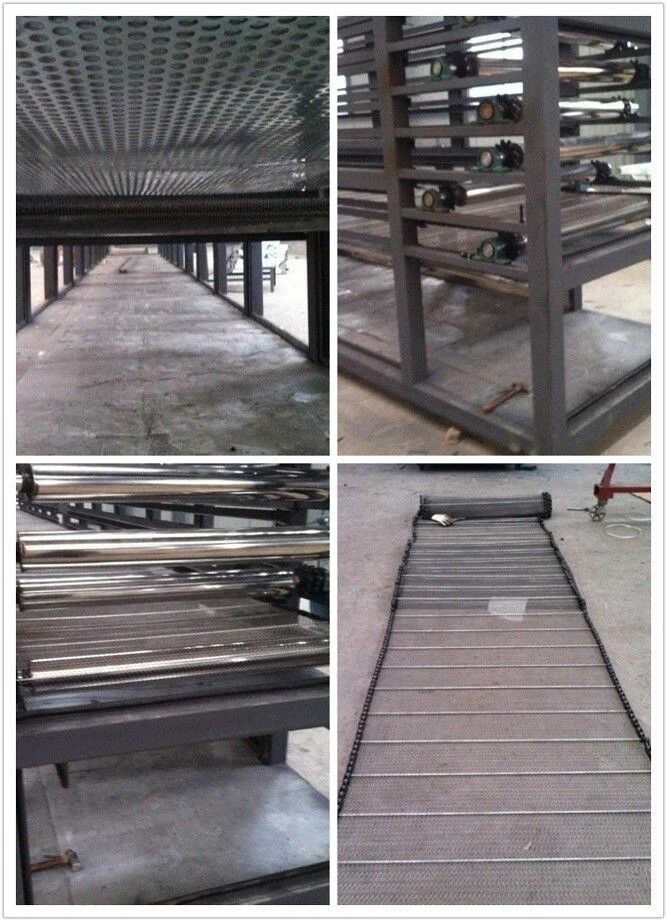

The material is evenly spread on the mesh belt by the feeder, and the mesh belt uses 12-60 mesh stainless steel wire mesh. It is driven by the transmission device to move in the dryer. The dryer consists of several units. The hot air in each unit circulates independently. Part of the exhaust gas is discharged by a special dehumidification fan. The exhaust gas is controlled by a regulating valve. The hot air passes through the material spread on the mesh belt from bottom to top or from top to bottom, heating Dry and remove moisture. The mesh belt moves slowly, and the running speed can be adjusted freely according to the temperature of the material. The dried finished product continuously falls into the receiver. The upper and lower circulation units can be flexibly equipped according to user needs, and the number of units can be selected as needed.
Application
Mesh belt dryers are widely used for drying sheet, strip, granular and partially pasty materials with good air permeability. For dehydrated vegetables,plant flowers, tea leaves, plant leaves and other materials with high moisture content and heat sensitivity.
Q: What information do I need to provide in order to obtain a professional and detailed quotation?
A: 1. What are you going to dry?
2. What is the initial moisture content and final moisture content of the raw materials?
3. What is the capacity per batch?
4. What heat source do you use? steam, hot water, oil?
5) Recommended drying temperature ?
Q: What is the lead time?
A:45-60 working day.
Q: What kind of after sale service you can provide?
A: 24 months warranty.
Installation, commissioning and training services as well as online help are provided free of charge.
Q: How is the product packaged and delivered?
A: After the product finished, it is packed in a fumigation-free wooden box and transported by sea or land.
Q: What standard models do you have? Does it support customized services?
A:We have the following standard models and support customized production.
Product Parameters
Spec | Unit | DW3-1.2*8 | DW3-1.2*10 | DW3-1.6*8 | DW3-1.6*10 | DW3-2*8 | ||||
Unit number | 4*3 | 5*3 | 4*3 | 5*3 | 4*3 | |||||
Drying section length | m | 24 | 30 | 24 | 30 | 24 | ||||
Thicknegs of materials | mm | 10-80 | ||||||||
Temperature | C | 50-160 | ||||||||
Drying strength | kgH?O/h | 150-450 | 220-55 | 240-600 | 280-750 | 280-750 | ||||
Power equipment inside | kw | 30.8 | 3704 | 42 | 51 | 56 | ||||
Power equipment outside | kw | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | ||||
Overall dimensions | m | 9.77*2.2*4.5 | 11*2.2*4.5 | 9.77*2.6*4.5 | 11*2.6*4.7 | 9.77*3*4.9 | ||||
Weigh | kg | 4800*3 | 5780*3 | 5400*3 | 650*3 | 6350*3 | ||||
Packing & Shipping
Henan Workers Machinery Co., Ltd. is a comprehensive, efficient and intelligent technology-based enterprise integrating product design, research and development, manufacturing, engineering installation, sales, technical consultation and after-sales service.
The company's operation center is located in Zhengzhou, a national transportation hub city with both public transport, railway, aviation and letter and a national central city. The production and manufacturing base is located in Changzhou, one of the central cities in the Yangtze River Delta region, an advanced manufacturing base and a famous cultural and tourism city.
The company is mainly engaged in:
1. R&D and manufacturing of drying, mixing, granulating, crushing, conveying, screening and other equipment;
2. R&D and manufacture of complete sets of equipment for extraction, concentration, evaporation, crystallization, biological fermentation, filtration, transportation, blending, dissolving, CIP online cleaning and sanitary fluid valve and pipe fittings;
3. R&D and manufacturing of automatic packaging and filling equipment.
The company has complete processing equipment, more than 42 sets of manufacturing and inspection equipment such as lifting, cutting, welding and cutting, and has an excellent product development environment and production environment.
The company has a team of senior technical personnel with strong innovation ability and rich experience. Among them, there are 5 product design engineers and more than 60 professional production technicians, with strong technical force and rich experience in design and manufacturing.
The company has adopted advanced management methods, established a complete quality assurance system, and passed the ISO9001 quality system certification, so that the products comply with the new version of GMP specifications, and provide customers with more extensive products and services.
The company's products are exported to more than 30 countries including the United States, the United Kingdom, Canada, Austral
