Efficient Turnkey Short Path Distillation Solution for Monoglyceride Production

Video

1 / 7

Efficient Turnkey Short Path Distillation Solution for Monoglyceride Production

$13480.00 ~ $19050.00 / set

Options:

Distillation
Food Processing
YMD-60A
YMD-60B
YMD-60C
YMD-60D
YMD-80A
YMD-80B
YMD-80C
YMD-80D
YMD-100A
YMD-100B
YMD-100C
YMD-100D
YMD-150A
YMD-150B
YMD-150C
YMD-150D

Get Latest Price

Model No.
Brand Name
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Engine, motor, Gear, Pump
Power Source	Electric
Process	Wiped Film
Place Of Origin	Shanghai, China
Brand Name	YHCHEM
Power(W)	120w
Dimension(LWH)	19006101800
Warranty	1 Year
Key Selling Points	High Productivity
Product Name	Borosilicate glass wiped film molecular distillation system
Model	YMD-60~200
Application	Food Beverage Chemical Haramceutical Industry
Capacity	0.5~3L
Condenser	Main Condenser+Assistant Condenser
Sealing	Magnetic seal
Feeding method	High-precision PTFE valve
Feed pipe	Jacket insulation
Evaporation area	0.06~0.35 m2
Advantage	High Efficient
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops
Showroom Location	United States
Warranty of core components	1 Year
Condition	New
Weight	210 KG

Product Parameter

Model	YMD-60	YMD-80	YMD-100	YMD-150	YMD-200
Feeding rate(L/h)	0.05~2	0.05~3	0.1~5	0.2~10	0.5~15
Evaporation area(m2)	0.06	0.1	0.15	0.25	0.35
Feeding tank volume(L)	0.5	1			2	3
Light component collection bottle(L)	0.5	1	2	5
Heavy Fraction Collection Bottle(L)	0.5	1	2	5
Speed range(rpm)	50~460
Minimum operating pressure(mbar)	≤0.001
Working temperature range (℃)	≤300
Power supply	220V,50Hz，1p
Equipment size (L×W×H, cm)	170×61×170	190×61×180	190×61×190	210×61×230	225×60×240

Product Description

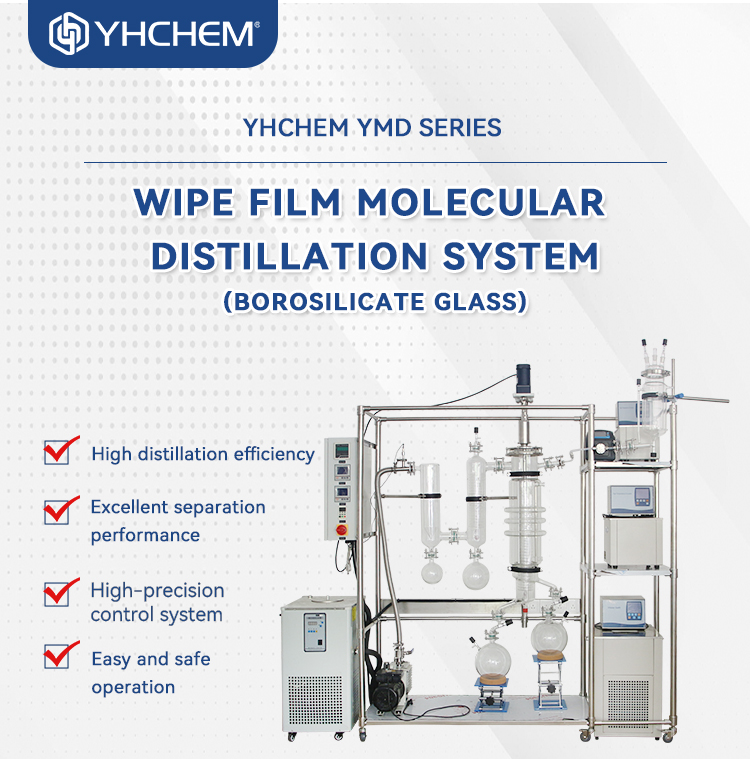

YMD series Wipe Film Molecular Distillation System (Borosilicate Glass) is a type of molecular distillation equipment made of high-borosilicate 3.3 material. lt is mainly used to efficiently and precisely separate and purify components in liquid mixtures.The system uses the short-path molecular distillation principle, where various components in the mixture are evaporated and recondensed atacertain temperature through high-temperature heating, thus achieving the separation and purification of the mixture. Making it an ideal choice for research small-scale production experimentalor.

Rroduct Advantage

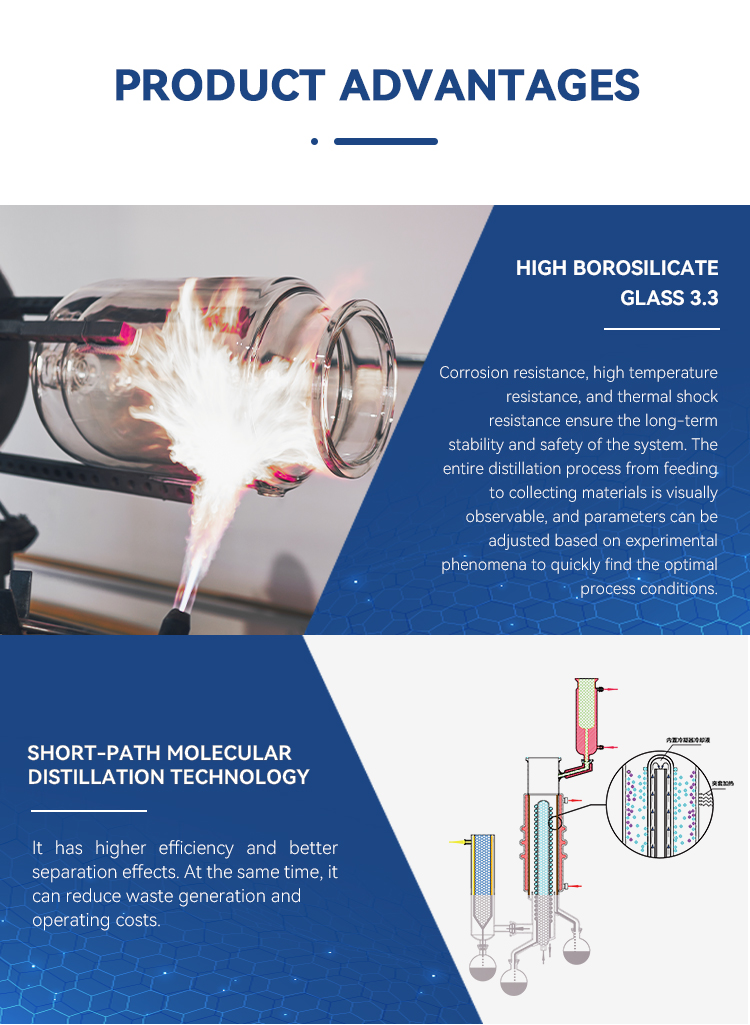

?1.HIGH BOROSILICATE GLASS 3.3
Corrosion resistance, high temperature resistance, and thermal shock resistance ensure the long-term stability and safety of the system.
?2.SHORT-PATH MOLECULAR DISTILLATION TECHNOLOGY
It has higher efficiency and better separation effects. At the same time, itcan reduce waste generation and operating costs.

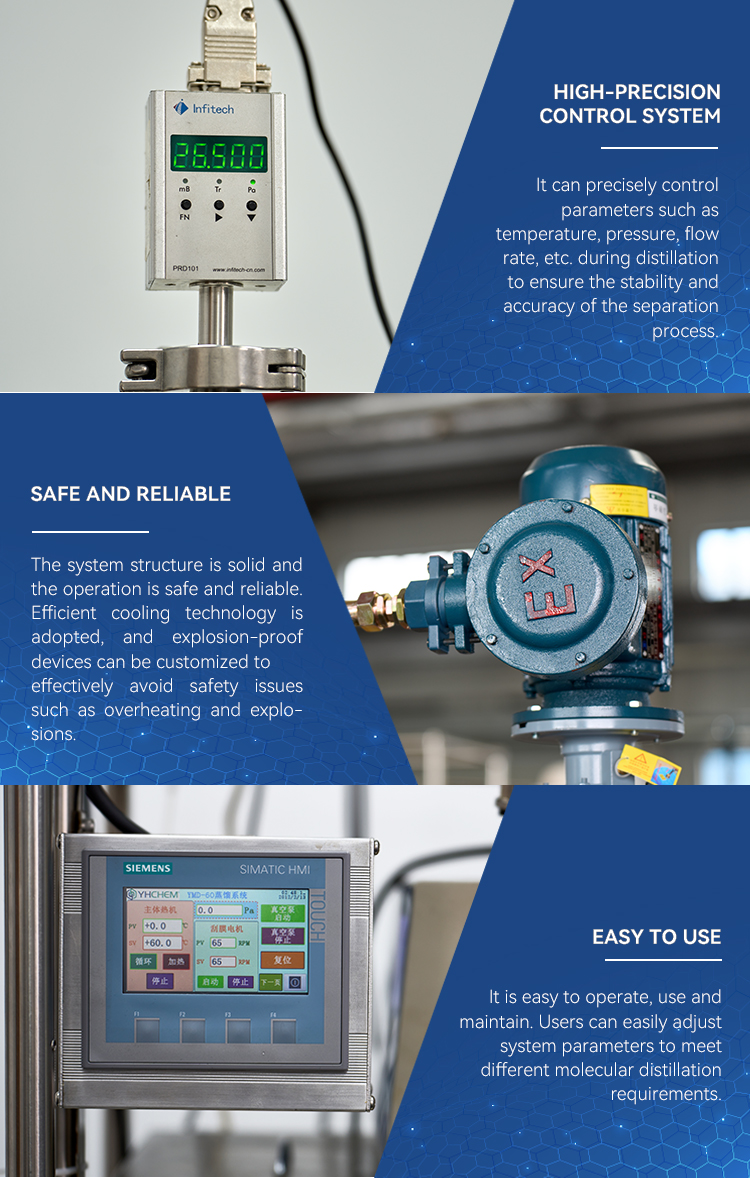

?3.HIGH-PRECISION CONTROL SYSTEM
It can precisely control parameters such as temperature, pressure, flow rate, etc during distillation to ensure the stability and accuracy of the separation process.
?4.SAFE AND RELIABLE
Efficient cooling technology is adopted, and explosion proof devices can be customized to effectively avoid safety issues such as overheating and explosions.
?5.EASY TO USE
It is easy to operate, use and maintain. Users can easily adjust system parameters to meet different molecular distillation requirements.

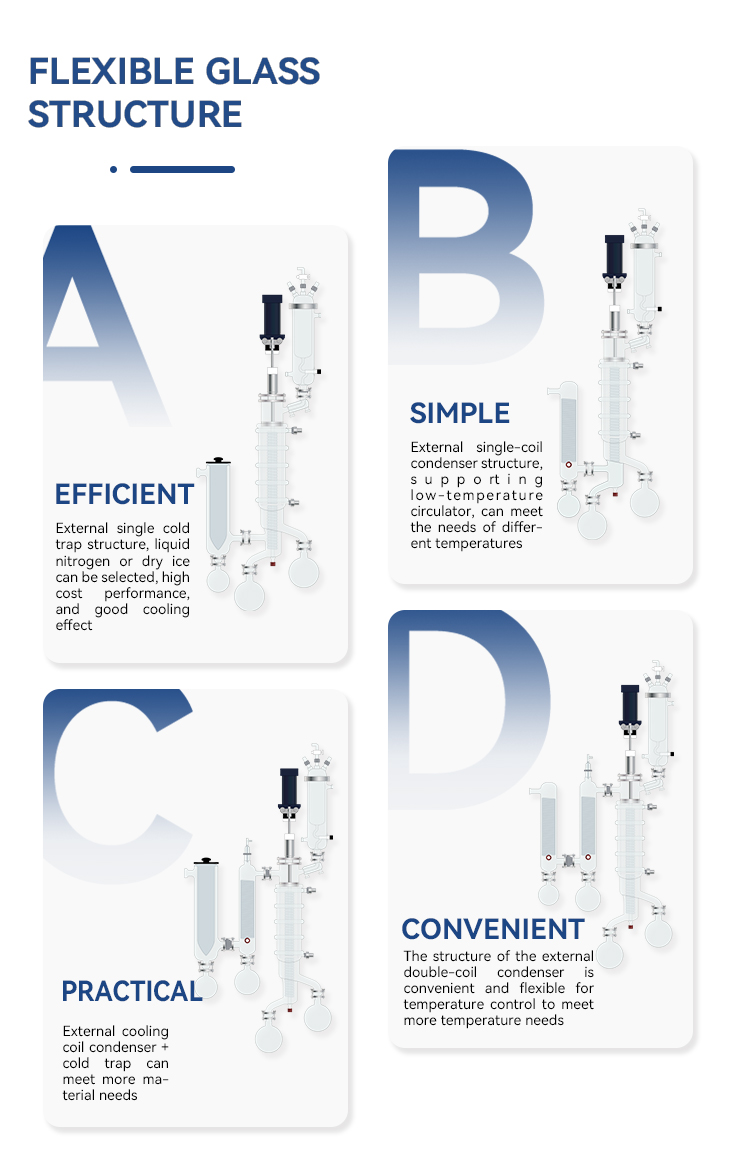

Structure Configuration

?A:EFFICIENT
External single coldtrap structure, liquid nitrogen or dry ice can be selected, high cost performance,and good cooling effect.
?B:SIMPLE
External single-coil condenser structure,supporting low-temperature circulator, can meet the needs of different temperatures.
?C:PRACTICAL
External cooling coil condenser cold trap can meet more material needs.
?D:CONVENIENT
The structure of the external double coil condenser is convenient and flexible for temperature control to meet more temperature needs.

Application Fields

?1.CHEMICAL INDUSTRY
used for separation and purification of high-purity chemicals, such as organic solvents dyes,insecticides, chemical reagents, etc.
?2.FOOD INDUSTRY
used for extraction and separation of natural products, such as spices, pigments plant extracts, etc.
?3.BIOTECHNOLOGY
used for separation and purification of bioloaical products such as proteins enzvmes antibodies.
?4.NEW MATERIAL DEVELOPMENT
used for preparing new high-purity materials such as high-purity metals, semiconductor materials, optical materials, etc.
?5.PETROCHEMICAL INDUSTRY
used for separation and refining of petrochemical products, such as petroleum fractions, natural gas, petrochemical wastewater, etc.

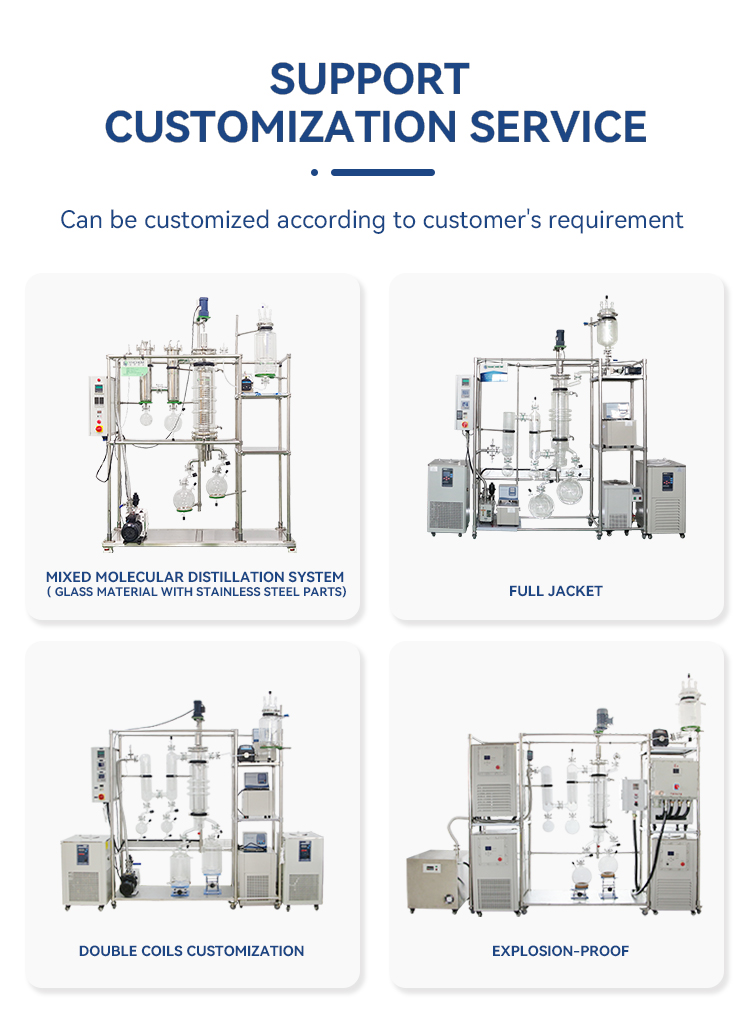

Support Customisation

?1.MIXED MOLECULAR DISTILLATION SYSTEM (GLASS MATERIAL WITH STAINLESS STEEL PARTS)
?2.FULL JACKET
?3.DOUBLE COILS CUSTOMIZATION
?4.EXPLOSION-PROOF

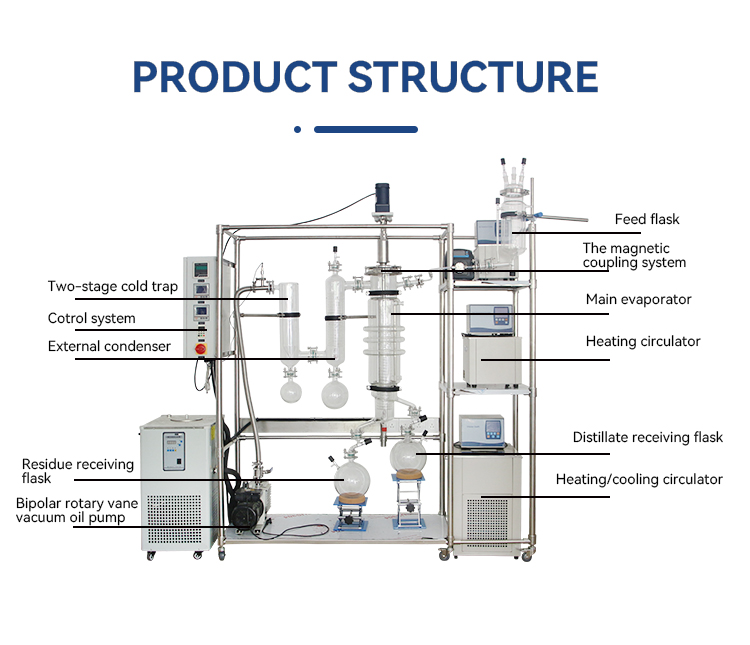

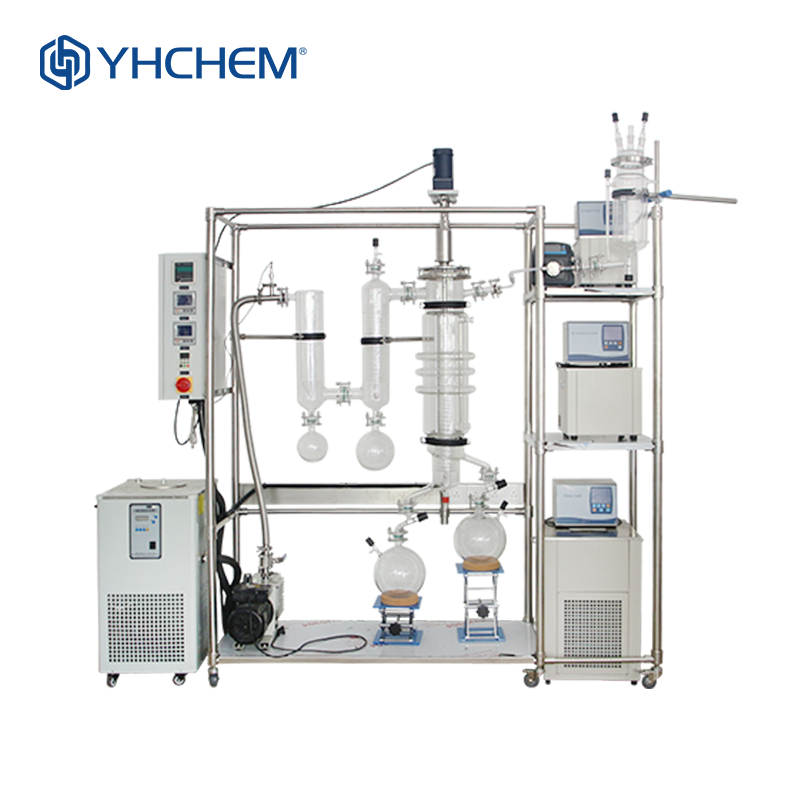

Product Structure

?Two-stage cold trap
?Control system
?External condenser
? Feed flask
?The magnetic coupling system
?Main evaporator
?Heating circulator
?Residue receiving flask
?Bipolar rotary vane vacuum oil pump
?Distillate receiving flask
?Heating/cooling circulator

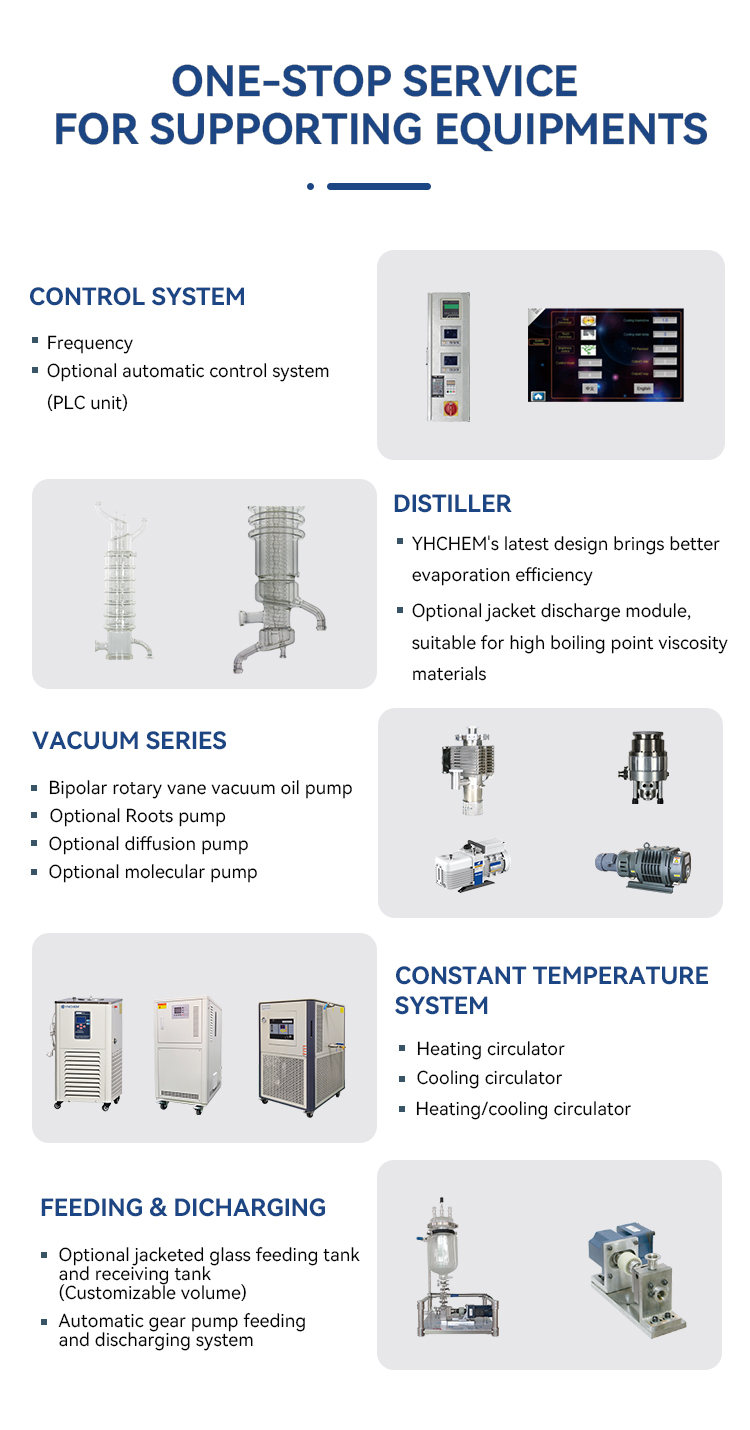

Supported Equipment

?1.CONTROL SYSTEM
Frequency

Optional automatic control system (PLC unit)
?2.DISTILLER
YHCHEM's latest design optional jacket discharge module, suitable for high boiling point viscosity materials
?3.VACUUM SERIES
Bipolar rotary vane vacuum oil pump

Roots pump diffusion pump molecular pump
?4.CONSTANT TEMPERATURE SYSTEM
Heating circulator

Cooling circulator

Heating/cooling circulator
?5.FEEDING & DICHARGING
Optional jacketed glass feeding tank and receiving tank (Customizable volume).
Automatic gear pump feeding and discharging system.

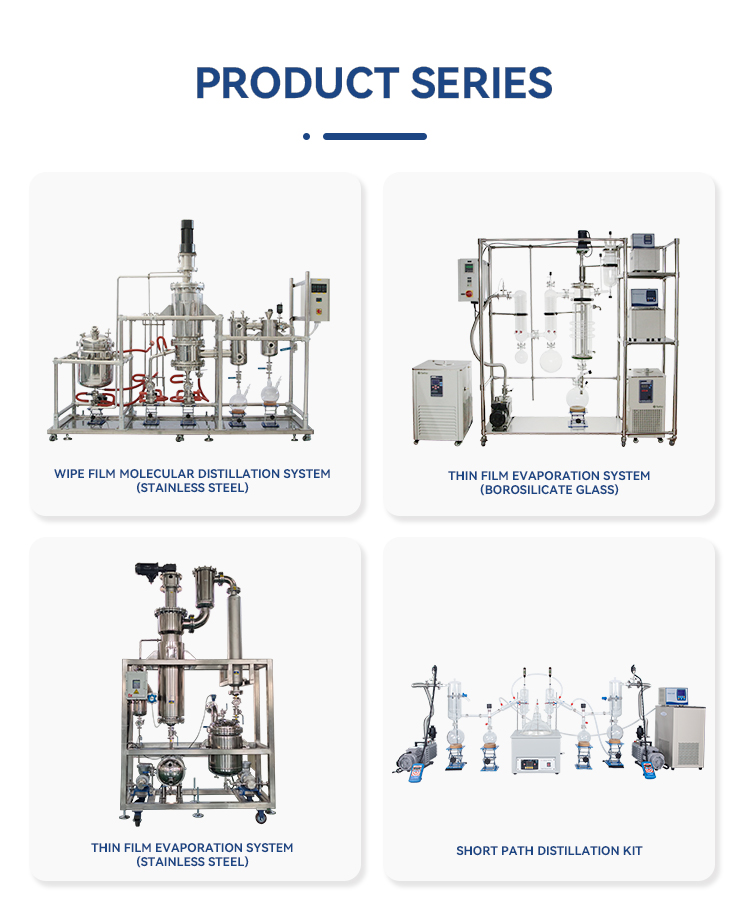

Product Series

?1.WIPE FILM MOLECULAR DISTILLATION SYSTEM (STAINLESS STEEL)
?2.THIN FILM EVAPORATION SYSTEM (BOROSILICATE GLASS)
?3.THIN FILM EVAPORATION SYSTEM (STAINLESS STEEL)
?4.SHORT PATH DISTILLATION KIT

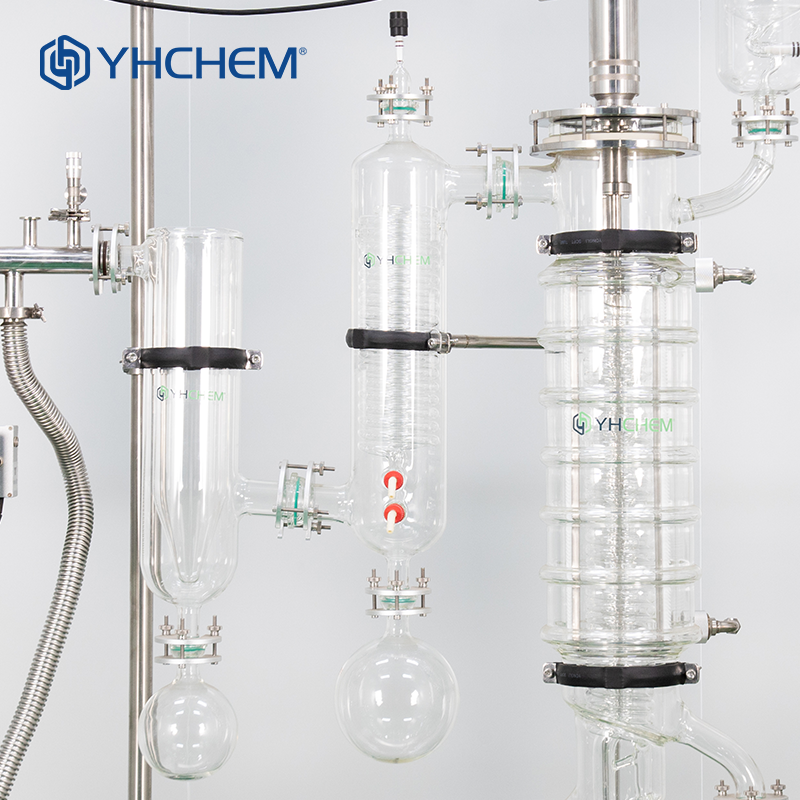

Product Details

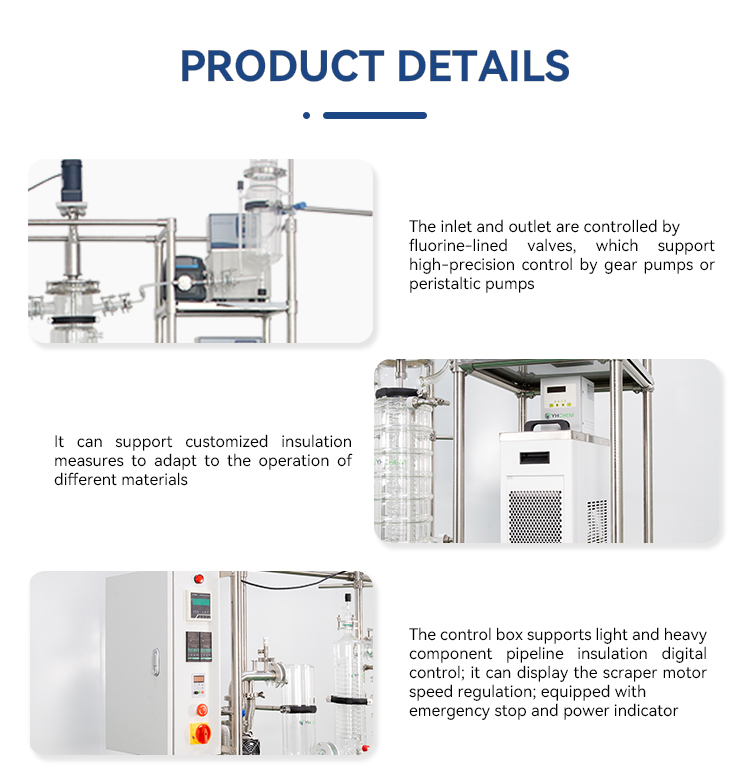

?1.The inlet and outlet are controlled by fluorine-lined valves, which support high-precision control by gear pumps or peristaltic pumps.
?2.It can support customized in sulation measures to adapt to the operation of different materials.

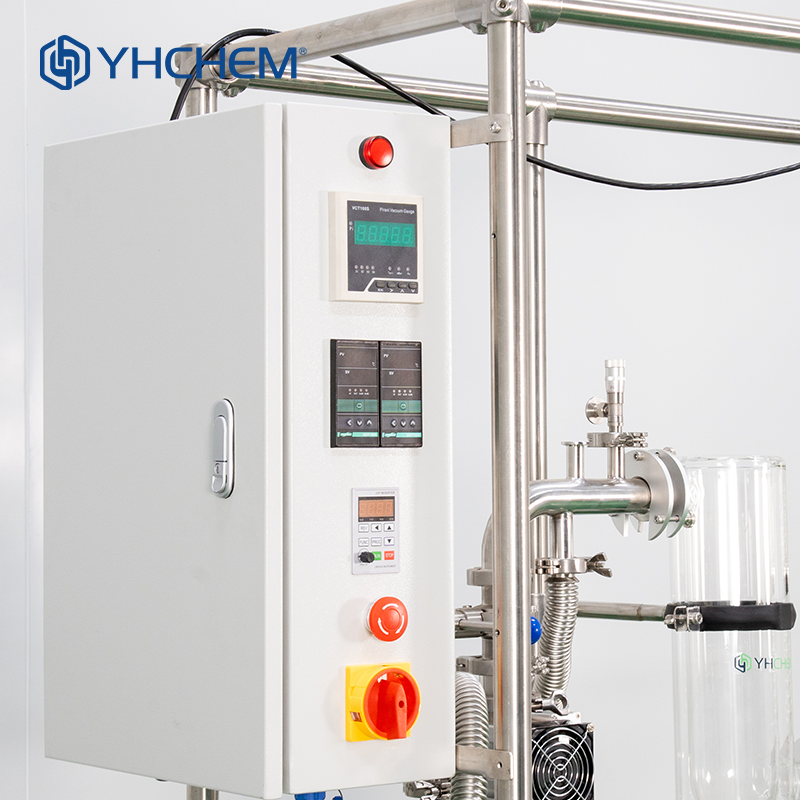

?3.The control box supports light and heavy component pipeline insulation digital control;

it can display the scraper motor speed regulation; equipped with emergency stop and power indicator.

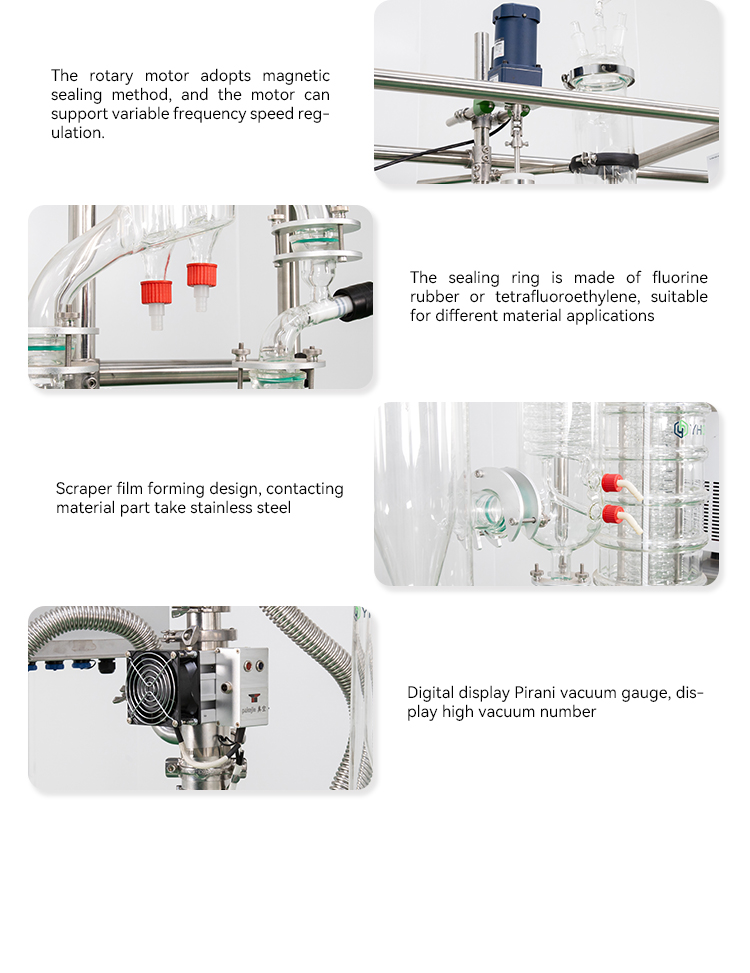

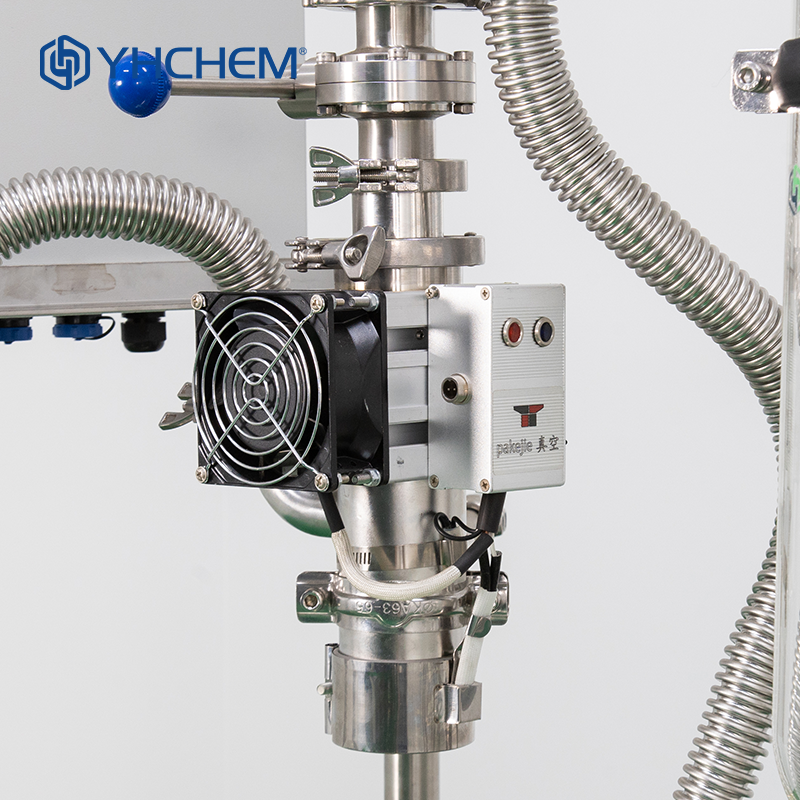

?4.The rotary motor adopts magnetic sealing method,and the motor can support variable frequency speed regulation.
?5.The sealing ring is made of fluorine rubber or tetrafluoroethylene, suitable for different material applications.
?6.Scraper film forming design, contacting material part take stainless steel.
?7.Digital display Pirani vacuum gauge, display high vacuum number.
