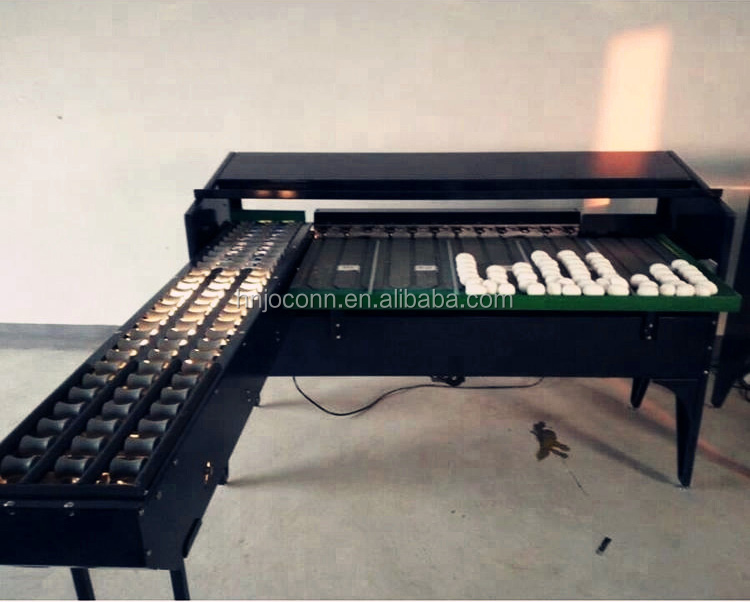

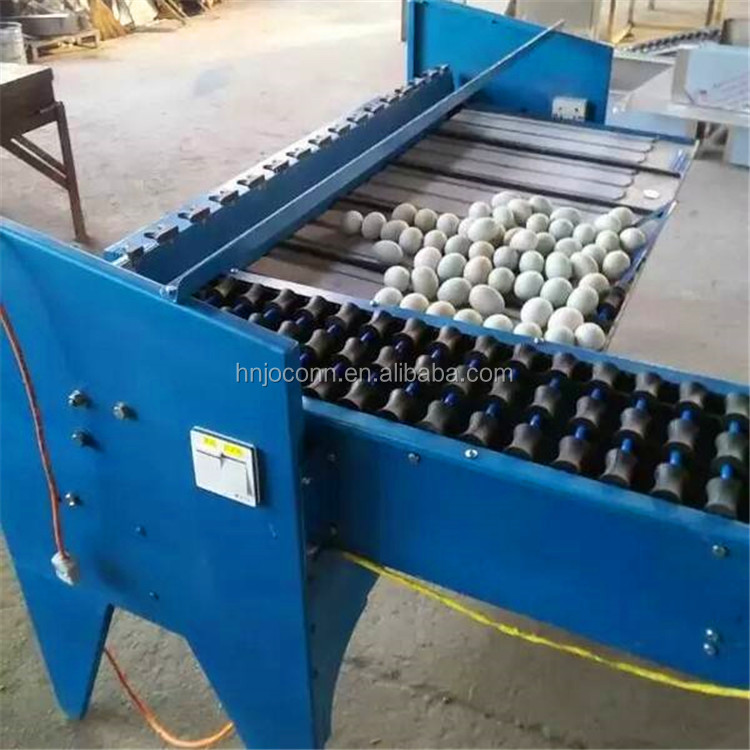

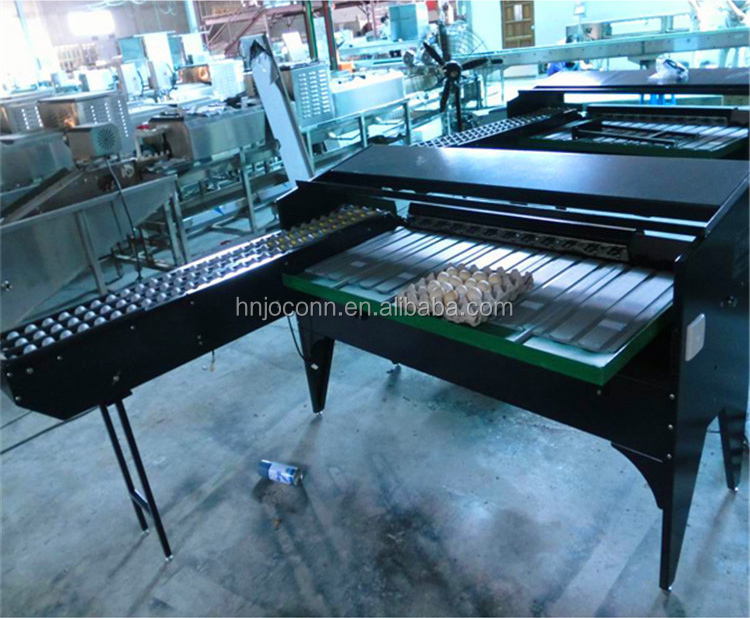

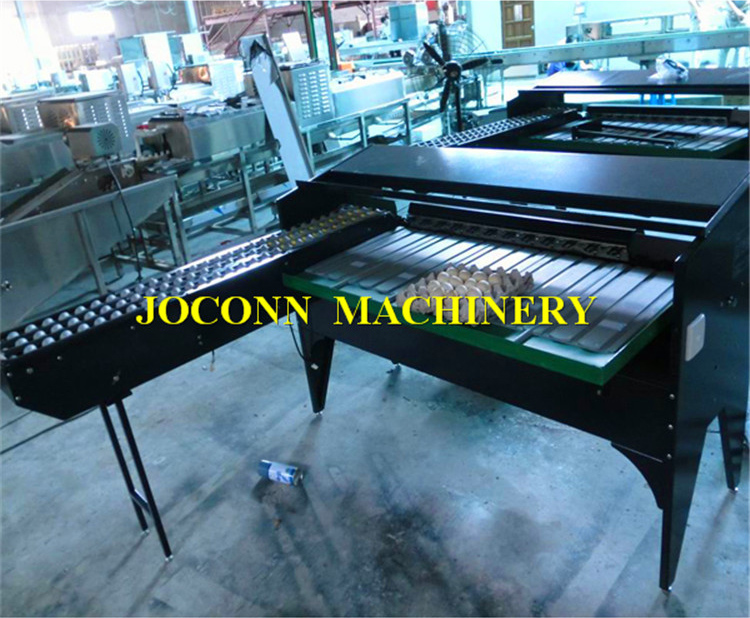

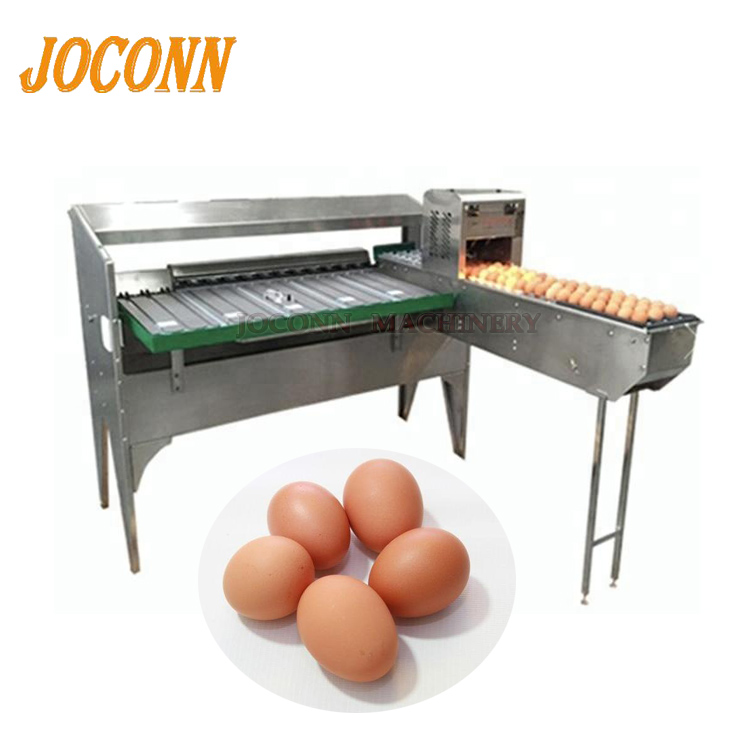

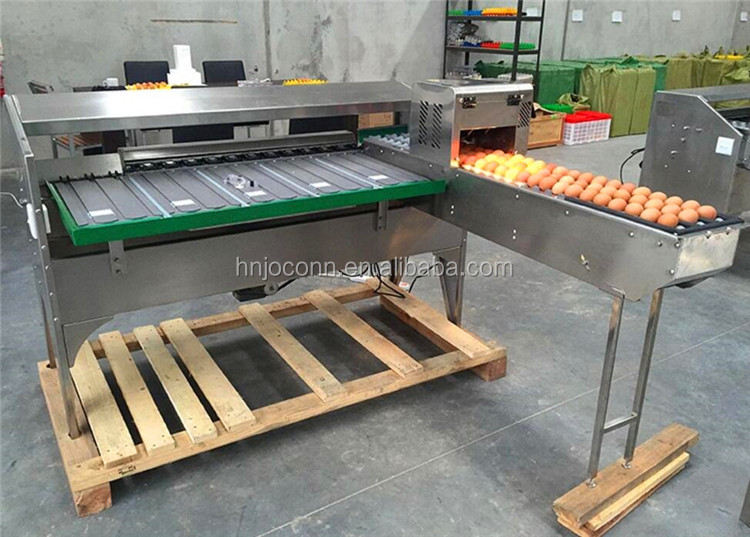

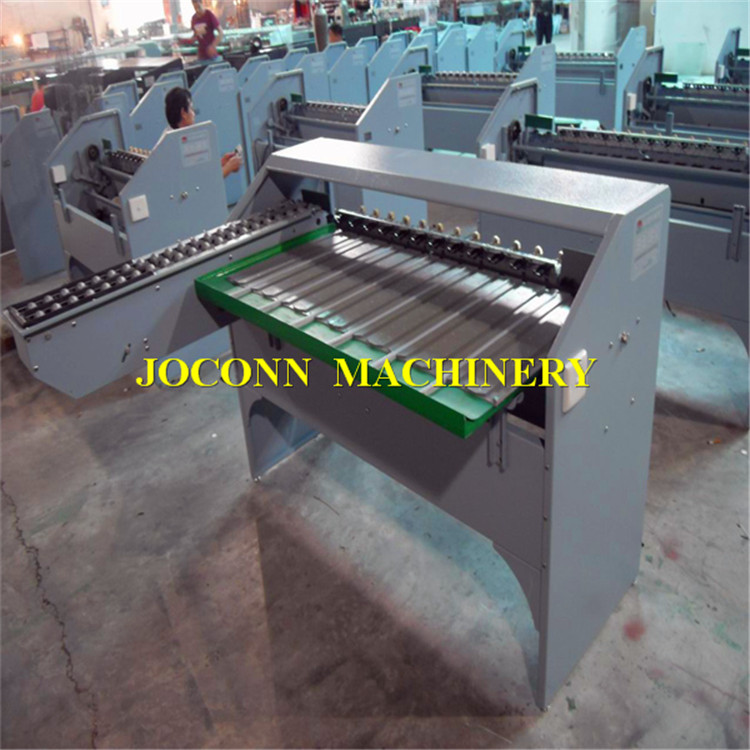

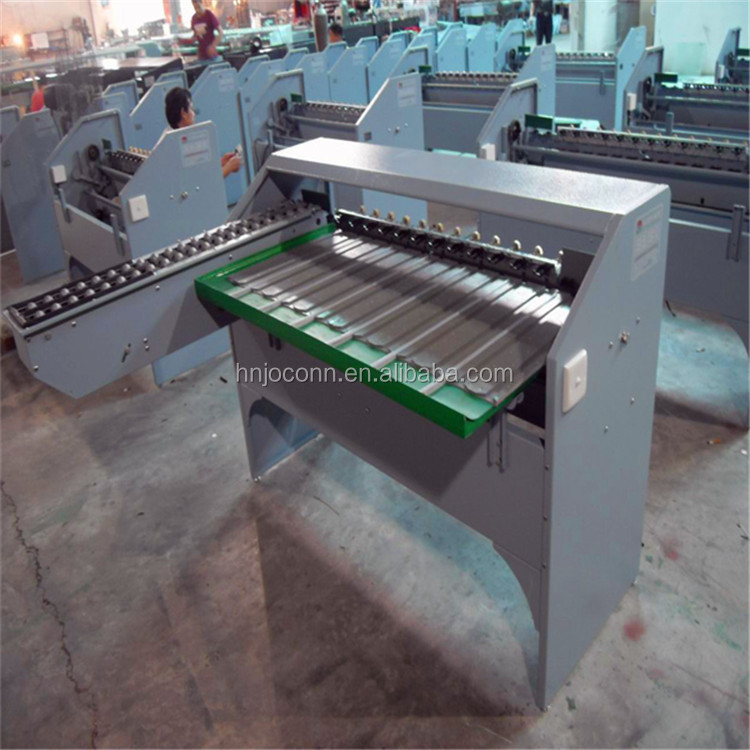

This automatic egg grading machine adopts working principle of sales, different egg weight, different grade level. it can sort eggs into 7 levels by different weight ranges. with 2 or 3 lines egg feeding, you can equip machine with egg lifter or egg printer. after grading, the eggs should be collected by workers. easy to operate. This machine widely used in small or medium sized chicken farms or egg procssing plants.

1. feed eggs into 2 or 3-line egg feeding part?Manually or by egg lifter, then eggs will move forwards along with the feeding part.

2. top 3 eggs will fall down to the egg conveying part, and move forwards to the sales.?

3. as egg conveying part Fluctuates up and down?at a certain frequency when moving forwards, the eggs will fall down to one side of scales. if egg weight is?lighter than the other side of scale, then? the eggs will move forwards by conveying part to the next sales. if egg weight is heavier than the other side of scale, then the egg will fall down to one grade level.

4.? workers at the end of machine will collect eggs of different grades separately, egg grading ends.

1. high capacity, can sort 5400pcs eggs each hour, saving time cost

2. easy opeartion, one worker feeds eggs, 2 or 3 workers collect eggs after grading, saving labor cost

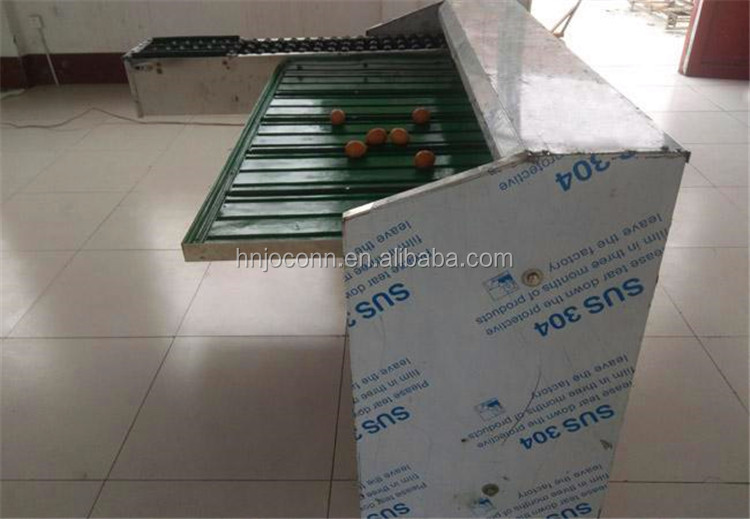

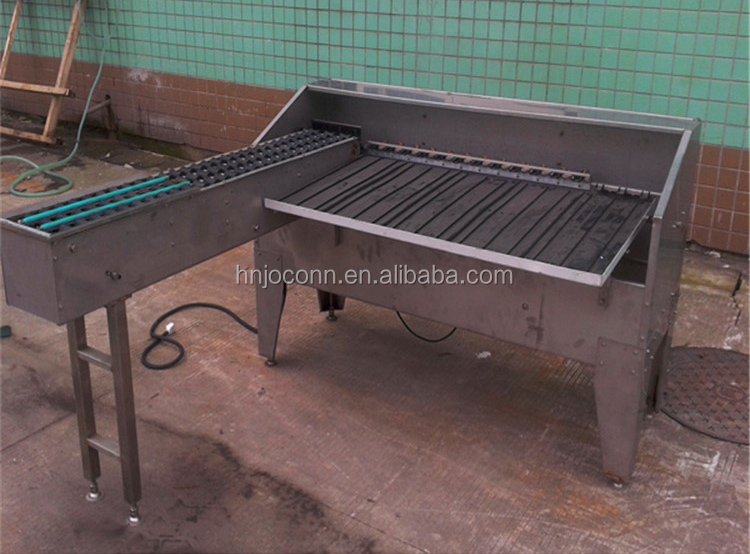

3. good quality, machine is made of stainless steel or carbon steel

4. high grading precision, low error rate

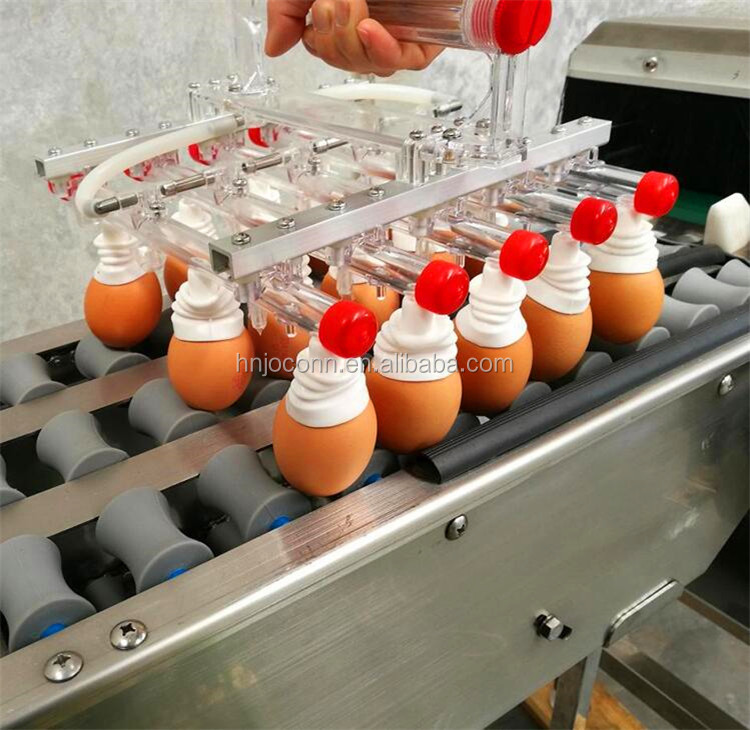

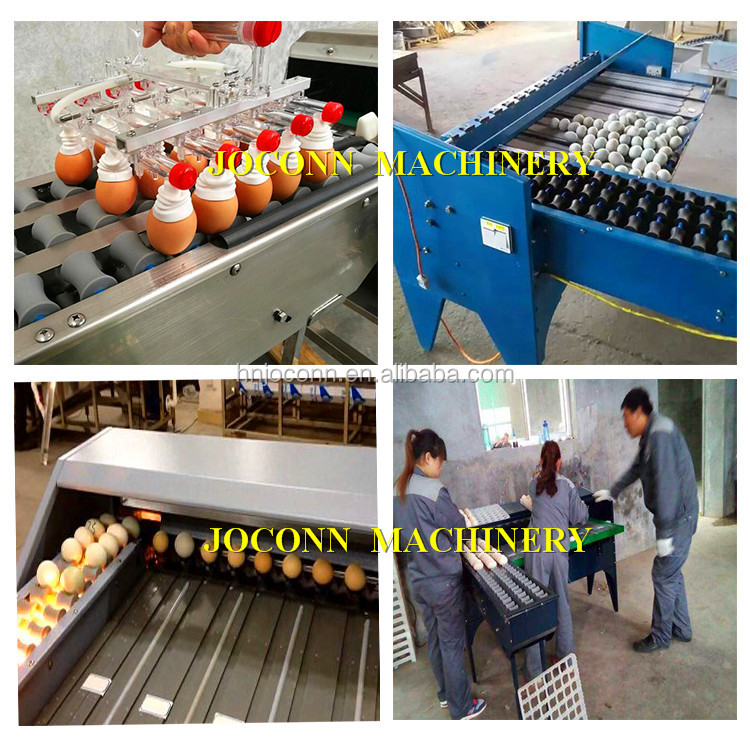

5. egg lifter or egg printer are optional

6. cost effective, widely used in small or medium egg plants

Name

Egg weight grading sorting machine

Capacity

5400pcs/h

Material

Stainless steel or carbon steel

Power

200w, 220v

Weight

200kg

Size

1800*1600*1100mm
