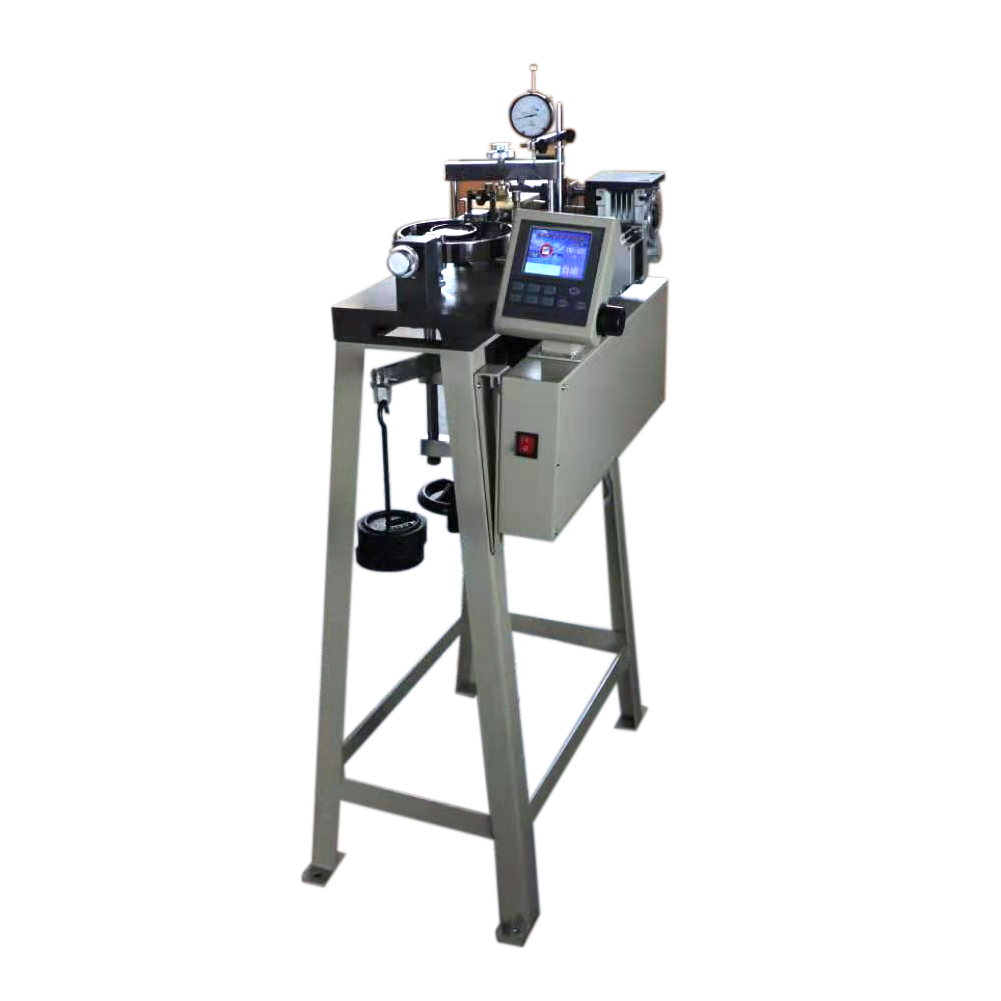

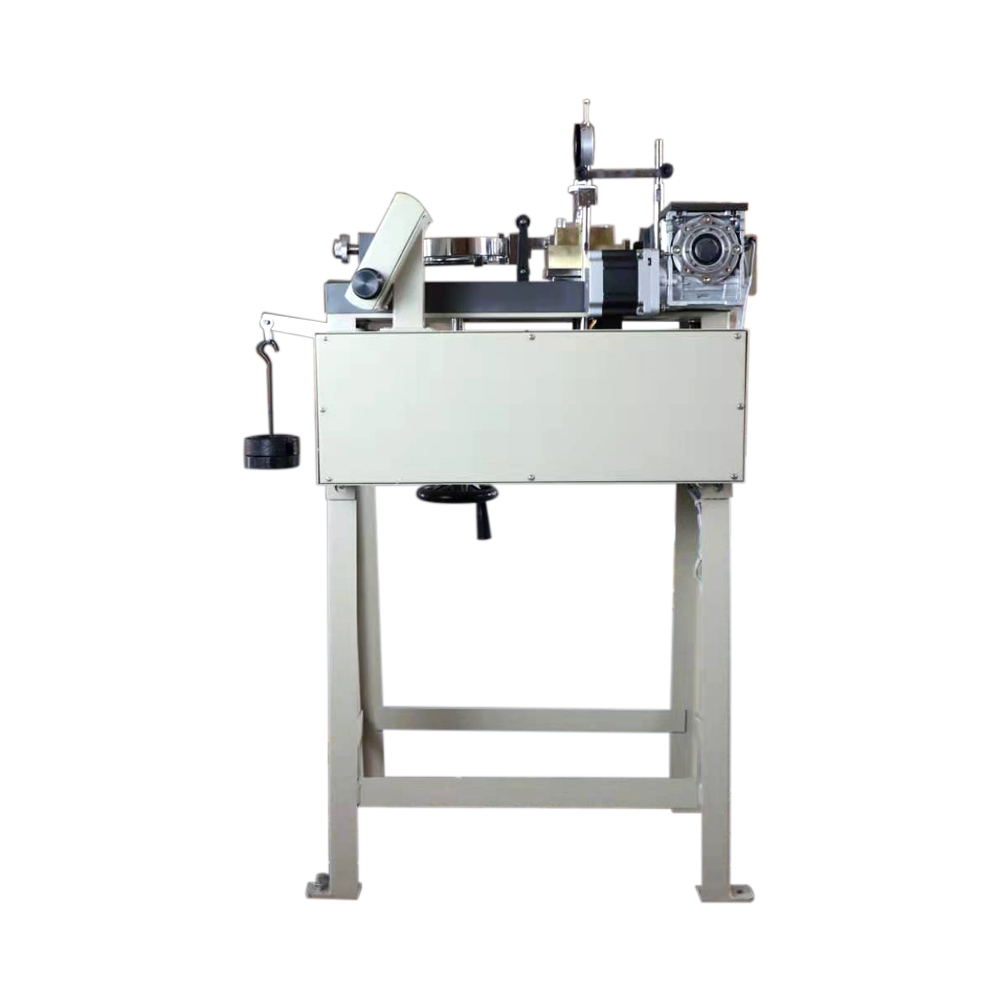

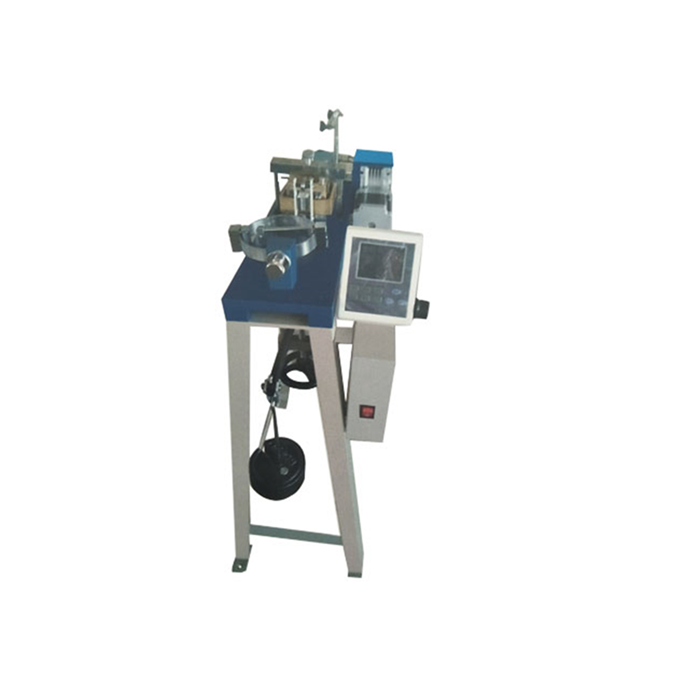

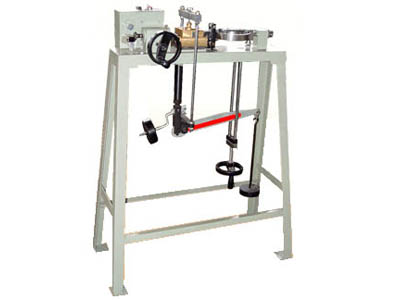

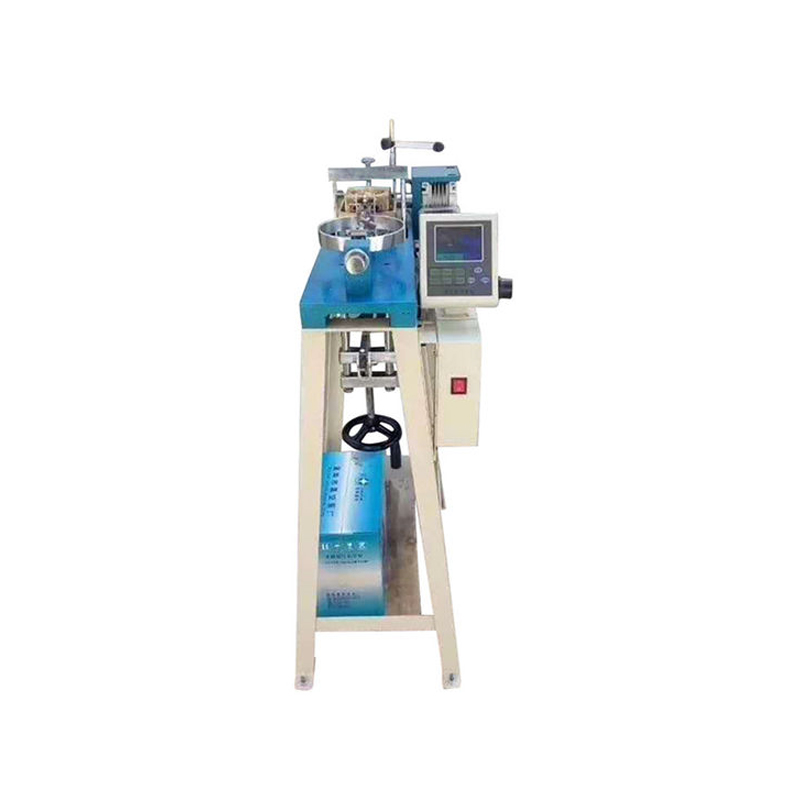

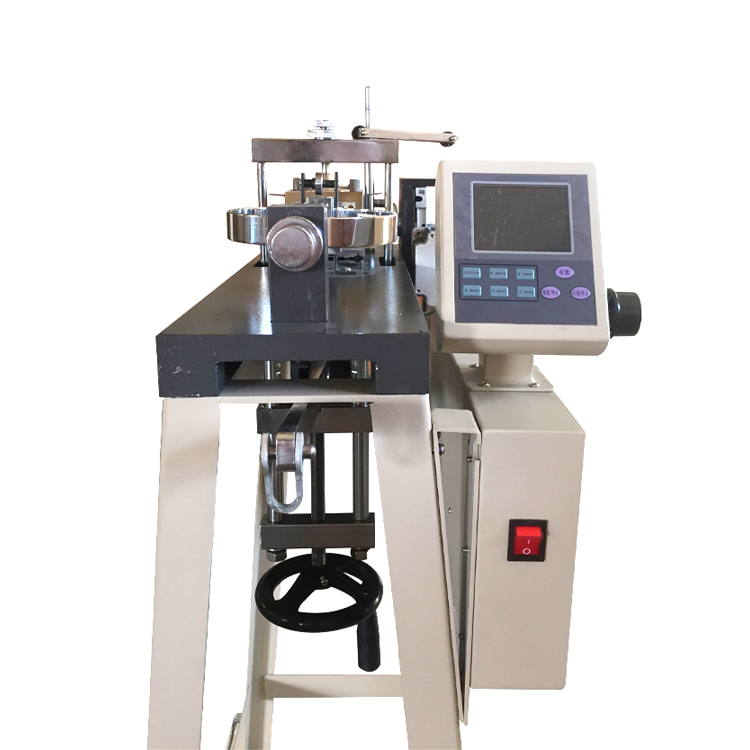

Electric Strain Direct Shear Testing Apparatus for Soil Analysis
$950.00
≥1 set
$850.00
≥3 set
$750.00
≥10 set
use:
- Direct Shear Test Apparatus
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem |
| Place Of Origin | Hebei, China |
| Brand Name | IWIN |
| Model Number | iwin-stm01 |
Product description
? ? ? Electric Strain Direct Shear Testing Apparatus of Soil Machine
?
?
The Direct Shear Test is an experimental procedure conducted in geotechnical engineering practice and research that aims to determine the shear strength of soil materials. Shear strength is defined as the maximum resistance that a material can withstand when subjected to shearing.
Generally, the Direct Shear Test is considered one of the most common and simple tests to derive the strength of a soil and can be performed on undisturbed or remoulded samples.
?
?
| Model | IWIN-STM01 |
| Vertical load | 50KPa, 100KPa , 200KPa , 300KPa , 400KPa |
| Corresponding weight | 1.275,2.55,5.1,7.65,10.2kgs |
| Lever ratio | 0.05 |
| Level shear force | Max. 1.2KN |
| Sample area(cm2 ) | 30, height? 2 CM |
| Shear rate(mm/min) | 0.02, 0.8, 2.4 |
| Power source | 220V±10%, 50Hz |
| Dimension(mm) | 830 x 530 x 1260 (LxWxH) |
| Net Weight | 80 Kg |
?
Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.
To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"
?
? ? ?
?
