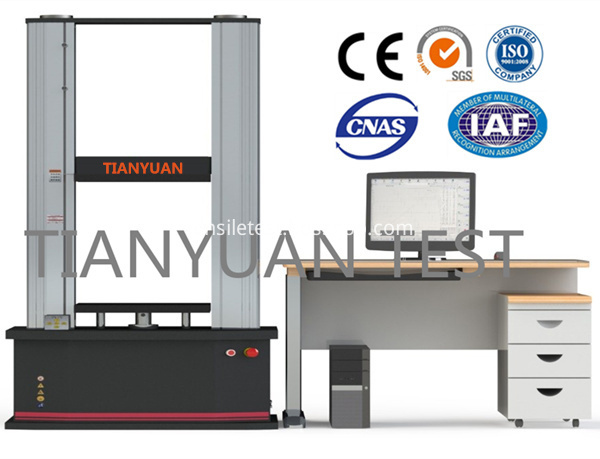

Electronic Carton Compression Testing Machine 50KN

Equipment Description

TY8000 Electronic Carton Compression Testing Machine is suitable for carton compression test (Max. crushing force), standard test (pressure standard, deformation standard), and stacking test under the load of 50KN. This testing machine adopts single space structure. The test space is in the lower part.

A   Compression test (Max. crushing force):To test the ultimate compressive strength of the carton

B    Standard test (pressure standard, deformation standard)

The deformation value (or pressure value, time) can be set up in advance to test the overall performance of the carton, and provide the necessary test data for the design and selection of the carton.

C   Stacking test

It is used to test the pressure durability of the carton under the simulated packaging and storage condition. The stacking time can be arbitrarily set (The software can automatically calculate the safe compressive strength and the total quality of the stacking cartons, so that users can quickly calculate the overall performance of the box.)

Servo motor, high rigidity, high precision, high transmission efficiency, planetary screw system driven ball screw, test load process. The machine adopts advanced DSP+MCU all-digital closed-loop control system for controlling and measurement, using the computer during the test and the test curve dynamic display, and data processing, test after test data analysis through graphical processing module, the secondary editing export Excel data to print out the test reports.

Curve category

Load VS Displacement, Load VS Time, Displacement VS Time, Stress VS. Strain, Stress VS. Time, Deformation VS. Time, Slope VS. Load, Slope Deformation, Modulus VS. Load, Modulus and Deformation, Multigraph simultaneous display and so on.

Standards

GB/T 4857.3, GB/T 4857.4, GB/T 4857.16, GB/T 8167, GB/T 8168,ISO 2872, ISO 2874, ISO 2234, ISO 12048, QB/T1048, TAPPI-T804, JIS-20212, ASTM-D642 and other international standards

Technical Parameters:
