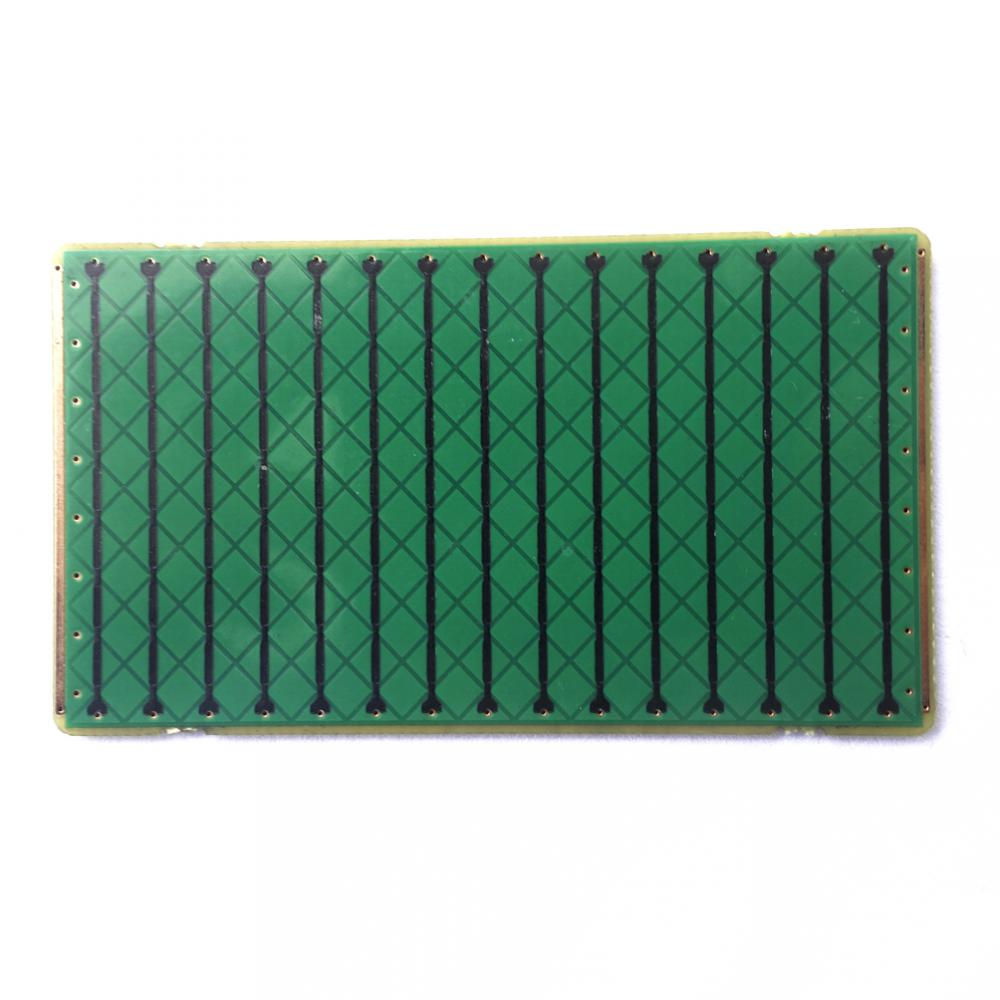

electronics component module PCB Fabrication with Immersion Gold
Get Latest Price
You might also like
1 Piece/Pieces (MOQ)
Basic Info
| Brand Name | ckt |
|---|
Product description
-
Specifications:
- Base material: FR4
- Layer count: 2
- Board thickness: 1.00mm
- Copper thickness: 1oz
- Surface finish: immersion gold
- Solder-mask color: green
- Sizes: 99.03 x 61.96/1up
- Base material: FR4, aluminum, FPC and copper
- Copper thickness: 0.5oz (minimum)
- Copper thickness: 4oz (maximum)
- Board thickness: 0.2mm (minimum)
- Board thickness: 3.2mm (maximum)
- Surface finish: HAL, ENIG, OSP, gold finger and chemistry tin
- Possible solder mask colors: green, black, white, yellow and blue
- Board dimension: 600 x 1,000mm
- Hole diameter: 0.2mm (minimum)
- Line width: 0.075mm (minimum)
- Line spacing: 0.075mm (minimum)
- SMT pitch: 30 degrees (minimum)
- Annular ring: 0.05mm (minimum)
- Aspect ratio: 11:01
- Surface/hole plating tolerance
- Hole tolerance (PTH): 0.25mm
- Hole tolerance (NPTH): 0.15mm
- SM tolerance (LPI)
- Dimension
- Electrically test: supported
- RoHS marks: supported
- Possibility of SMT device mounting: supported
