Electrostatic Discharge Simulator

$1.00 / Set/Sets

Get Latest Price

Model No.	ESD61000-2
Brand Name	LISUN
place of origin	China

Product Description

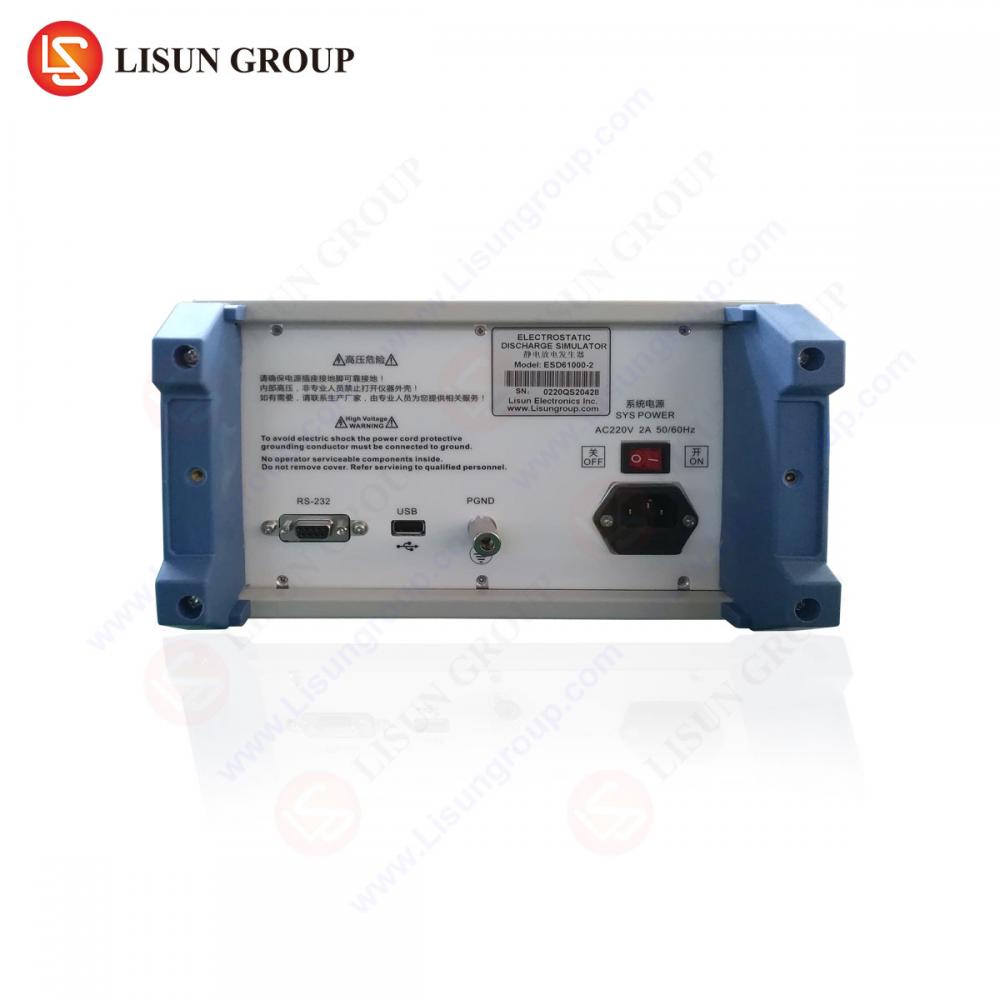

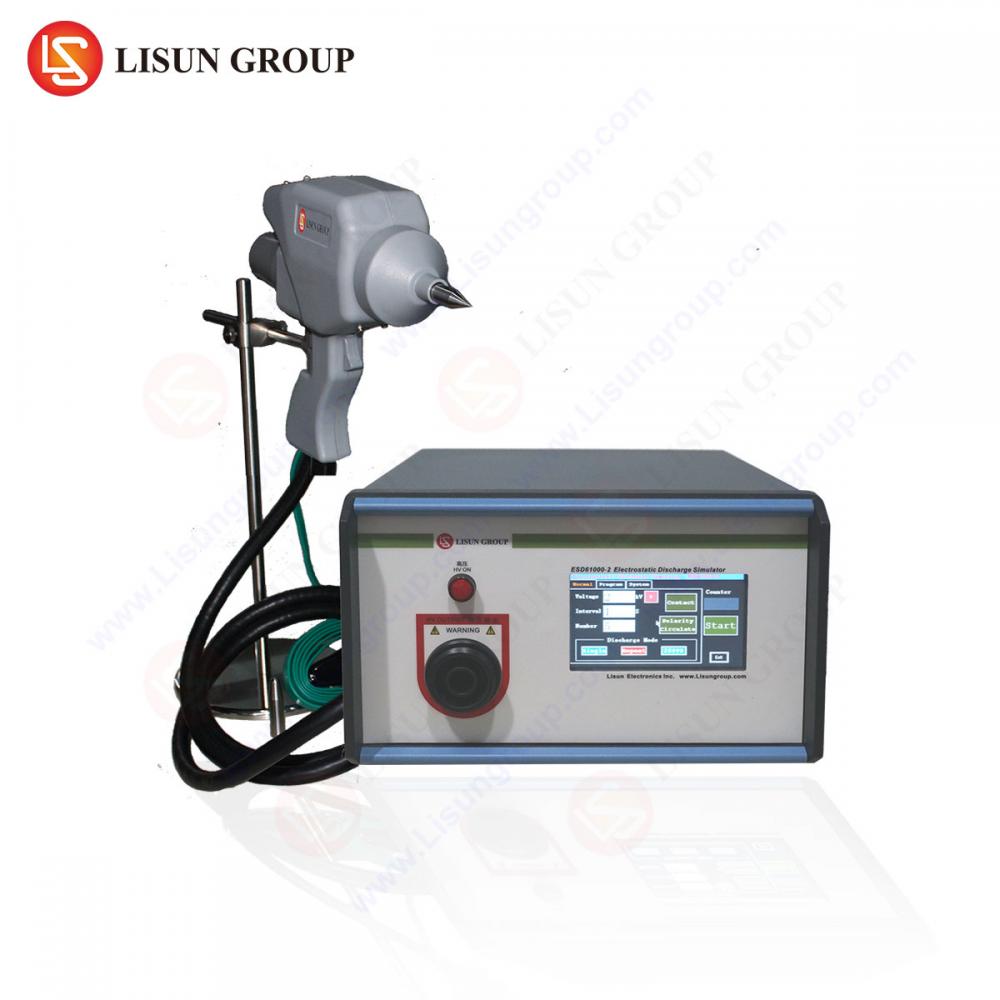

ESD simulator guns (Electrostatic Discharge Generator/Electrostatic Gun/ESD Guns) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322.

What is a ESD test?

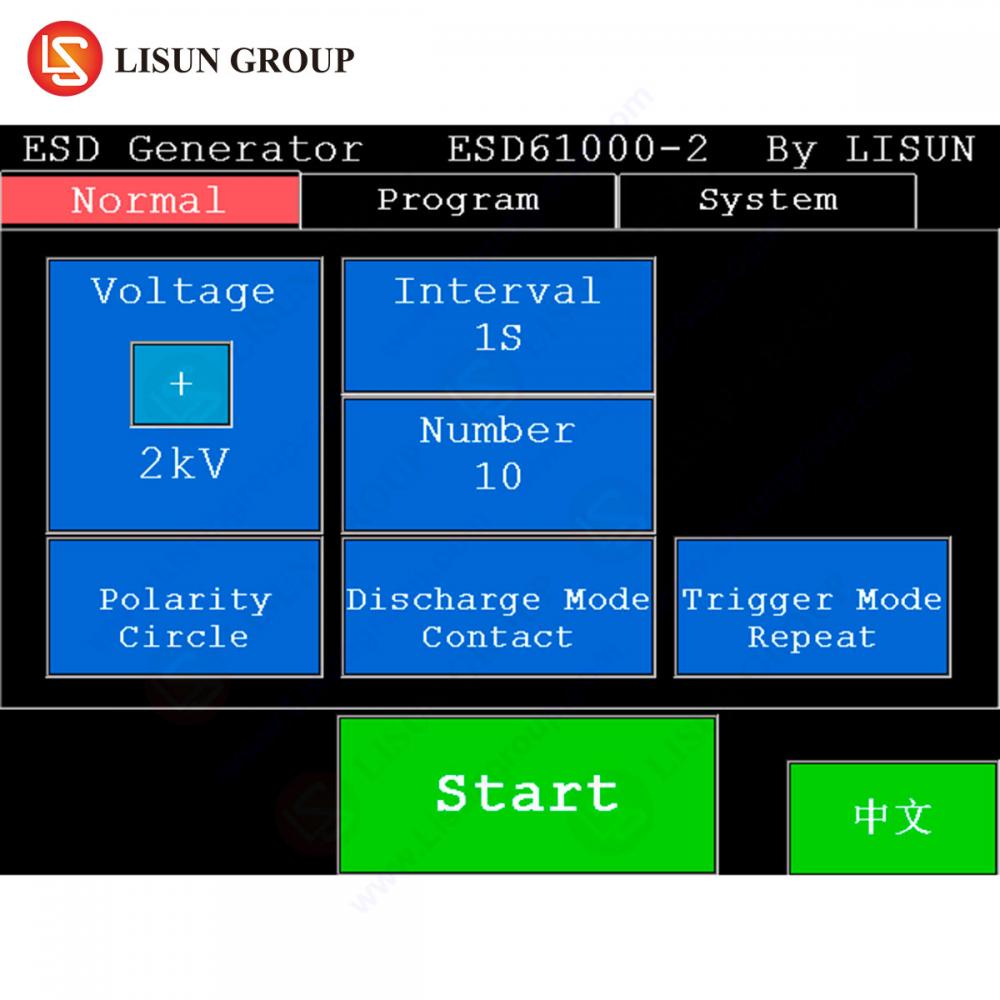

The static electricity generated by the human body to the object or between two objects may cause the electrical and electronic equipment circuits to malfunction or even be damaged. The ESD generator is designed for the withstanding ESD performance measurement for the assessment of electrical and electronic equipment. ESD61000-2/ESD61000-2A has a LCD touch screen in both English and Chinese.

What is an esd simulator gun used for?
Electrostatic discharge simulator is highest electrostatic voltage can be up to 30 kv, which is enough to cover the most severe standard grade of electrostatic voltage requirement (the voltage requirements of the grade 4 air discharge electrostatic is 15 KV). The ESD test gun can be used for the most of electrical and electronic equipment for electrostatic discharge test, and also can ensure comparability and reproducibility of test.

Specifications:

Product Model	ESD61000-2	ESD61000-2A
Output Voltage	0.1~20kV±5%	0.1~30kV±5%
Polarity	Positive/Negative	Positive/Negative
Energy Storage Capacitance	150pF±10% (Replaceable)	150pF±10% (Replaceable)
Discharge Resistor	330Ω±5% (Replaceable)	330Ω±5% (Replaceable)
Current Rise Time	0.6~1ns	0.6~1ns
Testing Functions	Single, Count, 20pps, Air, Contact, IEC level	Single, Count, 20pps, Air, Contact, IEC level
Trigger Mode	MANUAL/AUTO	MANUAL/AUTO
Numbers of Discharge	1~9999	1~9999
Repetition	0.05s~99.99s	0.05s~99.99s
Working Power	AC220V (Option 110V) ±10%, 50/60Hz	AC220V (Option 110V) ±10%, 50/60Hz

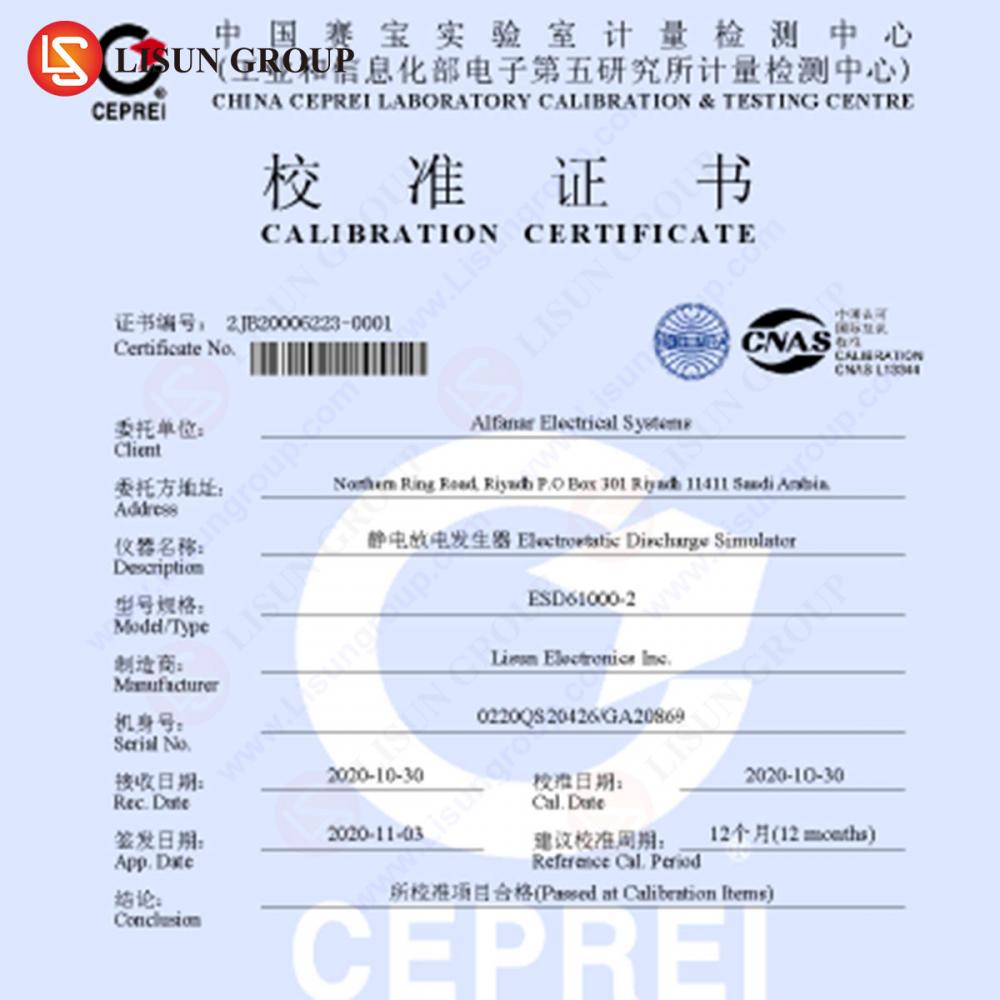

Calibrate Report:

Output Voltage (kV)	First Peak Current (A)	Current at 30ns (A)	Current at 60ns (A)	Rise Time (ns)
2	7.29	4.10	2.20	0.93
4	15.40	7.90	4.30	0.97
6	23.20	12.10	6.50	0.97
8	29.40	16.20	9.30	0.89
-2	7.39	3.50	2.30	0.92
-4	15.50	7.70	4.30	0.89
-6	23.40	11.90	6.30	0.90
-8	31.80	16.10	8.20	0.90
