ELM WIFI OBD2 CAN-BUS Automotive Scan Tools support IPHONE

●  High quality, good feedback 100%

●  Fast delivery with big stock, lowest price from China

●  With life-long warranty directly from our factory

More from web:obdiifactory.com

WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.

Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

Following are some of the parameters which could be read from the vehicle.

    ◆Vehicle Speed

    ◆RPM

    ◆Fuel Consumption*

    ◆Engine Coolant Temp

    ◆Fuel Pressure

    ◆Calculated Engine Load

    ◆Throttle Position

    ◆Intake Manifold Pressure

    ◆Air Intake Temp

    ◆Timing Advance

    ◆Mass Air Flow

    ◆Fuel Level

    ◆Barometric Pressure

    ◆EVAP System Vapor Pressure

    ◆Fuel Trim

Output Protocol: RS232 to WIFI

Frequancy: 38400

Voltage: 12V

Current: 45mA

WIFI: Yes

Switch: NO

Supported platform: iPhone, Android, Symbian, Windows Mobile, palm, pc, pocket pc.



Software:

1. For Andyiod: Torque+1.5.58+

2. For Symbian: OBDScopev1.21

For WindowMobile-palm-pc-pocket pc:

3. ScanMaster--ELM v2.1-pc

4. PCMSCAN-pc

5. OBD2Spy

6. ELM327-V1.2-pc

7. EasyOBDII

8. WOBDCRAZY

Software CD is included.

Size: 88*46*25



Vehicles supported:

Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

Acura

Alfa Romeo

Ariel Atom

Aston Martin

Audi

Bentley

BMW

Buick

Cadillac

Chevrolet

Chrysler

Citroen

Daewoo

Daihatsu

Daimler

Dodge

Ferrari

Fiat

Ford

Geo

GMC

Holden

Honda

Hummer

Hyunda

Infiniti

Isuzu

Jaguar

Jeep

Kia

Lamborghini

Lancia

Land Rover

Lexus

Lincoln

Lotus

Maserati

Mazda

McLaren

Mercedes

Mercury

MG

Mini

Mitsubishi

Nissan

Oldsmobile

Opel

Pagani

Panoz

Peugeot

Plymouth

Pontiac

Porsche

Regal

Renault

Rolls-Royce

Roush

Rover

Saab

Saleen

Saturn

Seat

Scion

Shelby

Skoda

Smart

Subaru

Suzuki

Tesla

Toyota

Triumph

TVR

Vauxhall

Volkswagen

Volvo

Yugo

.....

Packing List

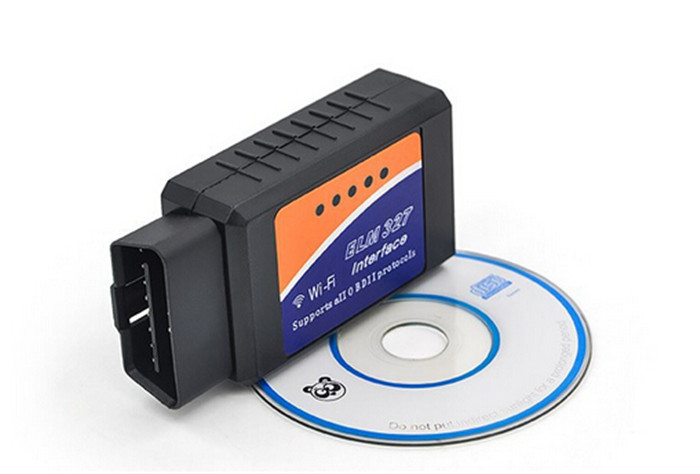

1 * Wi-Fi ELM 327

1 * CD with software
