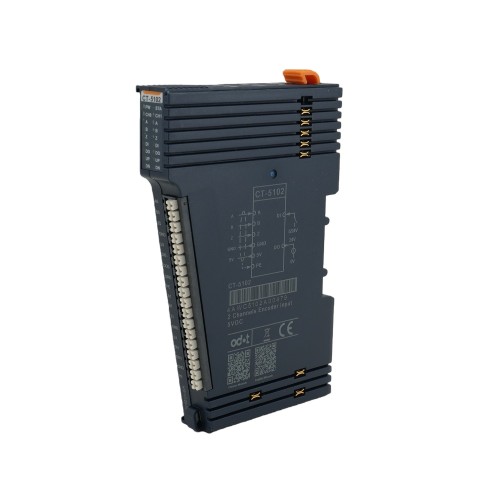

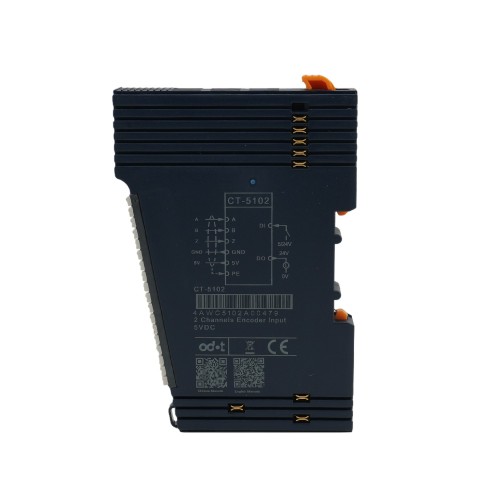

CT-5102 Encoder Input Module 2 Channel 5VDC

The CT-5102 Encoder Input Module from Sichuan Odot Automation is a high-performance, dual-channel interface designed for precision motion control and real-time position feedback in demanding industrial applications. It supports both A/B quadrature incremental encoders and pulse-direction encoders, with 5VDC signal compatibility and flexible sourcing/sinking input configurations—making it ideal for servo motors, rotary encoders, and linear displacement sensors.?

With a maximum input frequency of 1.5 MHz and selectable x1/x2/x4 quadrature decoding, the module delivers ultra-high resolution for applications like high-speed pick-and-place, laser cutting, packaging machinery, and AGV navigation.?

Each channel includes one digital input (5V/24V compatible), one 5V digital output, and a dedicated 5V power output to directly power connected encoders—reducing external wiring complexity. Magnetic isolation between the internal bus and field signals ensures robust immunity against electrical noise, while 16 LED indicators provide clear visibility of encoder status, direction, power, and communication. Built-in measurement functions enable real-time calculation of load speed or signal frequency, supporting predictive maintenance.?

As a core motion-sensing component of the ODOT open automation platform, the CT-5102 delivers reliable, responsive, and easily integrable position feedback for next-generation smart manufacturing.

Technical Parameters

General parameters
Power	Max.60mA @ 5.0Vdc
Isolation	I/O to internal bus: magnetic isolation (3KVrms)
Field Power	Nominal:24Vdc, Range: 19.2-28.8Vdc
Wiring	I/O Wiring： Max.1.5mm2(AWG 16)
Mounting Type	35mmDIN-Rail
Size	1151475mm
Weight	65g
Environment Specification
Operational Temperature	-35~70℃
Operational Humidity	5%~95% RH(No Condensation)
Protection Class	IP20
Input Parameters
Channel Number	2-channel encoder?
LED Indicator	16 channel input LED indicator
Encoder signal voltage range	ABZ input standard 5Vdc, range ±10%
Encoder input impedance	Internal pull-up or pull-down resistance 4.7K
Encoder filtering time	Could be set, the default value is 0.5 us
Encoder count frequency	<1.5MHz
Encoder frequency multiplication mode	x1/x2/x4
Encoder measurement function	Load speed or input signal frequency measurement
DI turn-on voltage	Min.5Vdc to Max.28Vdc
DI turn-off voltage	Max.2.7Vdc
DI turn-on current	Max.5mA/channel @ 28V
DI input impedance	>10.0kΩ
DI input delay	OFF to ON: Max.3ms;ON to OFF: Max.2ms
DO output voltage	5V，range ±10%
DO output current	Max.500mA
DO output sink current	Max.5uA

Application scenarios:

FQA

Q：Input type?

A: 5V input, quadrature decoding/direction pulse/high-speed counting.

Q：Max input frequency?

A: 1.5MHz.

Q:Applications?

A: Motion control, position feedback systems.

Certifications & Quality Assurance:

ODOT products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.
