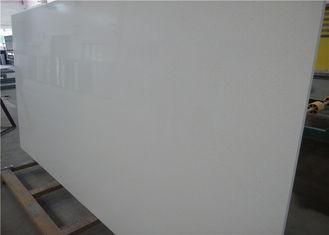

High Hardness White Artificial Quartz Stone Slabs / Quartz Tile / Quartz Worktop

MAINTENANCE FREE

Holy Quartz Stone does not require sealing or regular maintenance. Soap, water, and mild household

cleaners are all that is needed to keep Holy Stone Quartz Surfaces looking good for years!

ECO FRIENDLY

We think about our environment when we engineer our quartz surfaces. Holy Quartz Stone is committed

to using as many recycled materials as possible in our manufacturing process. We will always strive to

achieve a higher recycled content in our products to protect our natural resources.

Engineered Quartz Stone Size :

Standard Size : 3000mm x 1400mm ; 3200mm x 1600mm .
Cut-to-size : 300mm x 300mm / 400mmx400mm / 300mm x 600mm / 600mm x 600mm / other customized size .
Thickness : 12mm , 15mm , 20mm , 30mm
Sample size : 100mm x 100mm x 20mm

Engineered Quartz Stone Applications :

Engineered quartz stone is widely used for kitchen tops , countertops , benchtops , worktops , table tops , island tops , vanity tops , bar tops , office reception desk , bathroom , soap dish , mosaic tiles , backsplashes , shower caddy , curb caps , panels , wall, flooring , and also used for airport , metro , exhibition center , showroom , shopping mall , hotel , etc .

Holy Quartz Stone Features :

1 . Non-porous surface : ensure its high scratch resistance and resistance to stains , heat , corrosion , bacteria

2 . Super hardness : Moh’s hardness can reach 7

3 . Low water absorption

4 . Safety , No radiation , durability

5 . Easy maintenance & Care

6 . Green guard : it is composed of 93% natural materials , including recycled glass and recycle stone

Engineered Quartz Stone Specification:

CHARACTERISTICS	UNIT	RANGE OF VALUES
		Quartz Stone	Marble/Granite
Density	Kg/d m3	2.3 - 2.4	2.35-2.45
Water absorption	% (Masse) % (Volume)	<0.08 0.1- 0.2	0.04
Flexural strength (Modulus of rupture)	Mpa Mpa	35-58 41.3 - 56.8	38.5
Compressive strength	Mpa	120 - 240	---
Surface scratch hardness	Mohs	6 - 7	5
Resistence to deep abrasion	c m3 /50c㎡ index m m3	6.0 - 10.0 58 - 63 116 - 165	--- --- 215
Coefficient of linear thermal expansion	m/m°C	10 - 30x10-6	10 - 26x10-6
Dimensional stability	---	Class A	Class A
Surface slip resistance	---	Honed400 R9	Honed 400 R9
Resistance to chemicals(acids)	---	Not affected	---
Frost resistance	---	Complies with the standards	---
Combustion reaction	---	B1	B1
Surface spread of flame	---	Suitable	---

Production process :

(1) Excellent raw materials

(2) Materials mixing
(3) Molding
(4) Pressing materials as slabs under a very high pressure and vacuum condition

(5) Curing at a high temperature
(6) Solidify
(7) Polishing
(8) Inspecting

(9) Slabs cover by plastic film and packing

Quartz slabs and tiles container loading details:

Slab Size	Thickness	PCS/bundle	Bundles/20'	PCS/20'	SQM/20'	KGS/Bundle	KGS/20'
3000mm x 1400mm	12mm	25	7	175	735	3150	22050
3000mm x 1400mm	15mm	20	7	140	588	3150	22050
3000mm x 1400mm	20mm	15	7	105	441	3150	22050
3000mm x 1400mm	30mm	10	7	70	294	3150	22050
3200mm x 1600mm	12mm	25	7	175	896	3840	26880
3200mm x 1600mm	15mm	20	7	140	716.8	3840	26880
3200mm x 1600mm	20mm	15	7	105	537.6	3840	26880
3200mm x 1600mm	30mm	10	7	70	358.4	3840	26880

Tile Size	Thickness	PCS/ctn	CTN/pallet	Pallet/20’	PCS/20’	SQM/20'	KGS/20'
300mm x 300mm	12mm	8	48	23	8832	794.88	24000
300mm x 600mm	12mm	6	32	23	4416	794.88	24000
600mm x 600mm	12mm	3	32	23	2208	794.88	24000
300mm x 300mm	10mm	10	60	20	12000	1080	27500
300mm x 600mm	10mm	8	40	18	5760	1036.8	27000
600mm x 600mm	10mm	4	36	20	2880	1036.8	27000

1 . Premium level quartz raw material

Holy Quartz maintains a vast network of steady raw material suppliers in southern Guangdong and Guangxi region of China , to ensure quality and consistency of materials is always achieved . Holy Quartz has exclusivity agreements with quarry owners for the procurement of premium level quartz . Furthermore , our procurement team does a rigorous inspection before raw materials are shipped to the factory for production .

2 . Advanced quartz production machinery

Advanced quartz production machinery and equipment contribute to a wide range of innovative functions as well ensuring highest quality level of quartz slabs . We adopt new techniques and use hydraulic pressure production machinery . The pressure is uniformly during production process , which makes our quartz slabs are higher density and better planeness than other manufacturers whom use air pressure production machinery .

3 . Sectional type heating curing process

The traditional heating curing process other factories use is one step heating . Our factory use unique and brand new curing kiln . Our sectional type heating curing process is divided in four stages , preheat zone , heating zone , high temperature zone , which makes internal molecular structure of slabs generate chemical reaction , and avoids dark lines and crack on slabs caused by suddenly heating or cooling .
