Basic Info

Model No.	EPP-19001450STJN
Brand Name	SuTuan
place of origin	China
status	New
Certification	Ce
warranty period	1 Year
Out-of-warranty service	Field Maintenance And Repair Service, Online Support, Video Technical Support
Where to provide local services (in which countries are there overseas service outlets)	Egypt, Turkey, Thailand, Viet Nam
Showroom location (in which countries are there sample rooms overseas)	None
Applicable industry	Manufacturing Plant, Farms, Construction Works
Marketing type	Ordinary Product
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Motor, Pump, Plc
Color	Custom
After Warranty Service	Provide
Automatic	Full-Auto

Product description

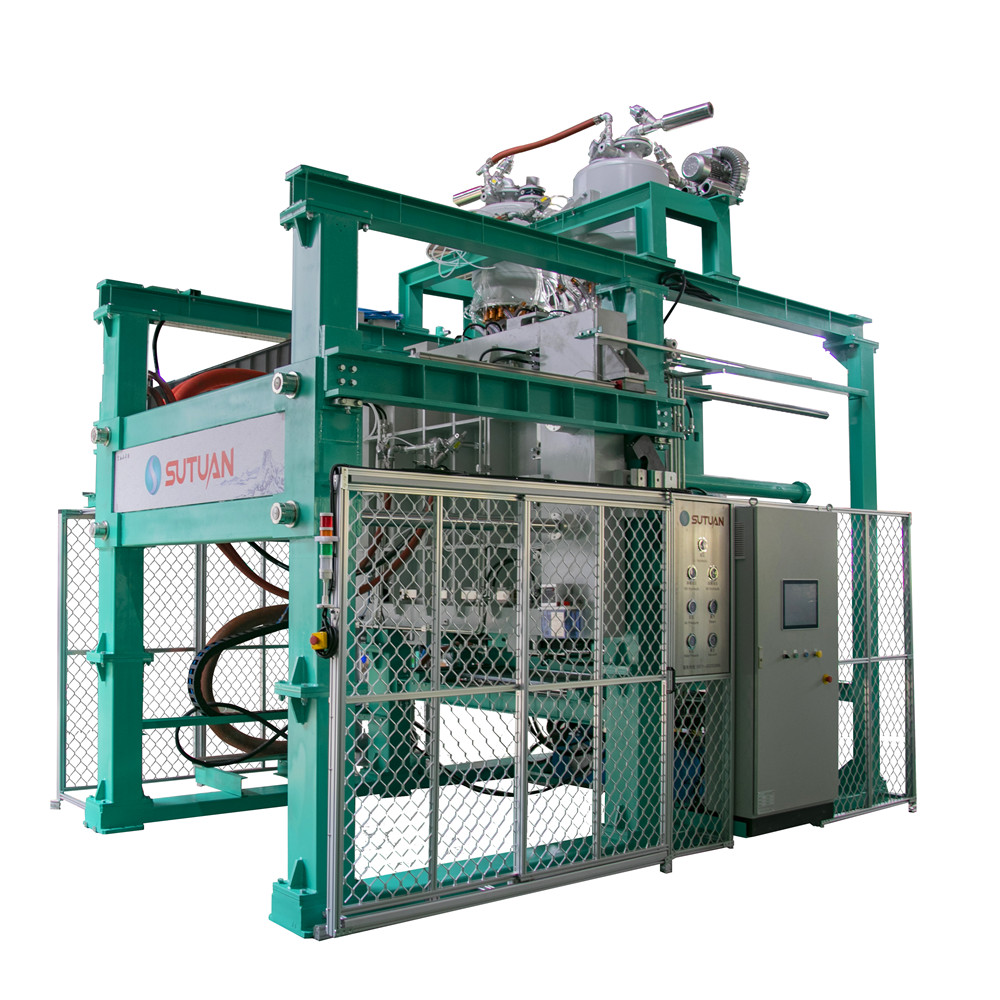

EPP Efficient High-end Mould Change Machine

Famous brand hydraulic components, differential pressure system design, can achieve high speed, low noise operation, the fastest opening and closing mold speed can reach 350mm/ s, can achieve high speed, efficient and stable operation; Two-point opening and closing mold, the latest mold locking mechanism technology, stable mold locking pressure, to ensure no leakage during production, effectively improve the utilization rate of energy consumption (steam).
The inlet, outlet and diameter of the piping system are optimized to minimize the waste of energy consumption and improve the response speed. The design of cooling water pipe makes water cooling fast and efficient; Mold cavity copper tube ring design, so that the product contact surface is more extensive, cooling more fully, the product surface is more smooth.
The use of electric digital proportional valve: Adopt imported electric digital proportional valve plus linear position sensor, efficient and accurate control Angle seat valve proportional opening, combined with digital pressure sensor, so that the cavity pressure can line character stability, change the traditional equipment of analog control valve switch two kinds of action, and to import valve to ensure the stability of product quality, At the same time effectively save steam, air and other energy consumption; EPP molding machine The latest heating system bypass pipeline design, can effectively reduce the forming time and steam energy consumption.Hangzhou Sutuan Machinery longtime working people focus on EPS Machines and others including designing,producing,installing,and service etc . High efficient and Energy-Saving Environmental.The main products include Pre Expander, Forming Machine, Block Machine, Cutting Machine.

Model				EPP-14001200STJN	EPP-17001400STJN	EPP-19001450STJN
Parameter			Unit	EPP-14001200STJN	EPP-17001400STJN	EPP-19001450STJN
Overall Dimensions			mm	5363×3310×4852	5363×3610×5152	5363×3710×5352
Die Surface Size			mm	1400×1200	1700×1400	1900×1450
Height Of Product			mm	350	350	350
Moud Opening Dstance			mm	1200	1200	1200
Guide Post	Diameter		mm	80	100	120
Guide Post	Number		支	4	4	4
Oil cylinder	Inner Diameter		φ	80	100	125
	Stroke		mm	1200	1200	1200
	Die Locking Force		bar	18086	28260	44156
Charing Basket	Volume		L	145	145	145
Charing Basket	Number		個	2	2	2
Steam	Import		DN	100	100	100
	Entrance Of Mold		DN	4-5	4-5	4-5
	Prressure		bar	4-5	5-6	6-7
Cooling	Import		DN	80	80	80
	Entrance Of Mold		DN	25×2	25×2	52×4
	Pressure		bar	4-4.5	4-4.5	4-4.5
Vacuum	Interface			100	125	125
Vacuum	Outfall		L/h	100	100	100
Air	Low Pressure	Entrance	DN	65	65	65
	Low Pressure	Pressure	bar	5~6	5~6	5~6
	High Pressure	Entrance	DN	50	50	50
	High Pressure	Pressure	bar	6~7	6~7	6~7
Hydraulic	Motor		KW	7.5	11	11
Hydraulic	Tank Capacity		L	400	400	400
